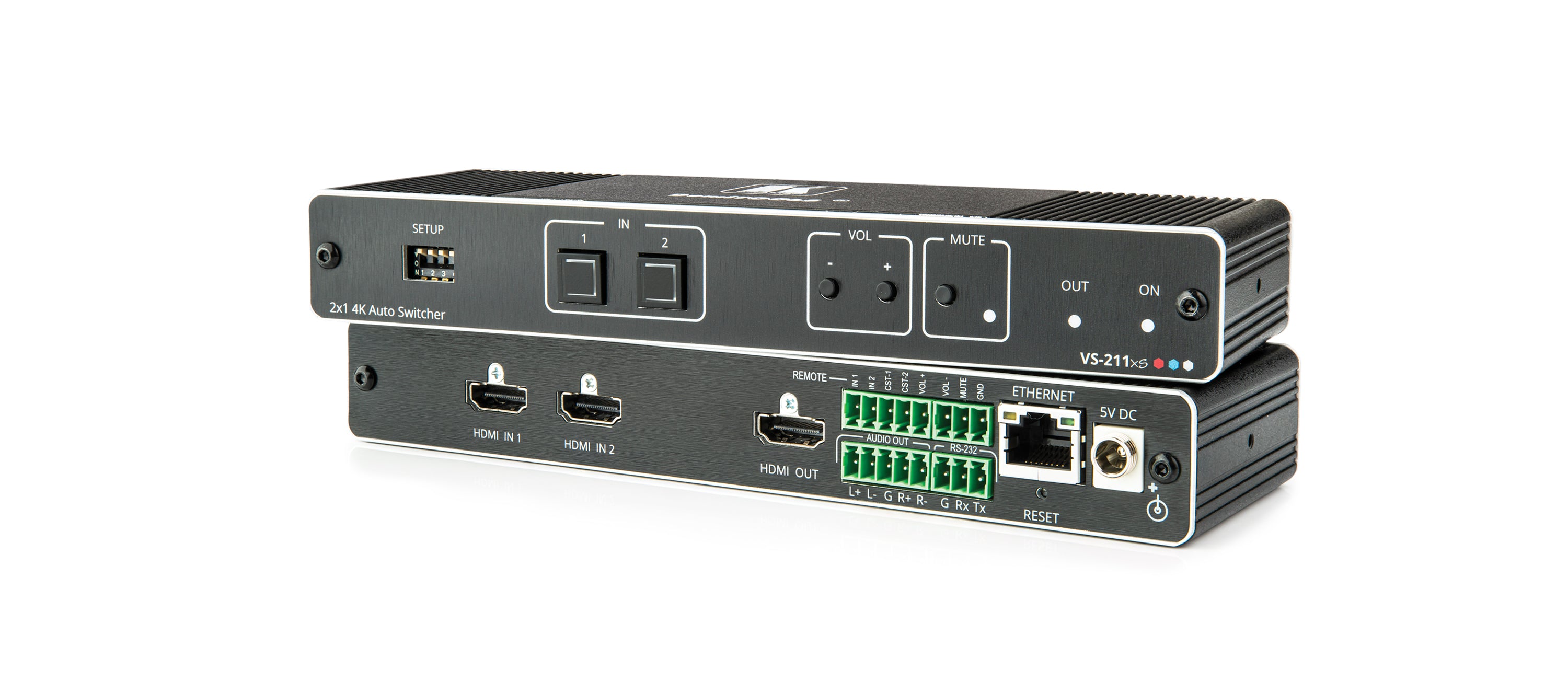

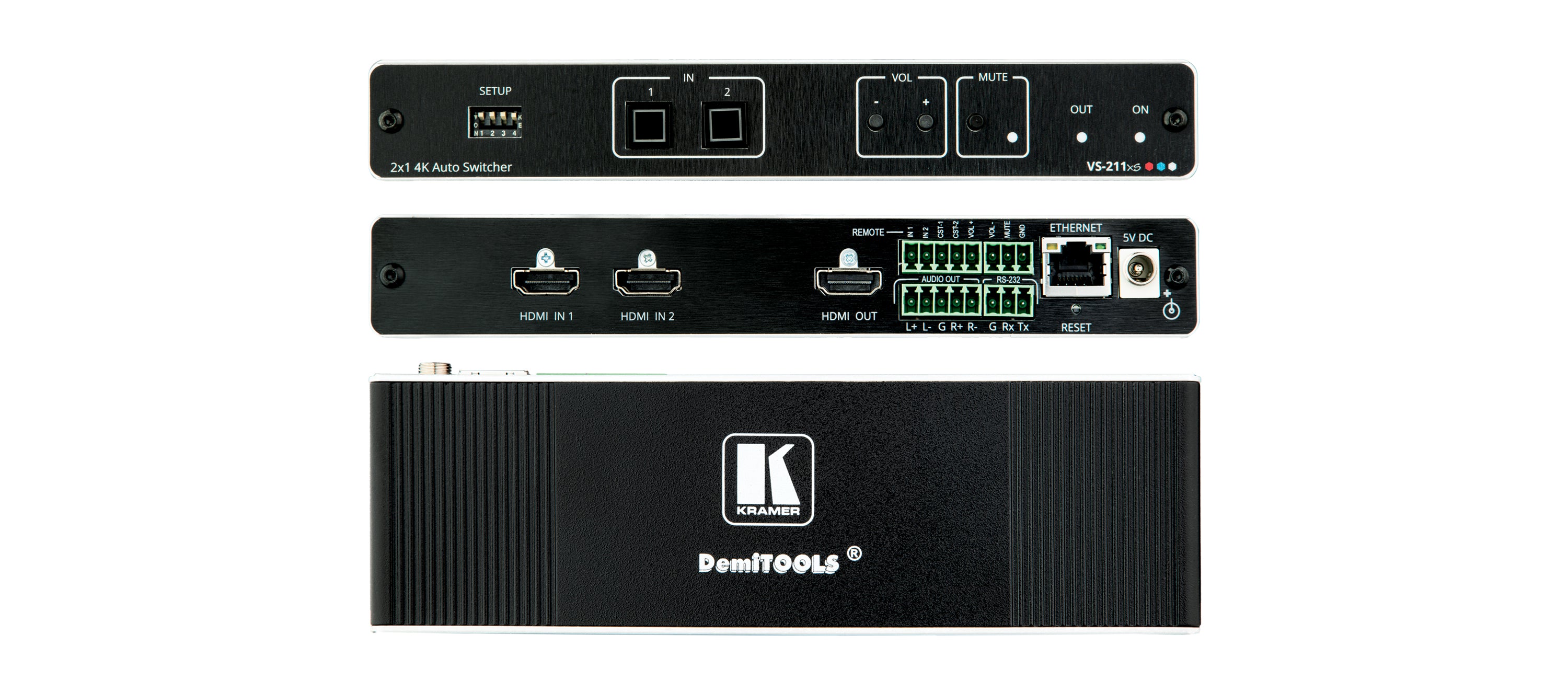

VS-211XS 2x1 4K HDR HDMI Intelligent Auto Switcher

An HDMI switcher and an HDMI splitter solve different problems. A switcher lets you connect multiple source devices, such as a laptop and a media player, to one display and choose which source appears on screen. A splitter does the opposite: it takes one source and sends it to multiple displays. The VS-211XS is a 2x1 4K HDMI switcher, so it is designed for rooms where two HDMI sources need to feed one display. It can switch automatically based on priority, last-connected input, or manual control. That makes it useful in meeting rooms, classrooms, and collaborative spaces where users want simple source selection without extra remotes or manual intervention. If your goal is to show one image on several screens, you need a splitter, not this product. If your goal is to simplify source selection for a single display while keeping support for 4K HDR, HDCP 2.2, CEC, and multi-channel audio, a switcher like this is the correct category.

Yes. The VS-211XS supports up to 4K at 60Hz with 4:4:4 chroma, which is the level many buyers look for when they want full-quality UHD signal handling for modern displays and source devices. It also supports HDMI 2.0, HDCP 2.2, deep color, and HDR-compatible 4K signal switching. That matters for users connecting current laptops, streaming devices, media players, or conferencing systems to a 4K flat panel or projector. In practical terms, it is built for installations where image detail, color fidelity, and compatibility with protected 4K content are important. The main limitation to keep in mind is that overall system performance still depends on the connected cables, display, and source devices. A 4K-capable switcher cannot improve a lower-resolution source, and non-compliant cables can still cause handshake or bandwidth issues. For buyers who need reliable 4K room switching between two HDMI sources and one display, this model fits that use case well.

The best 4K HDMI switcher for a meeting room or classroom should match the room workflow, not just the resolution spec. Key things to look for are 4K60 4:4:4 support, HDCP 2.2 compatibility, automatic switching, simple control options, and integration with display and audio systems. The VS-211XS checks those boxes for smaller rooms that use two HDMI sources and one display. It supports 4K HDR signal switching, offers automatic modes such as priority and last-connected switching, and includes Ethernet, RS-232, contact-closure control, and built-in Maestro room control. It also provides analog audio de-embedding, which is helpful when display audio is not enough and the room uses external speakers or a professional sound system. This type of switcher is best for huddle rooms, classrooms, and training spaces where users want the display to respond automatically when a source is connected. If a room needs more than two inputs, multiple outputs, or advanced scaling between mismatched resolutions, a larger or more specialized switcher may be the better choice.

Automatic HDMI switching detects source activity and changes the displayed input without requiring someone to press a button. On the VS-211XS, users can choose different switching behaviors, including priority-based switching, last-connected switching, or manual control. This is especially useful in shared rooms where people regularly plug in laptops or other HDMI devices. For example, in a classroom or meeting space, the switcher can automatically display a presenter’s source as soon as it is connected. That reduces setup confusion and helps the room feel easier to use, especially for guests or occasional users. The product also supports CEC-based display control tied to signal detection, so a compatible display can be powered or controlled automatically when a source becomes active. The tradeoff is that automation works best in rooms with a clear usage pattern. If multiple people connect sources at the same time or the room needs strict manual control, users may prefer to set input priority or use external control through Ethernet, RS-232, or contact closure.

A 2x1 HDMI switcher is enough when the room only needs to switch between two source devices and one display. That is common in huddle rooms, small conference rooms, training areas, and classrooms where the typical workflow is a resident PC plus a guest laptop. The VS-211XS is designed for exactly that kind of setup. It gives you two HDMI inputs, one HDMI output, automatic or manual switching, and several control methods for integration into a professional AV system. Its built-in room control and CEC support also help simplify operation in smaller spaces. A 2x1 model may not be enough if your room needs several user inputs, multiple displays, wireless collaboration sources, or matrix-style routing. In those cases, a larger switcher or matrix system would be more appropriate. Buyers should think first about how many devices will be connected at the same time. If the real need is only two HDMI sources to one projector or flat panel, a compact 2x1 switcher is often the cleanest and simplest solution.

Yes. The VS-211XS is built to work with 4K projectors and 4K flat panel displays that accept HDMI signals, including systems that require HDCP 2.2 for protected content. It supports 4K at 60Hz with 4:4:4, along with HDMI 2.0, HDR-compatible signal handling, and CEC support for compatible display control. That makes it a practical fit for modern AV environments using laser projectors, 4K projectors, or commercial displays in meeting and education spaces. It is particularly useful where two presentation sources need to feed a single screen with minimal user involvement. As with any HDMI system, compatibility still depends on the entire signal chain. The display must support the required resolution and standards, the source device must output the expected format, and the cables must handle full bandwidth. If all connected equipment is 4K-capable, this switcher can serve as a reliable source-selection point between the display and the connected devices.

Yes. The VS-211XS supports multi-channel audio up to 32 channels in the HDMI stream and also includes analog audio de-embedding. That means it can separate audio from the HDMI signal so the sound can be sent to an external amplifier, DSP, or professional speaker system. This is valuable in meeting rooms, classrooms, and training spaces where the display’s built-in speakers are not powerful enough or where the room uses dedicated ceiling speakers or sound reinforcement. Instead of relying only on the display for audio, installers can integrate the switcher into a more complete AV system. The benefit is strongest in professional environments where audio quality and routing flexibility matter. The tradeoff is that buyers should confirm the exact audio connections and downstream equipment requirements during system design. For rooms that need both 4K HDMI switching and better sound integration, audio de-embedding is a meaningful feature rather than just a specification line.

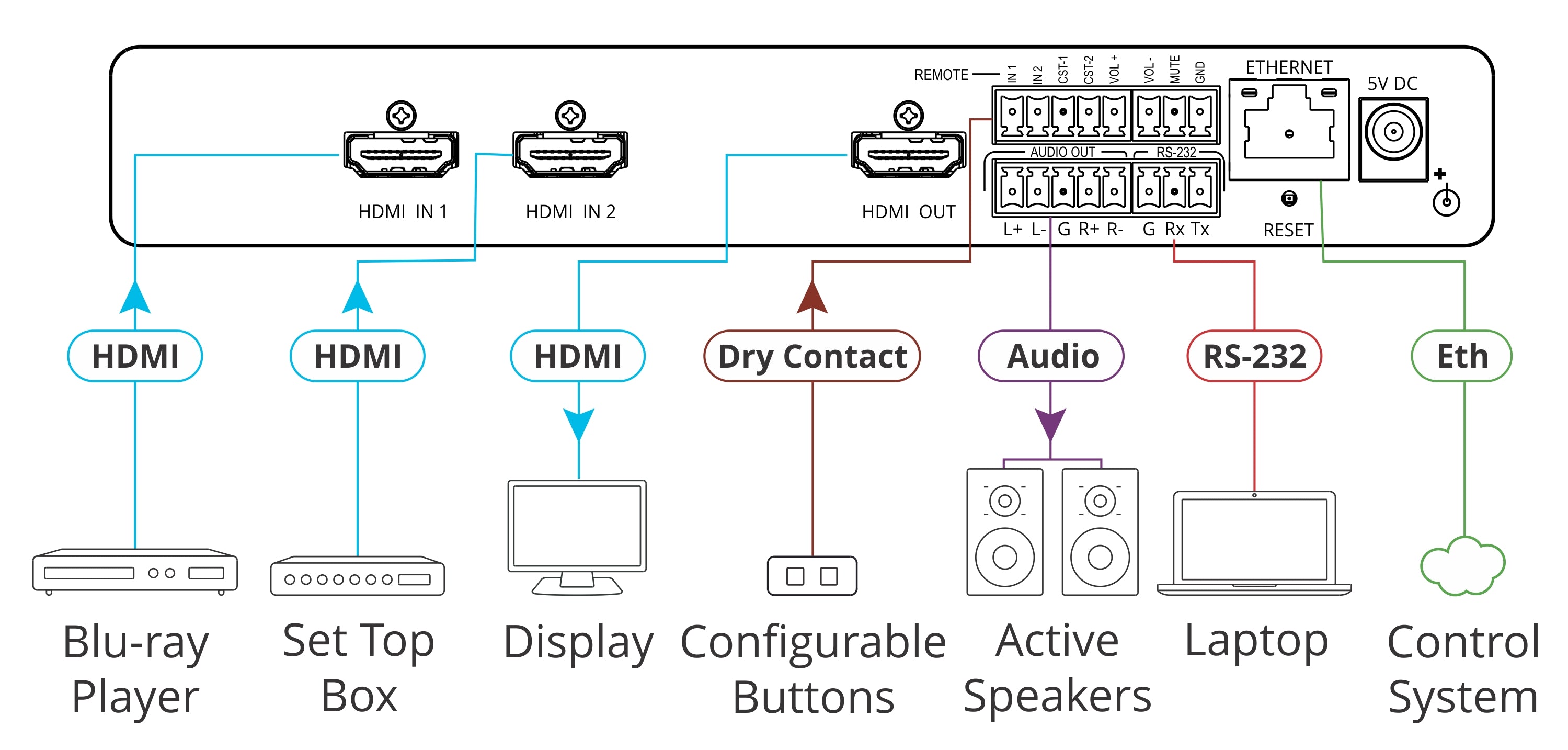

The VS-211XS offers several control methods, which makes it suitable for both simple rooms and integrated AV environments. It supports Ethernet control, RS-232, contact-closure buttons, and built-in Maestro room control. It also supports CEC control for compatible displays based on signal detection. This range of control options gives installers flexibility. In a basic room, the switcher can operate automatically with little user interaction. In a more advanced setup, it can be tied into room automation, wall buttons, scheduling logic, or a central control system. That is helpful for organizations that want consistent operation across classrooms, conference rooms, or training spaces. The built-in room control is especially useful for buyers who want out-of-the-box automation without adding as many separate control components. A limitation is that not every room needs this level of integration. For a very simple consumer setup, these features may be more than necessary. For professional AV applications, however, broad control support is often a deciding factor.

Yes, if the room uses CEC-compatible displays and the goal is to simplify everyday operation. The VS-211XS can automatically control a connected display based on signal detection, which helps the room behave more intuitively when a source is plugged in or becomes active. In a shared presentation space, that can reduce common user frustrations such as forgetting to turn the display on, selecting the wrong input, or needing technical help just to start a meeting. Combined with automatic source switching, the switcher can make a small room feel more user-friendly and reduce setup time. This is best suited to conference rooms, huddle spaces, classrooms, and training rooms with predictable usage patterns. The key tradeoff is that CEC behavior can vary by display model, so full real-world performance depends on the connected screen. Buyers who want a compact switcher that does more than just pass video, especially one that helps automate room behavior, will find this kind of feature set particularly useful.

This 4K HDMI switcher is best suited for small professional AV spaces that need reliable switching between two HDMI sources and one display. Typical users include conference rooms, classrooms, training rooms, and collaborative spaces where a resident device and a guest device both need easy access to a projector or flat panel. The VS-211XS is a strong fit for buyers who want more than basic source selection. It combines 4K60 4:4:4 support, HDCP 2.2, HDR-compatible signal handling, automatic switching modes, analog audio de-embedding, and multiple control interfaces in a compact fan-less enclosure. The table or rack mounting flexibility also helps in clean commercial installations. It is less ideal for rooms that require many inputs, multiple displays, or video scaling between different formats. It is also more installation-oriented than a simple home entertainment switch. For organizations that want a compact, professional HDMI auto switcher with room-control and automation features, it fits a clear and practical niche.
