VigilLink GeoBox G812 2 Channel 4K Edge Blending Projection Processor

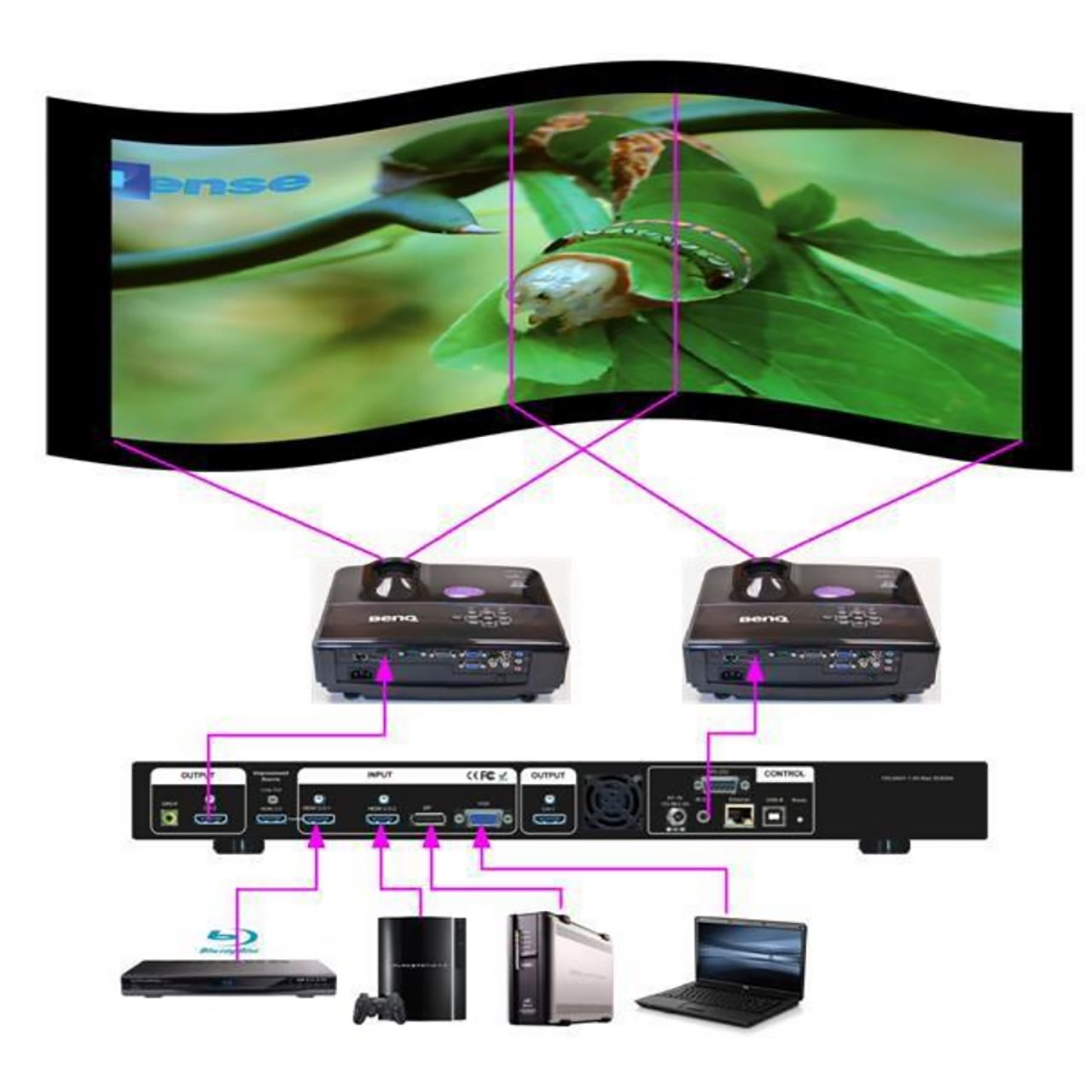

An edge blending processor aligns and overlaps images from two or more projectors so they appear as one seamless picture. You typically need one when a single projector cannot cover the screen size, shape, or brightness requirement for the installation. Common examples include immersive rooms, curved screens, projection mapping, simulation environments, museums, and large-format digital displays. The VigilLink GeoBox G812 is built for that type of job. It combines two-channel edge blending with image warping and geometry correction, so installers can fine-tune projector overlap and screen alignment without relying on a separate external splitter. It supports high-resolution 4K inputs through HDMI 2.0b and DisplayPort 1.2a, then outputs up to 2048x1080 at 60Hz on each channel. This type of processor is best for professional AV users who need precise multi-projector setup and a cleaner system design. The main tradeoff is that it is not meant for simple single-projector rooms. If your display is flat, small, and covered by one projector, a processor like this is usually more advanced than necessary.

Choose an edge blending processor when you need multiple projectors to create one continuous image, especially on wide, curved, or immersive surfaces. Choose a video wall processor when you are dividing content across multiple displays or projection zones with more emphasis on image cropping, layout, and scaling than on seamless overlap. The VigilLink GeoBox G812 helps bridge both needs. It is primarily a 4K edge blending processor, but it also includes built-in video wall functionality. That means it can handle image cropping and overlap pixel settings internally, which reduces the need for external splitters in many projection setups. It is especially useful when you want a two-projector display to look unified while still having control over how the source image is split and positioned. This makes the G812 a strong fit for professional AV installations where projection blending and content layout both matter. The limitation is channel count. It is a 2-channel processor, so larger display arrays may require multiple units or a different architecture if you are building beyond a two-output design.

Yes, it is a strong option for curved screens and projection mapping when you need precise geometry correction and reliable multi-projector alignment. The key reason is its integrated warp technology, which supports detailed geometry adjustment on a 120x68 point grid. That level of control helps installers match the image to non-flat surfaces more accurately than basic keystone or corner correction. The VigilLink GeoBox G812 is designed for professional use cases where the screen shape is part of the challenge. Examples include curved immersive environments, domes, themed attractions, exhibits, and custom projection surfaces. It accepts 4K sources through HDMI 2.0b and DisplayPort 1.2a, which is helpful when high-detail content needs to be mapped cleanly. It is best for users who need fine-tuning flexibility and want edge blending plus warping in one device. The main tradeoff is that successful projection mapping still depends on the projectors, lenses, throw distance, and installation skill. The processor provides the alignment tools, but it does not replace the planning and calibration needed for complex surfaces.

Yes, a dedicated processor can provide more precise control than the basic blending tools built into many projectors. Built-in projector features are often useful for simple overlap, but they may offer limited adjustment points, less flexible signal handling, or fewer options for advanced warping on curved and irregular surfaces. The VigilLink GeoBox G812 is designed specifically for that higher level of control. Its geometry alignment supports up to a 120x68 point grid with pixel-level fine-tuning, which is far more detailed than standard corner correction or basic keystone adjustments. It also supports 10-bit 4:4:4 signal processing, helping preserve image detail and color fidelity from high-quality 4K sources. This is especially beneficial for professional AV integrators, simulation environments, immersive displays, and fixed installations where image accuracy matters. The tradeoff is setup complexity. A processor like this offers more precision, but it also requires more calibration time and a better understanding of projector placement, screen geometry, and source resolution.

The VigilLink GeoBox G812 is best suited for professional two-projector installations that need seamless image blending, geometry correction, and high-resolution signal support. It fits applications such as museum exhibits, experience centers, control rooms, simulation spaces, staging environments, houses of worship, higher education, and corporate AV spaces with extra-wide or curved screens. Its feature set is built around these needs. It accepts up to 4096x2160 at 60Hz or 7680x1200 at 30Hz, includes two HDMI 2.0b inputs plus DisplayPort 1.2a, and provides two HDMI outputs for a dual-channel display design. The built-in video wall and overlap settings simplify content splitting, while HDMI loop-out supports daisy-chaining for larger systems. This processor is a good fit for users who want one device to manage warping and edge blending without adding unnecessary external hardware. It is less appropriate for casual entertainment setups or small classrooms that only need a single projector. Its strengths are most valuable when the installation involves scale, shape, or precision challenges.

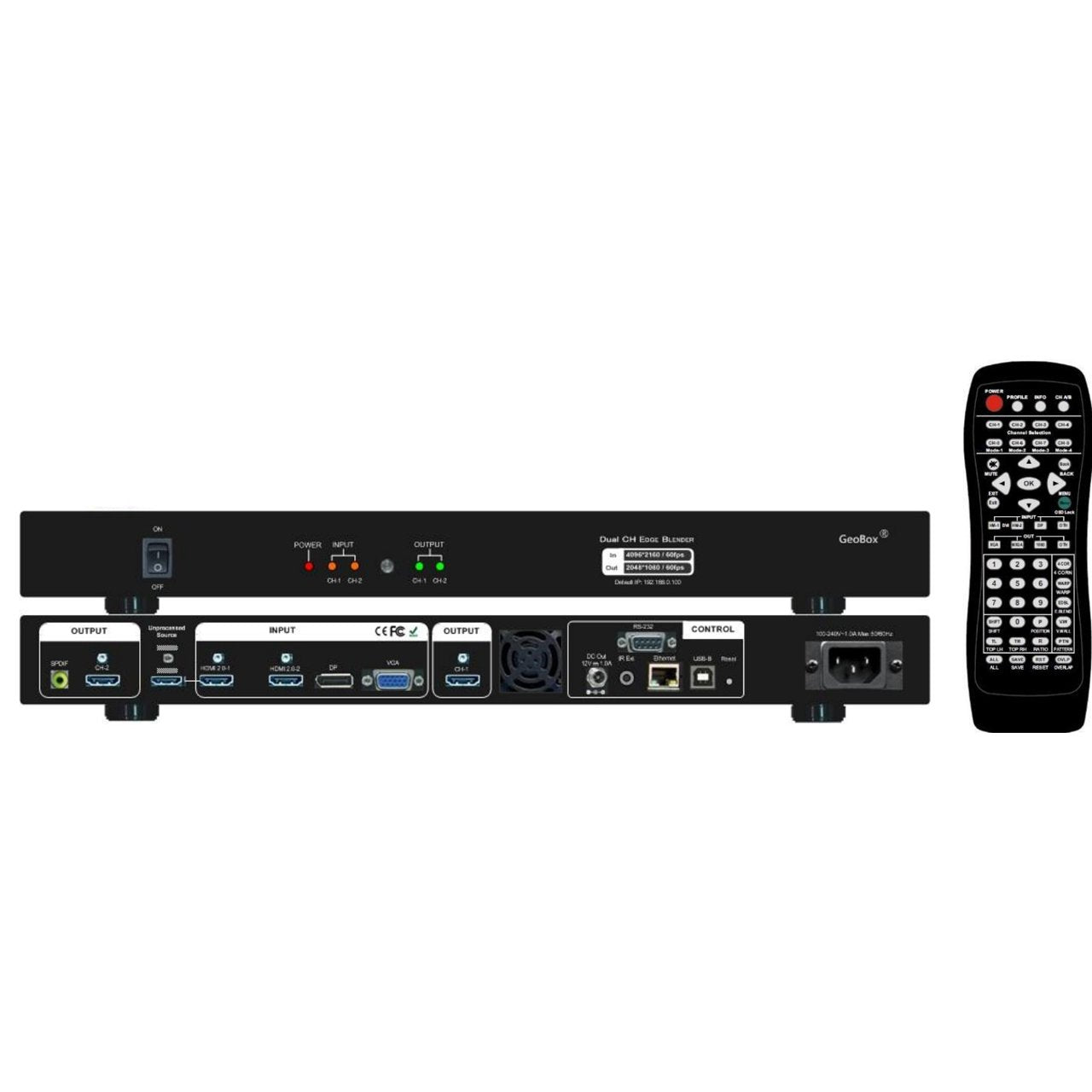

The GeoBox G812 supports high-resolution 4K inputs and professional-grade signal processing for detailed projected images. Its maximum input resolution is 4096x2160 at 60Hz or 7680x1200 at 30Hz. For connectivity, it includes two HDMI 2.0b inputs, one DisplayPort 1.2a input, and one VGA input. It also provides one HDMI 2.0b loop-out port for passing the source signal to another unit. On the processing side, it supports 10-bit 4:4:4 chroma sampling, which is important when image detail, text sharpness, and color integrity matter. That can be particularly useful in control, simulation, corporate, and exhibit environments where content may include fine graphics instead of only video playback. The processor outputs through two HDMI ports at up to 2048x1080 at 60Hz per channel. This makes it well suited for installations that need a high-quality 4K source split across two projection outputs. The main limitation to understand is that while the input is 4K-capable, the two outputs are each limited to 2048x1080 at 60Hz, which is normal for many dual-channel blending workflows.

Yes, the GeoBox G812 can be integrated into larger projection systems, especially when you need more than two channels. One reason is its HDMI 2.0b loop-out port, which allows the source signal to be passed to another unit for daisy-chaining. That helps simplify signal distribution in multi-unit installations. This approach is useful for panoramic displays, immersive environments, and other large-format projection designs that go beyond a single two-projector setup. Each G812 handles two output channels, so adding units can extend the system while keeping similar processing behavior across the installation. Because it includes built-in overlap and video wall controls, it also reduces the need for separate image-splitting hardware in some designs. This setup benefits professional integrators planning scalable systems. The tradeoff is that larger multi-unit projects require careful design for synchronization, projector matching, cabling, and content resolution. The processor supports expansion, but overall success depends on the full system architecture, not just the processor alone.

The GeoBox G812 is designed to be configured through several control methods, which makes it practical for both bench setup and installed environments. It supports control via WebGUI, USB, and infrared remote. That gives installers flexibility depending on whether they are working locally at the rack, adjusting settings from a connected computer, or making quick field changes. For most professional AV setups, WebGUI is especially useful because it allows more convenient access to warping, blending, geometry, and layout settings. USB can help during direct configuration, while the IR remote is helpful for simple onsite adjustments when a computer is not immediately available. This range of control options benefits integrators, rental and staging teams, and facilities that may need occasional recalibration over time. The main practical consideration is that advanced geometry correction still requires a careful setup process. The control methods are straightforward, but achieving precise results depends on disciplined calibration, projector positioning, and content alignment.

Yes, the GeoBox G812 is designed with 24/7 reliability in mind, which makes it suitable for commercial and institutional environments where the system may run continuously or for long daily operating hours. That matters in applications such as museums, lobbies, command spaces, exhibit areas, and digital experience environments where downtime can be disruptive. Its hardware design also supports installation flexibility with dual power options: AC 100 to 240V or DC 12V. That can be useful in fixed AV racks, mobile systems, or specialized control environments. The unit is backed by a 6-year limited warranty, which is a meaningful indicator for long-term deployment planning. This processor is a strong fit for organizations that need stable operation plus detailed image control. The practical tradeoff is that reliability depends on the overall installation as well. Ventilation, power quality, projector matching, and proper calibration all contribute to long-term performance. The processor is built for professional duty, but system design still matters.

You should consider a 2-channel 4K edge blending processor when your main challenge is creating one accurate image from two projectors, not just switching sources or scaling a single output. A basic scaler or switcher can manage inputs, but it usually cannot deliver the warping, overlap control, and geometry precision needed for seamless multi-projector displays. The VigilLink GeoBox G812 is aimed at users who need that specialized image processing. It combines edge blending, projection warping, video wall functions, and high-resolution input support in one chassis. With a 120x68 point geometry grid and 10-bit 4:4:4 processing, it is better suited for curved screens, panoramic displays, immersive rooms, and projection mapping than simpler signal-management devices. This is the right type of product for AV integrators, technical designers, and institutions building polished permanent installations. It is probably not the best choice for users who only need source selection, single-screen scaling, or a straightforward conference room display. Its value comes from precision display shaping, not from basic AV routing alone.
