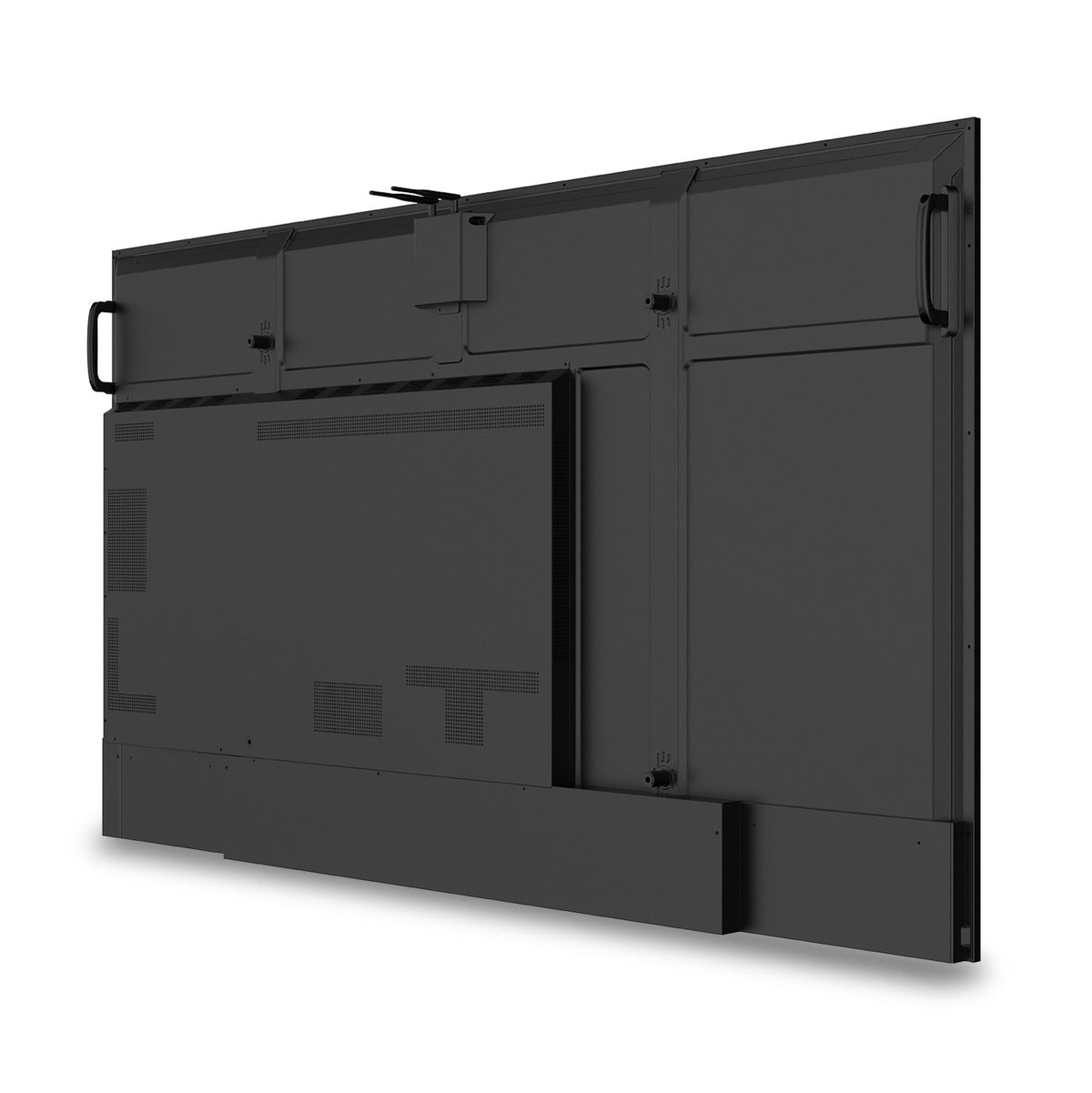

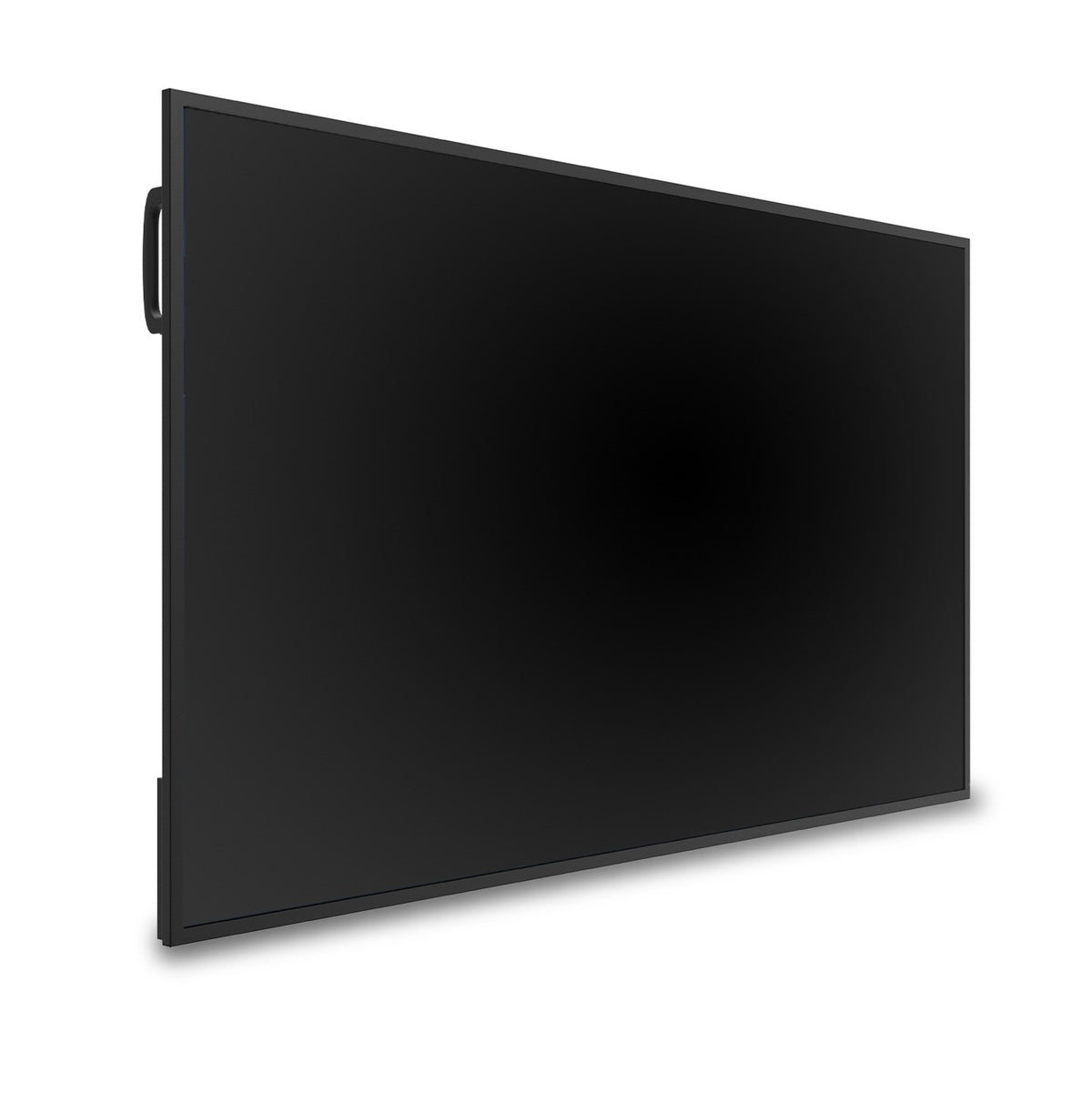

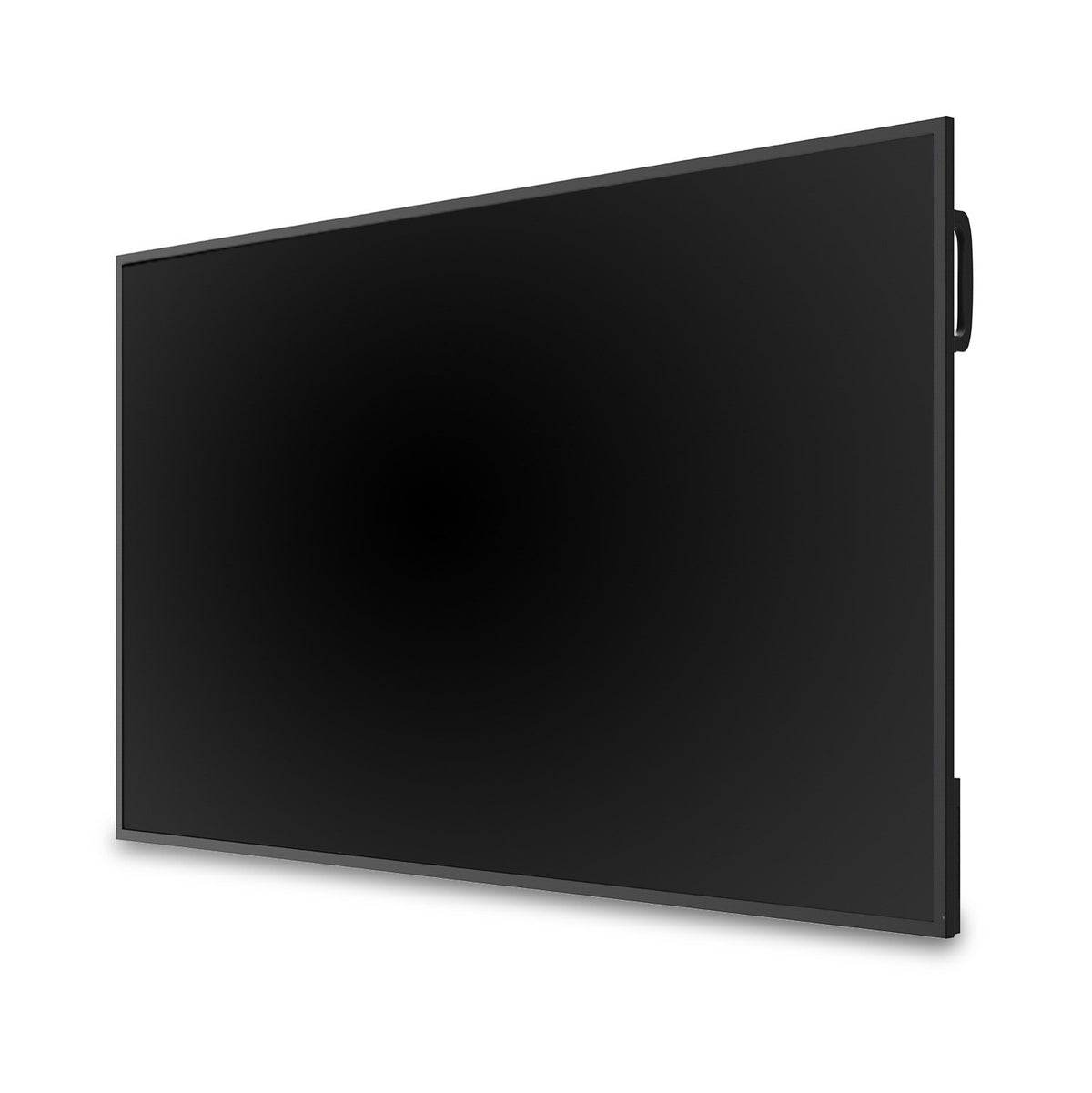

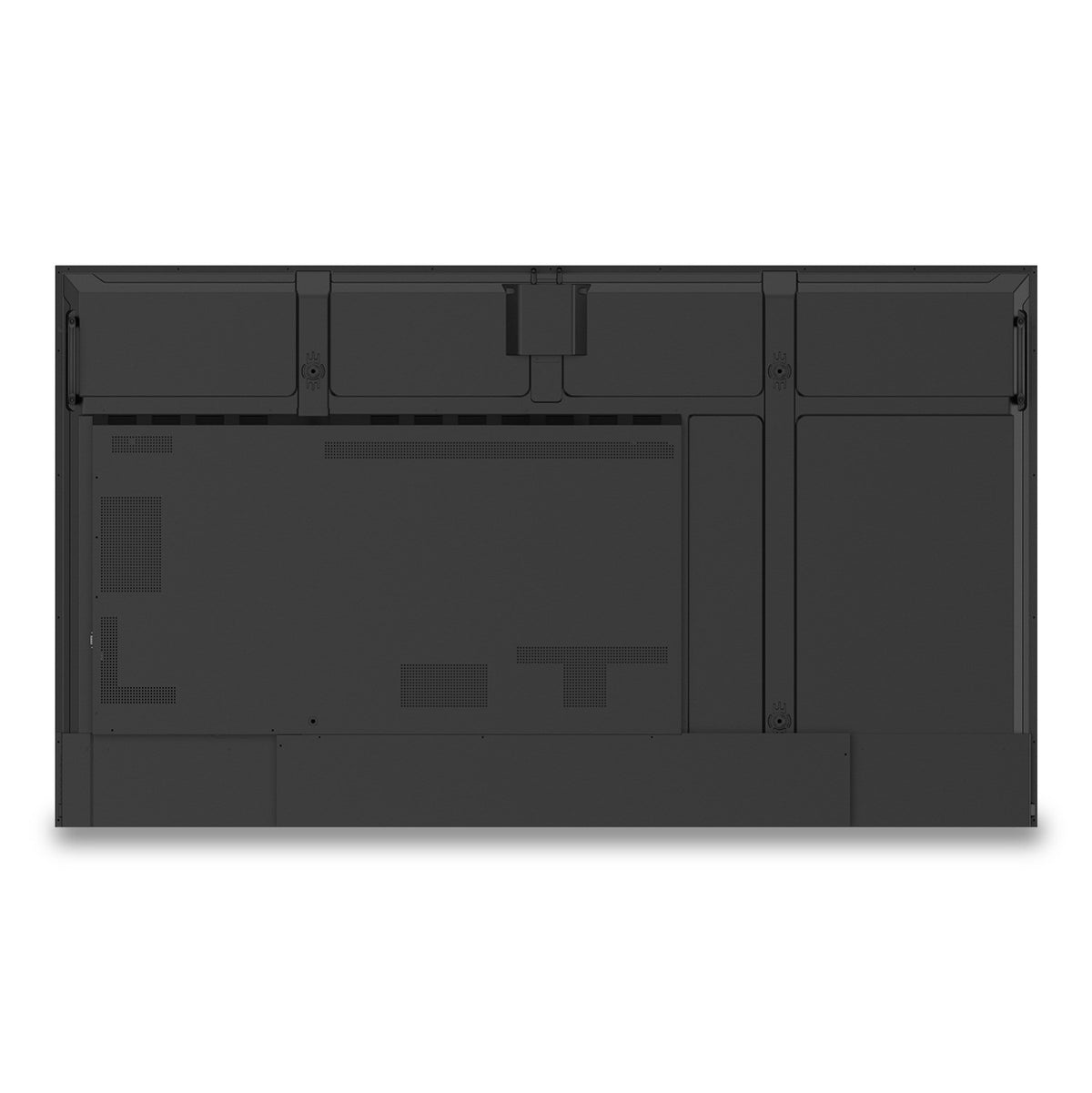

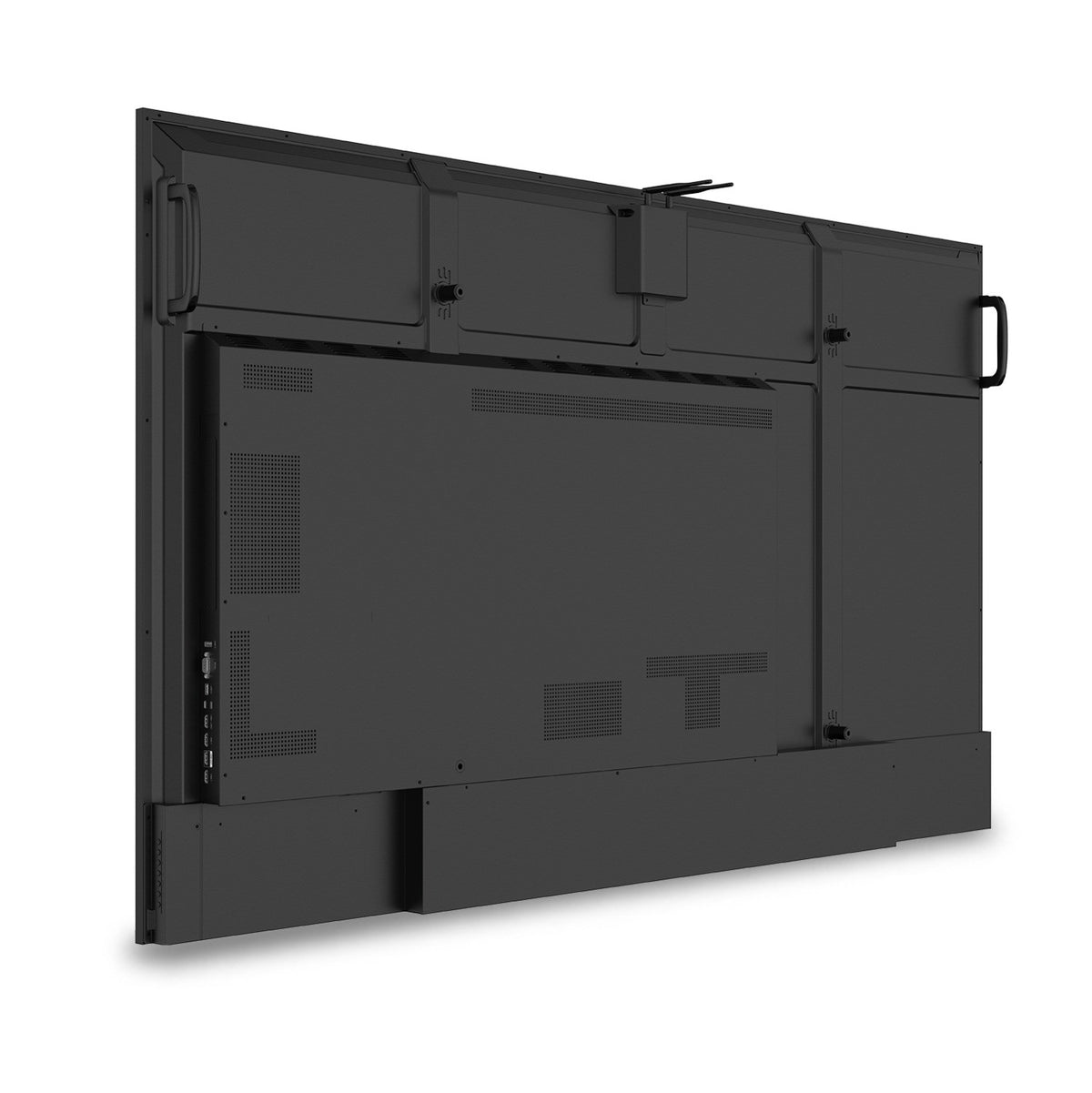

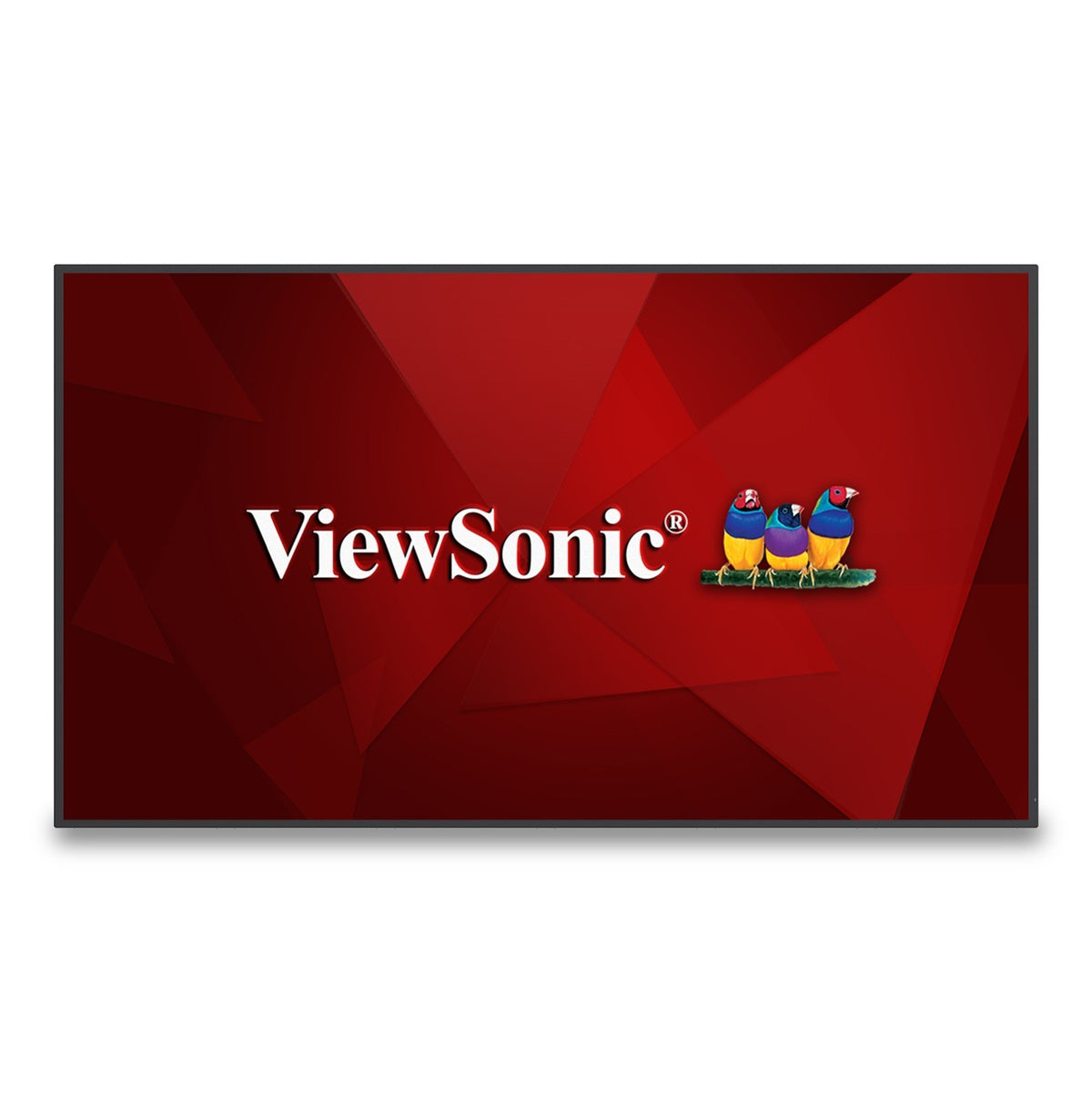

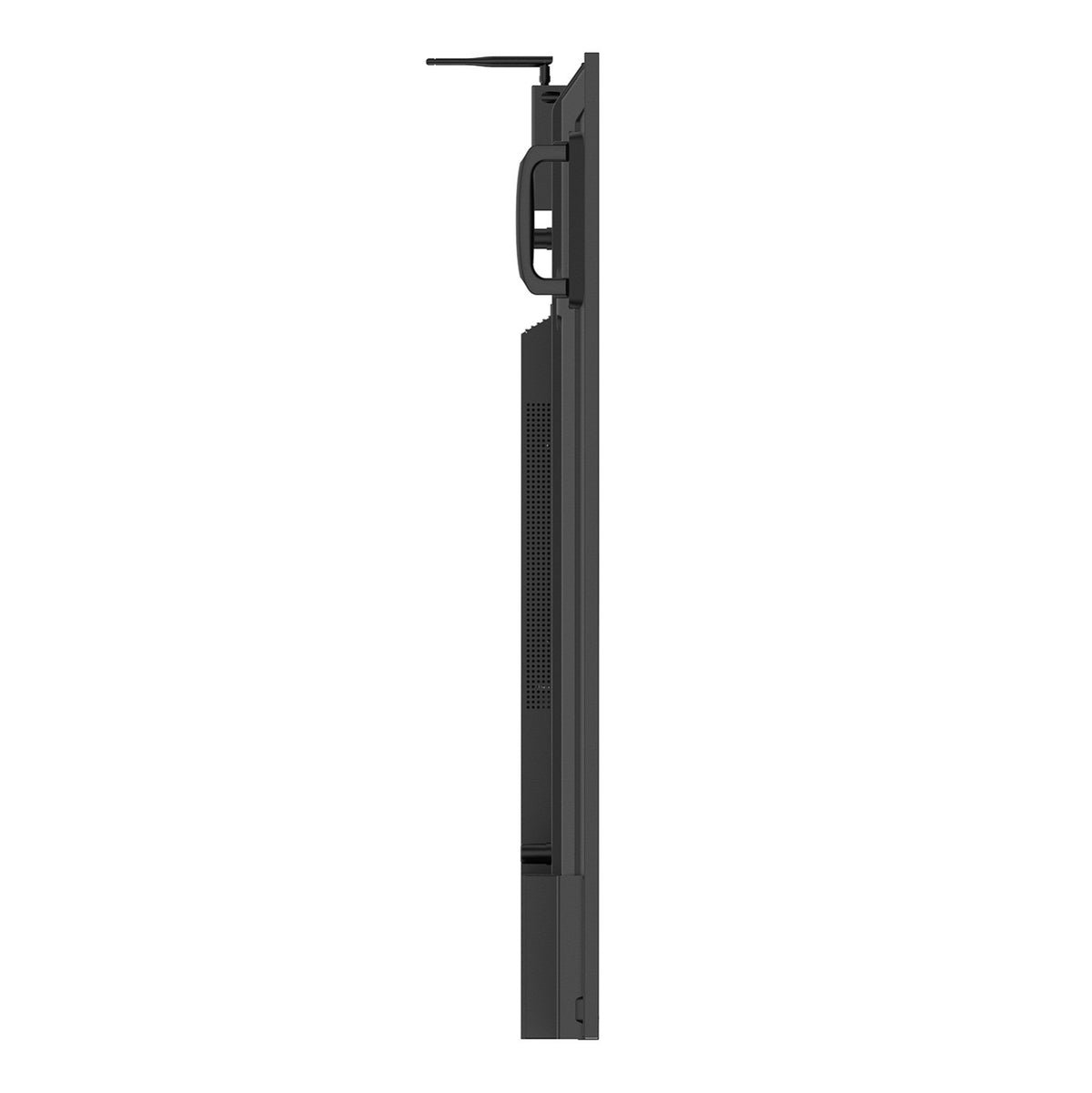

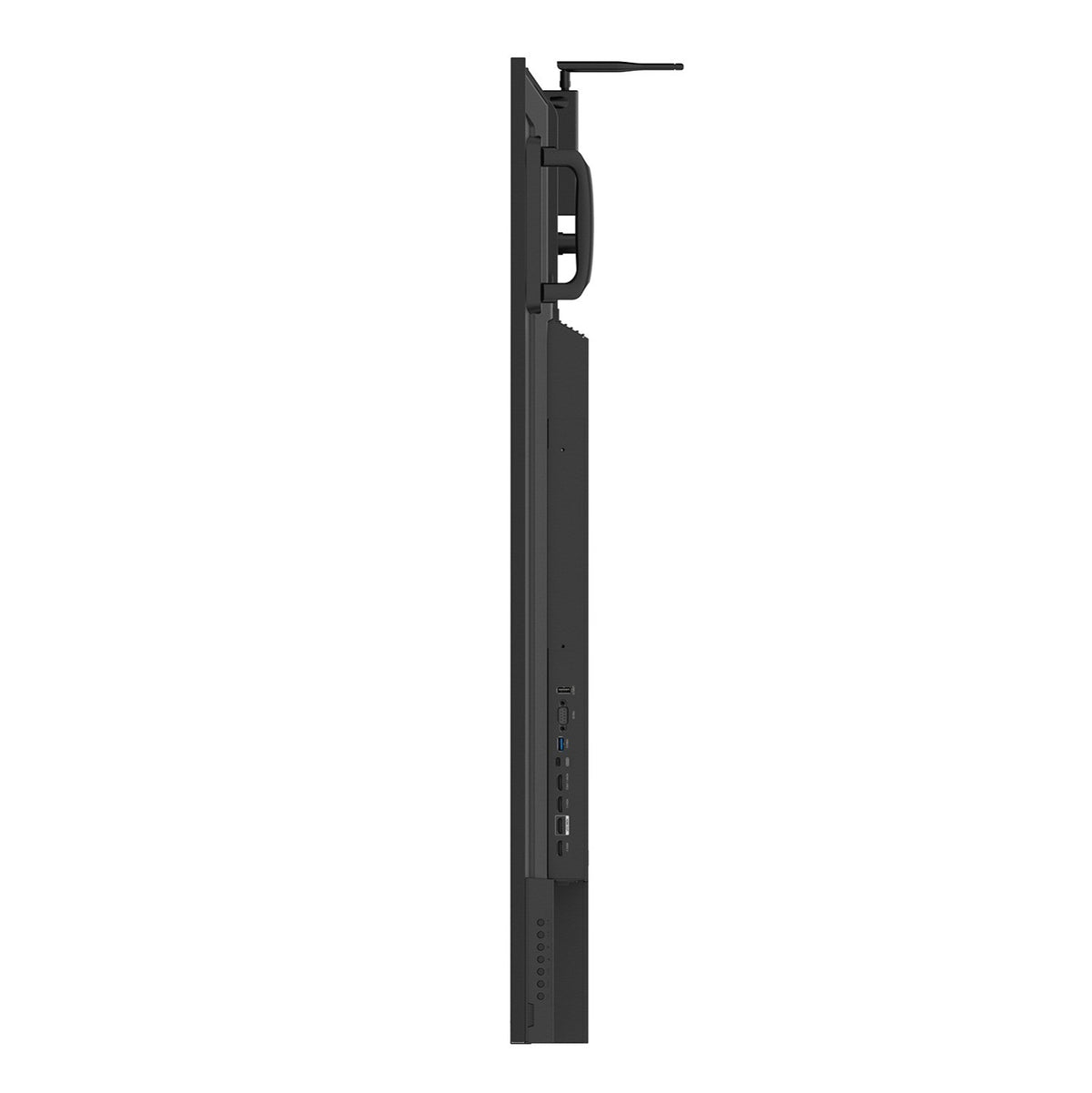

ViewSonic CDE7530 4K Ultra HD Commercial Display
Couldn't load pickup availability
The ViewSonic CDE7530 is a 75-inch 4K Ultra HD commercial display engineered for high-impact visual communication and seamless collaboration in corporate and educational environments. Delivering 450 cd/m² brightness with a 25% high-haze anti-glare screen, it produces sharp, vibrant imagery with 3840 x 2160 resolution even in rooms with intense ambient light. Its robust 24/7 continuous operation rating and flexible landscape or portrait orientation ensure dependable performance for digital signage and meeting spaces.
Equipped with a powerful embedded quad-core SoC running Android 11.0, 4GB RAM, and 32GB storage, this all-in-one display allows smooth multimedia playback and app execution without requiring an external PC or media player. It supports versatile content sharing through built-in ViewBoard Cast software and the cloud-based myViewBoard Display app, enabling up to four users across Windows, MacOS, Chrome OS, Android, and iOS to share screens simultaneously.
Designed for easy integration, the display features certified compatibility with Crestron Connected V2, Extron, and AMX control systems, alongside centralized IT device management via myViewBoard Manager. Comprehensive connectivity includes three HDMI 2.1 inputs, HDMI 2.0 output for up to 9-screen video wall tiling, USB-C, dual 10W stereo speakers, and Picture-in-Picture/Picture-by-Picture capabilities.
Key Features
| Brand | ViewSonic |
| Model | CDE7530 |
| Product Type | Commercial Display / Digital Signage |
| UPC | 766907018899 |
| Screen Size | 75" |
| Display Resolution | 3840 x 2160 (4K Ultra HD) |
| Panel Type | ADS LCD |
| Brightness | 450 cd/m² |
| Static Contrast Ratio | 1,200:1 |
| Dynamic Contrast Ratio | 5,000:1 |
| Aspect Ratio | 16:9 |
| Refresh Rate | 60Hz |
| Response Time | 8ms (GTG) |
| Viewing Angles | 178º horizontal, 178º vertical |
| Panel Surface | Anti-Glare, Hard Coating (3H), 25% Haze |
| Operation Rating | 24/7 |
| Orientation | Landscape / Portrait |
| Operating System | Android 11.0 |
| Processor | Amlogic T982 Quad-Core 1.5GHz / 1.9GHz |
| GPU | G52MP2 |
| Memory (RAM) | 4GB DDR4 |
| Internal Storage | 32GB |
| Internal Speakers | 10W x 2 |
| HDMI Inputs | 3 x HDMI 2.1 (HDCP 2.2) |
| HDMI Output | 1 x HDMI 2.0 |
| USB Ports | 1 x USB-C, 1 x USB 3.0, 1 x USB 2.0 |
| Audio Outputs | 1 x HDMI ARC, 1 x SPDIF Optical |
| Control Ports | 1 x RS232, 1 x RJ45 Ethernet LAN |
| AV Control Compatibility | Crestron Connected V2, Extron Certified, AMX Certified |
| VESA Mount Pattern | 800 x 600 mm (M8 x 25mm) |
| Product Dimensions (WxHxD) | 66.4 x 37.9 x 3.2 in |
| Product Weight | 56.0 lb |
| Shipping Weight | 73.3 lb |
| Power Consumption (Max) | 415W |
| Power Consumption (Typical) | 235W |
| Warranty | 3-Year Limited Warranty |
Highlights
- Multiple Ways To Connect And Share Content
- AV Control System Interoperability
- Centralized Control Device Management
- Easy Content Sharing
- Superb And Stunning Picture Quality
- Powerful Secured Embedded Platform
Videos
Warranty
ViewSonic displays are backed by a 3-year limited warranty with onsite service.
Downloads
- Datasheet
- Media
- CDE7530 User Guide (English)
- CDE7530 Quick Start Guide
- CDE7530 2D drawing(pdf)
- ViewSonic_Commercial Display_CDE7530.rfa
- CDE7530 Product Carbon Footprint
