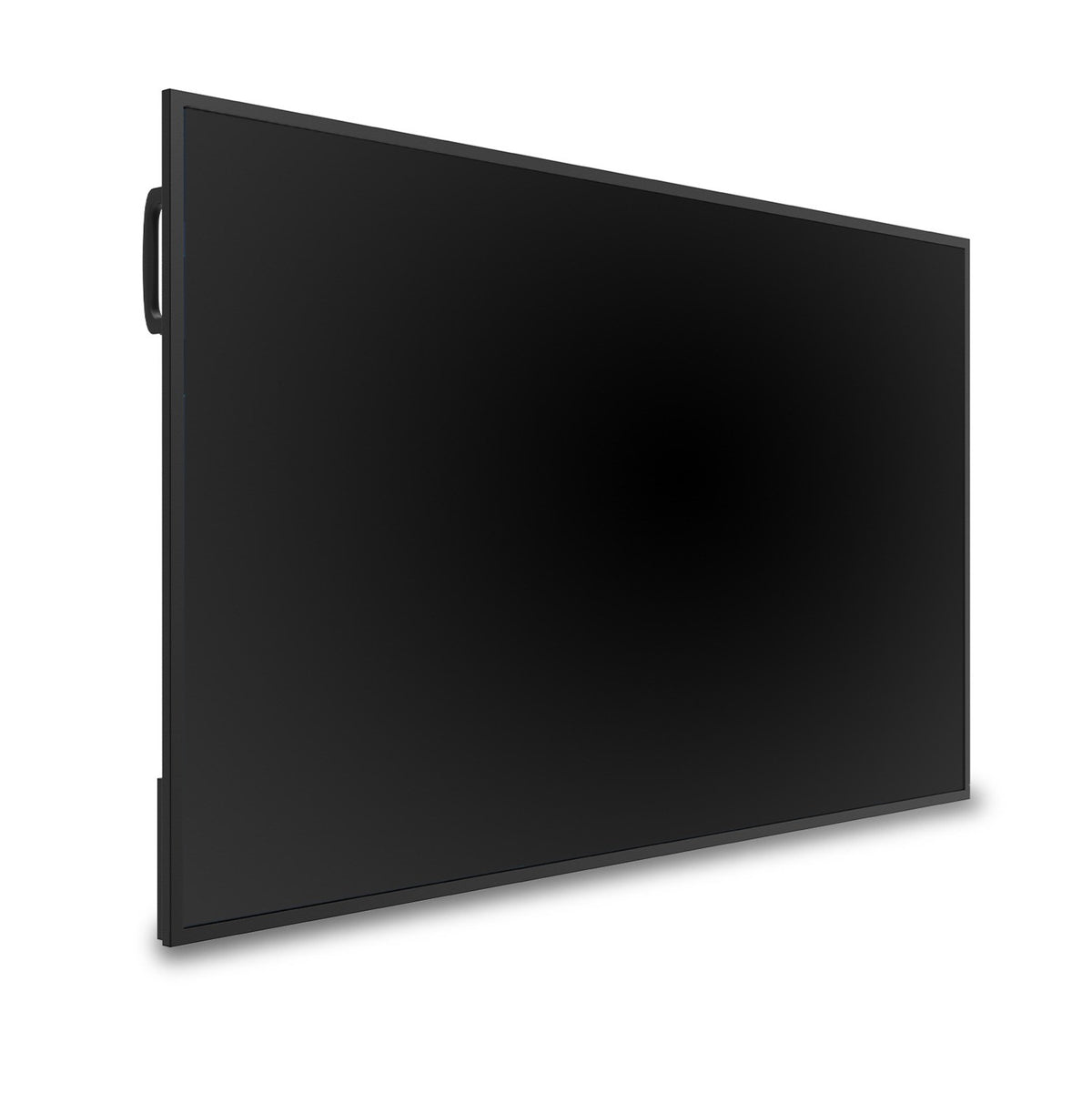

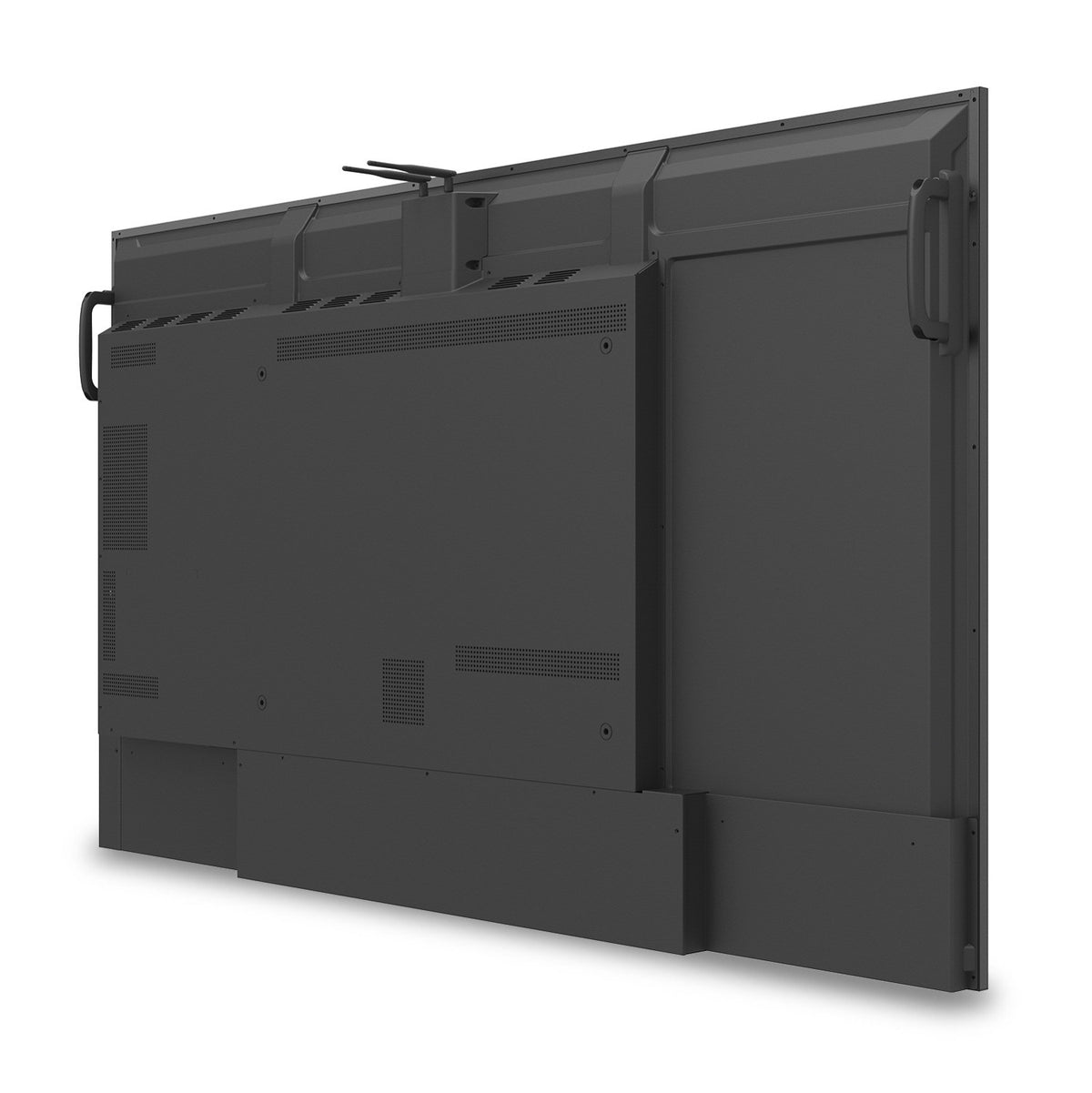

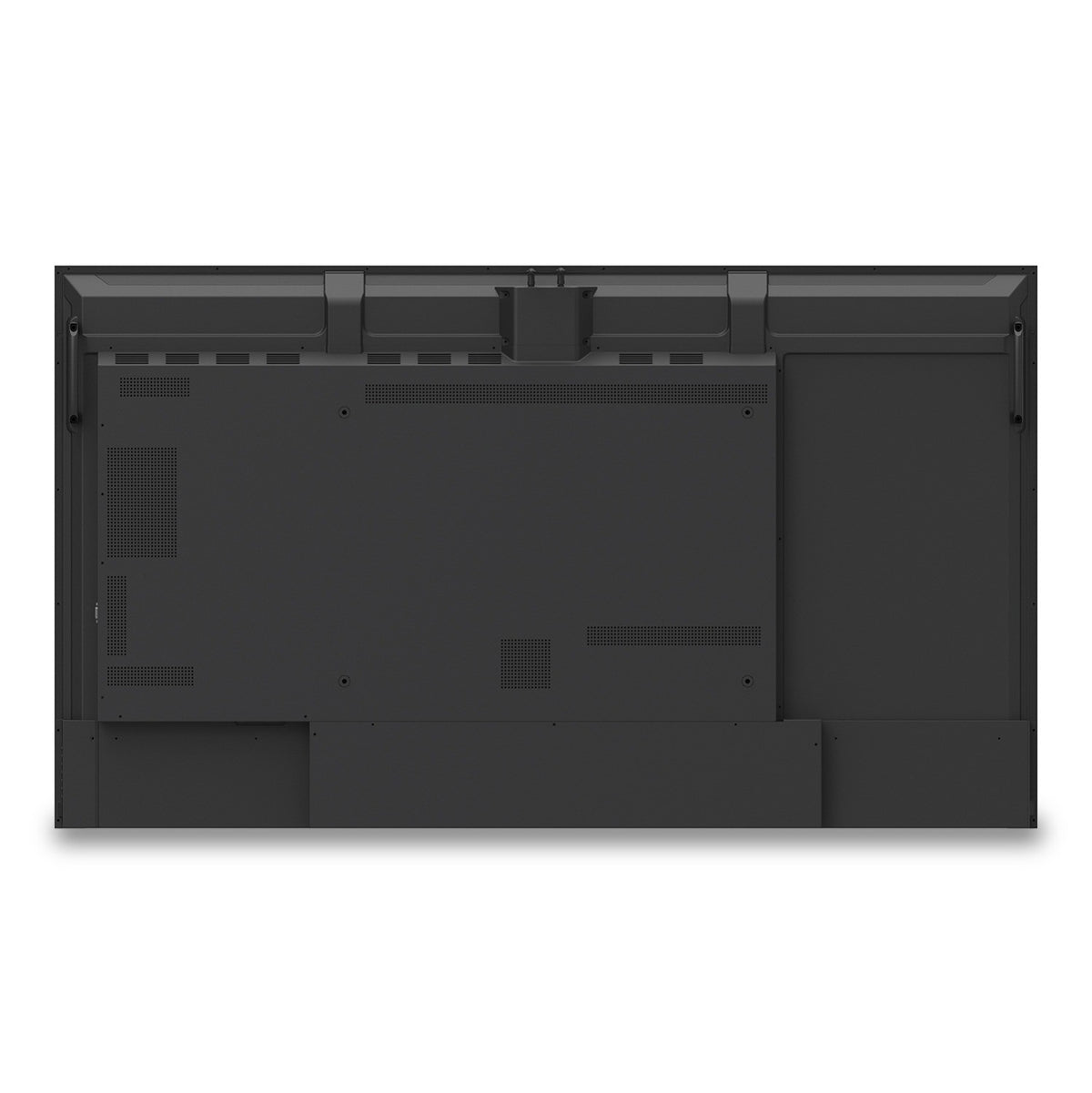

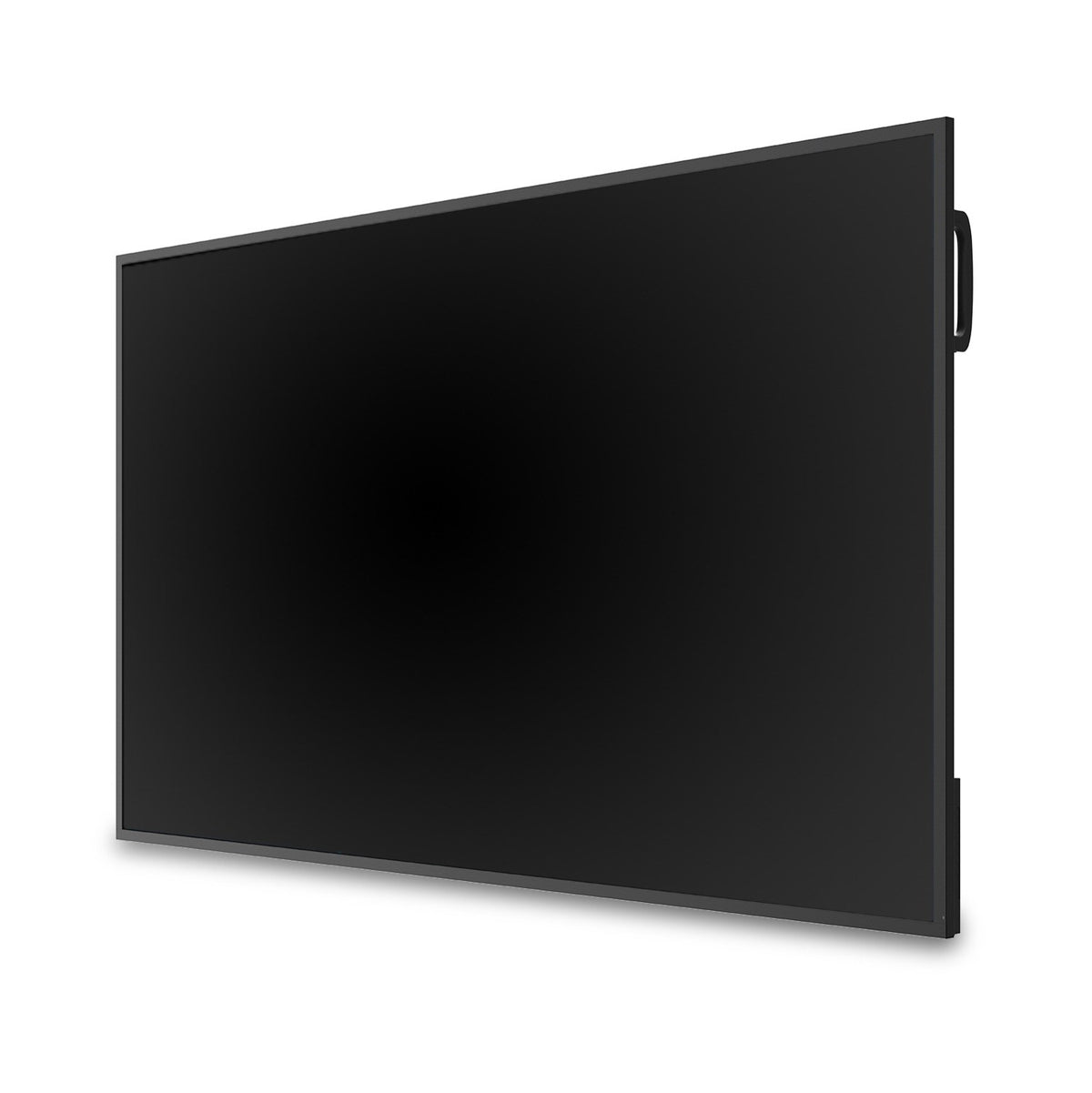

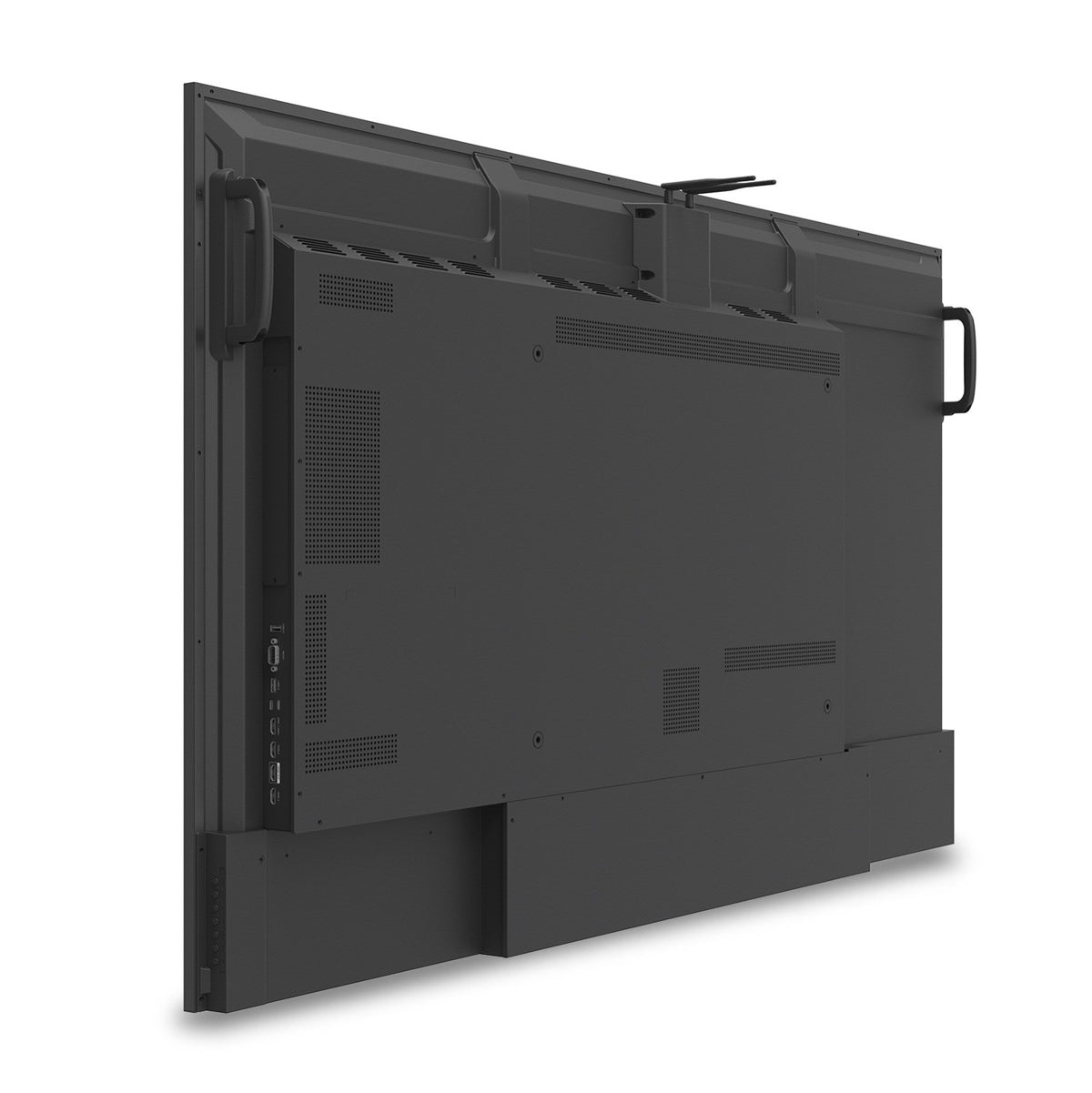

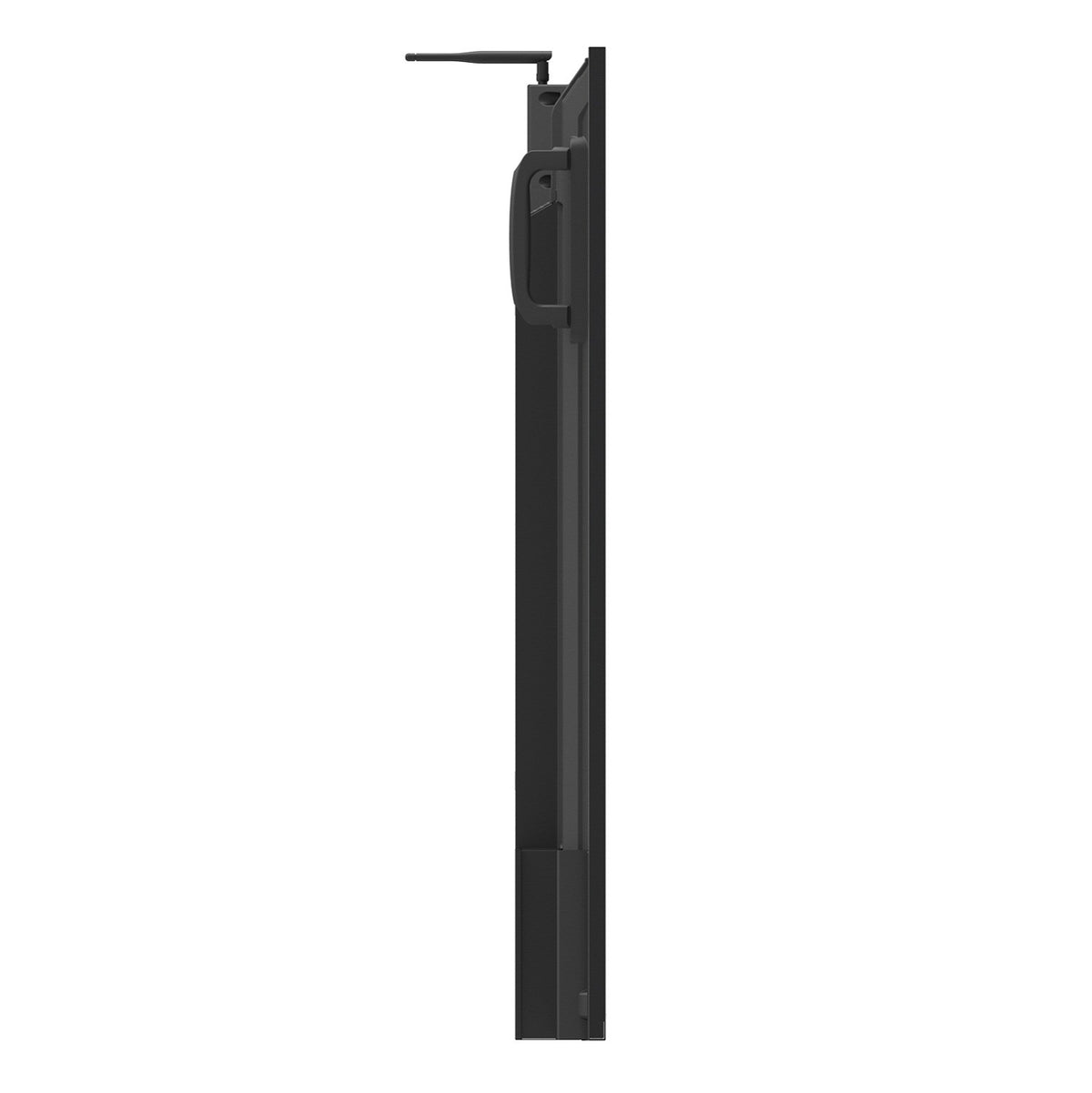

ViewSonic CDE6530-W1 4K Ultra HD Commercial Display
Couldn't load pickup availability
The ViewSonic CDE6530-W1 is a 65" 4K Ultra HD commercial presentation display bundle engineered to streamline hybrid collaboration and digital signage. Featuring stunning 3840 x 2160 resolution, 450 cd/m² high brightness, and a 25% high-haze anti-glare screen, it ensures crisp, readable visuals in high ambient light environments. The included USB Wi-Fi adapter pairs with integrated ViewBoard Cast software and the myViewBoard Display app to enable seamless multi-platform content sharing for up to four simultaneous participants.
Powered by a secure embedded system-on-chip running custom Android OS firmware, the display executes smooth multimedia playback and multitasking without requiring an external PC or media player. It supports versatile installations in both landscape and portrait orientations, as well as native multi-screen video wall tiling up to 9 units via integrated HDMI input and loop-through output. IT administrators benefit from centralized ecosystem control through myViewBoard Manager, along with broad interoperability certified for Crestron Connected V2, Extron, and AMX control systems.
Built for demanding commercial operation, this display is rated for continuous 24/7 runtimes with an estimated 50,000-hour backlight life. Connectivity includes multiple HDMI 2.1 inputs, full-featured USB-C, SPDIF audio out, RS232, and dual integrated 10W speakers. The complete bundle includes the commercial display, a plug-in Wi-Fi 6 module, remote control, essential cabling, and a wall mount kit backed by a 3-year limited onsite warranty.
Key Features
| Brand | ViewSonic |
| Model | CDE6530-W1 |
| Screen Size | 65" |
| Resolution | 3840 x 2160 (4K UHD) |
| Brightness | 450 cd/m² |
| Operation Rating | 24/7 |
| Orientation | Landscape / Portrait |
| Panel Type | ADS |
| Aspect Ratio | 16:9 |
| Static Contrast Ratio | 1,200:1 |
| Dynamic Contrast Ratio | 5,000:1 |
| Response Time | 8ms (GTG) |
| Refresh Rate | 60Hz |
| Viewing Angles | 178º horizontal, 178º vertical |
| Display Colors | 1.07 Billion |
| Surface Treatment | Anti-Glare, Hard-coating (3H), Haze 25% |
| Operating System | Android 11.0 |
| Internal Storage | 32GB |
| Memory | 4GB DDR4 |
| Internal Speakers | 10W (x2) |

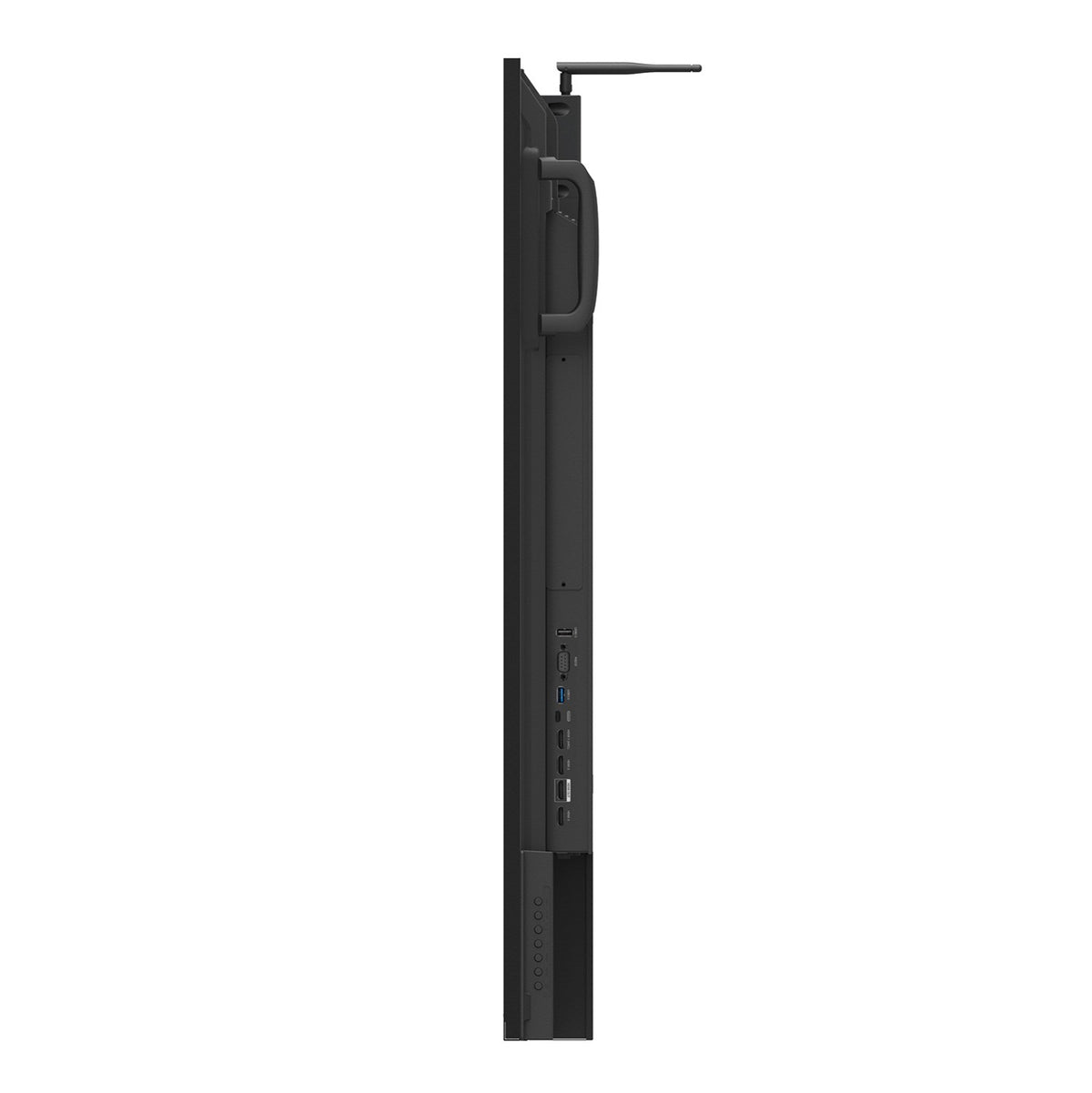

| HDMI Inputs | 3 x HDMI 2.1 |
| HDMI Outputs | 1 x HDMI 2.0 |
| USB Ports | 1 x USB Type-C, 1 x USB 3.0, 1 x USB 2.0 |
| Network Connectivity | RJ45 (Gigabit LAN), Wi-Fi 6, Bluetooth 5.0 |
| Control Ports | 1 x RS232 |
| AV Control Certification | Crestron Connected V2, Extron Certified, AMX Certified |
| VESA Mount Pattern | 600 x 400 mm |
| Physical Dimensions (WxHxD) | 57.61 x 33.0 x 3.21 in. |
| Package Dimensions (WxHxD) | 63.78 x 37.09 x 8.19 in. |
| Net Weight | 56.0 lbs |
| Gross Weight | 73.3 lbs |
| Power Consumption (Typical) | 165W |
| UPC | 766907019803 |
Highlights

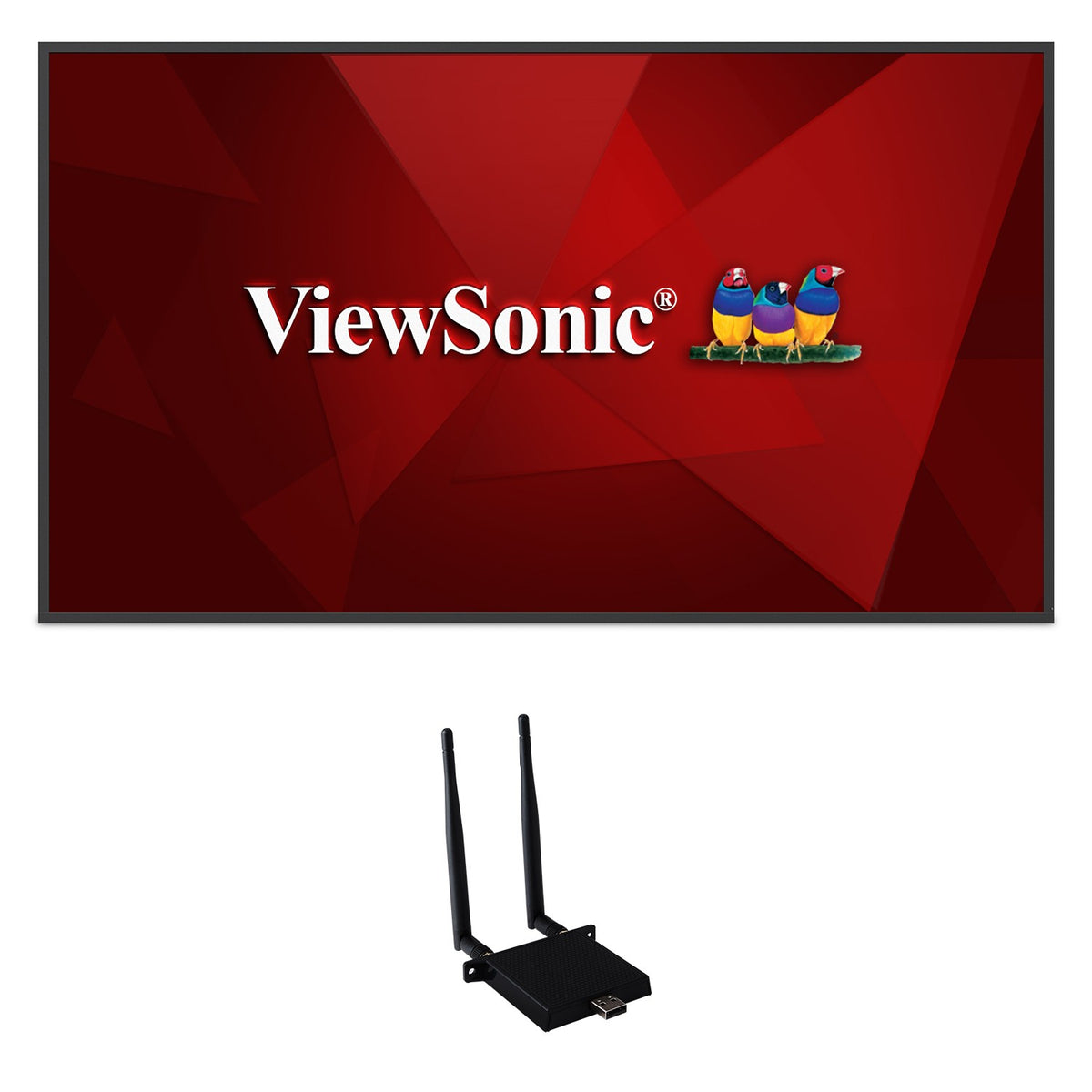

- All-in-one solution includes ViewBoard display, and Wi-Fi adapter
- Powerful ViewSonic Embedded Signage Platform (VESP)
- Integrated RJ45 and USB Wi-Fi
- ViewBoard Cast content sharing software
- myViewBoard Display app for remote screen sharing
Videos
Warranty
The ViewSonic display includes a 3-year limited warranty with onsite service and a pixel performance policy.
