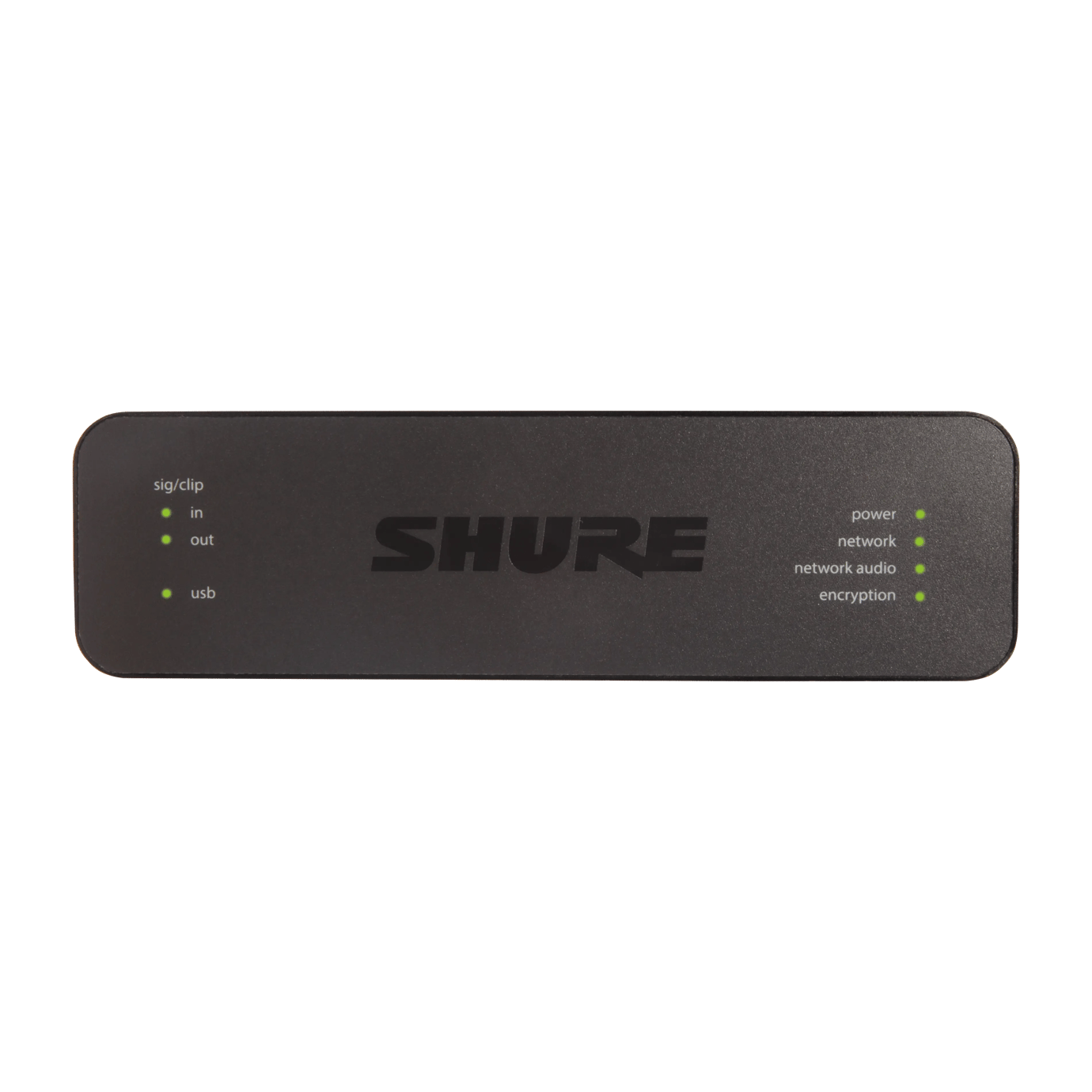

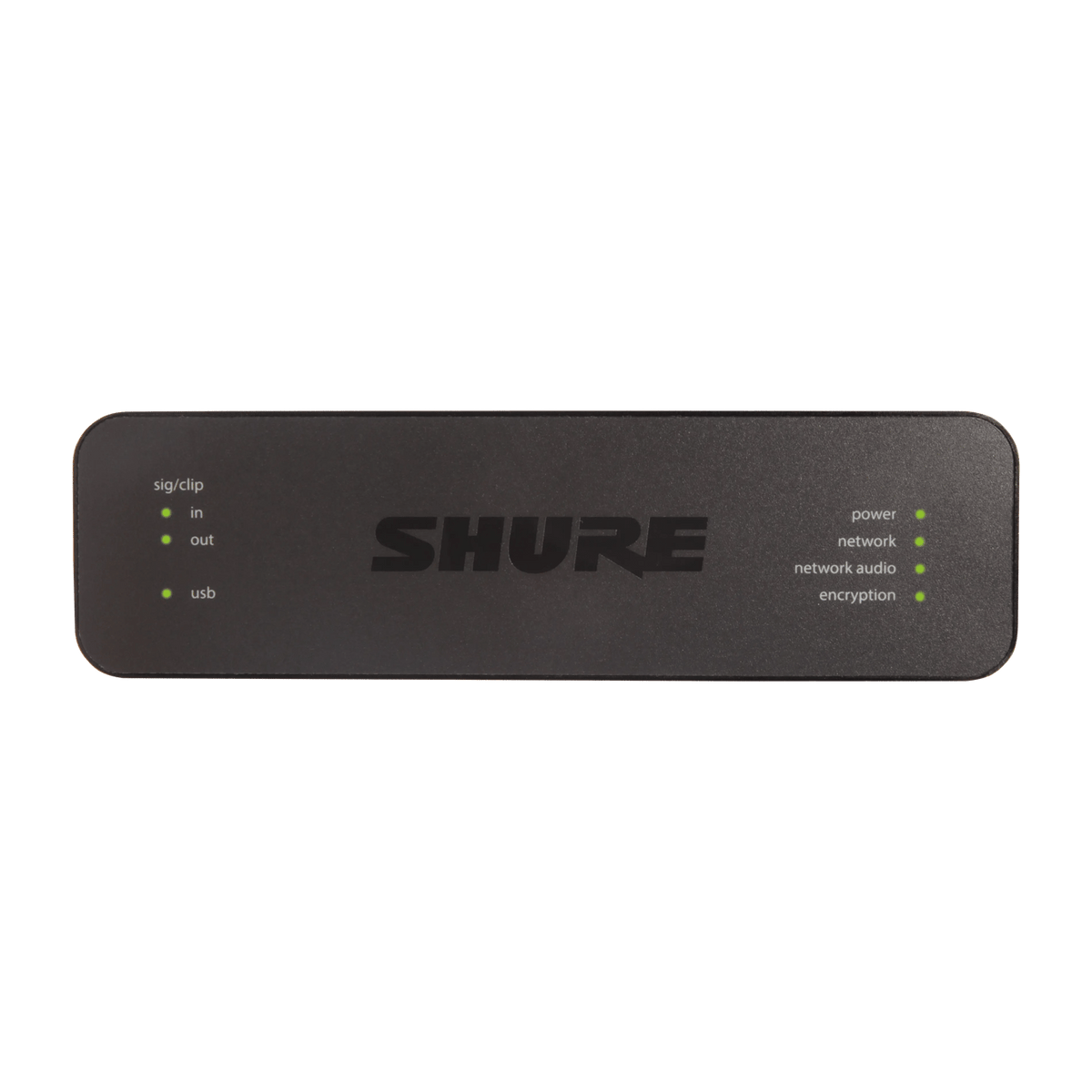

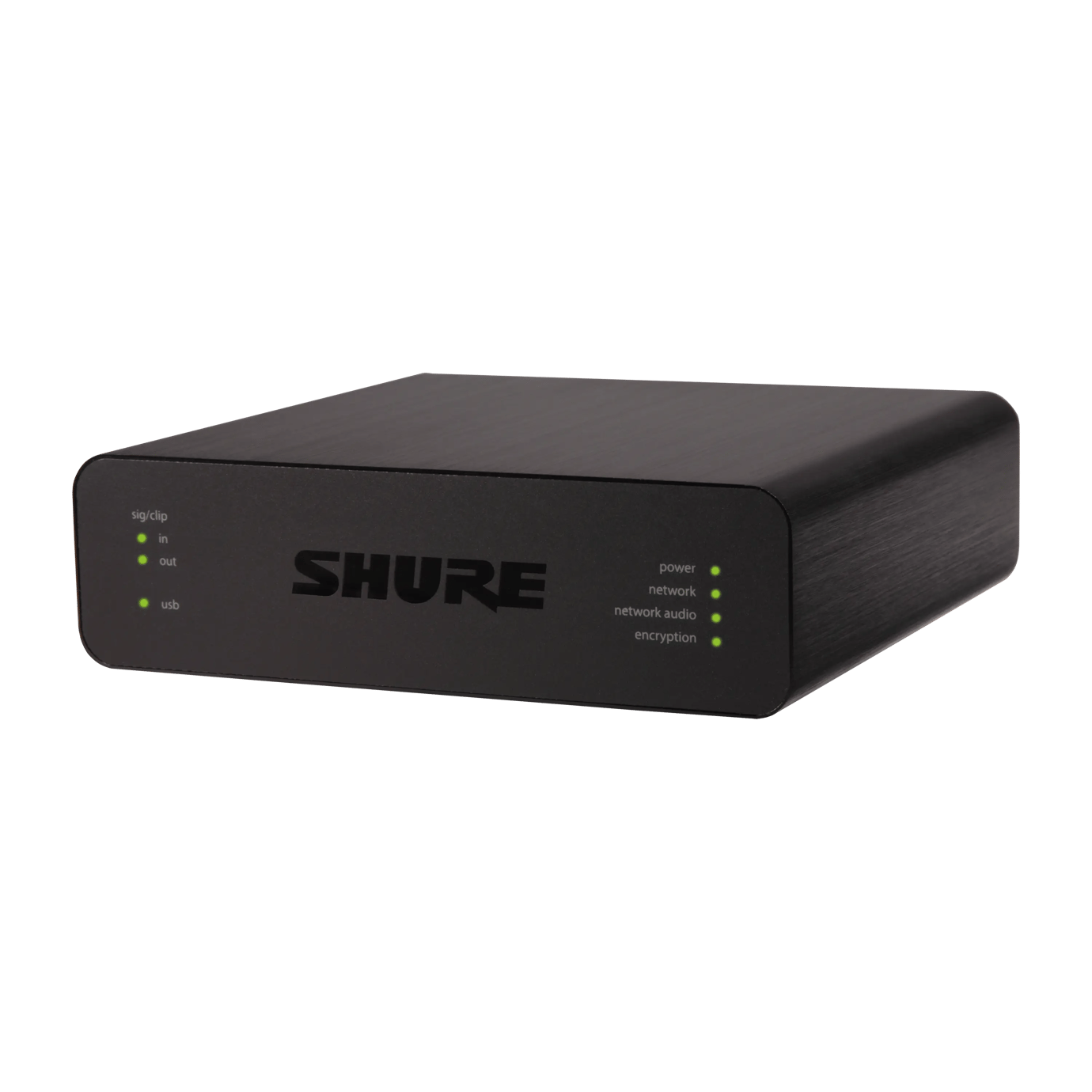

Shure ANIUSB-MATRIX USB Audio Network Interface with Matrix Mixing

SKU: ANIUSB-MATRIX
Regular price $803.00

Frequently Asked Questions

An audio network interface connects microphones, computers, and conferencing platforms so audio can move between analog, USB, and networked systems in a controlled way. In practical terms, it acts as a bridge between room audio equipment and the computer or conferencing application being used for calls. The Shure ANIUSB-MATRIX is designed for that exact role. It can bring in up to four Dante audio channels, connect to a computer over USB 2.0, and provide one analog input and one analog output through block connectors. Its built-in matrix mixer lets you route any input to any output, which is useful when you need different audio paths for far-end conferencing, local reinforcement, or recording. This type of product is best for small to medium meeting rooms that need flexible signal routing without a full rack of separate processors. The main tradeoff is that it is a system integration product, not a simple plug-and-play consumer device, so it works best when the room already uses or plans to use Dante-enabled audio equipment.
The purpose of a network interface in conference audio is to move sound reliably between networked audio devices and the conferencing platform while keeping routing, control, and signal quality organized. It helps turn separate microphones, DSP elements, and room outputs into one coordinated system. With the Shure ANIUSB-MATRIX, the network side is based on Dante, which allows up to four audio channels to be carried over the network. The unit then connects those channels to USB for soft codec conferencing and to analog I/O for integration with local room equipment. That makes it useful when a meeting room needs a clean handoff between networked microphones and a computer running conferencing software. It is especially valuable in installations where cable runs, scalability, and centralized management matter more than a basic direct-wired setup. A buyer should know that a network interface does not replace every part of a sound system. It solves connectivity and routing, but the rest of the room design still depends on the microphones, speakers, control method, and overall acoustic plan.
You connect it to your PC by linking the device to the room network for Dante audio and connecting the USB port directly to the computer for conferencing audio. On the computer side, it appears as a USB audio input and output, allowing conferencing software to use the room microphones and speakers instead of the laptop's built-in audio. For the Shure ANIUSB-MATRIX, the room system would typically provide microphone audio over Dante, while the USB connection carries send and receive audio to applications such as video conferencing platforms. The unit also supports one analog input and one analog output, which can be used for local room integration when needed. Power is supplied via PoE, so a compatible network connection can simplify installation by avoiding an external power adapter. This setup is best for conference rooms rather than personal desktop recording. The main consideration is that proper Dante network configuration may be required, so it is more suitable for managed meeting spaces than for a casual home user who only needs a basic USB microphone interface.
Yes, it is a strong fit for small to medium conference rooms that need Dante networking, USB conferencing integration, and flexible audio routing in one compact device. It is designed specifically for conference environments rather than music production or consumer audio use. Its four Dante input channels let it bring networked room audio into the system, while the USB connection links the room to a conferencing computer. The analog input and output add compatibility with other installed room gear, and the matrix mixer allows custom routing so the room can support local playback, far-end audio, and microphone paths more efficiently. A four-band parametric EQ on the analog and USB outputs also helps with tuning. It benefits buyers who want a clean installation without dedicating a large rack space footprint, especially since PoE can reduce cabling and power complexity. The tradeoff is that it is most valuable when the room already uses, or plans to use, Dante infrastructure. For a very simple room with only a USB speakerphone, this level of integration may be more than necessary.
A USB audio interface connects audio equipment directly to a computer, while a Dante audio network interface moves audio over a standard network so multiple devices can share signals across the room or building. A product that combines both can bridge installed AV systems and conferencing software more effectively. The Shure ANIUSB-MATRIX is not just a basic USB interface. It combines USB audio connectivity with four Dante input channels, analog I/O, and matrix mixing. That means it can accept audio from networked room devices, route signals internally, and pass audio to a computer for conferencing. This is very different from a simple desktop interface that only converts analog microphone or line-level signals to USB. The biggest advantage of the combined approach is system flexibility, especially in meeting rooms with installed microphones and managed AV infrastructure. The tradeoff is complexity. If a user only needs a straightforward mic-to-laptop connection, a Dante-capable interface may be more advanced than required. If the goal is scalable conferencing integration, the added network functionality is often worth it.
The Shure ANIUSB-MATRIX is best for organizations building or upgrading a conference room with networked audio, not for users who only need a simple recording interface. It is intended for installed AV environments where Dante connectivity, USB conferencing, and signal routing all matter. A basic audio interface is usually enough for one computer and a few local analog sources. By contrast, this unit supports four Dante input channels, one analog input, one analog output, USB audio in and out, and matrix mixing for custom routing. That makes it useful in rooms where microphones may be on the network and audio needs to be sent differently to the far end, local loudspeakers, or other room devices. It benefits IT managers, AV integrators, and businesses that want a compact under-table or wall-mounted solution with PoE power and enterprise-grade security features such as AES encryption, 802.1x, and secure boot. The limitation is that it is more specialized than a consumer interface, so buyers should choose it for conferencing infrastructure, not for casual desktop audio tasks.
Yes, the ANIUSB-MATRIX includes an integrated matrix mixer, which allows any input to be routed to any output. That is one of its most important features because meeting rooms often need different audio paths for conferencing, local playback, assistive listening, or room reinforcement. For example, Dante inputs can be sent to the USB output for the far end of a call, while USB return audio can be routed to the analog output for local room playback. The analog input can also be incorporated when needed. This flexibility helps support more tailored room behavior than a fixed-function interface would allow. It is particularly useful for small and medium conference spaces that need a clean, customizable signal flow without adding a separate large DSP rack. The tradeoff is that the routing flexibility assumes some setup and system planning. Buyers looking for an appliance-style device with no configuration may find it more advanced than necessary, but those who need controlled audio paths will benefit from the matrix architecture.
It does not require a separate local power supply if your network supports Power-over-Ethernet. The ANIUSB-MATRIX is powered by PoE, Class 0, which simplifies installation and can reduce cable clutter in meeting rooms. That makes it easier to place the unit under a table or on a wall rather than dedicating a full equipment rack. For many conference room projects, PoE support is a practical advantage because the installer only needs the network connection for both data and power. This can speed deployment and make the final setup cleaner. The key requirement is that the network infrastructure must provide compatible PoE. If the switch does not supply PoE, the installation plan has to account for that. Buyers should also remember that while the device is compact, it is still part of a professional AV system, so proper network design, USB host connection, and signal routing setup are all important for best results.
For business and enterprise use, security features matter because conference audio devices are part of the network and can carry sensitive meeting content. Important protections include encrypted communications, authenticated network access, and secure startup behavior. The Shure ANIUSB-MATRIX includes AES encryption, 802.1x support, and secure boot. AES encryption helps protect audio and control data, 802.1x supports network authentication policies often used in managed corporate environments, and secure boot helps confirm the device starts with trusted firmware. These are meaningful features for organizations with IT oversight or compliance concerns. This level of security is most relevant in corporate meeting rooms, education, government, and other managed environments where networked AV devices must align with broader security practices. A buyer should still understand that no single feature replaces overall network policy. The device can support a more secure deployment, but it should be implemented within a properly managed AV and IT framework.
A Dante audio network interface is typically set up using network audio configuration tools and the manufacturer's control software to manage routing, device settings, and output tuning. In most installations, software is used during setup and optimization rather than by everyday meeting participants. For the ANIUSB-MATRIX, software-based configuration is important because the unit supports matrix mixing, Dante channel integration, and output EQ adjustments. The built-in four-band parametric EQ on the analog and USB outputs allows precise tuning for room acoustics or conferencing quality. Routing is also a major part of setup, since the value of the unit comes from directing the right sources to the right outputs. This approach benefits AV integrators and IT teams that need consistency and control across rooms. The tradeoff is that it is not as simple as plugging in a single USB device with no configuration. Buyers who want advanced networked conferencing performance will appreciate the software control, while users seeking a basic one-cable consumer experience may prefer a simpler category of product.

This compact audio network interface seamlessly connects up to four Dante channels and one analog output to your conferencing system via USB. The integrated matrix mixer provides exceptional routing flexibility, allowing any input to be directed to any output for customized audio management. Designed for small to medium meeting rooms, it delivers premium performance without the need for an extensive equipment rack. Power-over-Ethernet capability simplifies installation by eliminating the requirement for external power supplies. Advanced security protocols, including AES encryption and 802.1x, ensure your control and audio data remain protected. A four-band parametric EQ filter on analog and USB outputs allows for precise acoustic fine-tuning.

**this product is not returnable**

Dante Input Channels 4

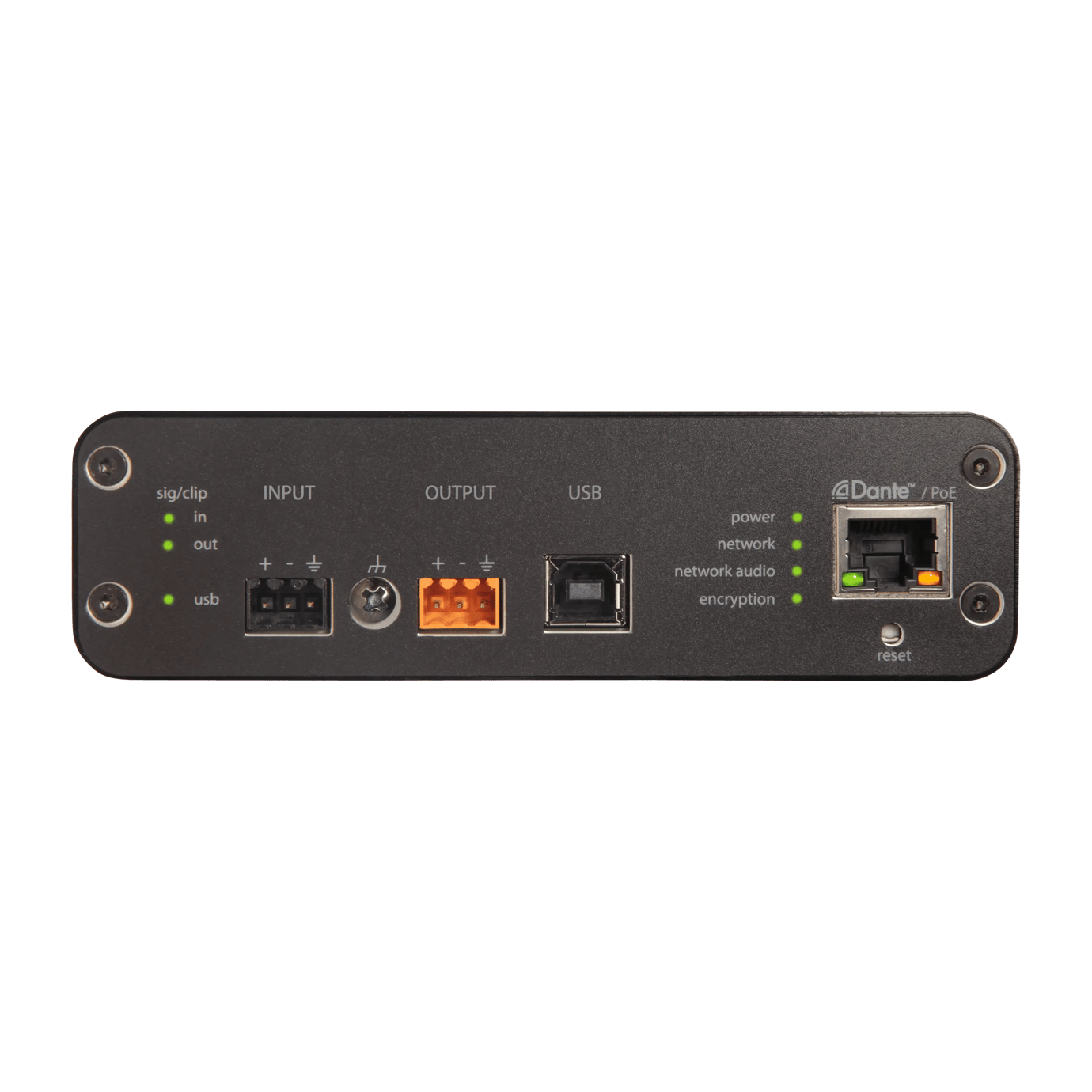

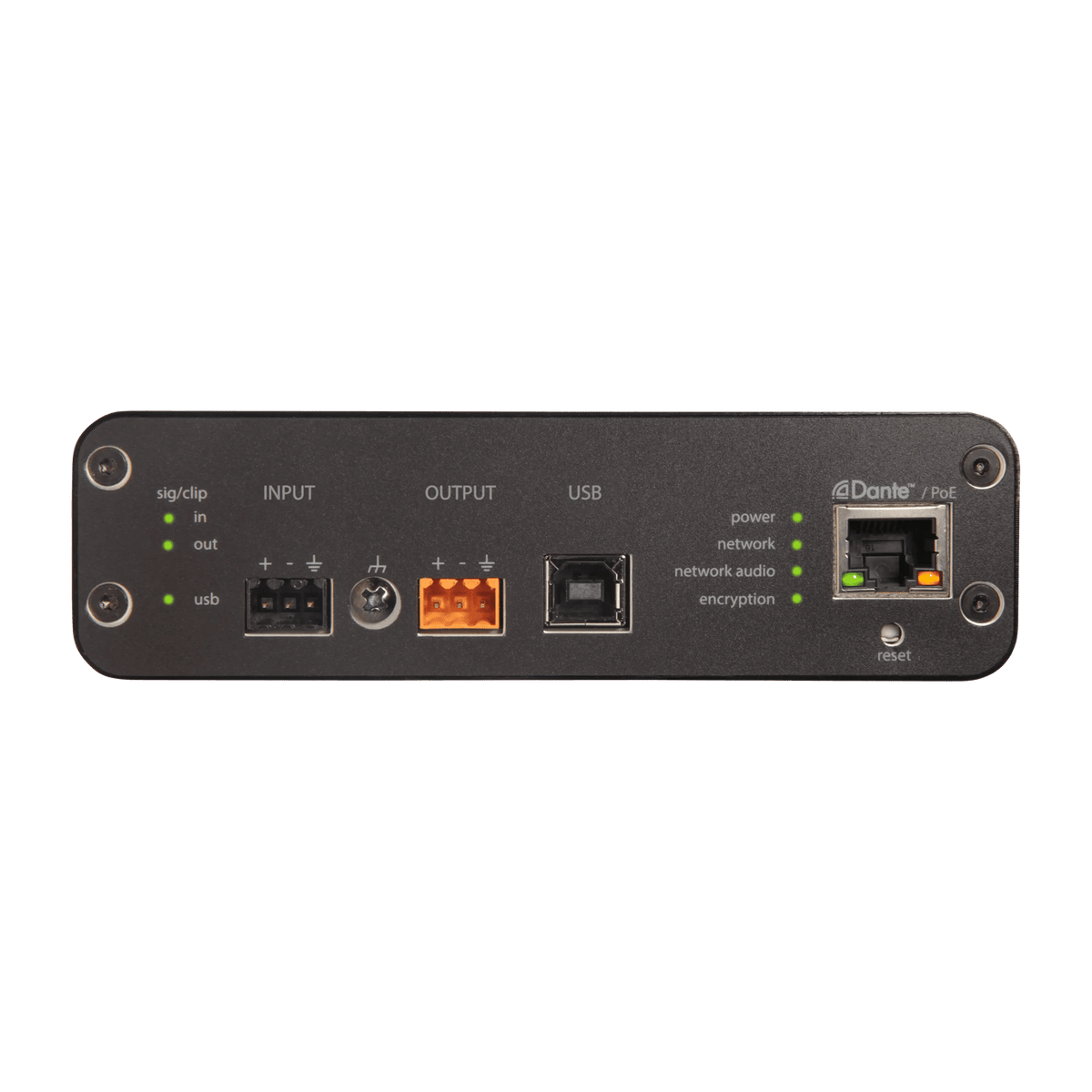

Analog Connectivity 1 Block Input / 1 Block Output
USB Connectivity 1 Input / 1 Output (USB 2.0)
Power Requirement Power-over-Ethernet (PoE), Class 0
Digital Signal Processing Matrix Mixer, 4-band Parametric EQ
Security 802.1x, AES Encryption, Secure Boot
Mounting Under-table or Wall Mountable (estimated)
