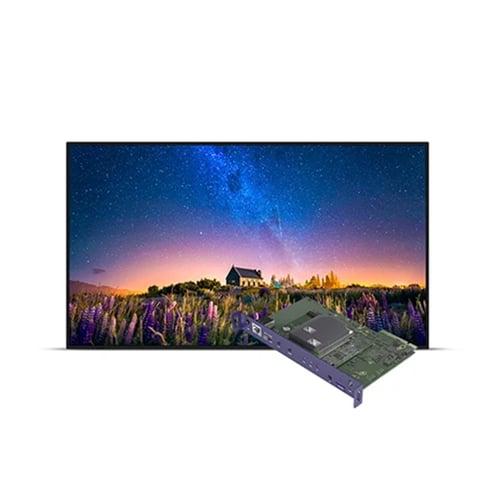

Sharp PN-M652-BS6 65" 4K UHD Public Display Monitor with BrightSign Built-In
Sharp PN-M652-BS6 65" 4K UHD Public Display Monitor with BrightSign Built-In
Sharp

Sharp PN-M652-BS6 65" 4K UHD Public Display Monitor with BrightSign Built-In

SKU: PN-M652-BS6
(0)
$5,006.00

The Sharp PN-M652-BS6 is a 65-inch professional LCD public display engineered for demanding commercial environments. It features a 4K UHD native resolution for exceptionally vivid and lifelike imagery, supported by Sharp's proprietary SpectraView Engine for out-of-the-box factory panel calibration and consistent visuals. The industrial-strength panel includes thermal protection, internal temperature sensors, and fan-based cooling for reliable 24/7 operation.

This display integrates a BrightSign XS156 media player via the Intel SDM slot, combining a secure and reliable signage engine with the modular versatility of the SDM form factor for mission-critical applications. A microSD card is included for superior media playback, while onboard USB-C with DP-Alt Mode, 65W Power Delivery, and hub functionality streamlines presentation setups.

Designed for flexible installation, the monitor supports landscape and portrait orientation and offers enhanced daisy chain capabilities through both HDMI and DisplayPort outputs. With 550 cd/m² brightness, a high haze panel, bidirectional external control via LAN or RS-232C, and failover capabilities for input redundancy, it ensures continuous, attention-capturing performance backed by a full 5-year commercial warranty.

Key Features

Brand Sharp
Model Number PN-M652-BS6
Screen Size 65"
Resolution 3840 x 2160 (4K UHD)
Brightness 550 cd/m²
Panel Type LCD
Orientation Landscape, Portrait
Operating Hours 24/7
Integrated Media Player BrightSign XS156 (SDM Slot)
Connectivity USB-C (DP-Alt Mode, 65W PD), HDMI, DisplayPort, LAN, RS-232C
Daisy Chain HDMI Out, DisplayPort Out
Warranty 5-Year Commercial
Weight 55.1 lbs
UPC 074000038899

Downloads

Frequently asked questions

What media player is integrated into this display?

The Sharp PN-M652-BS6 features an integrated BrightSign XS156 media player via the Intel Smart Display Module (SDM) slot, and a microSD card is included.

Is this display suitable for 24/7 operation?

Yes, it is designed for 24/7 commercial runtimes with an industrial-strength panel, thermal protection, internal temperature sensors, and fan-based cooling technology.

What are the connectivity options for external control?

The display supports bidirectional and full external control via LAN or RS-232C, and features LAN daisy chaining to pass RS-232C, TCP-IP, and IR signals to control groups of displays.

What warranty is included with this monitor?

It includes a full 5-year commercial warranty for purchases made from July 1st, 2026 onwards.
