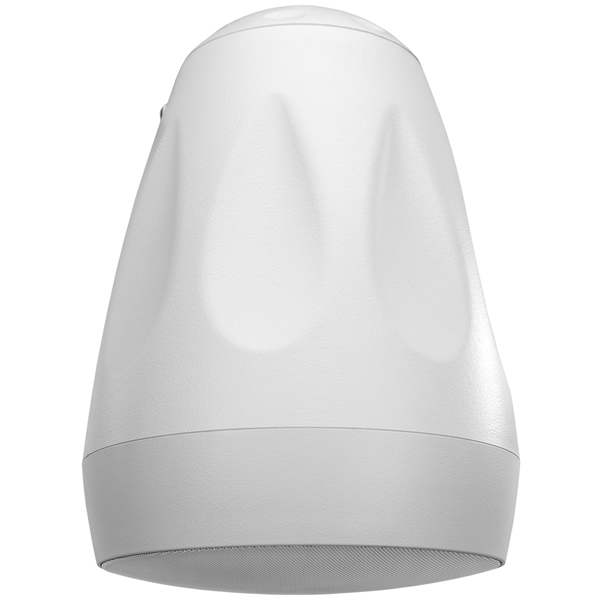

Pure Resonance Audio PD6W 6.5" 70V Pendant Mount Speaker with Hardware

SKU: PRA-PD6W
Regular price $209.99

Frequently Asked Questions

A pendant speaker is a speaker that hangs from the ceiling instead of mounting flush in a wall or ceiling. It is usually the best choice in open-ceiling spaces where there is no finished ceiling to hide in-ceiling speakers, or where sound needs to be brought closer to listeners below high rafters or exposed structure. The Pure Resonance Audio PD6W is a commercial pendant speaker designed for that type of environment. It uses a down-firing 6.5-inch coaxial driver and a wide 150-degree coverage pattern to spread speech and background music evenly in spaces like restaurants, retail stores, offices, and warehouses. Because it is weather-resistant, it can also work in covered outdoor areas where moisture resistance matters. Pendant speakers are especially helpful when you need clear paging and consistent audio in large, open areas. The tradeoff is that they are visible by design, so aesthetics and hanging height matter. They are generally less discreet than in-ceiling speakers, but often perform better in exposed-ceiling commercial installations.
The best pendant speakers for open-ceiling commercial spaces are the ones that match the room’s ceiling height, paging needs, and audio system type. For most restaurants, stores, offices, and warehouses, key features to look for are wide coverage, clear vocal intelligibility, 70V compatibility, weather-resistant construction, and included mounting hardware. The Pure Resonance Audio PD6W fits that profile well. It is a 6.5-inch 70V pendant speaker with selectable transformer taps at 4W, 8W, 16W, and 32W, plus an 8 ohm bypass option. Its 150-degree conical dispersion helps cover broad areas with fewer dead spots, and its frequency response of 65 Hz to 20 kHz supports both speech and background music. The included steel cables, carabiners, and fastlinks also simplify pendant installation. This type of speaker is best for distributed audio in open commercial environments rather than critical listening or high-output concert sound. If your priority is even coverage and intelligible announcements, a wide-dispersion 70V pendant model like the PD6W is a strong fit.
Pendant speakers are usually better than in-ceiling speakers when the building has an open ceiling, exposed ductwork, or high structural ceilings. In-ceiling speakers work best when there is a finished drop ceiling or enclosed ceiling cavity available for mounting. A pendant model like the Pure Resonance Audio PD6W hangs lower into the listening area, which can improve speech clarity and coverage in tall spaces. Its 150-degree dispersion is useful for broad sound distribution in dining areas, sales floors, offices, and warehouse zones. It is also weather-resistant, which adds flexibility for semi-protected outdoor commercial areas. In-ceiling speakers are more discreet visually, but they can be less practical or less effective in exposed-ceiling environments because they sit too high or cannot be installed cleanly. The main tradeoff with pendant speakers is appearance and suspension hardware, since they remain visible. If your space has high open ceilings and you need paging plus background music, pendant speakers are often the more effective choice.
For most commercial distributed audio systems, a 70V pendant speaker is the better choice because it makes it easier to run multiple speakers over long cable distances and balance coverage across large spaces. An 8 ohm speaker is often better for smaller systems with only a few speakers and shorter wiring runs. The Pure Resonance Audio PD6W gives you both options. It includes a 70V transformer with selectable taps at 4W, 8W, 16W, and 32W, plus an 8 ohm bypass. That makes it flexible for standard commercial paging and background music systems, while also allowing use in low-impedance setups if needed. This matters most in restaurants, retail stores, offices, schools, and warehouses where several speakers may be spread across one amplifier system. The tradeoff is that 70V systems are designed for convenience and coverage, not necessarily maximum hi-fi performance. If your goal is scalable commercial sound with straightforward installation and zoning, 70V is usually the right format.
The number of pendant speakers you need depends on ceiling height, room shape, background noise, and how loud and even you want the coverage to be. There is no single universal number, but wide-dispersion pendant speakers are often chosen specifically to reduce the total quantity needed in open spaces. The Pure Resonance Audio PD6W has a 150-degree conical coverage pattern, which helps spread sound broadly below each speaker. That makes it a practical option for paging, announcements, and background music in open retail floors, dining areas, offices, and warehouse sections. In many projects, installers space pendant speakers based on overlap between coverage zones and the target sound pressure level at listener height. A good rule is to treat speaker count as a coverage and intelligibility question, not just a wattage question. Fewer speakers can create hot spots and dead areas, while too many can add cost and complexity. If speech clarity matters, it is usually better to use enough speakers for even coverage rather than trying to make a small number play louder.
The 83% rule is a speaker layout guideline that suggests spacing speakers at about 83% of the ceiling height above the listening plane to improve coverage overlap and speech intelligibility. It is not a hard law, but it is commonly used as a starting point in distributed audio design. Yes, it can apply to pendant speakers, especially in commercial environments where even sound coverage is more important than stereo imaging. With a pendant model like the Pure Resonance Audio PD6W, the rule can help planners estimate spacing in open-ceiling spaces such as retail stores, restaurants, offices, and warehouses. Its 150-degree conical dispersion gives designers a wide coverage footprint, which can support broad spacing while still maintaining intelligible audio. That said, the 83% rule is only a guideline. Actual spacing should also account for ceiling height, room noise, obstructions, and whether the system is primarily for paging or music. For critical projects, a proper layout based on the speaker’s dispersion and the room’s acoustics will be more accurate than any single rule of thumb.
Yes, the Pure Resonance Audio PD6W is well suited for paging, announcements, and background music in commercial spaces. Its design priorities are clear speech intelligibility, broad coverage, and easy integration into distributed audio systems. It uses a 6.5-inch polypropylene woofer and a 1-inch black silk tweeter in a down-firing coaxial design, with a frequency response of 65 Hz to 20 kHz. That range is wide enough for natural-sounding voice reproduction and pleasant music playback. Its maximum SPL of 101 dB and 87 dB sensitivity make it appropriate for typical commercial environments rather than extremely high-output entertainment applications. This speaker is a strong fit for restaurants, retail stores, office areas, and warehouses where the goal is intelligible announcements and consistent ambient audio. The main limitation is that it is not intended as a specialty high-bass music speaker or a large venue concert solution. For everyday commercial audio where voice clarity matters, it is a practical choice.
Yes, the PD6W can be used in outdoor-adjacent applications if the area is covered or otherwise appropriate for weather-resistant commercial equipment. It is built with weather-resistant construction, which helps it handle moisture and environmental exposure better than standard indoor-only speakers. That makes it a useful option for covered patios, breezeways, entry areas, and similar open commercial spaces where exposed-ceiling style audio is needed. It is also suitable for indoor environments that may have humidity or temperature variation, such as some warehouse or hospitality settings. The baked white aluminum grill and commercial pendant design support durability in these applications. The important limitation is that weather-resistant does not automatically mean fully weatherproof for every outdoor condition. It is best used where the speaker has some protection from direct, prolonged exposure to heavy rain or extreme environmental stress. If your application is a covered commercial outdoor area needing paging and background music, the PD6W is a sensible fit.
The right power tap depends on how loud you need each speaker to play and how much area each one is covering. Higher tap settings provide more output from that speaker, while lower settings help create more modest volume and allow more speakers on the amplifier line. The Pure Resonance Audio PD6W offers 70V taps at 4W, 8W, 16W, and 32W, plus an 8 ohm bypass. In a quieter office or boutique retail setting, lower taps may be enough for background music and light paging. In noisier restaurants, larger retail floors, or warehouse zones, higher taps may be preferred for clearer announcements and stronger coverage. The 32W setting is useful when ceiling height or ambient noise requires more output. The tradeoff is amplifier capacity. Every tap setting adds to the total wattage load on the system, so tap selection should match both the room and the amplifier’s available power. For best results, choose the lowest tap that still delivers clear, intelligible sound in the actual listening area.
When buying a commercial pendant speaker, focus on five things: coverage pattern, system compatibility, voice clarity, mounting hardware, and environmental suitability. These factors usually matter more than raw driver size alone. The Pure Resonance Audio PD6W is a good example of what to compare. It offers a wide 150-degree conical dispersion for open-area coverage, selectable 70V transformer taps plus 8 ohm bypass for flexible system integration, and a 65 Hz to 20 kHz frequency response that supports both speech and background music. It also includes suspension hardware such as steel cables, carabiners, and fastlinks, which is important because pendant installation requires secure hanging support. Its weather-resistant construction adds versatility for indoor and covered outdoor use. This buying approach helps most in restaurants, retail stores, offices, and warehouses with exposed ceilings. A key tradeoff is that pendant speakers are visible and require planning for hang height and spacing. If you need clear distributed audio in an open commercial environment, these are the features that matter most.

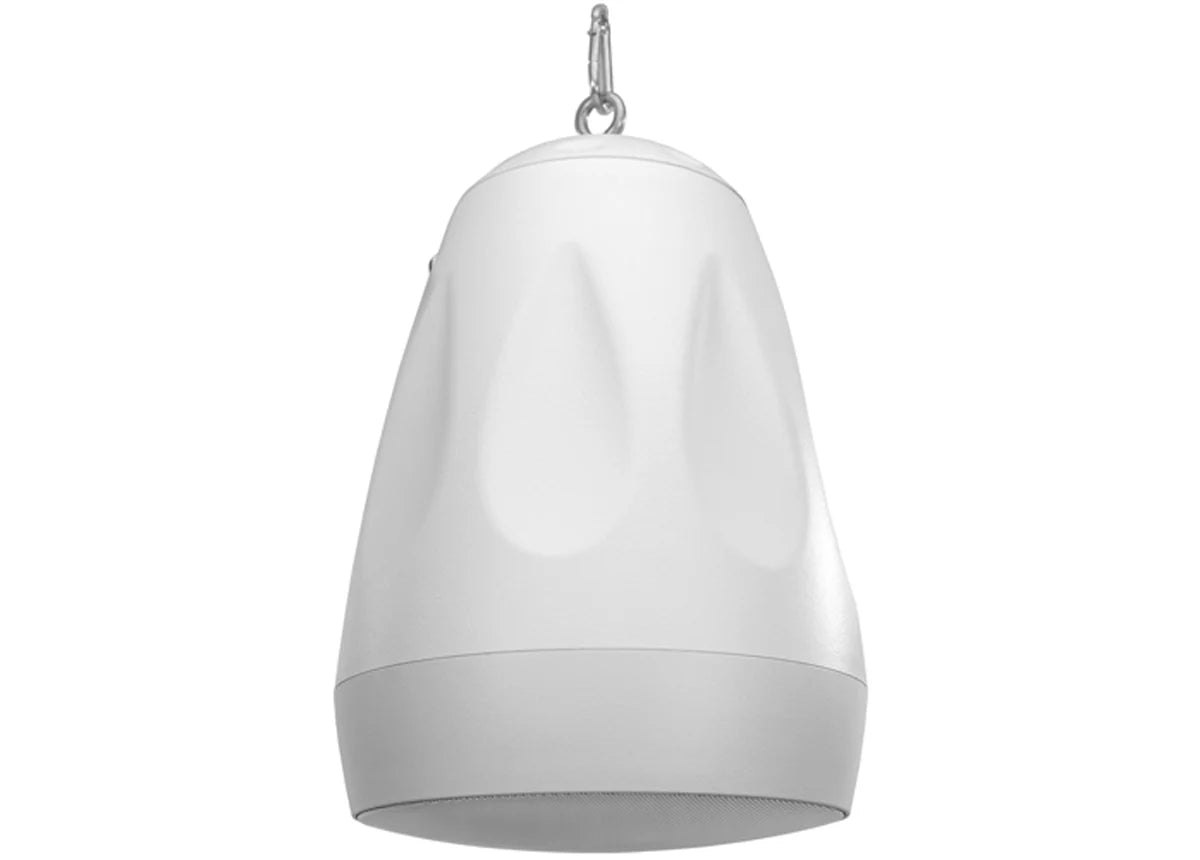

The Pure Resonance Audio PD6W is a 6.5-inch full-range white pendant mount speaker designed for clear, intelligible audio in indoor and outdoor open-ceiling commercial spaces. Its weather-resistant construction and down-firing coaxial driver deliver a wide 150-degree coverage pattern, making it ideal for paging, announcements, and background music in restaurants, retail stores, offices, and warehouses.

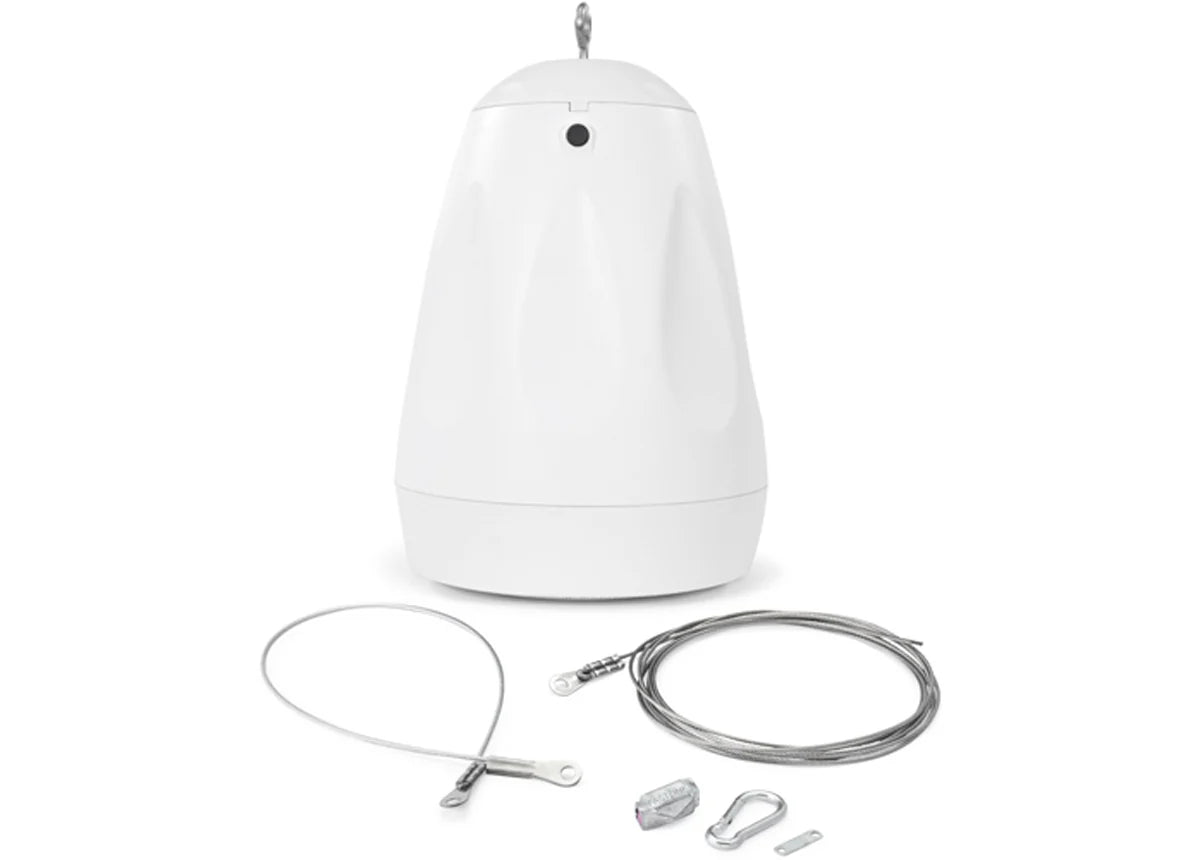

This 70-volt speaker features a multi-tap transformer with selectable power taps (4W, 8W, 16W, 32W, and 8 Ohm bypass) for easy integration into distributed audio systems. The included mounting kit with steel cables, carabiners, and fastlinks ensures a secure and straightforward pendant installation.

With a frequency response of 65 Hz to 20 kHz and a maximum SPL of 101 dB, the PD6W provides superb sound reproduction for high-ceiling environments. It ships with a weight of 9 lbs and includes a 4-pin Euroblock screw terminal for reliable connections.

Power Handling 30 Watts RMS; 70 Watts Peak
Frequency Response 65 Hz – 20 kHz
Sensitivity 87 dB 1m/1w
Max SPL 101 dB
Dispersion Conical 150°
Impedance 8 Ohms

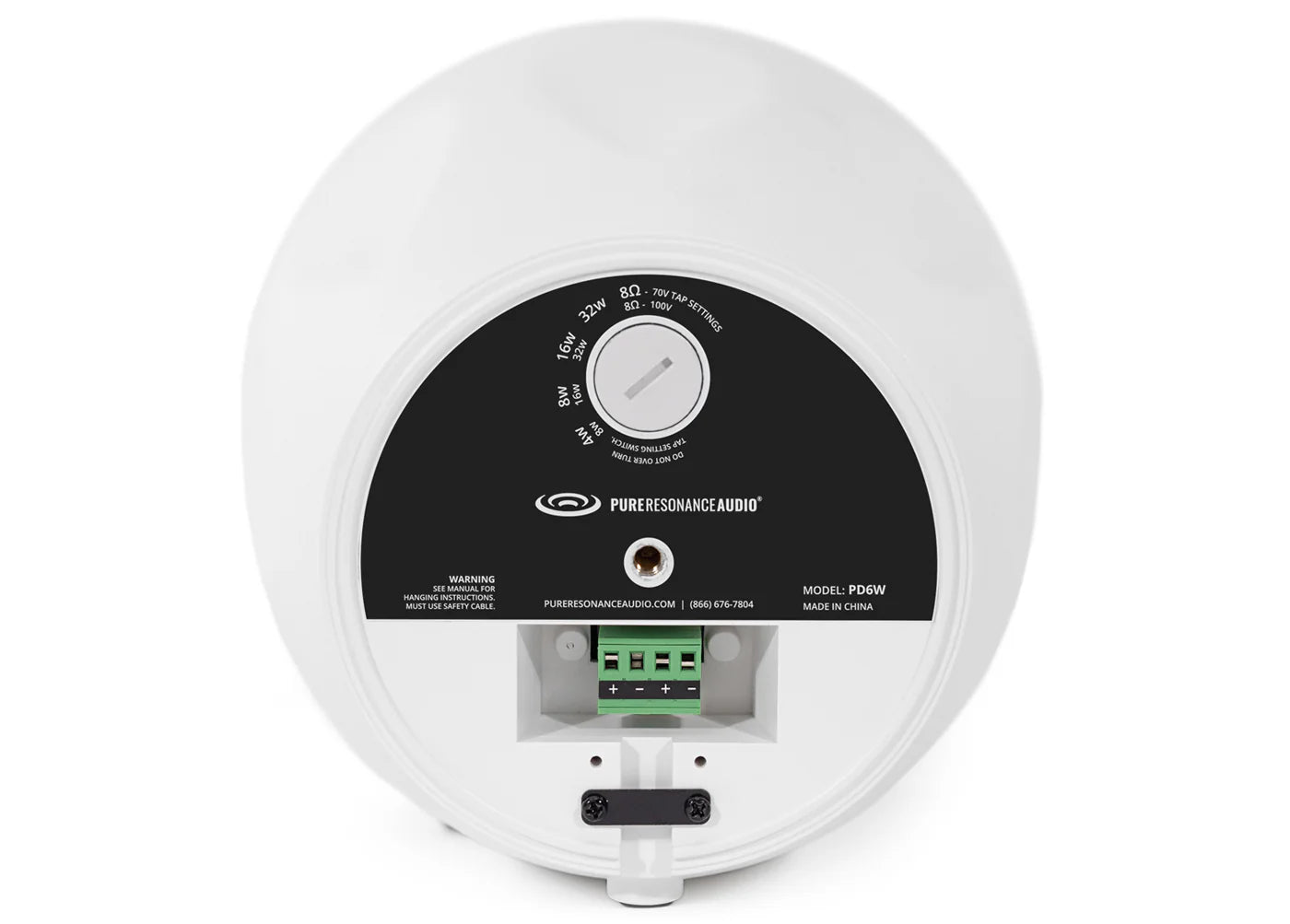

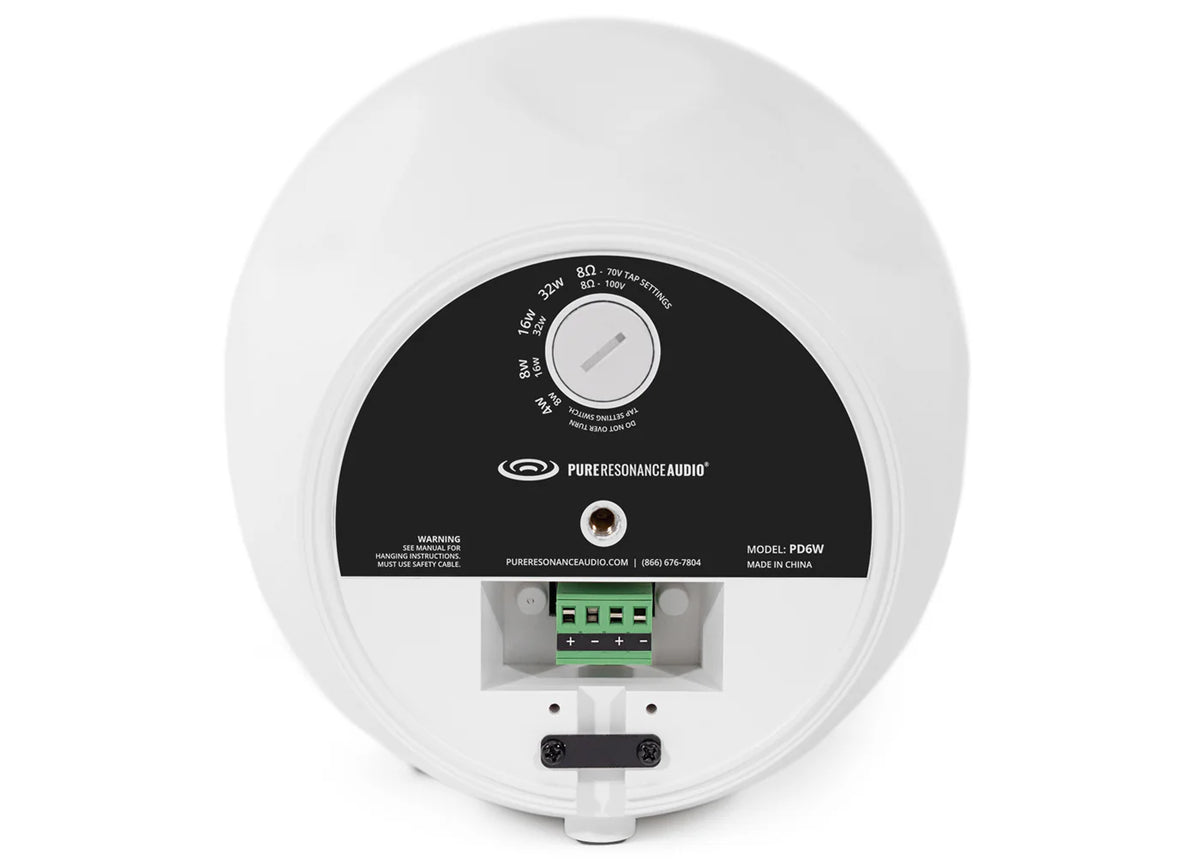

Transformer Taps (70V) 4W / 8W / 16W / 32W / 8 Ohm Bypass
Woofer 6.5 inch Polypropylene
Tweeter 1 inch Black silk
Grill Baked white aluminum
Connections 4-pin Euroblock screw terminal
Dimensions (H x Dia) 10.3" x 8.1"
Shipping Dimensions (H x W x D) 11.25" x 13.5" x 10.56"
Weight 6.35 lbs
Shipping Weight 9 lbs
UPC 810538036538
