Pure Resonance Audio MX84 8-Channel 4 Zone Rack Mount Mic/Line Mixer 2U
Regular price
$659.99
Couldn't load pickup availability
Frequently Asked Questions
What is the best audio mixer to buy for a commercial multi-room sound system?
The best audio mixer for a commercial multi-room sound system is usually a zone mixer, not a basic live sound mixer. A good choice should let you route multiple sources to different areas, adjust each zone independently, support paging, and handle priority audio for announcements or emergencies.
The Pure Resonance Audio MX84 fits that type of installation well because it combines 8 input channels with 4 independent output zones in a 2U rack mount design. It includes four balanced XLR/TRS mic or line inputs, four additional line-level inputs, 2-band EQ on each zone, mute controls, and priority functions such as ducking on channel 1 and a priority mute input for alarm integration. That makes it useful for schools, offices, restaurants, houses of worship, and other facilities that need different audio in different spaces.
It is best for installed commercial systems rather than portable events or music production. If you need recording features, onboard effects, or USB streaming, a different type of mixer may be better.
How do I choose an audio mixer for paging, background music, and multiple zones?
Choose an audio mixer for paging and background music by focusing on routing, priority control, and installation features. The key questions are how many sources you need, how many listening areas you want to control separately, whether you need paging, and whether emergency override is required.
For this type of application, the Pure Resonance Audio MX84 is built around those needs. It offers 8 channels and 4 zones, so you can send audio to several areas of a building while adjusting each zone independently. It also supports an RJ45 remote mic input for zone paging, has channel priority ducking so announcements can lower music automatically, and includes a priority mute input that can work with emergency alarm systems. Each zone also has its own volume, mute, and 2-band EQ controls for day-to-day adjustment.
This type of mixer is best for installed commercial environments, especially where staff need simple front-panel control. If you only need one room or one output, a smaller single-zone mixer may be enough.
What is the difference between a zone mixer and a standard audio mixer?
A zone mixer is designed to send audio to multiple areas independently, while a standard audio mixer is usually designed to combine sources into one main output for a single room, event, or recording setup. That is the biggest difference when choosing between them.
The Pure Resonance Audio MX84 is a true zone mixer because it provides four separate output zones with individual volume control, mute, and 2-band EQ. That means a business can play different source mixes or set different volume levels in separate areas of a building. A standard small-format mixer typically does not offer that level of area-by-area control. The MX84 also adds commercial features such as paging support, priority ducking, and priority mute integration for alerts.
A standard mixer may still be better for live bands, podcasting, or studio work because those users often need aux sends, effects, recording connectivity, or detailed channel processing. A zone mixer is the better fit when the goal is audio distribution across multiple rooms.
Is the Pure Resonance Audio MX84 a good choice for restaurants, schools, offices, or churches?
Yes, the Pure Resonance Audio MX84 is a strong fit for many installed sound systems in restaurants, schools, offices, and churches, especially when the building needs more than one controllable audio area. Its 4-zone design allows separate spaces to be managed independently, which is useful for dining rooms, hallways, lobbies, classrooms, fellowship spaces, or office wings.
It supports four balanced mic or line inputs plus four additional line inputs, so it can handle microphones, music players, presentation sources, and paging. Channel 1 includes priority ducking, which helps announcements cut through background music. It also has a priority mute input for emergency systems, an RJ45 remote mic input for paging zone selection, and compatibility with remote wall controls. These are practical features for facilities that need centralized control and reliable day-to-day operation.
Its main limitation is that it is not intended as a music production mixer or portable event mixer. It is best where permanent rack-mounted, multi-zone distribution is the priority.
How many microphones and audio sources can the MX84 handle?
The MX84 can handle up to eight total input sources at once. It includes four balanced XLR/TRS mic or line inputs and four additional line-level inputs, which gives it flexibility for mixed-source commercial systems.
The first four channels are the most versatile because they accept microphone or line-level signals, and they include 3-band EQ for more precise tone adjustment. Phantom power is available for channels 1 through 4, which is helpful if you need to use condenser microphones. The remaining four inputs are line-level, making them suitable for music players, media devices, or other playback sources. Channel 1 also includes a dedicated priority ducking switch for applications where one microphone or source should automatically take precedence over background audio.
This layout is ideal for facilities that need a few microphones plus several playback devices. If you need more than four microphone-capable channels, you may need a larger mixer or an added submixer depending on the system design.
Does the MX84 support emergency paging or alarm override?
Yes, the MX84 is designed to support priority audio functions that are important in commercial installations. It includes a priority mute input that can integrate with emergency alarm systems, allowing non-priority audio to be suppressed during alerts. That helps ensure emergency messages are heard clearly when needed.
It also includes priority ducking on channel 1, with greater than 70 dB ducking performance. In practical use, that means a priority microphone or source can automatically lower the level of background music or other content during announcements. This is useful for schools, retail spaces, offices, hospitality environments, and houses of worship where routine paging must override music without constant manual adjustment.
For facilities with life-safety requirements, this type of feature is valuable, but proper system design and code compliance still matter. The mixer supports emergency override functions, but the full installation should always be planned around the specific building, notification system, and local regulations.
Does this mixer have phantom power for condenser microphones?
Yes, the MX84 provides phantom power on its microphone-capable channels. According to its specifications, phantom power is available on channel 1 and optionally on channels 2 through 4, which allows it to work with many condenser microphones used for paging, speech, and installed audio applications.
That is important because not all commercial rack mixers include phantom power across multiple mic inputs. On the MX84, the four balanced XLR/TRS inputs are the channels intended for microphones or line-level sources, and they also include 3-band EQ. This makes them suitable for tuning vocal intelligibility in paging or announcement systems.
The main advantage is flexibility. You can use dynamic microphones, condenser microphones, or line-level devices on those channels depending on your installation needs. The tradeoff is that this is still a commercial zone mixer, not a studio console, so phantom power is there for practical installation use rather than advanced recording workflows.
Can the MX84 send different audio to different rooms or zones?
Yes, that is one of the main reasons to choose the MX84. It is a 4-zone mixer, which means it can distribute audio across four separate output zones and let you manage each zone independently from the front panel.
Each zone has its own volume adjustment, 2-band EQ, and mute control. That allows a facility to tailor audio for different rooms or areas, such as a lobby, dining area, patio, classroom wing, or office section. In real-world use, one zone may need lower volume or a different tonal balance than another, and the MX84 is built for that type of control. It also supports paging zone selection through its RJ45 remote mic input, which is useful when announcements need to go only to specific parts of a building.
This is a better fit than a standard single-output mixer when the goal is distributed sound. If you only need one common output for one room, a simpler mixer may be enough.
What equipment do I need to build a complete commercial audio system around this mixer?
To build a complete commercial audio system around the MX84, you typically need the mixer, power amplification or powered speakers, speakers for each zone, source devices, microphones if paging is required, and the correct cabling. Depending on the site, you may also want remote wall controls and a compatible paging microphone.
The MX84 acts as the central mixing and routing component. It accepts microphone and line-level sources, then distributes the signal to up to four output zones. From there, each zone output usually feeds an amplifier or active speaker system. You may connect media players, computers, wireless presentation audio, or background music sources to the line inputs. For paging, the RJ45 remote mic input can simplify zone-based announcements. If the facility has emergency notification requirements, the priority mute input can be part of that integration.
What you do not get is built-in power amplification. So this mixer is best viewed as the control hub of a larger installed sound system, not a complete all-in-one PA by itself.
Is the Pure Resonance Audio MX84 a good audio mixer for beginners or home use?
It depends on what kind of beginner you are. The MX84 is not the typical best choice for someone learning music mixing at home, recording podcasts, or producing tracks. It is a commercial rack mount zone mixer designed for installed sound systems, not a creative production mixer.
Where it does make sense for a beginner is in straightforward facility audio management. If someone is setting up sound for a small church, office, school, restaurant, or multi-room building, the MX84 can actually be easier to understand than a complex live sound console because its job is focused: manage up to eight sources across four zones with clear front-panel controls. Features like zone volume, mute buttons, built-in monitoring, paging support, and priority override are practical for non-technical staff once installed correctly.
For home studios or casual home use, a smaller mixer with USB, recording features, or simpler single-room outputs is usually a better fit. The MX84 is best for beginners in commercial installation settings, not beginners in music production.

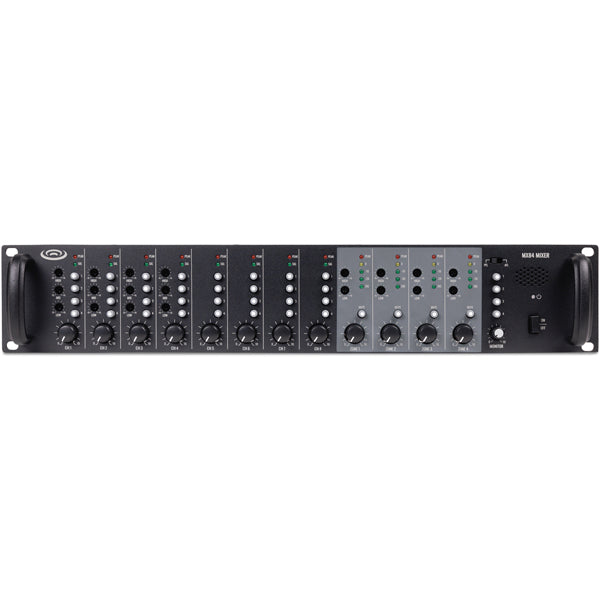

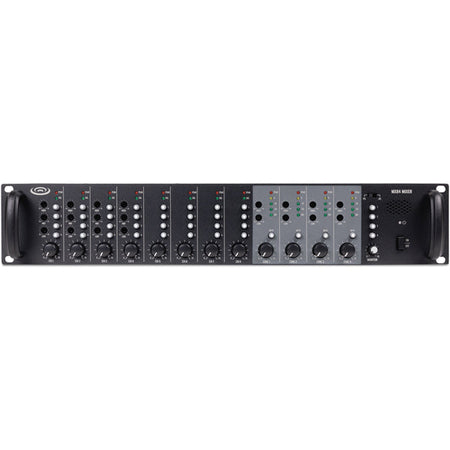

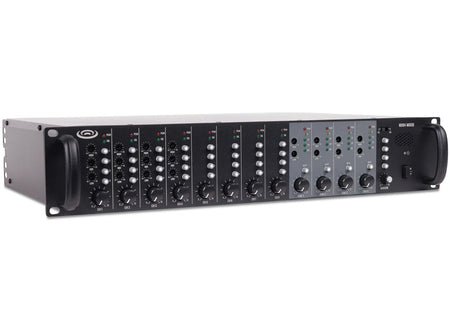

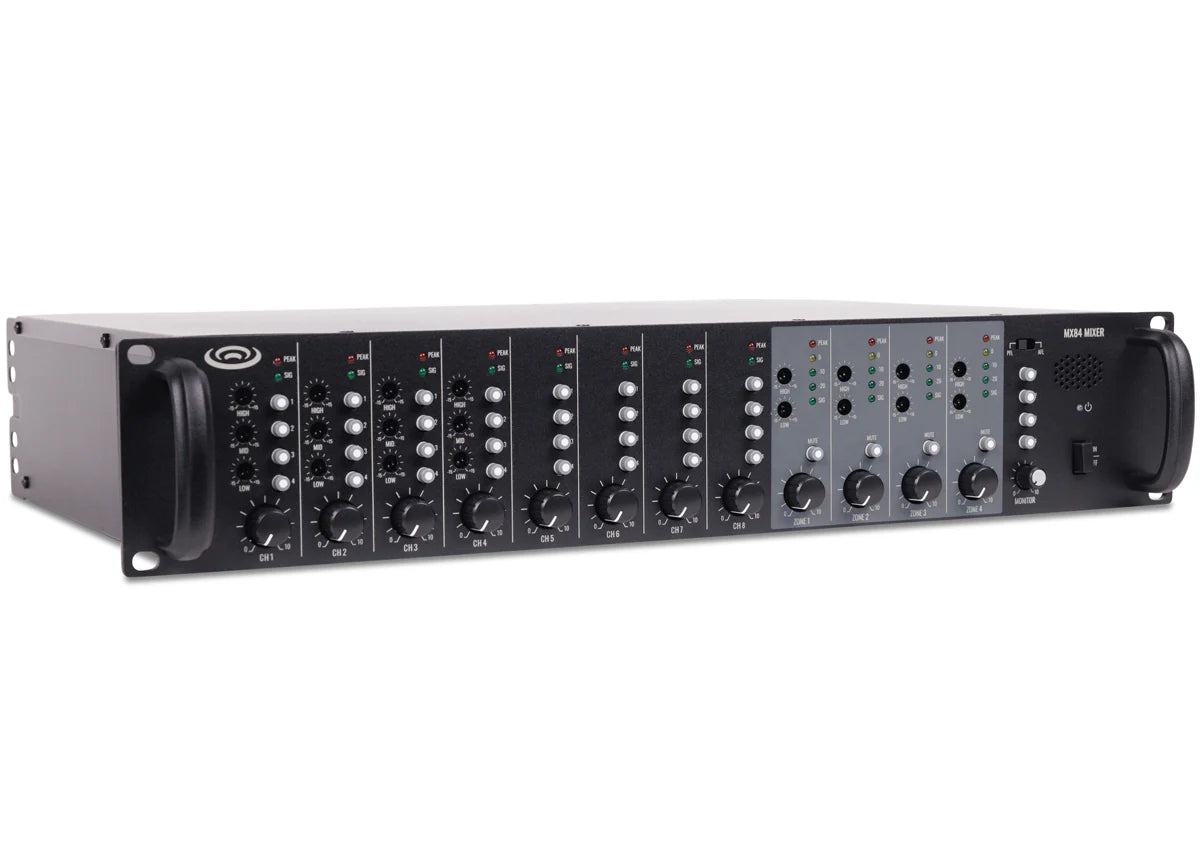

The Pure Resonance Audio MX84 is a professional 8-channel rack mount mic/line mixer engineered for versatile multi-zone commercial installations. This 2U chassis provides independent control over four distinct output zones, allowing for seamless audio distribution across different areas of a facility. The intuitive front panel features individual volume adjustments, 2-band zone EQ, and zone mute buttons for precise environmental audio management.

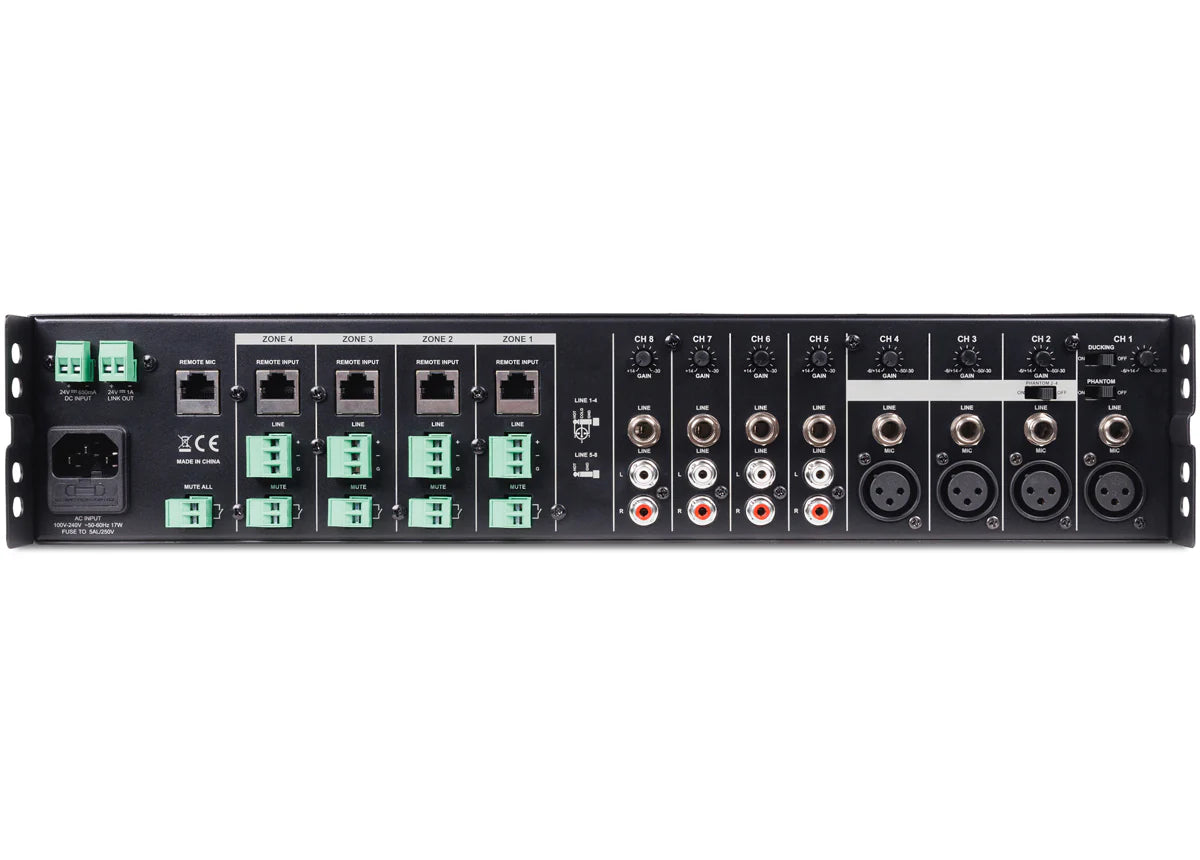

Equipped with eight mixing channels, the MX84 supports four balanced XLR/TRS inputs with 3-band EQ and phantom power, alongside four additional line-level inputs. Channel one includes a dedicated priority ducking switch, while a priority mute input integrates with emergency alarm systems to suppress non-priority sources during alerts. A built-in monitor speaker with pre/post-fader switching allows for real-time monitoring of individual zones directly from the rack.
Designed for effortless integration, this mixer includes an RJ45 remote mic input for paging zone selection and is compatible with remote wall control panels. The robust construction and high-quality internal components ensure low distortion and a wide frequency response of 20Hz to 20kHz. This mixer is an ideal solution for complex audio setups requiring reliable, multi-source routing and professional-grade sound performance.
| UPC | 810093051151 |
| Rated Output Level / Impedance | 0 dB / 600 Ω Balanced |
| Frequency Response | 20Hz - 20kHz (±1 dB) |
| Total Harmonic Distortion | < 0.01% |
| Signal to Noise Ratio | > 90 dB |
| Phantom Power | CH 1 and CH 2-4 option |
| Priority Ducking | > 70 dB |
| Input Equalization | High: 12 kHz ± 15 dB / Mid: 2.5 kHz ± 15 dB / Low: 80 Hz ± 15 dB |
| Output Equalization | High: 10 kHz ± 15 dB / Low: 100 Hz ± 15 dB |
| Power Supply | AC 100 - 240V, 50 / 60Hz |
| Dimensions (H x W x D) | 3.5" x 19" x 11.25" |
| Net Weight | 19.84 lbs |
| Rack Space | 2U |
| Inclusions | MX84 Mixer, Power Cord |
