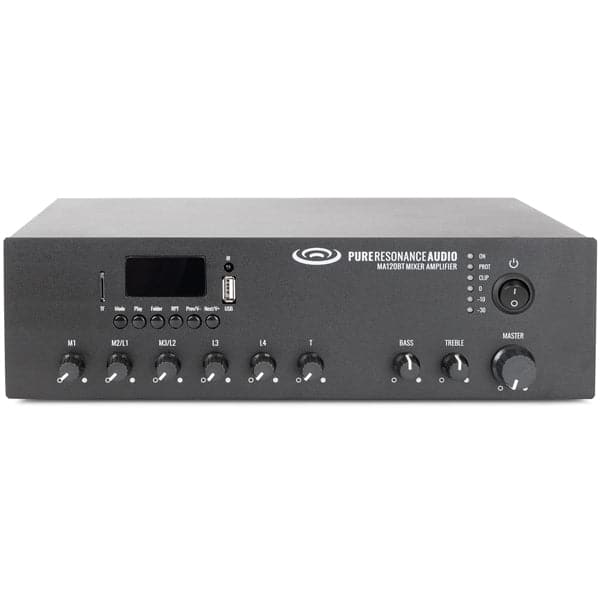

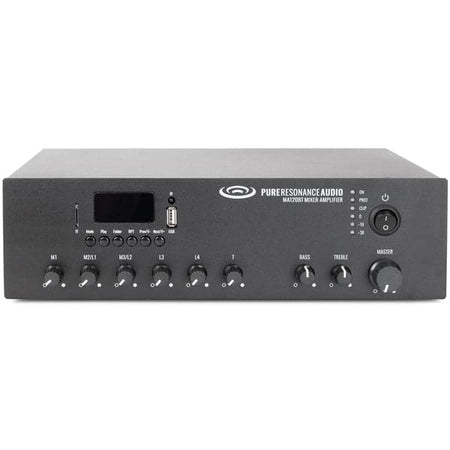

Pure Resonance Audio MA120BT 7-Channel Mixer Amplifier Bluetooth 70V 120W
Couldn't load pickup availability
The Pure Resonance Audio MA120BT is a versatile 7-channel mixer amplifier designed for reliable performance in commercial environments like restaurants, retail stores, and offices. This 120W unit features integrated 70V and 100V transformer technology, providing a seamless solution for background music and paging systems. With its compact footprint and intuitive interface, it easily integrates into any professional audio setup.
Equipped with a built-in Bluetooth media player, this amplifier allows for instant wireless streaming from smartphones, tablets, or PCs. It offers extensive connectivity options, including balanced XLR inputs with phantom power, switchable Mic/Line inputs, and RCA connections. The front-panel MP3 player supports USB and TF cards, while the included IR remote provides convenient control over playback and FM radio functions from across the room.
Built for durability and flexibility, the MA120BT includes essential features such as Music On Hold (MOH) and a telephone input with VOX priority for clear announcements. The system is protected by short-circuit, clip, overload, and high-temperature safeguards to ensure long-term reliability. Whether powering 4-ohm, 8-ohm, or 70V speaker lines, this mixer amplifier delivers professional-grade sound with dedicated bass and treble attenuation.
| Rated Power Output | 120W |
| Speaker Outputs | 70V, 100V, 4 Ohms, 8 Ohms, 16 Ohms |
| Inputs | 1 x XLR (Phantom Power), 2 x 1/4" Mic/Line, 2 x RCA Line, 1 x Telephone |
| Outputs | 1 x RCA Line Out, 1 x MOH (Music on Hold) |
| Frequency Response | 60Hz - 15kHz (±3 dB) |
| Signal to Noise Ratio | Line ≥ 85 dB, Mic ≥ 72 dB |
| Total Harmonic Distortion | Less than 0.5% |
| Protection | Short-circuit, clip, overload, and high temp protection |
| Power Supply | 115V 60Hz & 24V DC |
| Dimensions | 3.54" x 12.6" x 8.27" |
| Weight | 6.6 lbs |
| UPC | 810538032493 |
