Pure Resonance Audio C5-PK-KIT 4" 70V Pendant Mount Speaker with Wire & Safety Cable

SKU: PRA-C5-PK-KIT
Regular price $144.99

Frequently Asked Questions

A pendant speaker is a hanging speaker designed to suspend from the ceiling, usually in spaces with exposed rafters, open plenum ceilings, or modern architectural layouts where traditional in-ceiling speakers are not practical. It is commonly used for background music, paging, and sound masking in offices, restaurants, retail stores, resorts, and hospitality spaces. A pendant speaker like the Pure Resonance Audio C5-PK-KIT is a strong choice when you need clean coverage from above without cutting into a finished ceiling. This model uses a 4-inch full-range driver, a 120° x 120° coverage pattern, and both 70V and 8-ohm options, which makes it flexible for distributed commercial audio systems. The included 12-foot integrated wire and steel safety cable also simplify single-point suspension. Pendant speakers are best for commercial environments that need even sound distribution and a neat appearance. They are less ideal for dedicated home theater use, where larger speakers with deeper bass and more directional placement are usually preferred.
Yes, pendant speakers are often one of the best speaker types for offices, restaurants, and retail stores with open ceilings. They place sound closer to listeners than ceiling speakers mounted high above exposed beams, which can improve speech clarity for paging and create more even background music coverage. The Pure Resonance Audio C5-PK-KIT is specifically suited for these environments. It supports commercial 70V operation with 2.5W, 5W, and 10W taps at 70V, plus 100V taps and an 8-ohm bypass. That makes it useful for distributed audio systems in businesses that need multiple speakers on one amplifier. Its 4-inch full-range driver, 91 dB sensitivity, and 120° coverage angle help it cover common seating, shopping, and work areas efficiently. This type of speaker is best for low-to-moderate level music, announcements, and sound masking. It is not the right fit if the goal is high-output nightclub sound or deep bass-heavy playback. For voice, ambient music, and everyday commercial audio, it is a practical and architecturally clean solution.
The best pendant speakers for commercial audio usually combine broad coverage, simple installation, commercial voltage compatibility, and clear speech and music performance. Buyers should check whether the speaker supports 70V or 100V distributed systems, offers an 8-ohm option for smaller installs, includes a safety cable, and provides enough coverage to reduce the number of speakers needed. The Pure Resonance Audio C5-PK-KIT checks several of those boxes. It includes 70V taps at 2.5W, 5W, and 10W, 100V taps at 5W, 10W, and 20W, plus an 8-ohm bypass. It also includes a 12-foot integrated speaker wire and multi-strand steel safety cable for secure single-point suspension. Its 120° x 120° nominal coverage helps distribute sound broadly in open spaces, and the back panel switch makes wattage adjustment straightforward. This kind of speaker is best for businesses that value easy installation, clean aesthetics, and even coverage. If your project needs heavy low-frequency output or concert-level volume, you would typically look at larger speakers or add subwoofers.
A 70V pendant speaker is usually better for larger business audio systems, while an 8-ohm speaker is often better for smaller, simpler setups. The main advantage of 70V is that it makes it easier to run multiple speakers over longer distances without the wiring and amplifier limitations common in low-impedance systems. The Pure Resonance Audio C5-PK-KIT supports both approaches. It has transformer taps for 70V and 100V systems, plus an 8-ohm bypass. That flexibility is useful if you are designing a distributed system for paging, background music, or sound masking across several rooms or an open commercial floor. In those cases, 70V is usually the preferred format. If you only need one or a few speakers connected to a compatible amplifier, the 8-ohm option can be simpler. For most offices, retail stores, and hospitality spaces, 70V is the better choice because it scales more easily. The tradeoff is that high-end audiophile listening is generally not the goal. These systems are built for coverage, convenience, and intelligibility.
Pendant mount speakers can be used in a home theater, but they are usually not the first choice. Home theater systems typically benefit from speakers placed at ear level or carefully positioned around the room for front, surround, and height effects. Pendant speakers are designed more for open-area coverage than for precise cinematic imaging. The Pure Resonance Audio C5-PK-KIT is better matched to commercial spaces than to traditional home theater rooms. Its strengths are broad 120° coverage, speech clarity, background music performance, and compatibility with 70V or 8-ohm systems. Those are excellent traits for offices, restaurants, and retail areas. Its 4-inch full-range driver and 90 Hz to 20 kHz frequency response can handle everyday audio well, but it is not built to replace dedicated theater speakers that prioritize deeper bass and directional surround performance. A pendant speaker may still make sense in a golf simulator room, game room, patio-style space, or modern loft with exposed ceilings. For serious movie performance, however, purpose-built home theater speakers are usually the better option.
The number of pendant speakers you need depends on room size, ceiling height, desired volume, and whether the system is for paging, background music, or sound masking. In general, buyers look at each speaker’s coverage pattern and output, then plan overlapping coverage so there are no weak spots. The Pure Resonance Audio C5-PK-KIT has a nominal coverage angle of 120° x 120°, which is helpful for broad sound dispersion in open areas. That wide pattern can reduce the total number of speakers needed compared with narrower designs, especially for background music and announcements. Its maximum SPL of 104 dB and 10-watt RMS rating make it suitable for typical commercial coverage rather than high-output live sound. For low-level ambient music or paging in offices, restaurants, or retail stores, pendant speakers are often spaced to create even, comfortable sound rather than maximum volume. The main tradeoff is that exact speaker count cannot be determined from product specs alone. Room acoustics, ceiling height, and ambient noise all matter, so a system layout from Protech Projection Systems is the best way to size the installation accurately.
The so-called 83% rule is not a formal speaker standard, but installers sometimes use percentage-based spacing guidelines to create even coverage between speakers. The general idea is to overlap speaker coverage enough to avoid dead zones while preventing excessive overlap that can waste output or reduce clarity. The exact percentage can vary by application and is more of a design shortcut than a hard rule. When choosing pendant speakers, what matters more is the actual coverage angle, mounting height, and purpose of the system. The Pure Resonance Audio C5-PK-KIT has a wide 120° x 120° coverage pattern, which makes it well suited for open architectural spaces that need smooth distribution for speech, sound masking, or background music. Designers typically use that coverage data along with ceiling height and room dimensions to decide spacing. So yes, spacing rules matter, but they should not replace real system design. For pendant speakers in offices, restaurants, or retail settings, a practical layout based on acoustics and coverage is more reliable than relying on one percentage rule alone.
Yes, the Pure Resonance Audio C5-PK-KIT is designed for exactly those applications. It is a commercial pendant speaker intended for paging, background music, and sound masking in open-ceiling environments such as offices, restaurants, retail stores, resorts, and hospitality venues. Its 4-inch full-range driver supports clear vocal reproduction and everyday music playback, while the 90 Hz to 20 kHz frequency response covers the range needed for speech and light music content. The 70V and 100V transformer taps make it easy to deploy in multi-speaker business systems, and the 8-ohm bypass gives added flexibility. With 91 dB sensitivity and broad 120° coverage, it is built to distribute sound evenly rather than focus on high-impact bass. This speaker is best for businesses that want intelligible announcements and comfortable ambient audio in architecturally exposed spaces. The tradeoff is that it is not intended for high-SPL entertainment venues or audiophile-critical listening. For commercial speech and ambient sound needs, it is a well-matched format.
Yes, the Pure Resonance Audio C5-PK-KIT is designed as a turnkey hanging solution and includes the key components needed for pendant installation. The kit includes a 4-conductor, 20-gauge speaker cable integrated with a 12-foot multi-strand steel stress-relief safety cable, along with a loop-nut safety cinch for secure single-point suspension. That integrated design helps simplify installation in open-ceiling commercial spaces because the speaker wire and safety support are already part of the hanging assembly. The C5 speaker also twists securely into the pendant cylinder, and the back panel switch allows easy adjustment of wattage taps for output control. This is especially useful for contractors and facility managers who want a cleaner and faster install process. It is a strong fit for offices, retail stores, restaurants, and similar venues where appearance and install efficiency matter. As with any suspended speaker, installers should still verify local code requirements, amplifier compatibility, and proper structural attachment points. The included kit reduces complexity, but professional installation practices still apply.
A 4-inch pendant speaker is usually chosen for speech clarity, background music, broad coverage, and a compact visual footprint rather than for deep bass or very high output. Compared with larger commercial speakers, it is often easier to blend into modern spaces and can be ideal for distributed audio where even coverage matters more than raw volume. The Pure Resonance Audio C5-PK-KIT uses a 4-inch full-range driver with a 90 Hz to 20 kHz frequency response, 91 dB sensitivity, and up to 104 dB maximum SPL. That makes it appropriate for paging, sound masking, and ambient music in offices, retail stores, and hospitality settings. Its wide 120° x 120° coverage is another advantage in open areas. The tradeoff is low-frequency extension and output scale. Larger speakers generally deliver more bass, greater headroom, and better performance in louder environments. If your goal is balanced distributed sound and a clean pendant form factor, a 4-inch model is often the right choice. If you need powerful foreground music or large-venue impact, a larger speaker would be more suitable.

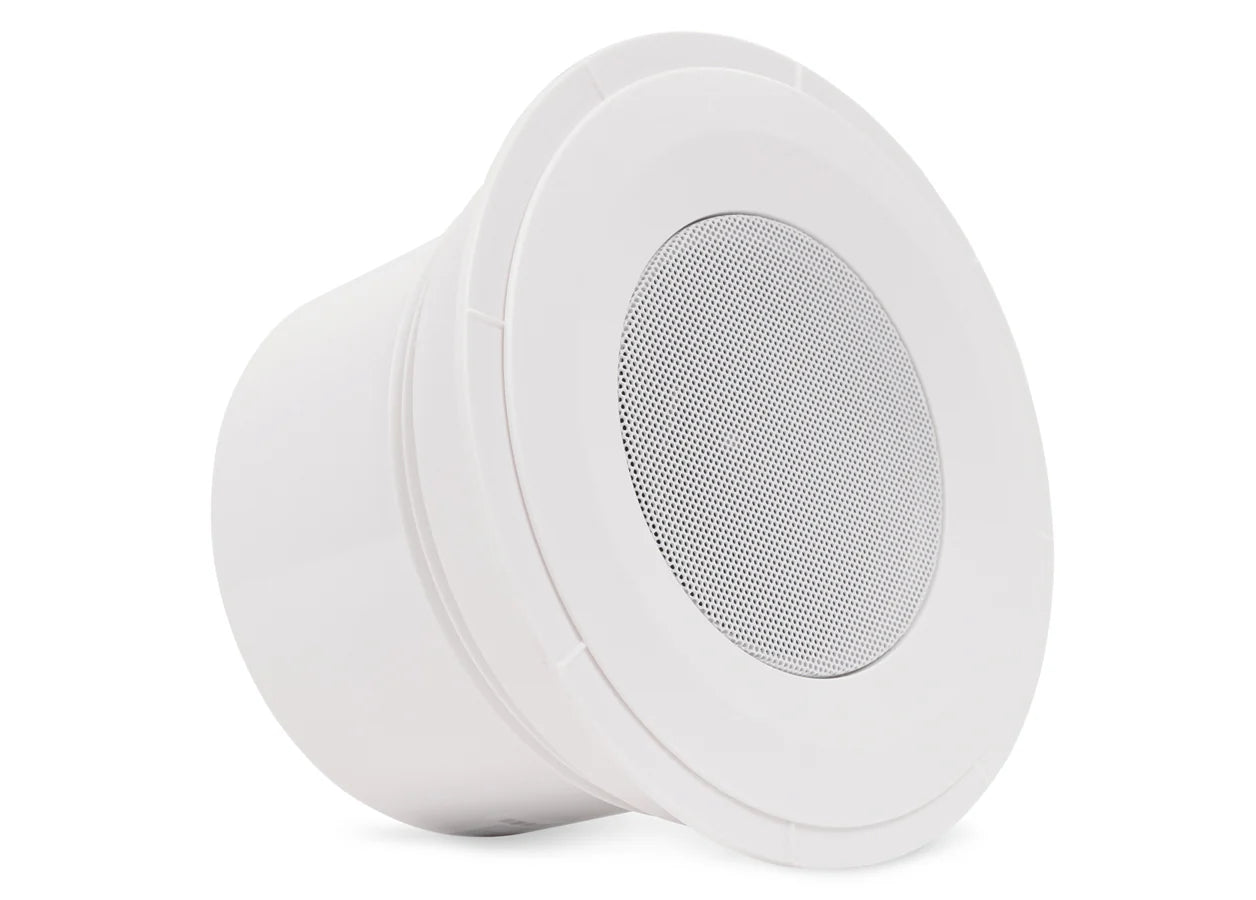

The Pure Resonance Audio C5 4" 70-volt pendant mount speaker features a stylish and intelligent design engineered for exposed ceilings and other contemporary open architecture. With 8-ohm and 70-volt audio taps, integrated wire and safety cable, and single-point mount, the C5 commercial hanging pendant speaker is excellent for sound masking, background music, and paging in offices, restaurants, retail stores, resorts, and hospitality venues.

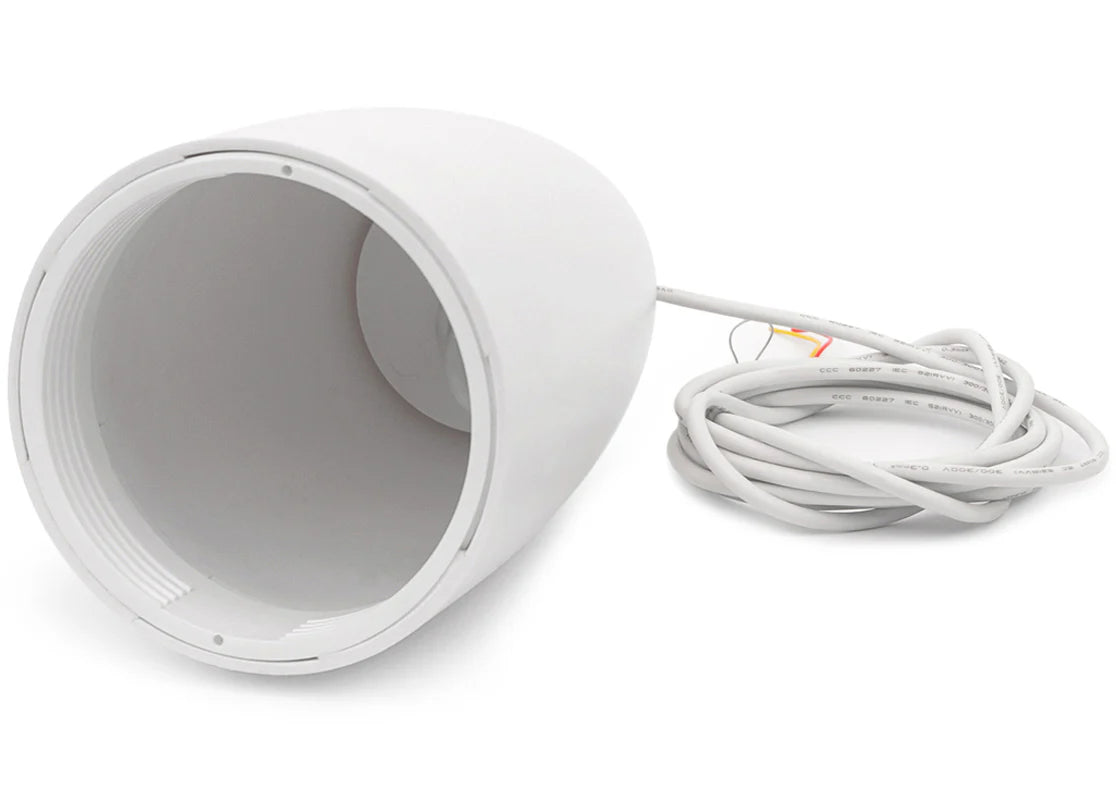

The C5 pendant-mount hanging kit is a turnkey solution designed for ease of installation. The C5 speaker securely twists into the pendant cylinder, while the back panel switch provides straightforward wattage and loudness adjustments for precise sound distribution. The kit includes a 4-conductor, 20-gauge speaker cable integrated with a 12-foot multi-strand steel stress-relief safety cable and a loop-nut safety cinch, ensuring secure single-point suspension mounting.

With 8-ohm and commercial 70-volt audio taps, the C5 is tailored to meet the demands of various business audio applications, including background music, paging, and sound masking. The integrated single-point mount and compact, lightweight design allow the C5 to fit elegantly into its pendant cover kit, offering excellent sound dispersion for both music and vocal clarity.

RMS Power Rating 10 Watt
Frequency Response 90Hz - 20kHz
Impedance 8 Ohms

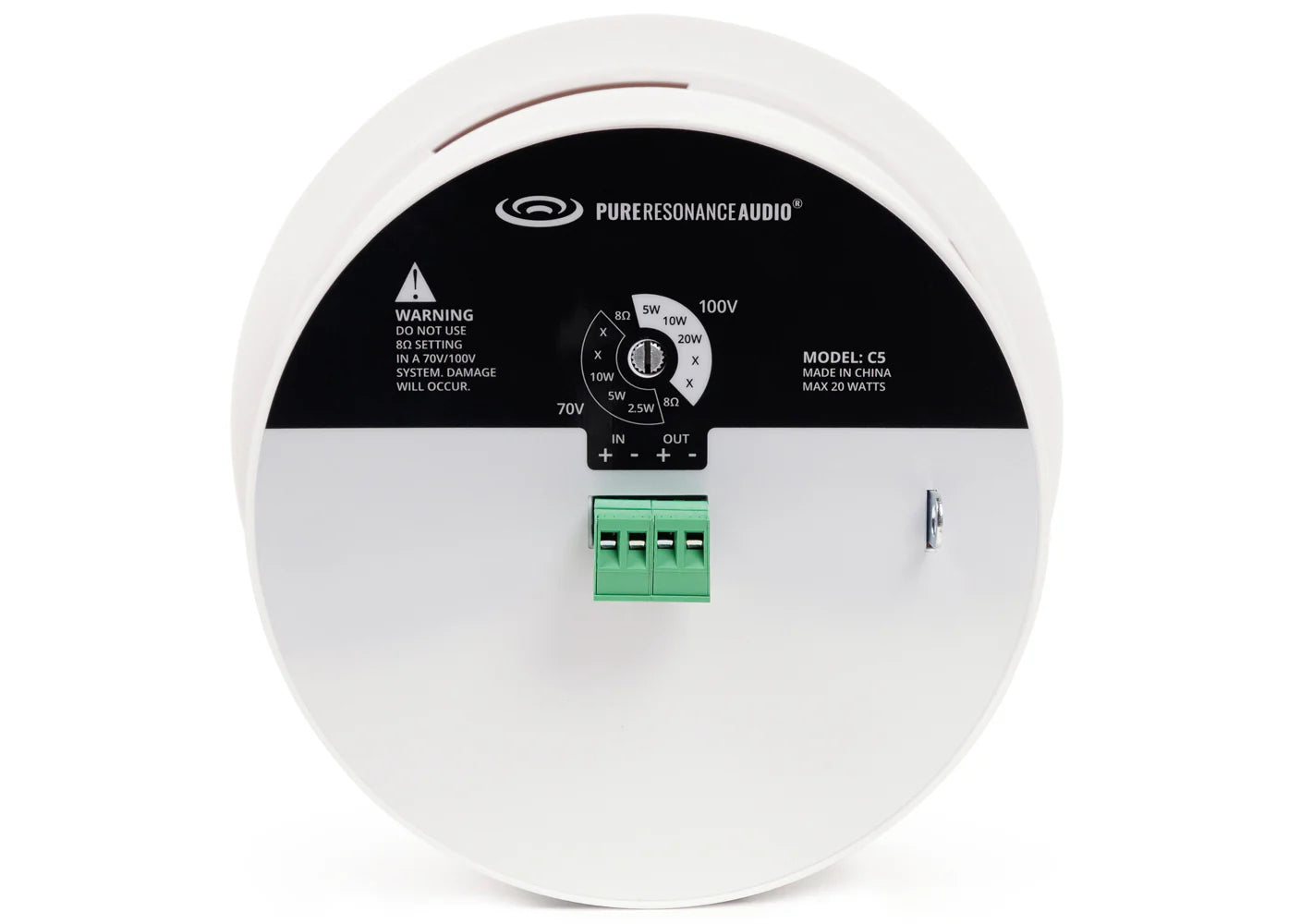

Transformer Taps 2.5W, 5W, 10W @ 70V; 5W, 10W, 20W @ 100V; 8 Ohm Bypass
Transducer Full-range 4" driver
Material Paper cone driver with butyl rubber surround
Nominal Coverage Angle 120° x 120°
Sensitivity SPL 91dB±3dB
Maximum SPL 104dB±3dB
Wire with Safety Cable 12' (3.6 m)
Height 9.75" (247.65 mm)
Top Diameter 4.29" (109 mm)
Bottom Diameter 6.75" (171.5 mm)
Weight 4.65 lbs (2.11 kg)
UPC 810538039256
