PTZOptics Move 4K SDI/HDMI/USB/IP PTZ Camera with 12x Optical Zoom (Gray)
PTZOptics Move 4K SDI/HDMI/USB/IP PTZ Camera with 12x Optical Zoom (Gray)
PTZOptics Move 4K SDI/HDMI/USB/IP PTZ Camera with 12x Optical Zoom (Gray)
PTZOptics Move 4K SDI/HDMI/USB/IP PTZ Camera with 12x Optical Zoom (Gray)
PTZOptics Move 4K SDI/HDMI/USB/IP PTZ Camera with 12x Optical Zoom (Gray)
PTZOptics Move 4K SDI/HDMI/USB/IP PTZ Camera with 12x Optical Zoom (Gray)
PTZOptics Move 4K SDI/HDMI/USB/IP PTZ Camera with 12x Optical Zoom (Gray)
PTZOptics Move 4K SDI/HDMI/USB/IP PTZ Camera with 12x Optical Zoom (Gray)
PTZOptics Move 4K SDI/HDMI/USB/IP PTZ Camera with 12x Optical Zoom (Gray)
PTZOptics Move 4K SDI/HDMI/USB/IP PTZ Camera with 12x Optical Zoom (Gray)
PTZOptics Move 4K SDI/HDMI/USB/IP PTZ Camera with 12x Optical Zoom (Gray)
PTZOptics Move 4K SDI/HDMI/USB/IP PTZ Camera with 12x Optical Zoom (Gray)
PTZOptics

PTZOptics Move 4K SDI/HDMI/USB/IP PTZ Camera with 12x Optical Zoom (Gray)

SKU: PT12X4KGYG3
(0)
$1,890.00

The PTZOptics Move 4K is a professional PTZ camera designed to elevate video production in classrooms, houses of worship, and corporate conference rooms. It captures stunning UHD 4K video at up to 60 frames per second, ensuring your remote meetings and live streams are presented with exceptional clarity and detail. Built-in auto-tracking intelligently follows a moving subject, making it ideal for presentations and lectures without the need for a dedicated camera operator.

Equipped with a high-sensitivity 1/2.5-inch CMOS sensor and a 12x optical zoom lens, the camera delivers sharp, low-noise images even in challenging lighting conditions, thanks to its wide dynamic range and 3D noise reduction. Flexible connectivity options including 3G-SDI, HDMI, USB 2.0, and IP streaming with NDI|HX 3 support allow for seamless integration into any existing workflow, while PoE+ simplifies installation with a single cable for power and control.

Precise remote management is possible via IP, RS-232, or RS-485, with support for up to 255 programmable preset positions for rapid scene changes. The camera also features a built-in tally light for live production awareness and is photo booth capable, making it a versatile tool for a wide range of professional video applications.

Key Features

Image Sensor 1/2.5"-Type CMOS
Effective Sensor Resolution 8.51 Megapixel (3840 x 2160)
Max Optical Zoom 12x
Max Digital Zoom 16x
Max Video Output via HDMI / RJ45 / USB Up to UHD 4K at 25/29.97/50/59.94/60.00 fps via SDI/BNC Up to 1080p at 25/29.97/50/59.94/60.00 fps
IP Streaming H.264/H.265/MJPEG via HTTP/NDI/NDI HX/NDI HX3/ONVIF/RTMP/RTMPS/RTSP/SRT/UDP 320 x 240 to 3840 x 2160 (32.00 Kb/s)
PoE Support Yes: PoE+ 802.3at
Mounting 1x 1/4"-20 Female
Shutter Speed 1/10000 to 1/30 Seconds
Signal-to-Noise Ratio 55 dB
Minimum Illumination 0.5 Lux
White Balance Range: 2500 to 8000K Presets: Auto, Indoors, Manual, One Push, Outdoors, VAR
Focal Length 6.25 to 125mm
Field of View Horizontal: 72.5 to 6.9° Vertical: 44.8 to 3.9°
Maximum Aperture f/1.58
Embedded Audio HDMI/LAN (RJ45)/USB/BNC Output
Audio Recording AAC Audio
Presets 255
Pan/Tilt Tilt: 120° (-30 to 90°) at 1.7 to 100°/s
Tally Light Yes
Wireless IR
Wireless Range 30' / 9.1 m
Max Cable Length 3937' / 1200 m (RS-485) 98.5' / 30 m (RS-232)

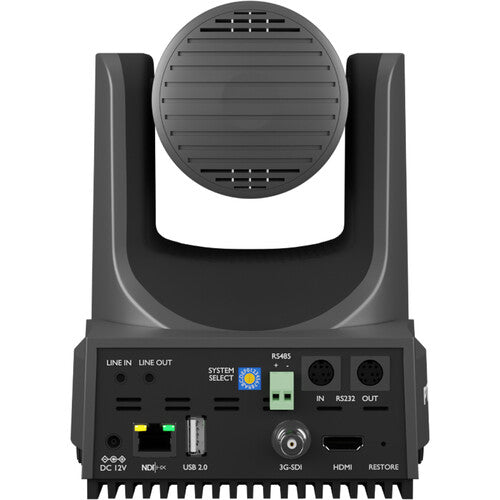

Video I/O 1x HDMI 2.0 Output 1x BNC (3G-SDI) Output 1x RJ45 (NDI) Output 1x USB-A 2.0 Output
Audio I/O 1x 1/8" / 3.5 mm TRS Stereo Line Input 1x 1/8" / 3.5 mm TRS Stereo Line Output
Other I/O 1x D-Sub 8-Pin (RS-232) Control Input 1x D-Sub 8-Pin (RS-232) Control Output 1x Block 2-Pin (RS-485) Control Input/Output
Power I/O 1x DC (12VDC) Input
Power Consumption Device: 12 VDC at 2 A (12 W)
Operating Conditions 14 to 104°F / -10 to 40°C at 10 to 80% Humidity
Storage Conditions -40 to 140°F / -40 to 60°C
Materials Aluminum, Plastic
OS Compatibility Computer: Windows 7 to 11 / macOS / Linux Mobile: Android Only
Dimensions (W x H x D) 6.6 x 6.5 x 5.6" / 168.4 x 164.5 x 141.5 mm
Weight 3.24 lb / 1.47 kg (Body Only)
Package Weight 6.3 lb
Box Dimensions (LxWxH) 10.8 x 9.9 x 9.1"
Brand PTZOptics
Manufacturer PTZOptics
Model Number PT12X-4K-GY-G3
MPN PT12X-4K-GY-G3
UPC 840170500029
Product Type PTZ Camera
Color Gray
Optical Zoom 12x
Configuration Camera Only
Broadcast Output NTSC/PAL
Focus Control Autofocus Manual Focus
Flip / Mirror Support Image Flip, Mirror (Vertical)
Internal Recording No
Built-In Microphone No
Built-In Speaker No
Impact Resistance No
Environmental Resistance No
IR Cut Filter No

Warranty

Limited 5-Year Manufacturer Warranty

What's included

  • PTZOptics Move 4K SDI/HDMI/USB/IP PTZ Camera with 12x Optical Zoom (Gray)
  • IR Remote Control
  • 12 VDC Power Adapter
  • USB-A to USB-A Cable
  • RS-232 Cable
  • 2 x AA Battery
  • Limited 5-Year Manufacturer Warranty

Downloads

Frequently asked questions

What video resolutions and frame rates does this camera support?

The PTZOptics Move 4K captures UHD 4K video at up to 60 fps via HDMI and IP streaming. Over 3G-SDI, it supports up to 1080p at 60 fps. It also supports 1080i and 720p resolutions.

Does this camera have auto-tracking capabilities?

Yes, the camera features built-in auto-tracking. This allows it to automatically follow a moving subject around the room, making it ideal for presentations, lectures, and corporate environments without needing a camera operator.

What streaming protocols and compression formats are available?

The camera supports H.264, H.265, and MJPEG video compression. For IP streaming, it can transmit up to two simultaneous streams using protocols including SRT, RTSP, RTMP, NDI|HX 3, and ONVIF.

How can the camera be powered and controlled?

The camera can be powered via the included 12 VDC power adapter or through PoE+ (Power over Ethernet) on a supported network. It can be controlled via IP, RS-232, RS-485, or the included IR remote, and supports up to 255 programmable preset positions.
