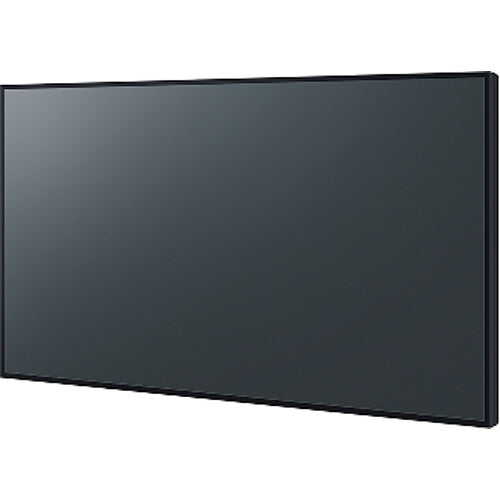

Panasonic TL-55LV12AW MEViX 55" Commercial LED Display
Couldn't load pickup availability
Overview
The Panasonic TL-55LV12AW MEViX is a 55-inch commercial-grade direct-view LED display engineered for continuous 24/7 operation in corporate, retail, and event environments. Its COB LED technology with a fine 1.26mm pixel pitch delivers rich, accurate color reproduction, supported by a high 10,000:1 contrast ratio and 800 cd/m² brightness. The rugged aluminum cabinet houses front-serviceable, impact-resistant modules designed for durability in high-traffic areas.

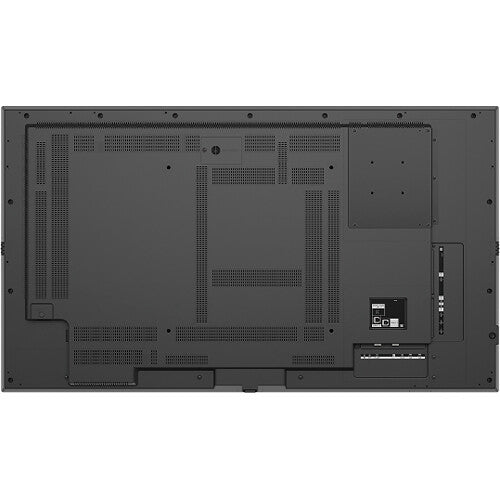

This display offers versatile installation with landscape or portrait orientation and compatibility with standard 400 x 400mm VESA mounts. The slim, lightweight design simplifies mounting, while front-access modules allow for easy maintenance even in tight spaces. With a lifespan rated at 100,000 hours at 50% brightness, it provides a reliable, long-term digital signage solution.
Connectivity includes HDMI input with HDCP 2.2 compliance, USB-C for host control, and LAN for remote management. Daisy-chaining is supported via additional HDMI and RJ45 outputs, enabling seamless multi-panel video wall configurations. An included IR receiver extender cable facilitates long-range remote operation.
Key Features
| Display Size | 55" |
| Native Resolution | 960 x 540 |
| Maximum Brightness | 800 nits / cd/m2 (Sustained) |
| Touchscreen | No |
| A/V Inputs | 3.5 mm (Analog Audio) / HDMI |
| A/V Outputs | HDMI |
| USB I/O | USB-C 2.0 |
| Ethernet I/O | 1x RJ45 (Unspecified Ethernet) |
| Built-In Speakers | No |
| Panel Type | Direct View LED |
| Aspect Ratio | 16:9 |
| Display Orientation | Landscape, Portrait |
| Lighting System | Direct LED |
| HDR Support | No |
| Contrast Ratio | 10,000:1 |
| Refresh Rate | 3840 Hz |
| Viewing Angle (H x V) | 160 x 160° |
| TV Tuner | No |
| HDCP Support | Yes: Version 2.2 |
| NFC | No |
| Other I/O | 1x 1/8" / 3.5 mm IR Input, 1x RJ45 IP Proprietary Output |
| Ambient Light Sensor | No |
| Multi-Input Support (PIP/PBP) | No |
| Smart TV | No |
| Built-In Mic | No |
| Power Consumption | Maximum: 195.0 W, Typical: 94.0 W, Standby: 0.6 W |
| Input Power | 110 to 240 VAC, 50 / 60 Hz at 0.94 to 1.77 A |
| Power Adapter Type | External |
| Operating Conditions | 32 to 104°F / 0 to 40°C at 10 to 80% Humidity |
| Certifications | EN62368-1, EN55032, EN55035, EN61000-3-2, EN61000-3-3, FCC, UL62368-1 |
| Adjustments | Fixed |
| VESA Mounting-Hole Pattern | 400 x 400 mm |
| Lighting Lifespan | 100000 Hours at 50% Brightness |
| Environmental Resistance | Dust-Resistant (Unrated) |
| Impact Resistance | Impact-Resistant (Unrated) |
| Lock Slot | No |
| Duty Cycle | 24 Hours / 7 Days |
| Dimensions | 47.9 x 26.9 x 1.1" / 1216.7 x 683.3 x 27.9 mm |
| Weight | 40.3 lb / 18.3 kg |
| Brand | Panasonic |
| Model Number | TL-55LV12AW |
| UPC | 885170456808 |
| Pixel Pitch | 1.26mm |
| Cabinet Material | Aluminum |
Warranty
Limited 1-Year Manufacturer Warranty
What's included
- Panasonic TL-55LV12AW MEViX 55" Commercial LED Display
- 32 x LED Module
- Spare LED Module
- 3 x Power Cable
- RJ45 Cable (3.9')
- HDMI Cable (27.5")
- 4 x Ferrite Core for HDMI Cable
- USB-C Cable (78.7")
- IR Receiver Cable (59')
- IR Remote Control
- 2 x Connector Plate with 4 Holes
- 4 x Connector Plate with 2 Holes
- 16 x M4-12 Screw
- LED Module Removal Tool
- Hex Wrench (Hex 3)
- Hex Wrench (Hex 5)
- 3 x Cable Holder
- 3 x Cable Clamp
- 6 x M4-8 Screw
- 3 x Wire Grommet
- Limited 1-Year Manufacturer Warranty
