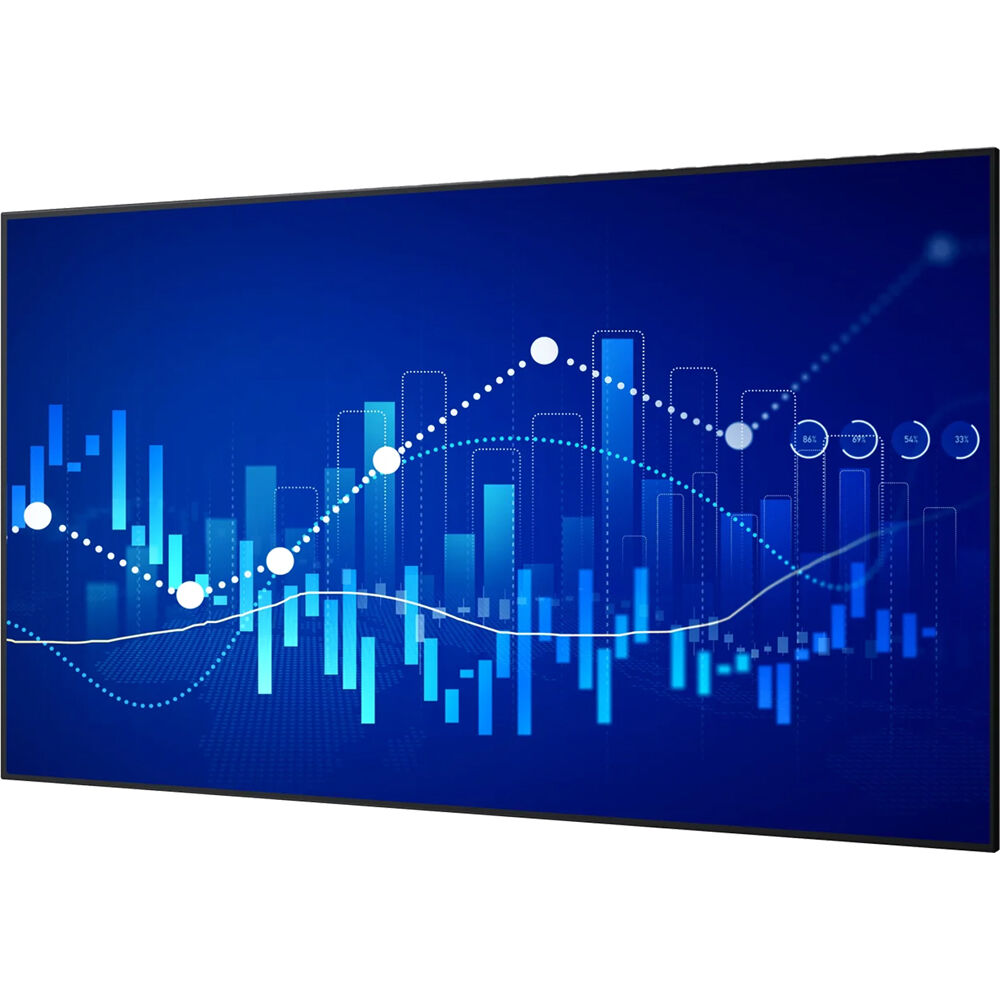

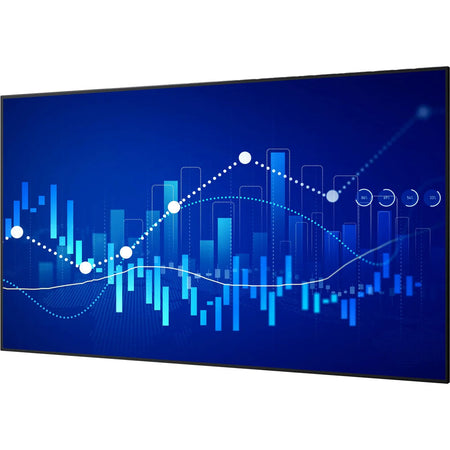

Panasonic TL-165AD19AW 165" Full HD All-in-One Direct-View LED Display
Panasonic TL-165AD19AW 165" Full HD All-in-One Direct-View LED Display
Panasonic

Panasonic TL-165AD19AW 165" Full HD All-in-One Direct-View LED Display

SKU: PAL165AD19AW
(0)
$46,379.00

The Panasonic TL-165AD19AW is a 165-inch Full HD all-in-one direct-view LED display engineered for continuous 24/7 operation in corporate, retail, and event environments. Its integrated design combines the display, controller, power supply, and mounting hardware into a single solution, simplifying deployment while delivering a bright 700 cd/m² image with a 1.9mm pixel pitch and a 4000:1 contrast ratio for crisp, highly visible content.

Advanced power management features include proprietary APL (Average Picture Level) control and a built-in illumination sensor that automatically adjusts brightness to match ambient room conditions, reducing energy consumption without sacrificing visibility. A humidity sensor gradually increases brightness at startup, using self-heating to minimize moisture stress on the LED elements and extend the panel's lifespan.

Connectivity is robust, with three HDMI inputs, an HDMI output, and RS-232C and Ethernet control ports, plus two Intel SDM specification slots for system expansion. The front-access design allows for straightforward maintenance, and the thin, lightweight construction reduces wall load and installation effort, making it a practical choice for large-scale digital signage.

Key Features

Display Size 165"
Native Resolution 1920 x 1080
Maximum Brightness 700 nits / cd/m2 (Sustained)
Touchscreen No
A/V Inputs 3x HDMI, 1x 1/8" / 3.5 mm (Analog Audio)
A/V Outputs 1x HDMI, 1x TOSLINK Optical (Digital Audio), 1x 1/8" / 3.5 mm (Analog Audio)
USB I/O 1x USB-A 3.0 / 3.1/3.2 Gen 1, 1x USB-A 2.0, 1x USB-B 2.0
Ethernet I/O 1x RJ45 (Unspecified Ethernet)
Built-In Speakers No
Brand Panasonic
Model Number TL-165AD19AW
MPN TL-165AD19AW
SKU PAL165AD19AW
UPC 885170439436
Panel Type Direct View LED
Aspect Ratio 16:9
Display Orientation Landscape, Portrait
Lighting System Direct LED
HDR Support No
Contrast Ratio 4000:1
Viewing Angle (H x V) 170 x 160°
TV Tuner No
HDCP Support Yes
NFC No
Other I/O 6x RJ45 Proprietary Input, 1x DE-9/DB-9 Serial (RS-232C) Control Input/Output, 1x 1/8" / 3.5 mm IR Input
OPS/Expansion Slots Yes: 2
Ambient Light Sensor No
Multi-Input Support (PIP/PBP) No
Smart TV No
Built-In Mic No
Power Consumption Standby: 0.7 W
Input Power 220 to 240 VAC, 50 / 60 Hz at 16 A
Power Adapter Type External
Operating Conditions 32 to 104°F / 0 to 40°C at 10 to 80% Humidity
Adjustments Fixed
VESA Mounting-Hole Pattern No
Environmental Resistance No
Impact Resistance No
Lock Slot No
Duty Cycle 24 Hours / 7 Days
Dimensions Control Unit: 27.4 x 17.4 x 2.4" / 696 x 442 x 61 mm, Panel: 144 x 81.2 x 3" / 3657.6 x 2062.5 x 76.2 mm, Power Unit: 11.8 x 11.8 x 2.4" / 299.7 x 299.7 x 61 mm
Weight Panel: 496 lb / 225 kg, Control Unit: 14.6 lb / 6.6 kg
Pixel Pitch 1.9mm

What's included

  • Panasonic 165" Full HD All-in-One Direct-View LED Display
  • Wall Mount Kit
  • 2 x Spare LED Module
  • Installation Tool Set
  • 6 x LAN Ethernet Cable
  • 2 x Power Cable (Control Box)
  • Remote Control
  • 2 x AAA Battery
  • External IR Receiver
  • 2 x SLOT Adapter
  • Wall Power Cable (Power Box)
  • 5 x Cabinet Power Cable (Power Box)
  • Sensor Module
  • 4-Pin Cable
  • Limited 3-Year Manufacturer Warranty

Downloads

Frequently asked questions

What is the pixel pitch of the Panasonic TL-165AD19AW?

The display features a 1.9mm pixel pitch, which contributes to its high image clarity and visibility for large-scale signage applications.

Can this display be operated continuously?

Yes, the TL-165AD19AW is designed for 24/7 continuous operation and includes a burn-in prevention and correction function for environments where static images are displayed for long periods.

What is included in the box with this display?

The package includes the LED display panel, a wall mount kit, two spare LED modules, an installation tool set, six LAN Ethernet cables, two power cables for the control box, a remote control, two AAA batteries, an external IR receiver, two SLOT adapters, a wall power cable for the power box, five cabinet power cables, a sensor module, a 4-pin cable, and a limited 3-year manufacturer warranty.

Does the display adjust its brightness automatically?

Yes, a built-in illumination sensor automatically adjusts the brightness of the LED display to match the ambient light in the room, helping to reduce power consumption while maintaining visibility.
