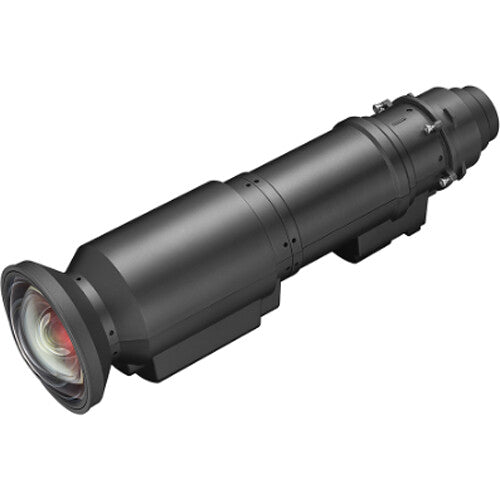

Panasonic ET-C1U100 Ultra-Short-Throw Projector Lens 0.308-0.330:1

Not always, but they often perform best with a screen designed for ultra short throw projection. An ultra short throw setup sends light onto the screen at a very steep angle, so screen surface characteristics matter more than they do with standard or long throw projection. In brighter rooms, many installers prefer an ambient light rejecting screen made for ultra short throw use because it helps maintain contrast and reduce washout from overhead lighting. The Panasonic ET-C1U100 is an ultra-short-throw lens that can create a very large image from a very short distance, so screen flatness and placement become especially important. For example, if you are filling a large image from just a few feet away, even minor wall imperfections or screen waves can be more noticeable. This matters most in classrooms, boardrooms, museums, retail, and simulation environments where image geometry needs to stay precise. If the room can be darkened, a high-quality fixed frame screen may be enough. If the room has more ambient light, a purpose-built ultra short throw screen is usually the better choice.

A short throw projector lens lets a projector create a large image from a shorter distance than a standard lens. An ultra short throw lens goes further by placing the projector extremely close to the screen while still producing a very large picture. The key difference is the throw ratio. Lower throw ratios mean shorter placement distance for the same image size. The Panasonic ET-C1U100 is specifically an ultra-short-throw lens, with a 0.308 to 0.330:1 throw ratio in 16:10 format. That makes it suitable for installations where there is little room between the projector and the screen, such as front-of-room classroom installs, museum displays, immersive environments, and spaces where mounting far back is not practical. An ultra short throw lens is best for users who want large images while minimizing shadows, sightline issues, or ceiling and structural constraints. The tradeoff is that installation tolerance is tighter. Screen flatness, exact positioning, and professional alignment matter more than with standard or longer throw lenses.

The best ultra short throw projector lens is the one that matches your projector model, target screen size, room layout, and installation precision requirements. The most important factors are compatibility, throw ratio, image quality, motorization, and whether the lens can deliver your desired image size from the available mounting distance. The Panasonic ET-C1U100 is built for select PT-REQ and PT-REZ series projectors and offers a 0.308 to 0.330:1 throw ratio. It is motorized, which helps with fine image adjustment in professional installations. It also has an f/2.1 aperture and a 5.4 to 5.8mm focal length, which are relevant for maintaining brightness and optical performance in large-format applications. This type of lens is best for users who need a large image in a shallow room or who want to keep the projector close to the screen to reduce shadows and simplify room design. The tradeoff is that ultra short throw lenses require careful setup. They are usually best suited to commercial, education, and specialty AV installs rather than casual plug-and-play use.

With an ultra short throw lens, a projector can be placed much closer to the screen than with standard or even typical short throw optics. The exact distance depends on the lens, projector, and image size, but these lenses are designed specifically for large images in tight spaces. For the Panasonic ET-C1U100, one of the most useful reference points is that it can fill a 200-inch screen from about 4.5 feet away. That makes it a strong fit for rooms where deep projector placement is not possible or desirable. It can help in lecture spaces, training rooms, digital signage installations, exhibit environments, and simulation applications where projector placement flexibility is limited. The main advantage is space efficiency. The main limitation is that close placement increases the need for precise mounting and screen alignment. If the screen surface is uneven or the projector is slightly off position, geometry issues can become more visible. For large professional installations, careful planning and proper mounting hardware are important.

An ultra short throw projector lens is best for users who need a large image but cannot place the projector far from the screen. It is especially useful when room depth is limited, when people may walk between the projector and screen, or when reducing shadows is a priority. The Panasonic ET-C1U100 is a strong option for professional installations using compatible PT-REQ and PT-REZ series projectors. Its 0.308 to 0.330:1 throw ratio allows very large images from very short distances, which can solve real layout problems in classrooms, corporate spaces, museums, and specialty display environments. Because it is motorized, it also supports more precise setup than a basic fixed lens solution. A standard lens may be a better choice if the room has plenty of depth and you want more forgiving installation. Ultra short throw lenses deliver placement advantages, but they demand accurate planning, a flat projection surface, and careful calibration. They are ideal when space constraints outweigh the simplicity of a conventional projector setup.

The Panasonic ET-C1U100 is designed for specific PT-REQ and PT-REZ series projectors. Based on the listed compatibility, it works with the PT-REQ12, PT-REQ10, PT-REQ80, PT-REZ12, PT-REZ10, and PT-REZ80. That makes it a lens intended for professional projector platforms rather than a universal consumer accessory. Compatibility matters because projector lenses are not interchangeable across all chassis. Mounting design, optical alignment, and electronic lens control all need to match the projector body. Since this is a motorized ultra-short-throw lens, using it with the correct projector family is especially important for proper operation and image geometry. This lens is best for buyers who already own or plan to deploy one of the compatible projector models and need a very short projection distance. If you are still choosing a projector, it helps to confirm both the projector series and your required screen size before selecting the lens. Matching lens, projector, and room layout is the key to a successful installation.

Yes, a motorized ultra short throw lens is often worth it in professional environments because fine image adjustment is more critical when the projector sits very close to the screen. Small physical changes in position can have a noticeable effect on image size, alignment, and edge accuracy, especially on large displays. The Panasonic ET-C1U100 is motorized, which can help installers make precise adjustments during setup. That is especially useful in auditoriums, higher education, corporate AV, museums, and simulation spaces where image placement needs to be repeatable and exact. Motorization can also support multi-projector environments or installations where service access is limited. The main benefit is precision and convenience. The tradeoff is that this is a specialized lens for compatible professional projectors, so it makes the most sense in planned installations rather than casual portable use. If your application demands accurate geometry, tight room integration, and dependable setup control, a motorized lens is usually the better long-term choice.

Yes, that is exactly the kind of application this lens is built for. The Panasonic ET-C1U100 has a 0.308 to 0.330:1 throw ratio, which allows a projector to create a very large image from a short distance. Panasonic lists it as capable of filling a 200-inch screen from roughly 4.5 feet away, which is a strong indicator of its suitability for shallow rooms and space-constrained installations. This makes it a practical fit for training rooms, active classrooms, exhibit spaces, boardrooms, and other locations where the projector cannot be mounted far back. It can also help reduce shadows and glare compared with longer throw placements because the projector remains close to the screen. The limitation is that large images at very short distances demand careful installation. Surface flatness, projector height, screen position, and exact alignment all matter. For buyers who want a large professional image in a compact footprint, this type of lens is often one of the most effective solutions.

The most important buying specs for the Panasonic ET-C1U100 are its throw ratio, compatibility, motorization, and optical design. Its 0.308 to 0.330:1 throw ratio is the headline feature because it determines how large an image you can create from a short distance. For ultra short throw planning, that is usually the first number buyers need to evaluate. It is compatible with select PT-REQ and PT-REZ projectors, including the PT-REQ12, PT-REQ10, PT-REQ80, PT-REZ12, PT-REZ10, and PT-REZ80. It is also motorized, which supports precise setup in professional installations. The lens has an f/2.1 aperture and a focal length of 5.4 to 5.8mm. Physically, it measures about 5.5 by 5.1 by 18.8 inches and weighs 4.7 kg. These specs matter most to AV professionals, facility planners, and institutional buyers who need exact placement and compatibility. The lens is not a general-purpose accessory. It is a specialized optical tool for creating large images where projector distance is limited.

This lens is the right choice if you are using a compatible PT-REQ or PT-REZ projector and need to produce a large image from a very short distance. The easiest way to evaluate fit is to look at three things first: your projector model, your target screen size, and the maximum distance available between the projector and the screen. The Panasonic ET-C1U100 is an ultra-short-throw lens with a 0.308 to 0.330:1 throw ratio, so it is designed for installations where room depth is limited. It is especially well suited to classrooms, museums, signage, simulation, and corporate spaces where keeping the projector close to the screen improves room design or reduces interruptions. It may not be the best choice if your room has ample depth and you want a simpler, more forgiving setup. Ultra short throw optics offer major placement advantages, but they require careful alignment and a suitable projection surface. If your project goals depend on large images in a tight footprint, this lens is a strong candidate. If installation flexibility is your top priority, another lens type may be easier to manage.
