Panasonic ET-APFD15A Premium Rigging Frame for PT-RQ35KU/PT-RZ34KU
Couldn't load pickup availability
Overview

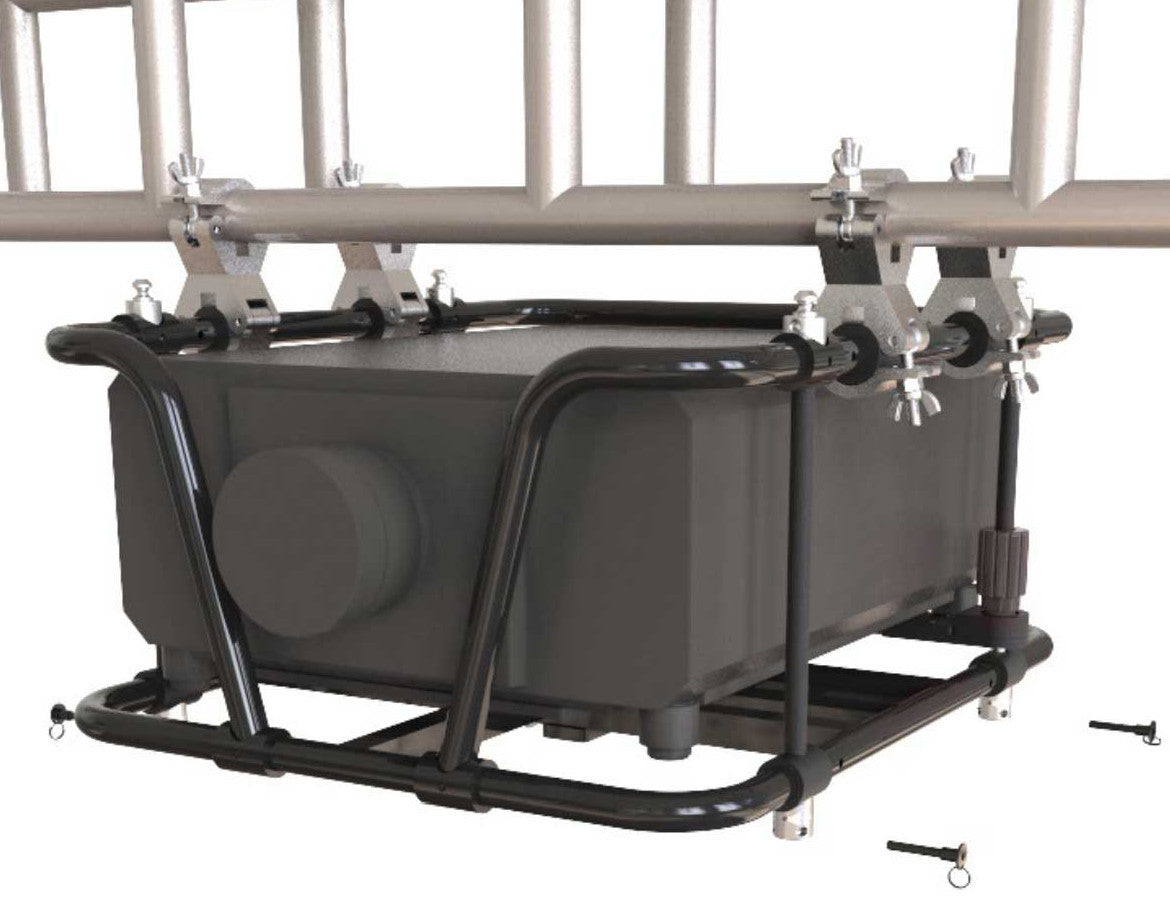

The Panasonic ET-APFD15A is a professional-grade rigging frame engineered for the secure and precise mounting of PT-RQ35KU and PT-RZ34KU projectors. Fabricated from rugged tubular aluminum alloy with a durable black powder-coated finish, this frame is built to withstand the demanding conditions of rental, staging, and fixed installation environments.
Designed for versatile suspension, the frame allows projectors to be flown safely from overhead trussing, bolted directly under strut channels, or suspended using wire rope. Once mounted, integrated fine-adjustment controls at the rear of the frame provide precise aiming across all three axes, ensuring optimal image alignment.
This robust support system features a substantial working load limit of 265 lb and a 5:1 design factor for enhanced safety. Its stackable design accommodates up to three frames, and it is engineered to mate with other brands already in service, offering exceptional flexibility for complex multi-projector setups.
Key Features
| Material | Aluminum alloy |
| Finish | Powder Coat |
| Color | Black |
| WLL | 265 lb / 120 kg |
| Design Factor | 5:1 ratio |
| Net Weight | 85 lb / 38 kg |
| Max Stacking | Up to 3 frames |
| Max Projector Size | 37" Long, 25" Wide, 15" High |
| Brand | Panasonic |
| Model Number | ETAPFD15A |
| Compatible Models | PT-RQ35KU, PT-RZ34KU |
| Mount Type | Rigging Frame |
| Adjustment Axes | X, Y, Z |
| Stackable | Yes |
| UPC | 885170391759 |
