Optoma HQScene200 4K dvLED Controller with Multi-Source Tiling
Regular price
$3,499.00
Couldn't load pickup availability
Frequently Asked Questions
What does a dvLED controller do, and when do you need one?
A dvLED controller manages how video sources are processed, scaled, and displayed on a direct-view LED screen or multi-panel LED setup. You typically need one when your display environment goes beyond a simple single-source screen and requires precise scaling, source switching, ultra-wide layouts, or multi-window viewing.
The Optoma HQScene200 is designed for that type of installation. It accepts up to 4K input through HDMI 2.0, DisplayPort 1.2a, or 3G-SDI, then delivers optimized 1080p output for compatible dvLED displays. It also supports multi-source tiling, picture-in-picture, and picture-by-picture, which are useful in boardrooms, control spaces, digital signage, and broadcast-style environments.
This kind of controller is best for organizations that want a clean, centralized way to run an LED wall or combine two displays into one panoramic canvas. If you only need to connect one source to one standard display, a controller like this may be more than you need. It is most valuable when layout flexibility, display management, and source control are part of the project requirements.
How do I choose the right video wall or dvLED controller for a meeting room or digital signage setup?
Choose a video wall or dvLED controller based on four things: input compatibility, output resolution, layout flexibility, and management tools. The best controller should match your sources, your display resolution, and how you plan to use the screen day to day.
The Optoma HQScene200 is a strong fit when you need multiple input types, including three HDMI 2.0 ports, one DisplayPort 1.2a, and one 3G-SDI input. It is especially useful when the display needs more than basic switching. It supports 4K signal processing, 1080p output scaling, multi-source window display, and tiling across two displays for an ultra-wide format.
It also adds centralized remote management through OSS and OMS Cloud, which matters for schools, corporate AV teams, and multi-site organizations. If your priority is Microsoft Teams Rooms integration, the 32:9 ultra-wide support is another important factor. A simpler controller may be enough for static signage or a single-source screen, but this model is better for dynamic, managed, multi-source environments.
Can this controller combine two displays into one ultra-wide screen?
Yes. The Optoma HQScene200 is built to combine two compatible displays into one seamless panoramic canvas using its multi-source tiling technology. That makes it a practical option for ultra-wide presentation spaces, executive boardrooms, digital signage walls, and collaborative meeting environments.
This is especially useful when you want a 32:9-style layout rather than two separate screens showing unrelated content. The controller can coordinate sources across the combined display area while also supporting picture-in-picture and picture-by-picture layouts. That gives users more flexibility to show presenters, shared content, dashboards, or video feeds at the same time.
The main benefit is a more unified visual experience compared with running two displays independently. It is a good fit for users who want a wide-format room design without stepping up to a much larger single display surface. The tradeoff is that the controller is designed around specific display and layout use cases, so installers should confirm compatibility with the intended dvLED displays and room design before purchase.
Is the Optoma HQScene200 a good choice for Microsoft Teams Rooms?
Yes, the Optoma HQScene200 is specifically built for Microsoft Teams Rooms environments that benefit from an ultra-wide display layout. Its 32:9 integration is designed to bring participants, shared content, and chat into one unified view, which supports Front Row Mode and a more inclusive meeting experience.
This makes it a strong choice for conference rooms where teams want a wide, organized visual layout rather than switching between separate displays or crowded single-screen content. It can help simplify what users see during hybrid meetings by presenting multiple meeting elements together in a way that is easier to follow.
It is most useful for organizations standardizing around Teams Rooms and planning a modern, ultra-wide meeting space. The main limitation is that the Microsoft Teams Rooms solution itself is not included, so it must be purchased separately. Buyers should also keep in mind that this is a dedicated controller for display processing and layout management, not an all-in-one meeting system by itself.
What input sources does the HQScene200 support?
The Optoma HQScene200 supports a wide range of professional AV sources. It includes three HDMI 2.0 inputs, one DisplayPort 1.2a input, and one 3G-SDI input. That mix allows it to work with common computers, media players, collaboration systems, and professional video equipment.
It accepts up to 4K input resolution, then processes and scales the content for 1080p output. This is helpful in environments where source quality is high, but the final display configuration requires consistent scaled output for an LED wall or dual-display panoramic layout.
This input selection makes the controller especially useful for rooms that need flexibility. A corporate meeting space might use HDMI and DisplayPort for laptops and conferencing systems, while a studio or event setup may also benefit from 3G-SDI. Buyers should note that while the controller accepts 4K input, its maximum output resolution is 1080p. That is an important specification to confirm if the project requires native 4K output at the display side.
Does this controller output true 4K, or does it scale 4K to 1080p?
The Optoma HQScene200 accepts 4K input, but its maximum output resolution is 1080p. In practical terms, that means it processes high-resolution source material and scales it down to a 1080p output format optimized for the connected display configuration.
This is not the same as a native 4K output controller. It is better suited for installations where the source devices may be 4K, but the display workflow or dvLED system is designed around 1080p output. The advantage is compatibility with modern 4K sources while maintaining a clean, controlled final image for the display system.
This can be a good fit for boardrooms, digital signage, and collaborative environments where stable multi-window performance, tiling, and layout control matter more than native 4K output. The tradeoff is straightforward: if your project specifically requires end-to-end 4K output to the display surface, you should verify whether a different controller is needed. If your priority is flexible 4K input handling with polished 1080p presentation output, this model is well aligned.
Can the HQScene200 show multiple sources on screen at the same time?
Yes. The Optoma HQScene200 supports multi-source window display with both picture-in-picture and picture-by-picture modes. That allows multiple content sources to appear on screen at once instead of forcing users to switch back and forth between inputs.
This is useful in spaces where teams need to compare information or present several feeds simultaneously. For example, a meeting room might show a presenter on one side and shared content on the other. A control or broadcast environment might display separate video sources in a single coordinated layout. In signage applications, it can help combine live video, promotional content, and informational windows on one display surface.
The biggest benefit is flexibility. Users can create a more informative and collaborative viewing experience without adding extra displays. This feature is most valuable for organizations running complex presentations, monitoring workflows, or ultra-wide room designs. Buyers who only need full-screen single-source switching may not use these advanced layout tools regularly, but for multi-source visual communication, they are a major advantage.
How is the HQScene200 managed across multiple rooms or locations?
The Optoma HQScene200 supports centralized remote management through OSS and OMS Cloud. That allows IT and AV teams to manage rooms, sites, and display configurations from a single interface instead of handling each controller locally.
For organizations with multiple meeting rooms, campus buildings, or distributed office locations, this is a practical advantage. It can simplify configuration, monitoring, and maintenance across a broader AV deployment. Rather than treating each dvLED setup as a standalone system, teams can manage them in a more standardized and scalable way.
The controller also includes several physical control connections, including RJ45 Ethernet, two RS232 ports, IR input, USB ports, and BNC Genlock. That gives installers flexibility for integration into professional AV and control systems.
This level of management is most beneficial for enterprise, education, and managed commercial environments. If you are setting up one simple display in a single room, cloud-based management may be less critical. But for multi-room operations and centralized support, it can be a meaningful deciding factor.
What types of spaces is this dvLED controller best suited for?
The Optoma HQScene200 is best suited for spaces that need more than basic source switching. It fits well in boardrooms, Microsoft Teams Rooms, digital signage installations, broadcast-style production spaces, and other professional environments using ultra-wide or dual-display LED layouts.
Its strengths are most clear where users want to combine two displays into one panoramic canvas, show multiple sources at once, or centrally manage display systems across rooms and sites. The 32:9 support is particularly valuable in modern collaboration spaces where participants, content, and chat need to appear together in a structured format.
It is also a good option for organizations standardizing around compatible Optoma dvLED displays and needing a rack-mountable controller with professional connectivity such as HDMI, DisplayPort, and 3G-SDI. The main limitation is that it is a specialized controller rather than a general-purpose all-in-one AV appliance. For simple single-display applications with minimal layout needs, a less advanced solution may be sufficient. For managed ultra-wide visual environments, it is a much stronger fit.
What should I compare when evaluating this controller against other video wall controllers?
When comparing video wall controllers, focus on input types, output resolution, layout features, display management, and collaboration compatibility. Those factors will tell you whether a controller matches your room design and workflow better than similar products.
With the Optoma HQScene200, the key comparison points are its three HDMI 2.0 inputs, DisplayPort 1.2a input, and 3G-SDI input; 4K input support with 1080p output scaling; and its ability to combine two displays into a single panoramic canvas. It also supports picture-in-picture, picture-by-picture, and multi-source tiling, which are important if you need more than full-screen source switching.
Another major differentiator is its Microsoft Teams Rooms support with 32:9 ultra-wide integration and Front Row Mode compatibility. Remote management through OSS and OMS Cloud also matters for larger AV deployments.
The most important tradeoff to note is output resolution. If you need native 4K output, confirm that requirement carefully. If your priority is controlled 1080p output, ultra-wide collaboration, and centralized management, this controller compares well for those use cases.
The Optoma HQScene200 is a dedicated dvLED controller engineered to unlock the full potential of ultra-wide display environments. It accepts 4K input and delivers crisp, high-clarity 1080p output scaled precisely for your display, ensuring your visuals never miss a beat.
Combine two displays into one seamless, panoramic canvas with advanced tiling technology, enabling expandable configurations ideal for boardrooms, broadcast studios, and digital signage. Multi-source window display with PIP/PBP support provides flexible content management for complex visual setups.
Powered by OSS and OMS Cloud, the controller offers centralized management across rooms, sites, and display configurations from a single interface. Built for Microsoft Teams Rooms, the 32:9 ultra-wide integration brings participants, content, and chat into one unified view with Front Row Mode for truly inclusive meetings.
Key Features
| CPU | NXP i.MX8M Cortex-A53, 1.5GHz |
| RAM | 4GB LPDDR4-1866MHz |
| Storage | 32GB eMMC |
| Power Supply | 100-240 VAC, 50/60Hz |
| Operating Conditions | Operating temperature: 32°F to 104°F (ambient 77°F) and 5% to 95% non-condensing humidity |
| Inputs | 3 x HDMI 2.0, 1 x DisplayPort 1.2a, 1 x 3G-SDI |
| Outputs | 2 x HDMI 2.0 out, 1 x HDMI 2.0 loop-out, 1 x 3.5mm audio out |
| Control | 1 x RJ45 Ethernet, 2 x RS232, 1 x 3.5mm IR input, 1 x BNC Genlock, 1 x USB-A 2.0, 1 x USB-A 3.0, 2 x Service |
| Split Screen | PIP/PBP |
| 4K Scaling | Yes |
| Tiling Function | Multi-source window display |
| Remote Management and Control | Yes |
| Dimensions (L x W x H) | 14.25" x 17.4" x 1.97" |
| Weight | 10.14 lbs |
| UPC | 796435 09 204 7 |
| Brand | Optoma |
| Product Type | dvLED Controller |
| Model Number | HQScene200 |
| Form Factor | Rack-mountable |
| Max Output Resolution | 1080p |
| Max Input Resolution | 4K |
| Compatibility | Optoma dvLED displays, Microsoft Teams Rooms |
Highlights

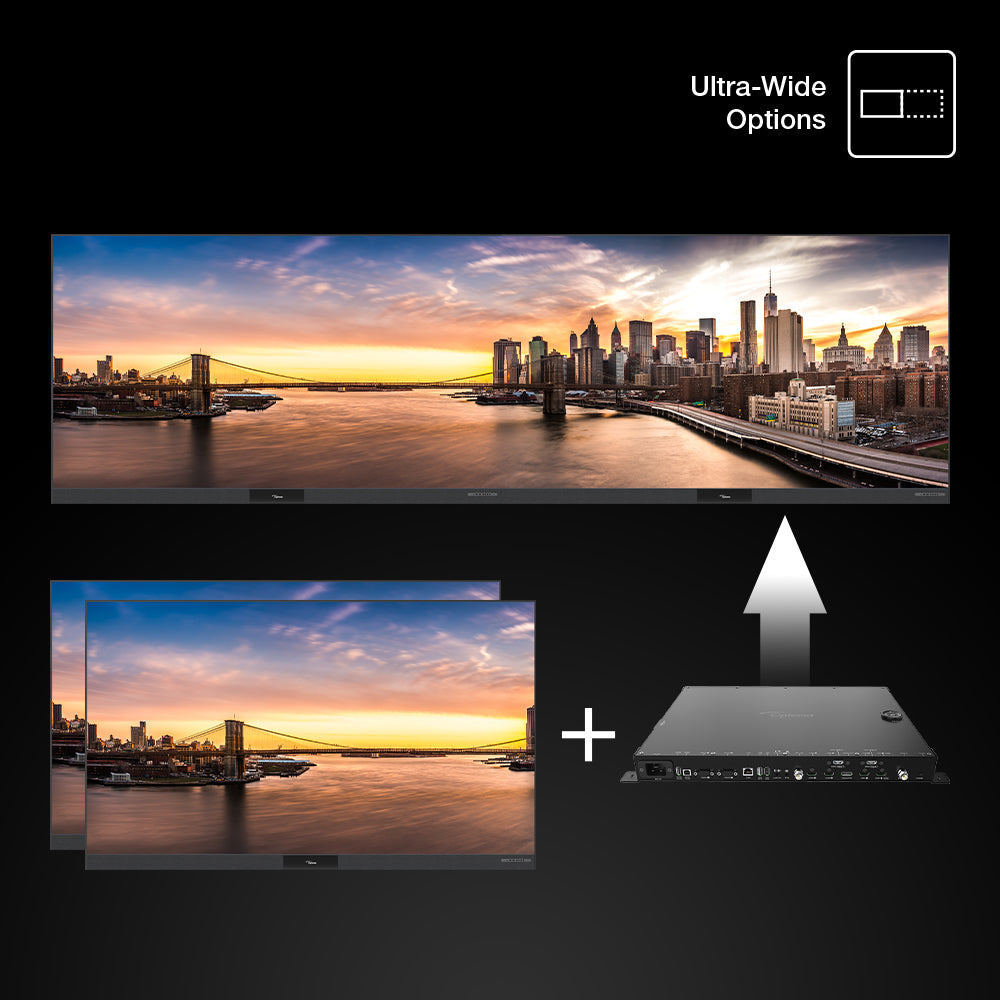

Ultra-Wide Options
Combine two displays into one seamless, panoramic canvas. HQScene200's tiling technology enables expandable configurations that elevate any environment, from boardrooms to broadcast studios.
Smooth 4K Processing
Feed it 4K. Get flawless 1080p output. HQScene200 accepts 4K input and delivers crisp, high-clarity visuals scaled precisely for your display.
Effortless Control for Every Application
Powered by OSS and OMS Cloud, HQScene200 provides centralized management across rooms, sites, and display configurations, all from a single interface.
Smarter Meetings with MTR
Built for Microsoft Teams Rooms. The 32:9 ultra-wide integration brings participants, content, and chat into one unified view, with flexible layouts and Front Row Mode for inclusive meetings.
MTR solution not included and must be purchased separately.
