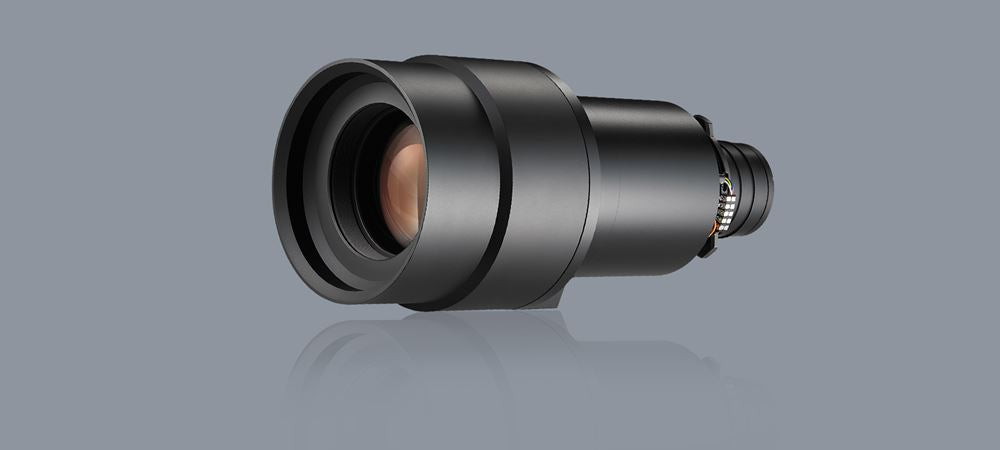

Optoma BX-CTA27 Motorized Extreme Long Throw Zoom Lens for ZU2200 ZU1900 ZU1700

(0)
$8,999.00

The Optoma BX-CTA27 is an extreme long throw motorized zoom lens engineered for large venue installations where the projector must be positioned at a significant distance from the screen. It delivers a throw ratio ranging from 7.2:1 to 10.8:1, providing exceptional flexibility for challenging projection environments.

This lens is capable of producing a massive image size, scaling from a 50-inch diagonal all the way up to a 1,000-inch diagonal, making it suitable for auditoriums, houses of worship, and live event staging. The 1.5x motorized zoom and focus functionality allow for convenient remote adjustment without manual intervention.

Designed specifically for seamless integration, the BX-CTA27 is compatible with the Optoma ProScene ZU1700, ZU1900, and ZU2200 DuraCore laser projectors, ensuring reliable optical performance and sharp image clarity across the entire zoom range.

Key Features

Brand Optoma
Model Number BX-CTA27
Product Type Projector Lens
Compatible Models ProScene ZU1700, ProScene ZU1900, ProScene ZU2200
Throw Ratio 7.2:1 ~ 10.8:1
Zoom 1.5x
Zoom Type Motorized
Minimum Throw Distance 25.6 ft
Maximum Throw Distance 763.1 ft
Minimum Screen Size 50 in
Maximum Screen Size 1,000 in
F-Stop f/2.4 ~ f/3.1
Focal Length 150.9 ~ 226.4 mm
Net Weight 8.82 lbs
Gross Weight 10.93 lbs
UPC 796435071455

Compatibility

ProScene ZU1700ProScene ZU1900ProScene ZU2200

Downloads

Frequently asked questions

Which projectors are compatible with the Optoma BX-CTA27 lens?

The BX-CTA27 lens is designed for use with the Optoma ProScene ZU1700, ZU1900, and ZU2200 DuraCore laser projectors.
What is the throw ratio of this lens?

The lens has a throw ratio ranging from 7.2:1 to 10.8:1, making it ideal for installations requiring an extra long distance between the projector and the screen.
What is the maximum image size this lens can project?

The BX-CTA27 can produce an image size ranging from 50 inches up to 1,000 inches diagonally.
Does this lens support motorized zoom and focus?

Yes, the lens features a 1.5x motorized zoom, allowing for convenient remote adjustment of the image size and focus.
