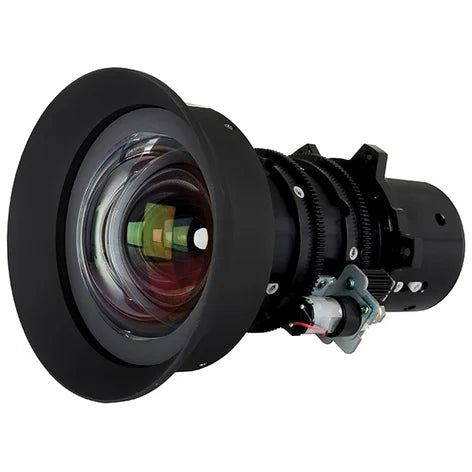

Optoma BX-CTA15 Motorized Short Throw Lens

SKU: BX-CTA15
(0)
$1,999.00

The Optoma BX-CTA15 motorized short throw lens is engineered for immersive installations and space-constrained environments, delivering large-scale projection from minimal distances. Its precision optics ensure sharp, high-contrast images across the entire screen surface.

With a versatile throw ratio of 0.75 to 0.95:1 and a 1.26x motorized zoom, this lens offers flexible placement options while projecting screen sizes from 50 inches up to a massive 500 inches. The motorized functionality allows for seamless, remote adjustment of zoom and focus.

Designed for professional integration, the BX-CTA15 is compatible with Optoma ProScene ZU1100 and ZU1300 projectors, making it a reliable choice for large venues, auditoriums, and staging applications.

Key Features

Brand Optoma
Model Number BX-CTA15
UPC 796435071226
Product Weight 1.54 lbs
Shipping Weight 2.43 lbs
Lens Type Short Throw
Throw Ratio 0.75 ~ 0.95:1
Zoom 1.26x Motorised
Min Throw Distance 2.66 ft
Max Throw Distance 33.56 ft
Min Screen Size 50 inches
Max Screen Size 500 inches
f-stop 2.3 ~ 2.53
Focal Length 11.11 ~ 14.06 mm
Compatible Models Optoma ProScene ZU1100, ZU1300, ZU860, ZU1050, ZU850, ZU750, ZU660

Compatibility

ProScene ZU1100, ProScene ZU1300

Warranty

Limited Warranty

Downloads

Frequently asked questions

Which projectors are compatible with the Optoma BX-CTA15 lens?

The BX-CTA15 lens is compatible with Optoma ProScene ZU1100, ZU1300, ZU860, ZU1050, ZU850, ZU750, and ZU660 projectors.
What is the throw ratio of this lens?

The throw ratio ranges from 0.75 to 0.95:1, making it ideal for short-distance, large-image projection.
What is the maximum screen size this lens can project?

The BX-CTA15 can project a screen size ranging from 50 inches up to a maximum of 500 inches.
Does this lens have motorized zoom and focus?

Yes, the lens features a 1.26x motorized zoom, allowing for remote adjustment of the image size and focus.
