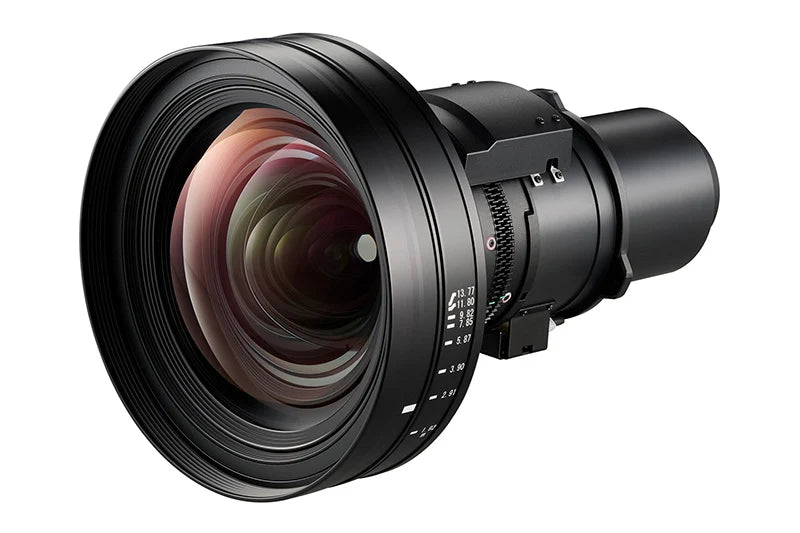

Optoma BX-CTA12 Motorized Short Throw Lens for ZK1320 and ZK1120

A short throw projector lens lets a projector create a large image from a shorter distance than a standard lens. It is a strong choice when the projector needs to be placed closer to the screen because of room depth limits, ceiling constraints, stage layouts, simulator bays, or specialized projection surfaces. The Optoma BX-CTA12 is a motorized short throw lens designed for large-venue and specialty installations. On compatible 4K projectors, it offers a 0.9 to 1.3:1 throw ratio, which helps installers produce big images without placing the projector as far back. It also supports motorized zoom and full lens memory, so image settings can be recalled quickly. This type of lens is especially useful for dome projection, golf simulation, and professional spaces where placement flexibility matters. The tradeoff is that short throw setup requires careful planning for alignment, geometry, and screen surface suitability. It is best for users who need a large image in limited space, not for every standard conference room installation.

Yes, some professional projectors use interchangeable lenses, which means the lens can be replaced to match the room, screen size, or application. This is common in large-venue projectors where throw distance, image size, and installation geometry vary from one project to another. The Optoma BX-CTA12 is one of those interchangeable lens options. It is built for specific compatible projector models, including the Optoma ZK1320, ZK1120, ZU2200, ZU1900, and ZU1700. If you already own one of those projectors and need a shorter throw setup for applications like golf simulation or dome projection, changing to a lens like this can be more practical than replacing the whole projector. The key limitation is compatibility. Not every projector accepts interchangeable lenses, and not every lens fits every chassis. Before buying a replacement lens, shoppers should confirm the exact projector model, desired screen size, and throw distance. That ensures the new lens will physically fit and deliver the image geometry needed for the space.

The Optoma BX-CTA12 motorized short throw lens is compatible with the Optoma ZK1320 and ZK1120 4K UHD+ projectors, as well as the ZU2200, ZU1900, and ZU1700 Ultra Bright WUXGA projector models. Those are the supported projector families listed for this lens. This matters because interchangeable projector lenses are highly model-specific. Even if another projector looks similar or comes from the same manufacturer, it may not support the same lens mount, optical range, or motorized control functions. Choosing a lens based only on throw ratio is not enough. Physical compatibility and control support both need to match. This lens is best suited for professional users who already own one of the supported projectors and need shorter throw performance for a large image. If a shopper is comparing lens options, the first step should always be confirming the projector model number. Once compatibility is verified, then it makes sense to compare throw ratio, image size range, and whether lens memory is needed for multi-format installations.

The Optoma BX-CTA12 has a 0.9 to 1.3:1 throw ratio when used with the Optoma ZK1320 or ZK1120 4K projectors. With compatible Ultra Bright WUXGA projector models, the throw ratio is 0.75 to 1.08:1. In practical terms, that means the projector can create a large image while being positioned relatively close to the screen compared with longer-throw lens options. A shorter throw ratio gives installers more flexibility in rooms where mounting distance is limited. It can help in simulator enclosures, projection domes, or large spaces where rear positioning is not ideal. The BX-CTA12 also supports a minimum throw distance of 3.18 feet and a maximum of 45.93 feet, giving it a useful range across different installation types. This lens is a good fit for buyers who need a big image but cannot place the projector far back. The main consideration is that short throw setups require accurate planning. Placement, screen size, and room geometry all need to be calculated together for the best result.

A short throw projector lens solves placement problems, but it also comes with tradeoffs. The biggest downside is that setup tends to be less forgiving. Small placement errors can have a larger effect on image geometry, focus uniformity, and edge alignment, especially on very large screens or specialty surfaces. For professional installations, another consideration is surface sensitivity. Short throw projection can make screen texture, wall imperfections, or simulator enclosure alignment more noticeable. In applications like dome projection or golf simulation, careful calibration is important. You also need to confirm exact compatibility, because interchangeable lenses like the Optoma BX-CTA12 only work with specific projector models. That said, the BX-CTA12 reduces some operational friction by including motorized zoom and full lens memory for zoom, focus, and lens shift recall. Those features are especially helpful when the installation needs repeatable presets. This type of lens is best for users who value flexible projector placement and are prepared to plan the installation carefully rather than treat it like a simple plug-and-play setup.

Yes, the Optoma BX-CTA12 is well suited for golf simulator projection when used with its compatible projector models. It is specifically positioned for high-performance golf simulation, where installers often need a large, sharp image from a shorter mounting distance. Its short throw design helps fit projector placement into simulator bays that may not have deep room length. The lens offers a throw ratio of 0.9 to 1.3:1 on compatible 4K projectors and 0.75 to 1.08:1 on compatible WUXGA Ultra Bright models, which gives flexibility when matching projector position to enclosure size. It also supports motorized zoom and full lens memory, making repeatable setup and fine-tuning easier in professional environments. This lens is best for commercial simulator builds or serious dedicated installations using a supported Optoma projector. Buyers should still verify room dimensions, screen size, and mounting location before choosing it. In simulator use, the right lens is not just about image size. It also needs to fit safely within the space while avoiding shadows, impact zones, or awkward projector placement.

Yes, the Optoma BX-CTA12 is designed for immersive large-venue installations, including dome projection. Its short throw optics help create large images in environments where the projector cannot be positioned at a long distance, and its motorized controls are useful for precise professional setup. For immersive applications, full lens memory is a meaningful advantage. The BX-CTA12 can save and recall zoom, focus, and lens shift positions, which helps when an installation uses repeatable presets or requires careful alignment. The ability to produce images from 50 inches up to a standard 500 inches, with a mechanical limit near 1,000 inches, also gives it flexibility for unusually large projection needs. This lens is best for experienced integrators and venues using one of the supported projector models. The main limitation is that immersive projection design depends on more than lens choice alone. Projector brightness, content mapping, surface geometry, and installation accuracy all matter. The lens provides the optical flexibility, but the overall result depends on a properly engineered projection system.

The Optoma BX-CTA12 can project images from 50 inches up to a standard maximum screen size of 500 inches, with a mechanical limit of approximately 1,000 inches. That makes it suitable for both smaller specialty setups and very large professional installations. In real-world use, the ideal image size depends on more than the lens itself. Projector brightness, resolution, room lighting, screen material, and viewing distance all affect whether a very large image still looks sharp and usable. The lens has a focal length of 15.9 to 22.8 mm and a motorized 1.44x zoom range, which gives installers room to fine-tune image size and placement. This is a strong option for buyers planning large-venue displays, immersive projection, or simulator environments with supported Optoma projectors. The practical takeaway is that the BX-CTA12 supports very large images, but the best target size should be chosen based on the projector model and installation conditions, not by maximum size alone.

Lens memory is a feature that stores lens settings so they can be recalled later without manual readjustment. On the Optoma BX-CTA12, full lens memory can save and recall zoom, focus, and lens shift positions. That is especially useful in professional installations where consistency and speed matter. For example, a venue may need to switch between screen formats, reposition for different content zones, or restore precise settings after maintenance. In those cases, lens memory reduces setup time and helps maintain repeatable image placement. Because the BX-CTA12 is also a motorized lens, those adjustments can be made with much finer control than a purely manual lens. This matters most for large venues, simulator installations, and complex AV environments rather than simple one-screen rooms that never change. Buyers who only need a fixed image may not fully use the feature. But for users who want efficient operation and dependable preset recall, lens memory is one of the most practical advantages of this lens.

The Optoma BX-CTA12 is the right choice if three things line up: your projector model is compatible, your room needs short throw placement, and your application benefits from motorized control and lens memory. It is made for specific Optoma projector models, including the ZK1320, ZK1120, ZU2200, ZU1900, and ZU1700, so compatibility is the first requirement. Next, look at your installation distance and target image size. This lens offers a 0.9 to 1.3:1 throw ratio on compatible 4K projectors and 0.75 to 1.08:1 on compatible WUXGA models, making it useful when the projector needs to sit closer to the screen. It supports image sizes from 50 to 500 inches in normal use and can accommodate specialized large-format applications. It is best for golf simulators, dome projection, and large-venue environments where precise motorized zoom, focus, and lens memory add value. If the room has plenty of depth or the projector is not one of the supported models, another lens option may be a better fit.
