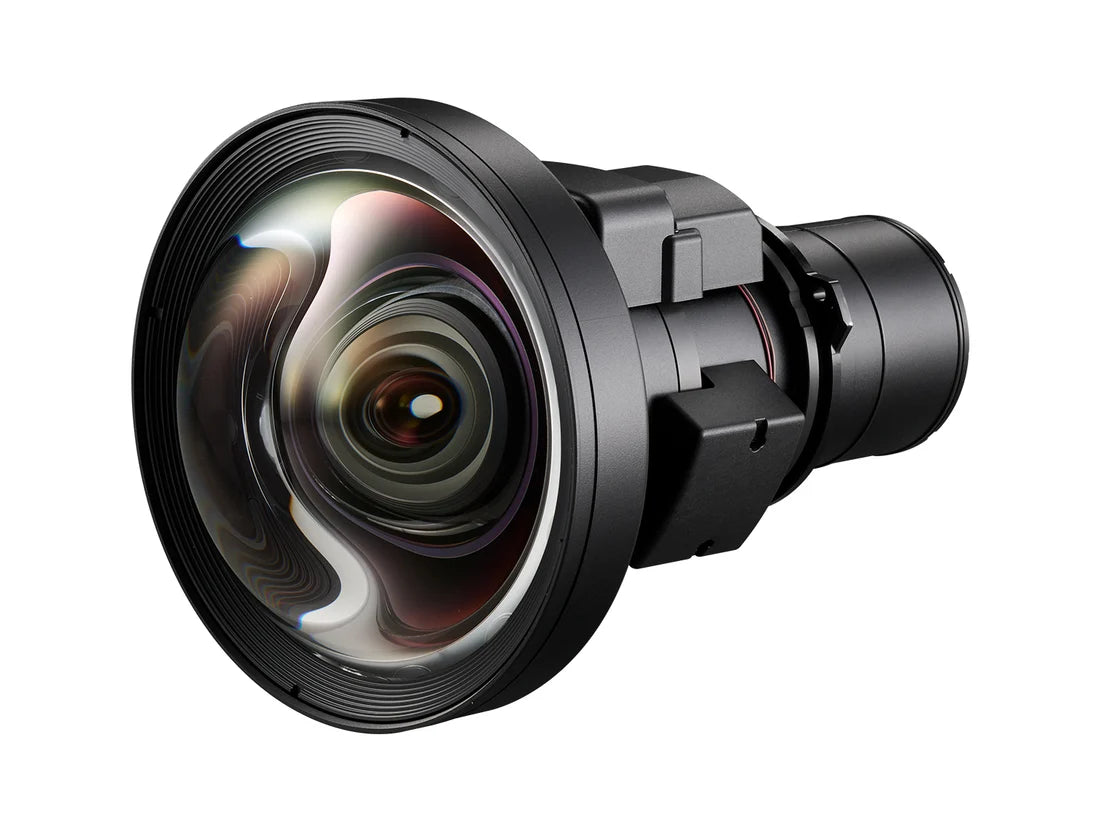

Optoma BX-CTA10 Motorized Wide Zoom Lens for ZK1320 and ZK1120

Yes, some professional projectors support interchangeable lenses, which lets you replace the lens to match the room, screen size, and throw distance. This is common in installation-grade models used in auditoriums, museums, simulation spaces, and large venues. A replaceable lens is useful when the projector itself fits your brightness and resolution needs, but the standard lens does not fit the mounting position. The Optoma BX-CTA10 is an interchangeable motorized wide zoom lens made specifically for the Optoma ZK1320 and ZK1120 projectors. It is designed for short throw installations, with a 0.5:1 to 0.65:1 throw ratio, so it can create a large image from a relatively short distance. That makes it a practical choice when ceiling depth, stage space, or room layout limits projector placement. The key limitation is compatibility. Not every projector accepts a replacement lens, and even among interchangeable-lens models, lenses are not universal. Buyers should confirm the projector model, required throw ratio, and screen size before choosing a lens.

Projector lenses are usually grouped by throw ratio and installation purpose. The main types are ultra short throw, short throw, standard throw, telephoto or long throw, and zoom lenses. Ultra short throw and short throw lenses are used when the projector must sit close to the screen. Standard throw lenses fit more typical room layouts. Telephoto lenses are used when the projector has to be mounted far away, such as in large venues. Zoom lenses add flexibility by allowing a range of image sizes and distances instead of a fixed setup. The Optoma BX-CTA10 is a short throw wide zoom lens. Its 0.5:1 to 0.65:1 throw ratio is designed for large images in tighter spaces, and its motorized 1.3x zoom makes fine placement easier. This type of lens is especially useful for immersive rooms, professional AV installations, and spaces where projector placement is constrained. The tradeoff is that lens choice should be driven by room geometry, not just convenience. A short throw lens solves close-range placement needs, but it is not the right fit for long-distance projection.

You need a short throw projector lens when you want a large image but do not have much distance between the projector and the screen. This often comes up in golf simulator bays, immersive exhibits, retail displays, classrooms, and rooms with limited ceiling depth or mounting options. A short throw lens helps you fill a big screen without pushing the projector far back into the room. The Optoma BX-CTA10 is built for exactly that type of installation. With a 0.5:1 to 0.65:1 throw ratio, it can produce large images from short distances, with a minimum throw distance of 1.77 feet and support for screen sizes starting at 80 inches. It also includes motorized zoom and lens memory, which helps installers fine-tune image size and recall settings quickly. The main tradeoff is setup precision. Short throw lenses are excellent for space-saving installations, but placement and alignment matter more because small position changes have a bigger effect on image geometry. This lens is best for buyers using compatible professional Optoma projector models and planning a permanent or carefully designed installation.

The Optoma BX-CTA10 has a throw ratio of 0.5:1 to 0.65:1. In simple terms, that means the projector can create a large image from a short distance. A lower throw ratio is ideal when the projector needs to be mounted close to the screen because of room size, ceiling constraints, or installation design. In real-world use, this lens is a strong fit for immersive environments, simulation spaces, staging applications, and other professional AV installs where screen impact matters but projector placement is limited. It supports screen sizes from 80 inches up to 300 inches in standard use, with a mechanical limit of about 500 inches. The motorized 1.3x zoom adds flexibility, so installers can fine-tune image size without moving the projector significantly. The practical limitation is that throw ratio must match your exact room dimensions. A short throw lens is very helpful when space is tight, but it may not be suitable if the projector is located far from the screen. Buyers should calculate throw distance and screen size together before choosing the lens.

The Optoma BX-CTA10 is designed specifically for the Optoma ZK1320 and ZK1120 4K UHD+ projectors. It is not marketed as a universal projector lens, so compatibility should be treated as model-specific rather than assumed across other projector lines. This matters because projector lenses must match the projector’s optical system, mount design, and supported lens controls. The BX-CTA10 includes motorized zoom and lens memory functionality, and those features are intended to work correctly with the compatible ZK1320 and ZK1120 platforms. Using a lens outside its intended compatibility range can lead to fit, control, or image performance issues. For buyers, this lens makes the most sense if they already own one of those projectors or are building a system around one of them. If you are still comparing projectors, compatibility should be one of the first filters in your decision. At Protech Projection Systems, that usually means matching projector model, required throw ratio, and target screen size before selecting the lens.

Yes, the Optoma BX-CTA10 includes motorized zoom and lens memory. It has a 1.3x motorized zoom range, and its lens memory function stores and recalls zoom, focus, and lens shift positions. That is especially useful in professional installations where repeatable setup matters. In practice, lens memory helps when a system needs to switch between different content formats or screen presentations without manual re-adjustment. Installers and operators can save preferred positions and recall them quickly, which reduces setup time and improves consistency. This is helpful in auditoriums, multi-use venues, simulation environments, and other spaces where image framing needs to be precise. The main benefit is convenience and repeatability, not portability. Buyers who need a one-time fixed setup may simply appreciate easier alignment, while users with changing formats will get more value from memory presets. To use these features properly, the lens should be paired with its intended compatible projectors, the Optoma ZK1320 or ZK1120.

The Optoma BX-CTA10 supports screen sizes from 80 inches up to 300 inches in standard use, with a mechanical limit of approximately 500 inches. That gives it a very wide operating range for large-format projection, especially in professional environments where flexibility matters. For most buyers, the practical screen size will depend on more than the lens alone. Projector brightness, room lighting, mounting distance, and screen material all affect whether a given image size will look sharp and bright enough. This lens is designed to maintain image clarity across a wide range, and its short throw design makes it useful when you need a large image in a limited space. The best fit is for installations using compatible Optoma ZK1320 or ZK1120 projectors where the goal is a large, immersive picture without placing the projector far back. The tradeoff is that maximum mechanical capability does not always equal ideal viewing performance, so screen size should be chosen based on room conditions and projector output, not just the lens limit.

A motorized wide zoom lens is often better for professional AV installations when placement flexibility, precise alignment, and repeatable adjustments are important. Unlike a fixed lens, a zoom lens gives installers a range of throw distances and image sizes without requiring the projector to be mounted in one exact position. The Optoma BX-CTA10 is a good example of this advantage. Its 1.3x motorized zoom and short throw ratio of 0.5:1 to 0.65:1 help accommodate rooms where the projector must stay close to the screen. Its lens memory adds another benefit by saving and recalling zoom, focus, and lens shift settings, which is useful for multi-format presentation setups. A fixed lens can still be a strong choice if the installation is simple and the mounting position is already ideal, since there are fewer variables to manage. But for complex spaces, large screens, or installations that may need future adjustment, a motorized wide zoom lens usually provides more setup flexibility and operational convenience.

Yes, the Optoma BX-CTA10 is well suited for immersive rooms, simulation environments, and other setups that need a large image from a short throw distance. Its 0.5:1 to 0.65:1 throw ratio is designed for installations where the projector must stay relatively close to the screen, and its optical range supports images from 80 inches to 300 inches in normal use. This makes it a practical option for spaces where room depth is limited but screen impact still matters. The motorized 1.3x zoom allows more flexibility during installation, and lens memory helps save and recall preferred settings, which is valuable when precision and repeatability are important. Because it is designed for the Optoma ZK1320 and ZK1120 4K UHD+ projectors, it is especially relevant for professional systems built around those models. The main limitation is that it is specialized. Buyers who need long-distance projection or broad cross-model compatibility should look at other lens types. For short-distance, large-format professional applications, this lens is built for that specific job.

A projector lens can last for many years if it is used in a stable installation and handled properly. In most cases, the lens does not wear out on a fixed schedule the way lamps or some internal projector components do. Instead, longevity depends on environmental conditions, maintenance habits, and whether the lens is exposed to dust, impact, smoke, or frequent handling. For a professional lens like the Optoma BX-CTA10, the most important maintenance steps are keeping the optical surfaces clean, avoiding improper cleaning materials, and making sure the projector is installed in a clean, well-ventilated environment. Because this is a motorized lens with zoom and memory functions, careful installation and correct system setup also help preserve performance over time. The practical expectation for buyers is long service life when the lens is used with its compatible Optoma ZK1320 or ZK1120 projector in a professional setting. If image sharpness or alignment changes unexpectedly, the issue is often setup, contamination, or projector calibration rather than the lens simply reaching end of life.
