Murideo STIX Test Ecosystem Controller 1RU HDMI Testing Hub

SKU: MU-STIX-CTL
Regular price $1,499.00

Frequently Asked Questions

To test HDMI at scale, you need more than a simple cable checker. A proper HDMI testing control system should power multiple test endpoints, collect signal data centrally, and let you monitor results remotely. That is the main difference between one-off troubleshooting and repeatable quality control. The Murideo STIX Test Ecosystem Controller is built for this larger workflow. It is a 1RU rack-mount hub with 48 USB Type-A device ports that provide both power and data communication to connected STIX devices, so you do not need separate adapters for each endpoint. It also uses a browser-based interface for remote management and can daisy-chain up to 20 controllers, allowing management of up to 960 STIX devices at once. Real-time video thumbnails and HDMI signal details are displayed in the interface for monitoring. This type of system is best for compliance labs, manufacturing QC, field validation, and large AVoIP deployments. If you only need to verify a single cable at home, this would be more system than you need.
In a testing environment, HDMI control means managing, monitoring, and verifying HDMI signal behavior across one or many endpoints from a central system. It is not just switching sources. It includes device communication, power delivery, signal validation, and visibility into what each HDMI link is doing. A dedicated HDMI testing control system helps teams confirm that displays, extenders, endpoints, and connected devices are working as expected before deployment. With the Murideo STIX Test Ecosystem Controller, HDMI control is handled through a browser-based interface that can manage one unit or multiple linked units over a network. The controller also shows real-time video thumbnails and detailed HDMI signal information, which makes it easier to identify failures or inconsistencies. This matters most in high-volume test environments where manual checking is too slow or inconsistent. For installers, integrators, and QC teams, centralized HDMI control improves repeatability and reduces the chance of sending unverified equipment into the field.
Yes. Some HDMI testing systems are designed for remote, browser-based control rather than requiring direct access at the rack. The Murideo STIX Test Ecosystem Controller uses a centralized browser interface, so users can manage connected STIX devices from any network location without needing to stand in front of the hardware. That browser-based approach is especially useful when you are monitoring multiple test points, handling large QC runs, or validating distributed AV systems. The controller includes network connectivity through RJ45 ports for LAN, host, and client connections, and it can be used to manage one or many units together. Because it also provides power and data over 48 USB Type-A device ports, the setup stays cleaner than systems that require separate power adapters for each endpoint. This is best for professional AV teams, test labs, and deployment environments that need centralized oversight. If your goal is simply to switch HDMI sources in a conference room, a control system like this is solving a different, more technical problem.
The best choice depends on whether you are testing a single cable occasionally or validating many HDMI endpoints every day. For professional use, key features include centralized management, visibility into signal status, support for many connected devices, remote access, and clean power delivery. The Murideo STIX Test Ecosystem Controller fits the needs of high-volume environments because it serves as the central hub for the STIX HDMI test ecosystem. It has 48 USB Type-A device ports for power and communication, a browser-based control interface, and the ability to daisy-chain up to 20 controllers for up to 960 managed STIX devices. It also displays live video thumbnails and detailed HDMI signal information, which is useful when you need more than a pass or fail indication. This type of system is ideal for compliance testing, production QC, and large AV deployments. The tradeoff is that it is a control hub for a broader ecosystem, not a basic handheld tester for occasional residential troubleshooting.

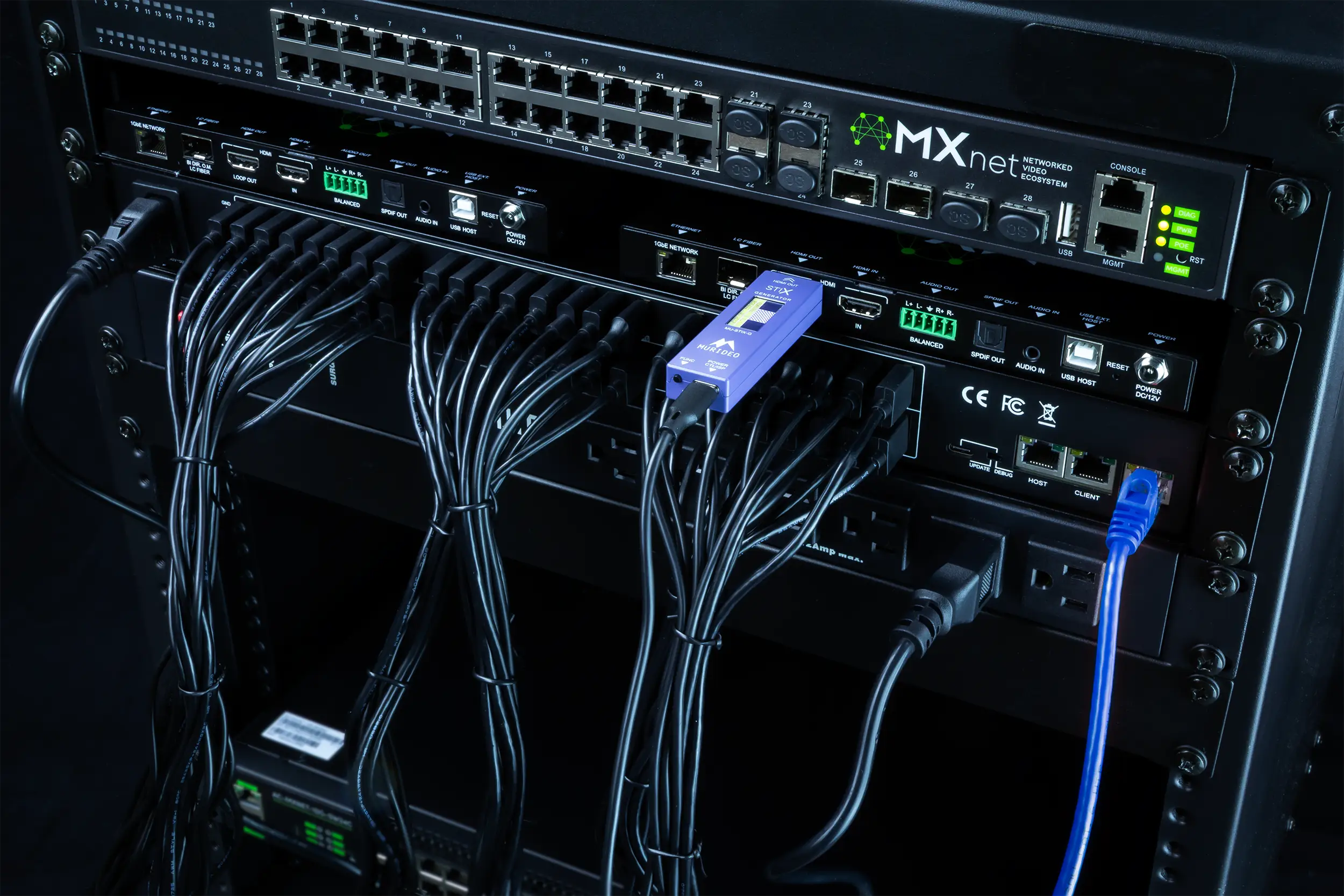

An HDMI testing control system is the better choice when you need repeatable, centralized testing across many devices or endpoints. Basic testers are fine for occasional cable checks, but they are limited when you need remote visibility, automation, or large-scale monitoring. The Murideo STIX Test Ecosystem Controller is designed for environments such as compliance labs, manufacturing quality control, AV integration staging, and large AVoIP deployments. Its 1RU rack form factor makes it suitable for installed workflows, and its 48 powered USB device ports help reduce clutter by eliminating separate adapters for connected STIX units. The browser-based interface and daisy-chain support up to 20 controllers make it practical for teams managing hundreds of test points. If you are an individual user checking one display or one cable, a simpler tool may be enough. If your job involves validating many HDMI paths quickly and consistently, a centralized control system is usually the more efficient and scalable option.
Yes. The Murideo STIX Test Ecosystem Controller is specifically designed for simultaneous multi-device management. One controller supports 48 connected STIX devices through its 48 USB Type-A device ports, and those ports handle both communication and power. For larger workflows, the system can daisy-chain up to 20 controllers. That expands management capacity to as many as 960 STIX devices from the same broader ecosystem. This is one of the main reasons it is suited for high-volume testing rather than isolated troubleshooting. Through the browser-based interface, users can monitor multiple endpoints centrally instead of checking each one manually. This capability is most useful for organizations validating many HDMI endpoints in parallel, such as QA teams, manufacturers, and integrators preparing large rollouts. The main limitation is that this controller is part of the STIX ecosystem, so its full value depends on using compatible STIX devices rather than expecting it to function as a generic standalone HDMI tester.
Yes. One of the practical advantages of the Murideo STIX Test Ecosystem Controller is that its 48 USB Type-A device ports provide both data communication and power to connected STIX devices. That reduces the need for separate external power adapters and helps keep rack installations cleaner and easier to manage. In large test setups, power delivery matters because it directly affects speed of deployment, cable management, and consistency across multiple endpoints. Instead of building around dozens of individual power supplies, teams can use the controller as a centralized hub. The unit also includes two additional USB Type-A peripheral ports and one USB Type-C ISP port for service and support functions within the system. This design benefits labs, QC stations, and AV staging environments where many devices are connected at once. The tradeoff is power planning at the rack level, since the controller itself has a maximum power consumption of 160W and should be integrated into a properly designed professional setup.
Yes. The controller is well suited for AVoIP deployment work where many HDMI endpoints need to be verified before a system goes live. Its role as a centralized STIX ecosystem hub makes it useful for confirming signal integrity and endpoint readiness across a large number of devices. The browser-based interface allows remote oversight, while real-time video thumbnails and detailed HDMI signal information help technicians confirm that each endpoint is behaving correctly. Because the system can scale by daisy-chaining up to 20 controllers for a total of 960 STIX devices, it is practical for large distributed AV networks rather than just bench testing a few devices. This makes it a strong fit for integrators, commissioning teams, and enterprise AV deployments where field readiness matters. The key limitation is that it is not a general-purpose network switch or matrix controller. Its value is in HDMI test coordination and validation within the STIX testing ecosystem.
The controller is designed to give users both visual and technical feedback during HDMI testing. In the browser-based interface, it provides real-time video thumbnails along with detailed HDMI signal information for connected devices in the STIX ecosystem. That combination is important because it helps teams verify more than simple connectivity. Visual thumbnails can confirm that a valid image is present, while signal-level data supports deeper troubleshooting and quality control. In practical terms, this can speed up diagnosis when a source appears connected but is not behaving as expected at the endpoint. This level of monitoring is especially useful in high-volume test environments, system staging, and compliance workflows where documentation and repeatability matter. Shoppers should note that this is not positioned as a consumer display monitor or basic AV accessory. It is a professional control system intended to centralize signal visibility across many test points.

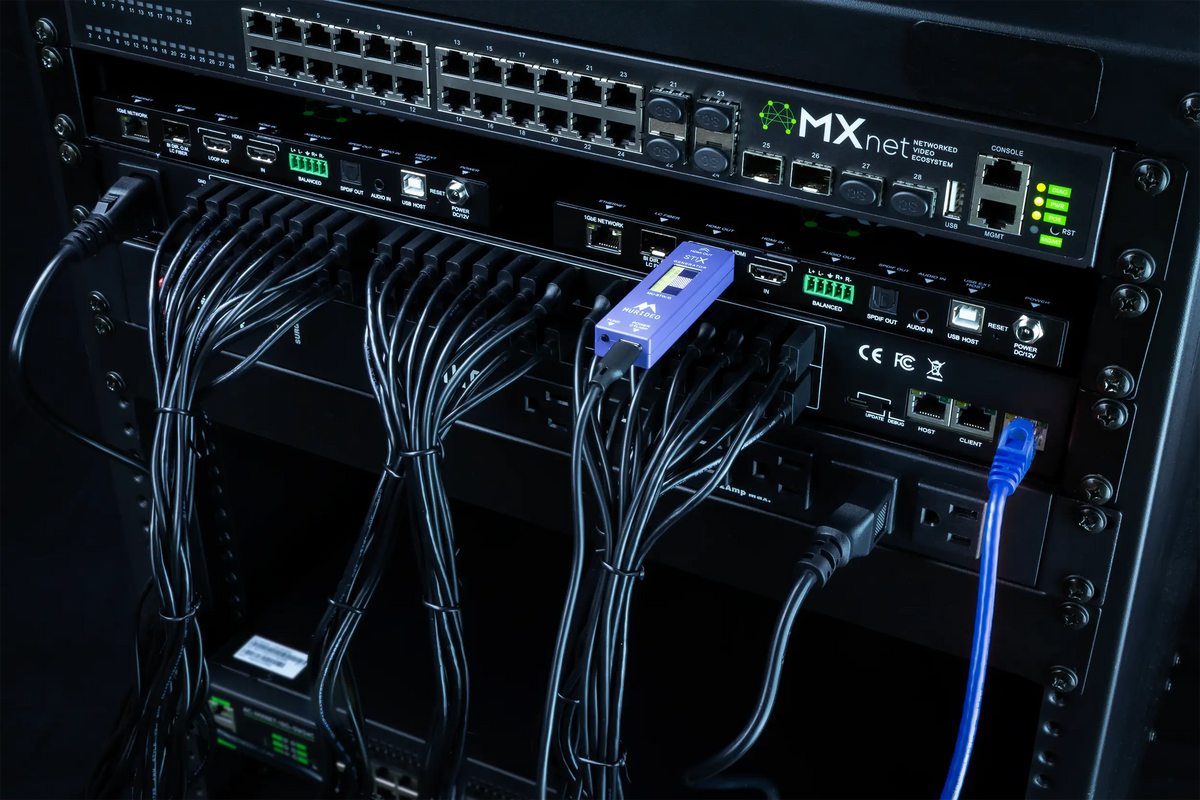

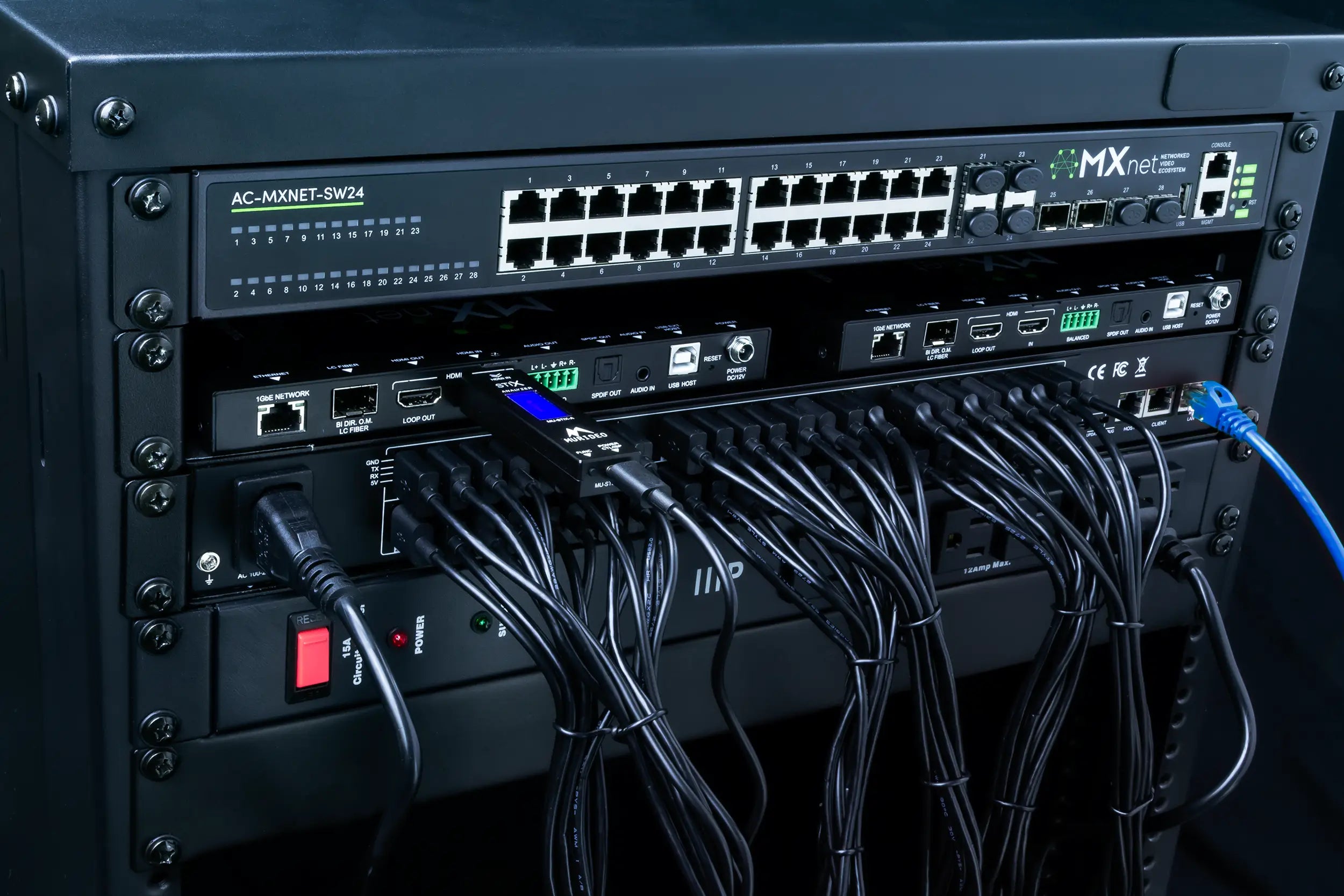

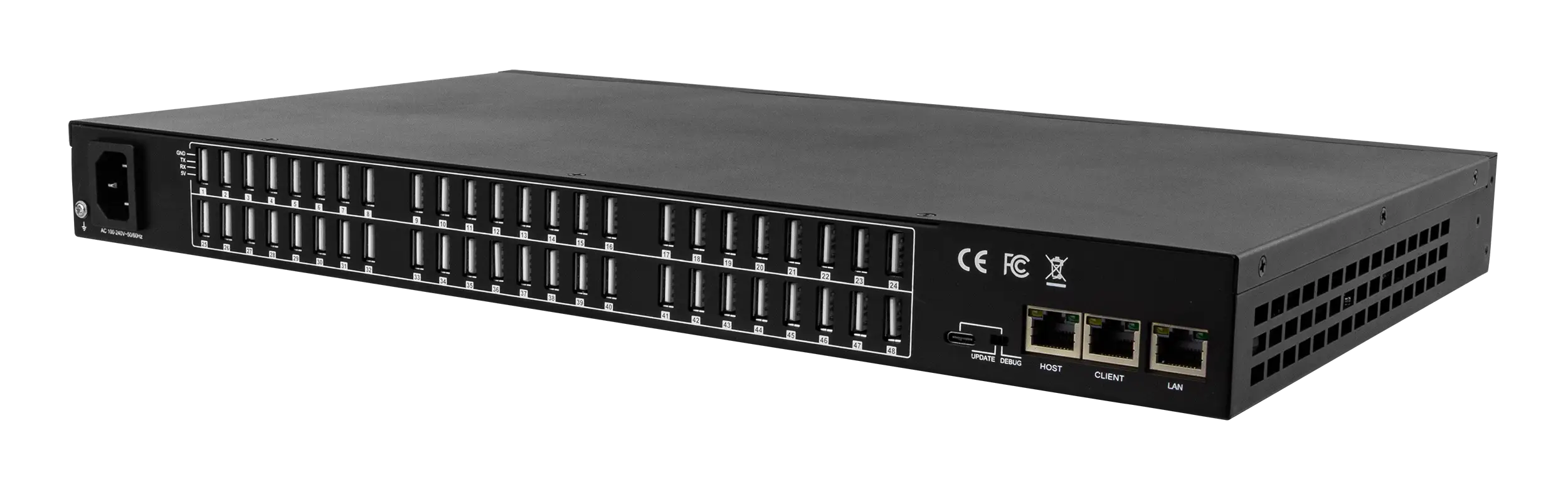

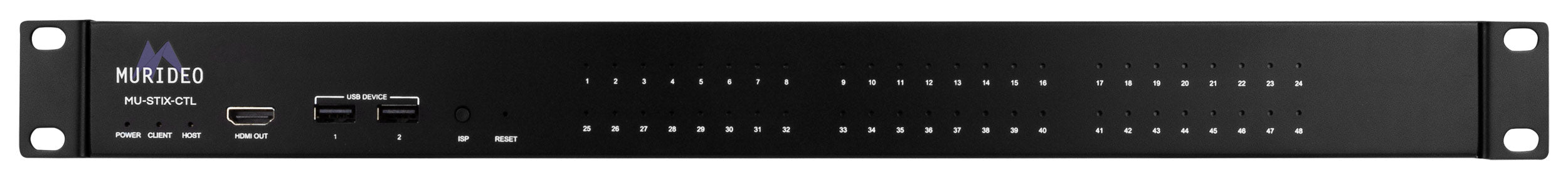

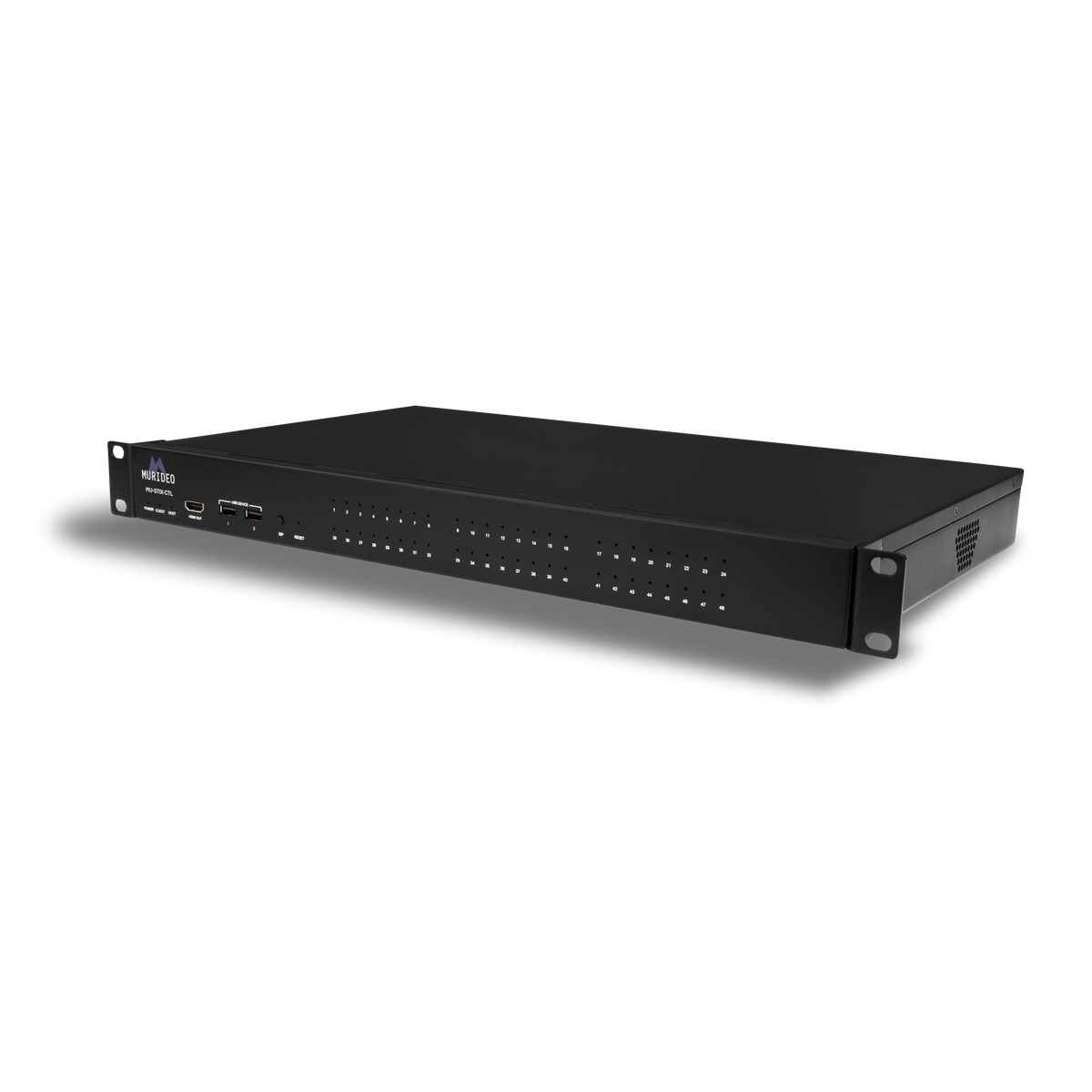

Yes. A 1RU rack-mount format is often ideal for professional AV and QC environments because it allows centralized testing capacity without using excessive rack space. The Murideo STIX Test Ecosystem Controller is built in a 1RU chassis and is meant to serve as the central management point for the STIX testing ecosystem. Its form factor makes sense for permanent lab racks, staging rooms, and equipment verification stations. Despite the compact size, it includes 48 USB Type-A device ports, network connectivity through three RJ45 ports, an HDMI connection for the web interface, and support for large-scale expansion through daisy-chaining. It is also specified for a broad operating range from 23 to 125 degrees Fahrenheit and 5 to 90 percent non-condensing humidity, which suits many controlled professional environments. This is a strong fit for teams that need organized, scalable HDMI test infrastructure. For occasional field checks or portable one-off troubleshooting, a smaller standalone tester may be easier to transport.

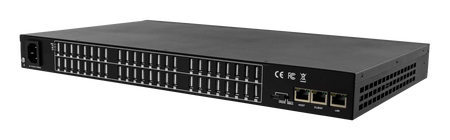

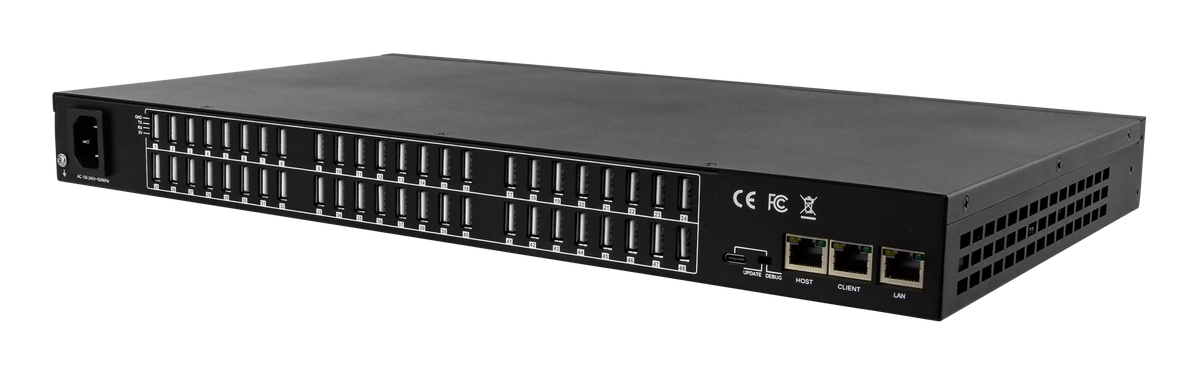

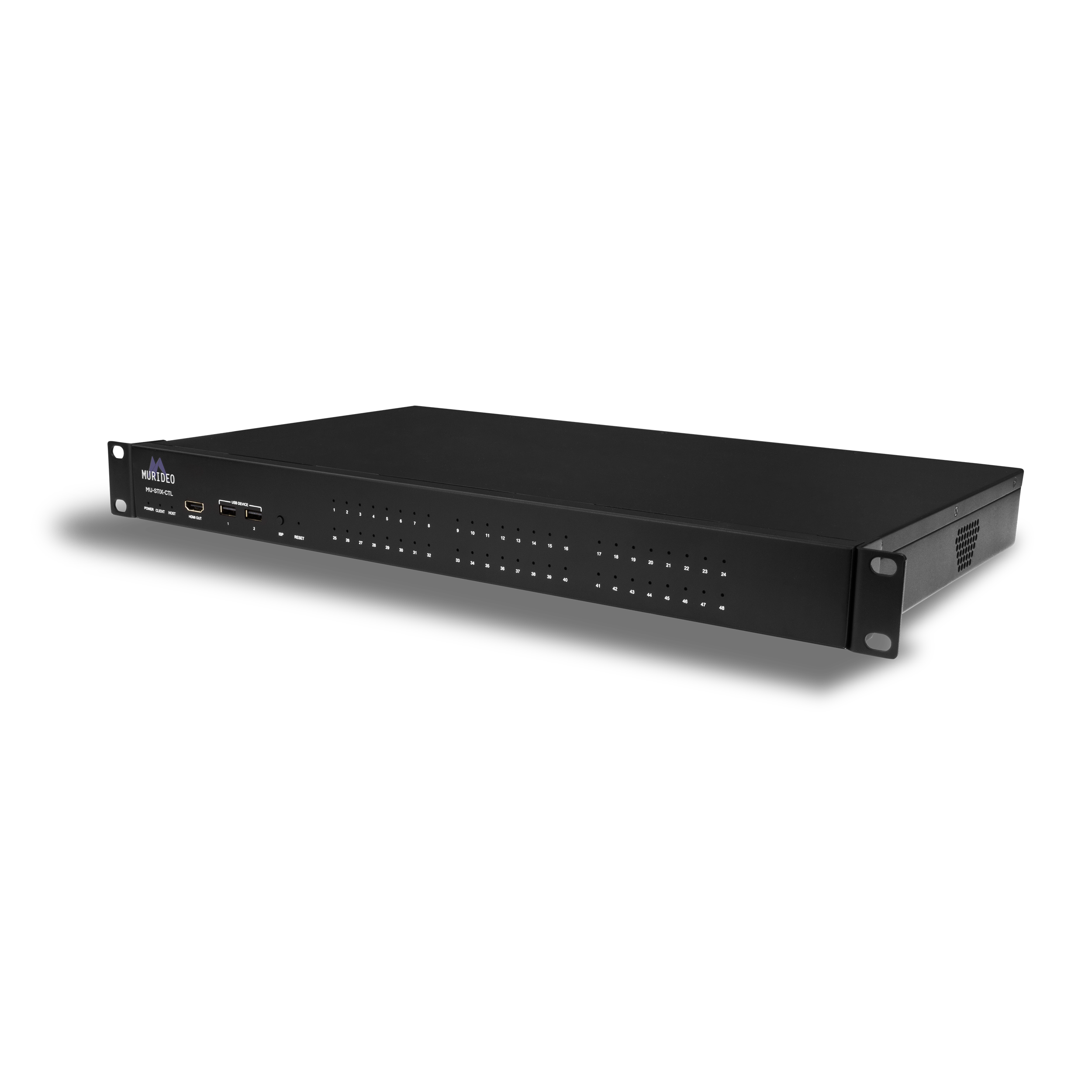

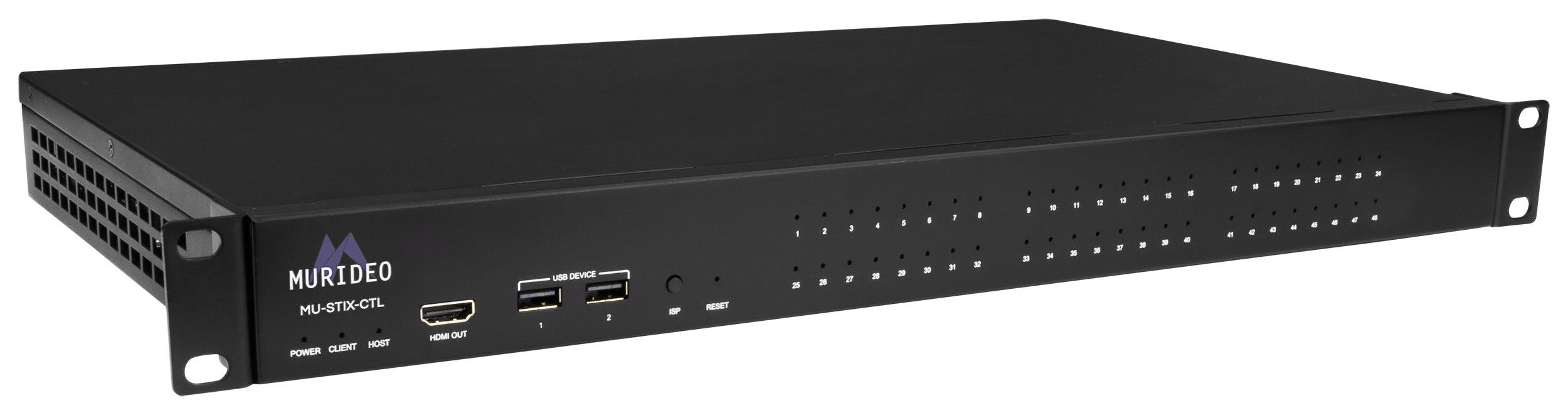

The Murideo MU-STIX-CTL serves as the central hub for the STIX ecosystem, engineered to coordinate and automate HDMI testing workflows at scale. This 1RU controller unit features 48 USB Type-A ports that provide both data communication and power to connected STIX devices, effectively eliminating the need for external adapters. A centralized, browser-based interface allows for seamless remote management of one or multiple units from any network location. The system supports daisy-chaining up to 20 controllers, enabling the management of up to 960 STIX devices simultaneously. Real-time video thumbnails and detailed HDMI signal information are displayed directly within the interface for precise monitoring. Ideal for high-volume QC, compliance testing facilities, and large-scale AVoIP system deployment, the MU-STIX-CTL ensures that every endpoint in your chain is verified and field-ready.

Form Factor 1RU Rack Mount

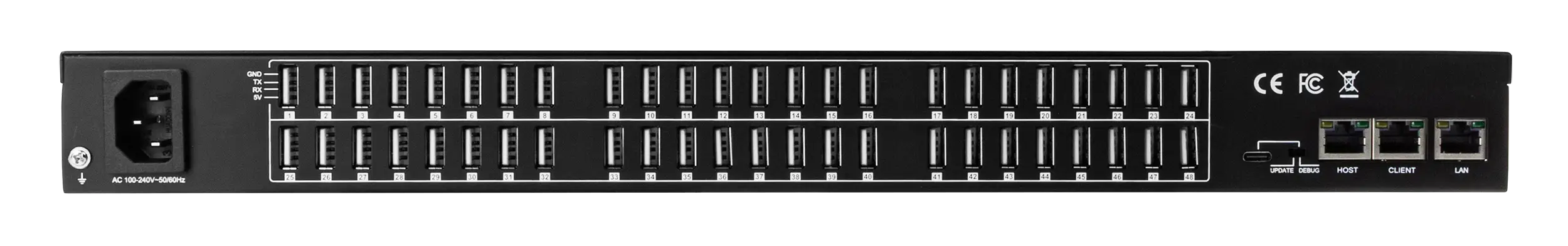

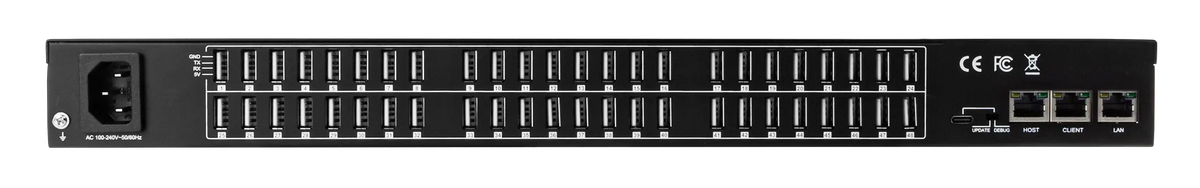

USB Ports 48x Type-A (Device), 2x Type-A (Peripheral), 1x Type-C (ISP)
Connectivity 1x HDMI (Web Interface), 3x RJ45 (LAN, Host, Client)
Operating Temperature 23 to 125° F (-5 to 51° C)
Storage Temperature -4 to 140° F (-20 to 60° C)
Humidity Range 5-90% RH (Non-condensing)
Power Consumption 160W Maximum
Unit Dimensions 10.196" x 17.313" x 1.75"
Unit Weight 8.25 lbs
