Mimo Vue MBS-1080C-POE-L 10.1" Touchscreen Digital Signage Display with BrightSign Built-In

SKU: MBS-1080C-POE-L
(0)
$830.00

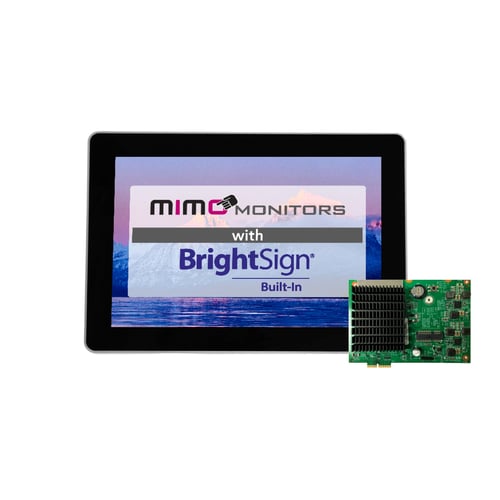

The Mimo Vue MBS-1080C-POE-L integrates a 10.1-inch IPS LCD touchscreen with a built-in BrightSign HD4-class media player, delivering a streamlined digital signage solution. Its 1280x800 resolution and 350-nit brightness ensure clear, vibrant visuals, while the 10-point capacitive touch panel enables responsive interactive experiences.

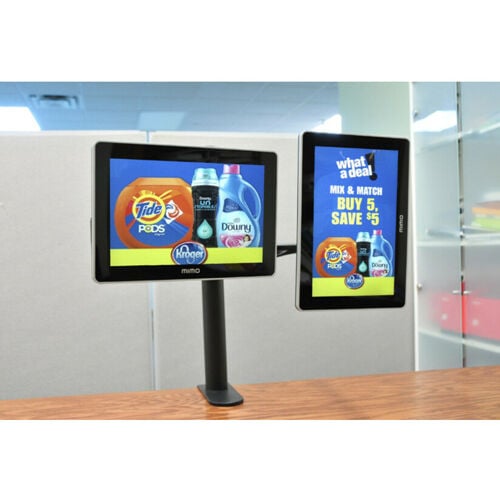

Designed for versatile deployment, the display features Power over Ethernet (PoE) for simplified single-cable installation and a 75x75mm VESA mount pattern for wall or stand mounting. Integrated LED lights provide clear room availability indication, making it ideal for conference rooms and hot-desking environments.

The onboard BrightSign module supports H.265/H.264 video decoding and hardware-accelerated HTML5, ensuring smooth playback of dynamic content up to 1080p60. With wide 85-degree viewing angles on all sides, the screen maintains image fidelity from nearly any perspective.

Key Features

Manufacturer Mimo Monitors, Inc
Brand Mimo Monitors
Product Line Vue
Product Model MBS-1080C-POE-L
Product Type Digital Signage Display
Screen Size 10.1"
Display Screen Type LCD
Touchscreen Yes
Touchscreen Technology Projected Capacitive (PCAP)
Touch Points 10
Display Resolution 1280 x 800
Panel Type IPS
Backlight Technology LED
Brightness 350 Nit
Contrast Ratio 800:1
Viewing Angle 85° / 85° / 85° / 85°
Built-in Media Player BrightSign HD4 Series
Video Decoding H.265 / H.264
Max Video Output 1080p60
Ethernet Yes
Power over Ethernet (PoE) Yes
USB Yes
Serial Yes
Input Voltage 12 V DC
VESA Mount Standard 75 x 75 mm
LED Indicators Yes
Warranty 1 Year
Certifications CE, FCC, RoHS
UPC 810020601688
Weight 3.5 lbs

Highlights

10.1" USB Touch Monitor with POE; 10-Point PCAP Touch w/LEDs; 1280x800 IPS LCD; 350cd/m2; 800:1 CR; Viewing Angles - 85/85/85/85; 75 x 75 VESA; 1 Year Manufacturer's Warranty. BrightSign HD4 Series Built-In Digital Signage Module

Downloads

Frequently asked questions

What media player is built into this display?

It features an integrated BrightSign HD4-class digital signage module, which supports H.265/H.264 video decoding and hardware-accelerated HTML5 content.

Can this display be powered over Ethernet?

Yes, the MBS-1080C-POE-L supports Power over Ethernet (PoE), allowing both power and data to be delivered through a single network cable for simplified installation.

What is the screen resolution and brightness?

The 10.1-inch IPS LCD panel has a native resolution of 1280x800 pixels and a brightness rating of 350 nits, providing clear visibility in typical indoor environments.

Is this display compatible with VESA mounts?

Yes, it features a 75x75mm VESA mounting pattern on the rear, making it compatible with a wide range of standard wall mounts and desk stands.
