Mimo Vue MBS-1080C-POE 10.1" Touchscreen Digital Signage Display with BrightSign Built-In

SKU: MBS-1080C-POE
(0)
$770.00

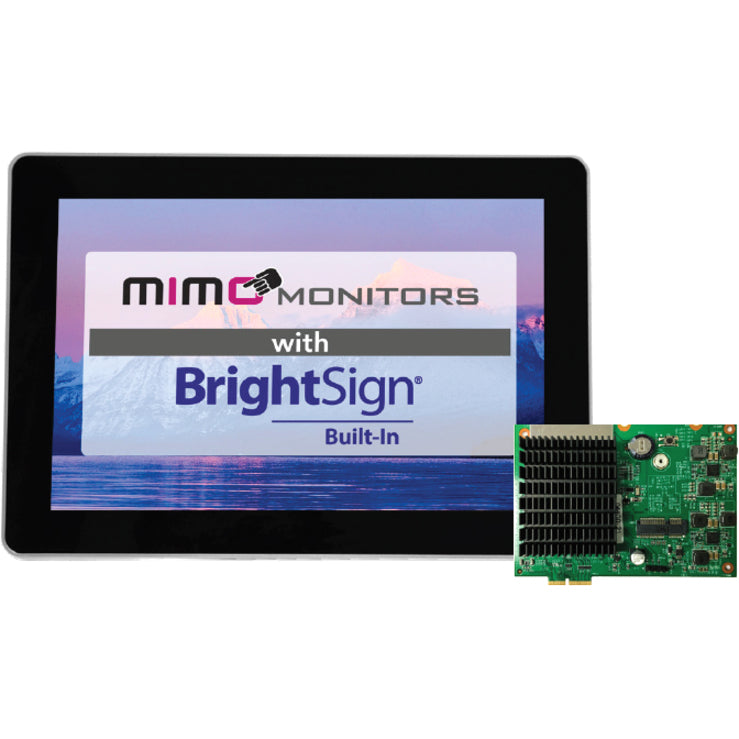

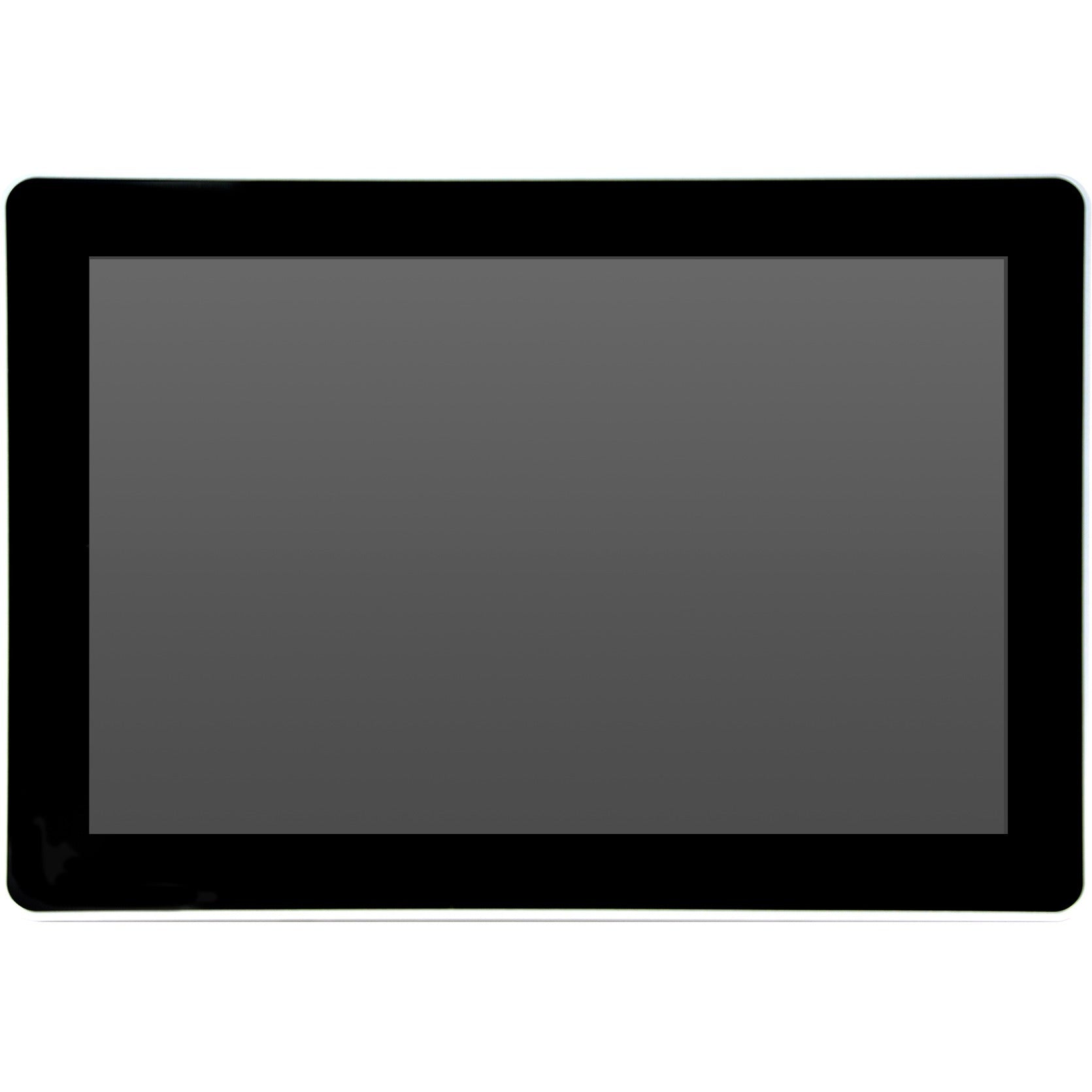

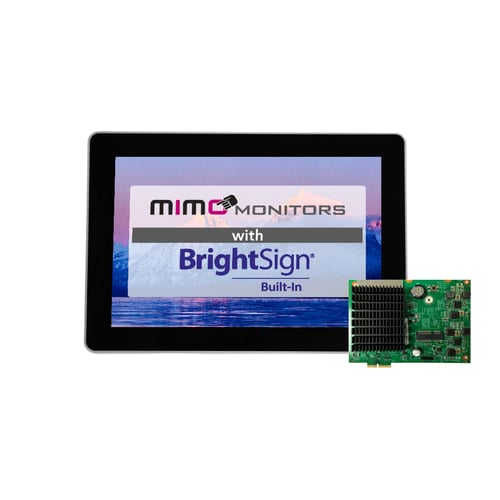

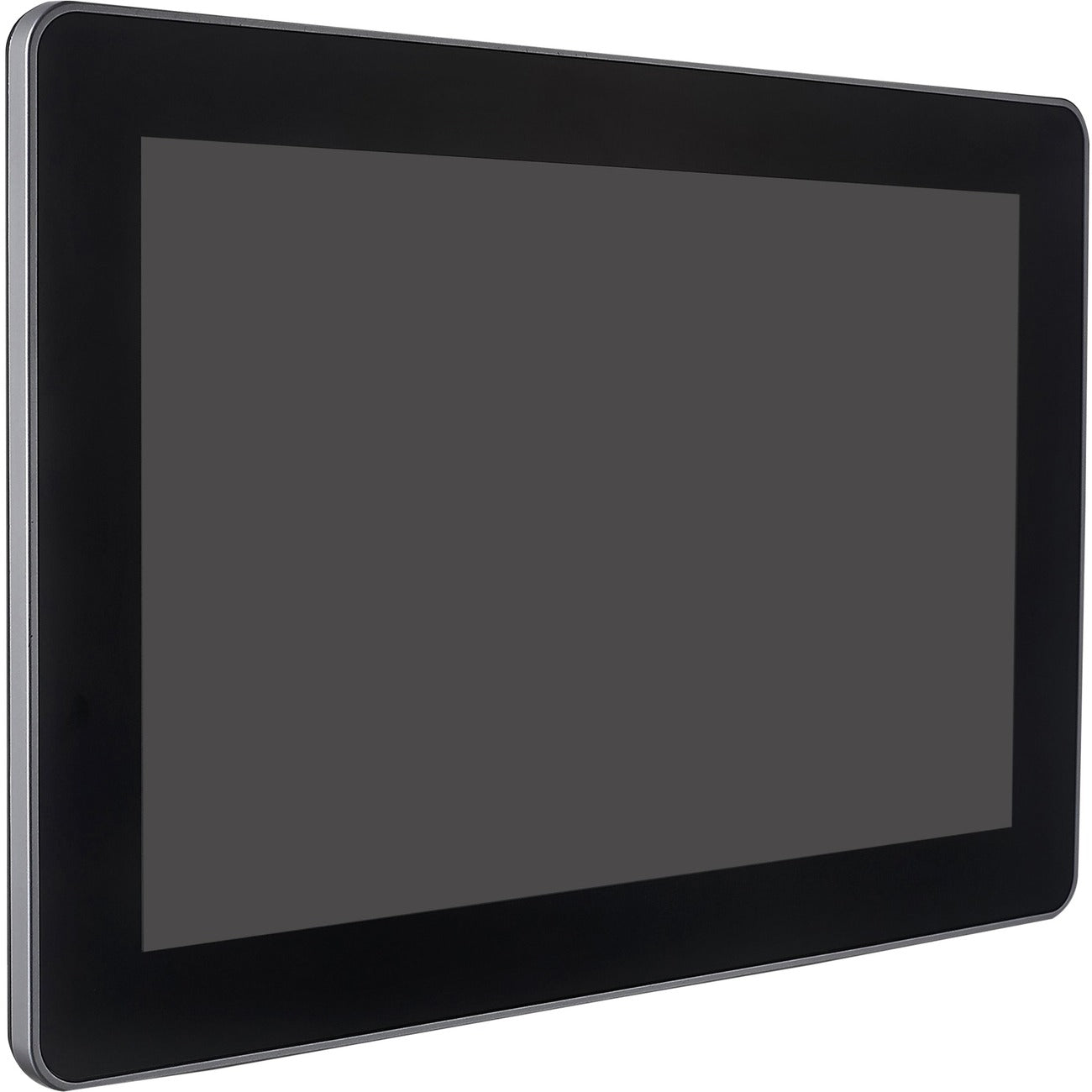

The Mimo Vue MBS-1080C-POE combines a 10.1-inch interactive touchscreen with an integrated BrightSign HD4 media player, delivering a streamlined digital signage solution. Its 1280x800 IPS LCD panel provides vivid clarity and wide 85-degree viewing angles, ensuring content remains visible from nearly any perspective. The 10-point projected capacitive touch panel enables responsive, multi-user interaction for kiosks, wayfinding, and engagement displays.

Built around a BrightSign HD3-class engine, this display supports H.265 and H.264 video decoding with hardware-accelerated HTML5, outputting smooth 1080p60 video. The all-in-one design simplifies deployment by eliminating external cabling and separate player hardware, while Power over Ethernet capability reduces power infrastructure needs when using a compatible network.

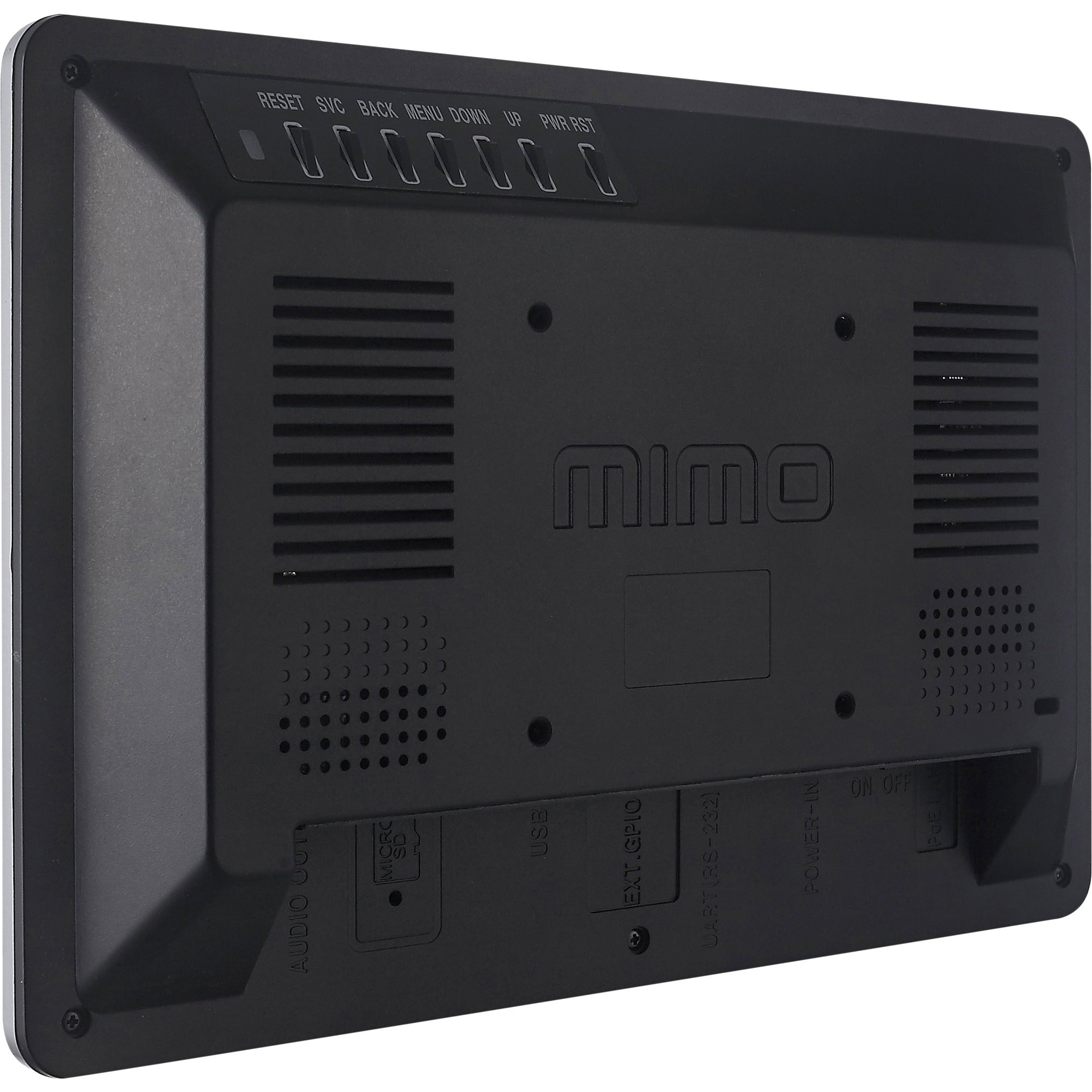

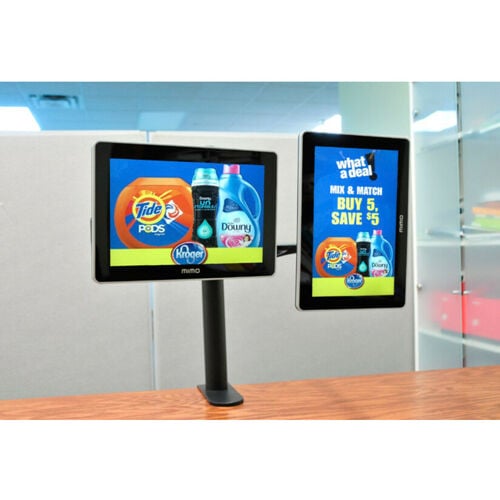

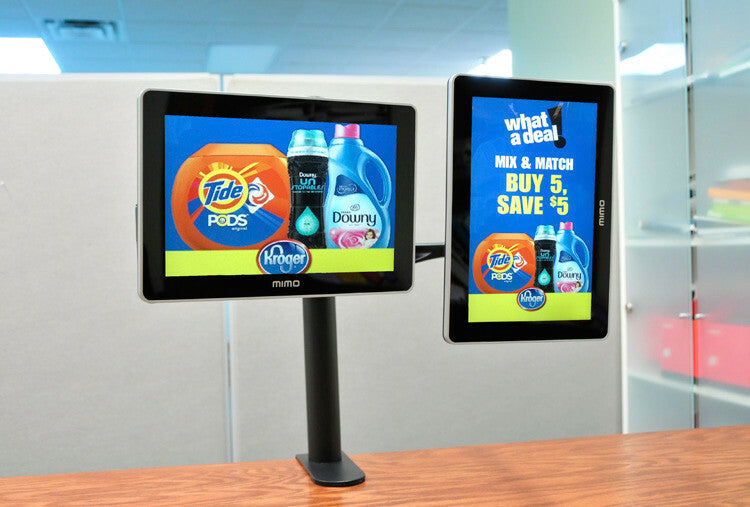

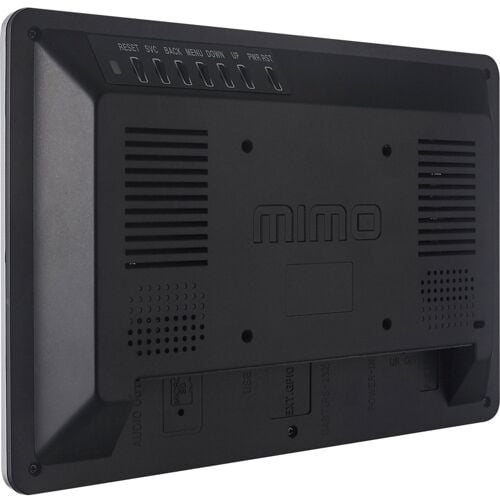

A VESA 75 mounting pattern allows secure attachment to walls, stands, or tabletops in portrait or landscape orientation. With a 350-nit brightness and 800:1 contrast ratio, the screen performs reliably in indoor commercial environments, and its CE, FCC, and RoHS certifications confirm adherence to safety and environmental standards.

Key Features

Brand Mimo Monitors
Model MBS-1080C-POE
Product Type Digital Signage Display
Screen Size 10.1"
Display Type LCD
Touchscreen Yes
Touch Technology Projected Capacitive (PCAP)
Multi-touch 10-Point
Resolution 1280 x 800
Aspect Ratio 16:10
Brightness 350 Nit
Contrast Ratio 800:1
Response Time 14 ms
Viewing Angle 85/85/85/85
Built-in Media Player BrightSign HD4 Series
Video Decoding H.265, H.264
Max Video Output 1080p60
Ethernet Yes
Power over Ethernet (PoE) Optional
USB Yes
Serial Yes
VESA Mount 75 x 75 mm
Operating Temperature -10 to 50°C (14 to 122°F)
Certifications CE, FCC, RoHS
Warranty 1 Year
Weight 3.3 lbs
UPC 810020600261

Highlights

10.1" USB Touch Monitor with POE; 10-Point PCAP Touch; 1280x800 IPS LCD; 350cd/m2; 800:1 CR; Viewing Angles - 85/85/85/85; 75 x 75 VESA; 1 Year Manufacturer Warranty. BrightSign HD4 Series Built-In Digital Signage Module

Downloads

Frequently asked questions

Does this display include a built-in media player?

Yes, the Mimo Vue MBS-1080C-POE has a BrightSign HD4 series digital signage module integrated directly into the display, eliminating the need for an external player.

What type of touch technology does the screen use?

It uses a 10-point projected capacitive (PCAP) touch panel, which supports multi-touch gestures and provides a responsive, smartphone-like interactive experience.

Can this display be powered over Ethernet?

Power over Ethernet (PoE) is supported as an optional feature, allowing both power and data to be delivered through a single network cable when connected to compatible PoE infrastructure.

What mounting options are available for this display?

The display features a 75 x 75 mm VESA mounting pattern, making it compatible with a wide range of standard wall mounts, desk stands, and articulating arms for flexible installation.
