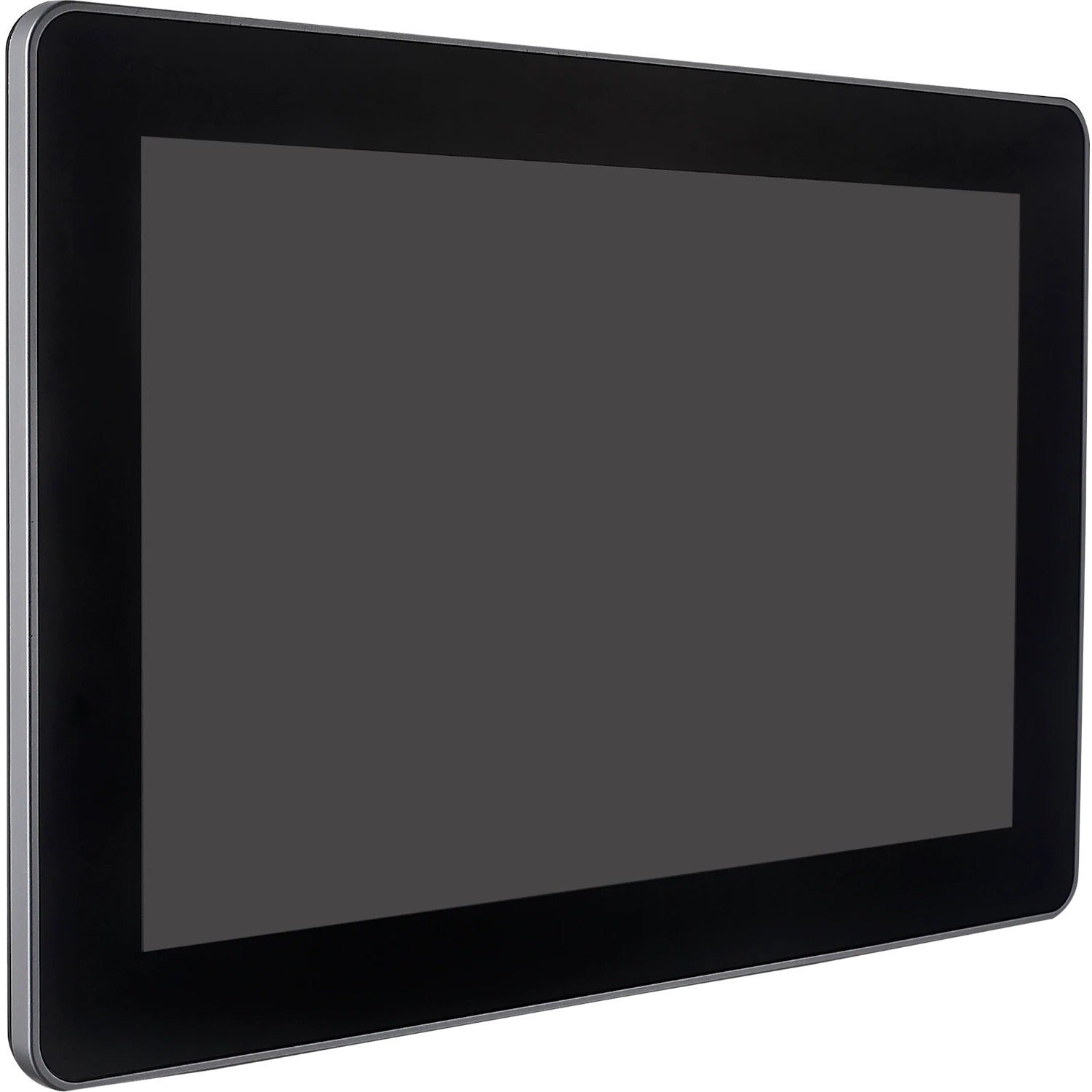

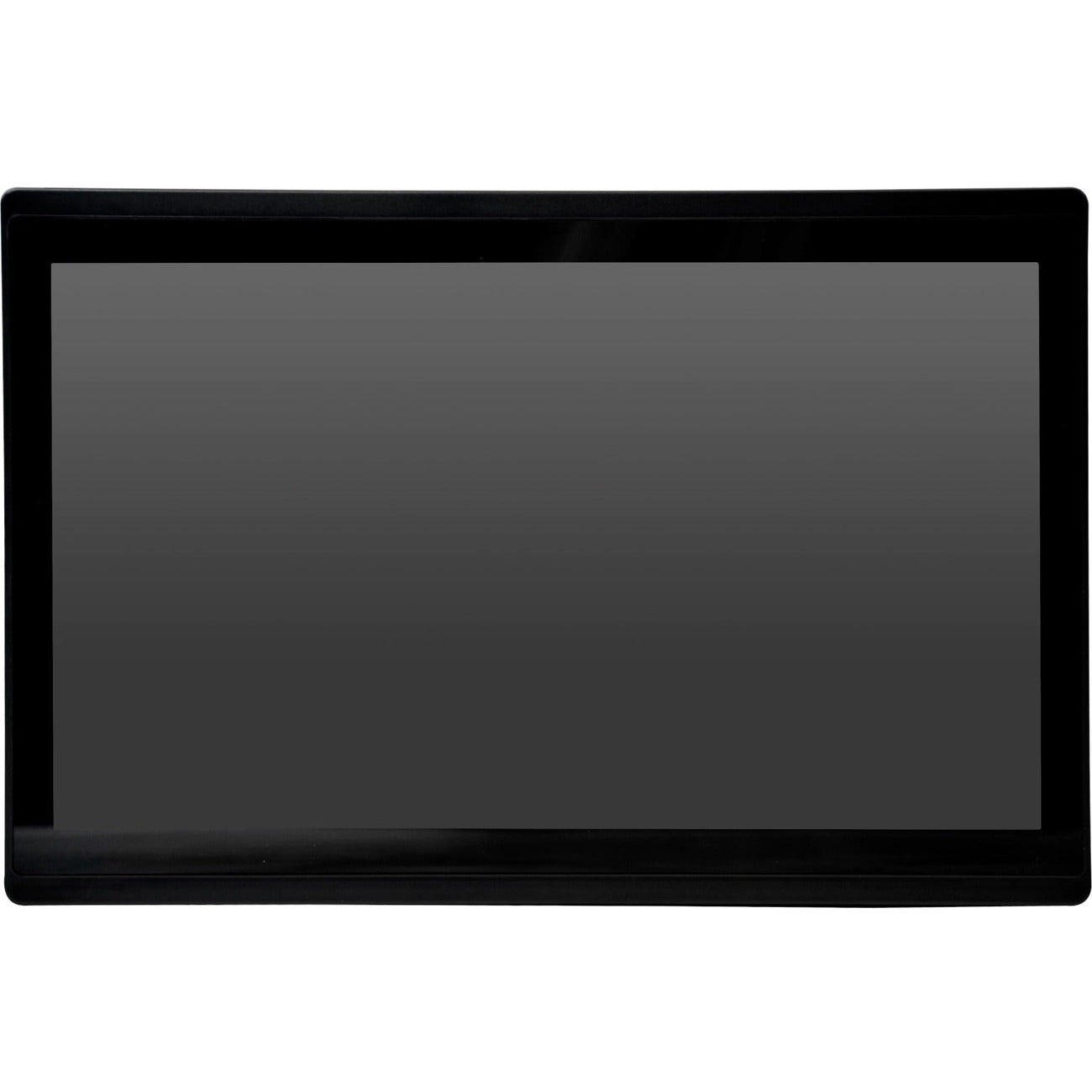

Mimo MBS-32080C-OF 32" Full HD Touchscreen Digital Signage Display with BrightSign Built-In

The Mimo MBS-32080C-OF integrates a powerful BrightSign HD Series 4 media player directly into a 32-inch commercial-grade LCD, creating a streamlined, all-in-one digital signage solution. Its IPS panel delivers a 1920x1080 Full HD resolution with a 300-nit brightness and an exceptionally wide viewing angle, ensuring clear, vibrant content in both landscape and portrait orientations.

This model features a responsive 10-point PCAP touchscreen, enabling interactive experiences controlled via GPIO, UDP, serial, and IR. The fan-less, low-power design ensures silent, reliable 24/7 operation, while the modern zero-bezel aesthetic and integrated VESA 100x100mm and kiosk mounting ears offer flexible installation on walls, desks, or custom enclosures.

Fully compatible with the BrightSign ecosystem, including BrightAuthor, BrightBeacon (with optional Wi-Fi/Bluetooth module), and all supported CMS platforms, this display is immediately ready for deployment. Connectivity includes HDMI input, S/PDIF digital audio, and a USB 2.0 port, making it a versatile choice for indoor hospitality, retail, and corporate communication applications.

Key Features

Manufacturer	Mimo Monitors, Inc
Manufacturer Part Number	MBS-32080C-OF
Brand	Mimo Monitors
Product Line	BrightSign
Product Type	Digital Signage Display
Screen Size	32"
Display Type	LCD with IPS
Touchscreen	Yes
Touch Technology	10-Point PCAP
Resolution	1920 x 1080 (Full HD)
Scan Format	1080p
Brightness	300 Nit
Aspect Ratio	16:9
Orientation	Landscape / Portrait
Integrated Media Player	BrightSign HD Series 4
Video Input	HDMI
USB Ports	1 x USB 2.0
Audio Output	S/PDIF Digital Audio
Control Interfaces	GPIO, UDP, Serial, IR
Wireless Connectivity	Optional Wi-Fi/Bluetooth (MBS-WIFI1-OPT)
Input Voltage	120 V AC / 230 V AC
Cooling System	Fan-less
VESA Mount Standard	100 x 100 mm
Mounting Options	Wall Mount, Desk Mount, Kiosk Mounting Ears
Bezel Design	Zero Bezel
Application	Indoor, Hospitality, Retail, Corporate
Environmental Certification	RoHS
UPC	810020601862
Product Weight	18.7 lbs

Highlights

32" Wide Viewing Angle Digital Signage display
The BrightSign Built-In Display is an all-in-one digital signage solution that integrates Mimo technology with the BrightSign platform. This high-quality digital signage screen is designed for ease of installation and immediate deployment.

The display features a modern zero-bezel design, a nearly 180-degree viewing angle from its high-contrast IPS screen, and a resolution of 1920x1080. It supports both landscape and portrait orientations. The unit includes a VESA100 pattern on the back for wall or pole mounting and features mounting ears for kiosk applications. An optional base is available.

BrightSign Built-In
The BrightSign Built-In Digital Signage Module is an HD Series 4 class BrightSign player. The module is compatible with all BrightSign software, services, and supported CMS solutions.

Downloads

• Manufacturer-Brochure

Frequently asked questions What media player is built into this display? It features an integrated BrightSign HD Series 4 class player, making it fully compatible with BrightSign software, services, and supported CMS solutions. Is the touchscreen multi-touch capable? Yes, the display features a 10-point PCAP (projected capacitive) touch panel, allowing for simultaneous multi-touch interactions. Can this display be mounted on a wall or kiosk? Yes, it has a VESA 100x100mm pattern for wall or pole mounting and includes mounting ears specifically designed for kiosk applications. Does this model support wireless networking? Wi-Fi and Bluetooth are available via the optional MBS-WIFI1-OPT module, which enables wireless networking and BrightBeacon functionality.
