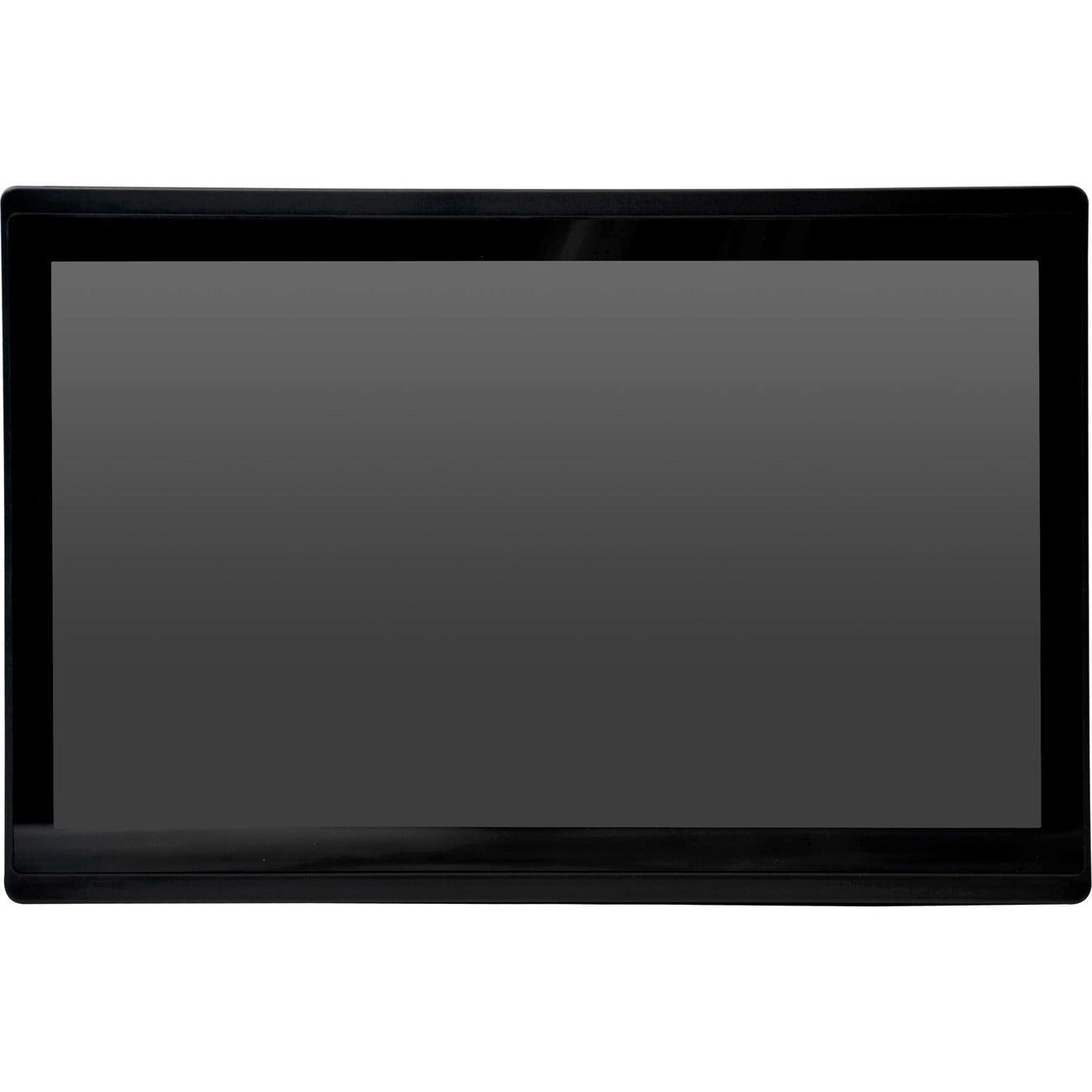

Mimo MBS-21580C-OF 22" Full HD Touchscreen Digital Signage Display with BrightSign Built-In
Couldn't load pickup availability
The Mimo MBS-21580C-OF is a 22-inch open-frame digital signage display engineered for seamless integration into kiosks and custom enclosures. It combines a vibrant Full HD 1920x1080 IPS LCD panel with a 10-point capacitive touchscreen, delivering sharp visuals and responsive interactivity from wide viewing angles. The integrated BrightSign HD Series 4 media player provides a powerful, reliable platform for content playback, fully compatible with the BrightSign ecosystem and supported CMS solutions.
This display is built for commercial environments, featuring a durable black chassis with mounting ears for straightforward kiosk installation and a 100x100mm VESA pattern for wall mounting. Connectivity is handled through HDMI and USB 2.0 ports, with support for serial and IR control, GPIO, and UDP for expanded interactive possibilities. An optional Wi-Fi/Bluetooth module (MBS-WIFI1-OPT) enables wireless networking and BrightBeacon functionality.
Designed for indoor hospitality and retail applications, the monitor supports both landscape and portrait orientations and is RoHS compliant. It operates on 120-230V AC power and delivers a brightness of 300 nits, ensuring clear visibility in a variety of lighting conditions.
Key Features
| Manufacturer | Mimo Monitors, Inc |
| Manufacturer Part Number | MBS-21580C-OF |
| Brand Name | Mimo Monitors |
| Product Line | BrightSign |
| Product Name | BrightSign Digital Signage Display/Appliance |
| Product Type | Digital Signage Display/Appliance |
| Number of Screens | 1 |
| Screen Size | 22" |
| Display Screen Type | LCD |
| Touchscreen | Yes |
| Multi-touch Screen | Yes |
| Number of Simultaneous Touchpoints | 10 |
| Display Resolution | 1920 x 1080 |
| Scan Format | 1080p |
| Brightness | 300 Nit |
| USB | Yes |
| HDMI | Yes |
| Number of USB 2.0 Ports | 1 |
| Input Voltage | 120 V AC / 230 V AC |
| Product Color | Black |

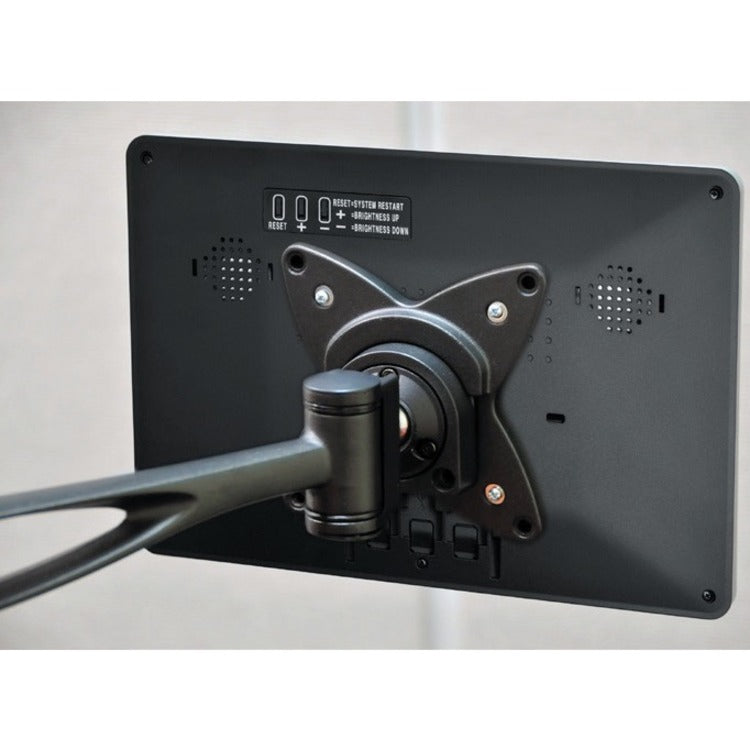

| VESA Mount Standard | 100 x 100 |
| Mount Type | Wall Mountable |
| Application/Usage | Hospitality, Indoor |
| Environmentally Friendly | Yes |
| Environmental Certification | RoHS |
| Aspect Ratio | 16:9 |
| Panel Type | IPS |
| Touchscreen Technology | Projected Capacitive |
| Integrated Media Player | BrightSign HD Series 4 |
| Orientation | Landscape, Portrait |
| Control Interfaces | Serial, IR, GPIO, UDP |
| Optional Connectivity | Wi-Fi, Bluetooth (via MBS-WIFI1-OPT) |
| Placement | Indoor |
| Weight | 12.1 lbs |
| UPC | 850003524058 |
Highlights
- 10.1" diagonal, IPS
- 10 point capacitive touch panel (optional)
- Mechanical drawings available upon request
- Highly reliable media handling platform
- S/PDIF digital audio
- Engaging interactive controls via GPIO and UDP
- 1x USB 2.0
- Serial and IR control for expanded interactive options
- WiFi / Bluetooth Module (optional) MBS-WIFI1-OPT - enables Mimo Vue with BrightSign Built-In to network using Wi-Fi and operate BrightBeacon via Bluetooth
- Powerful video engine (HS124 supports Full HD 1080p60 single decode)
