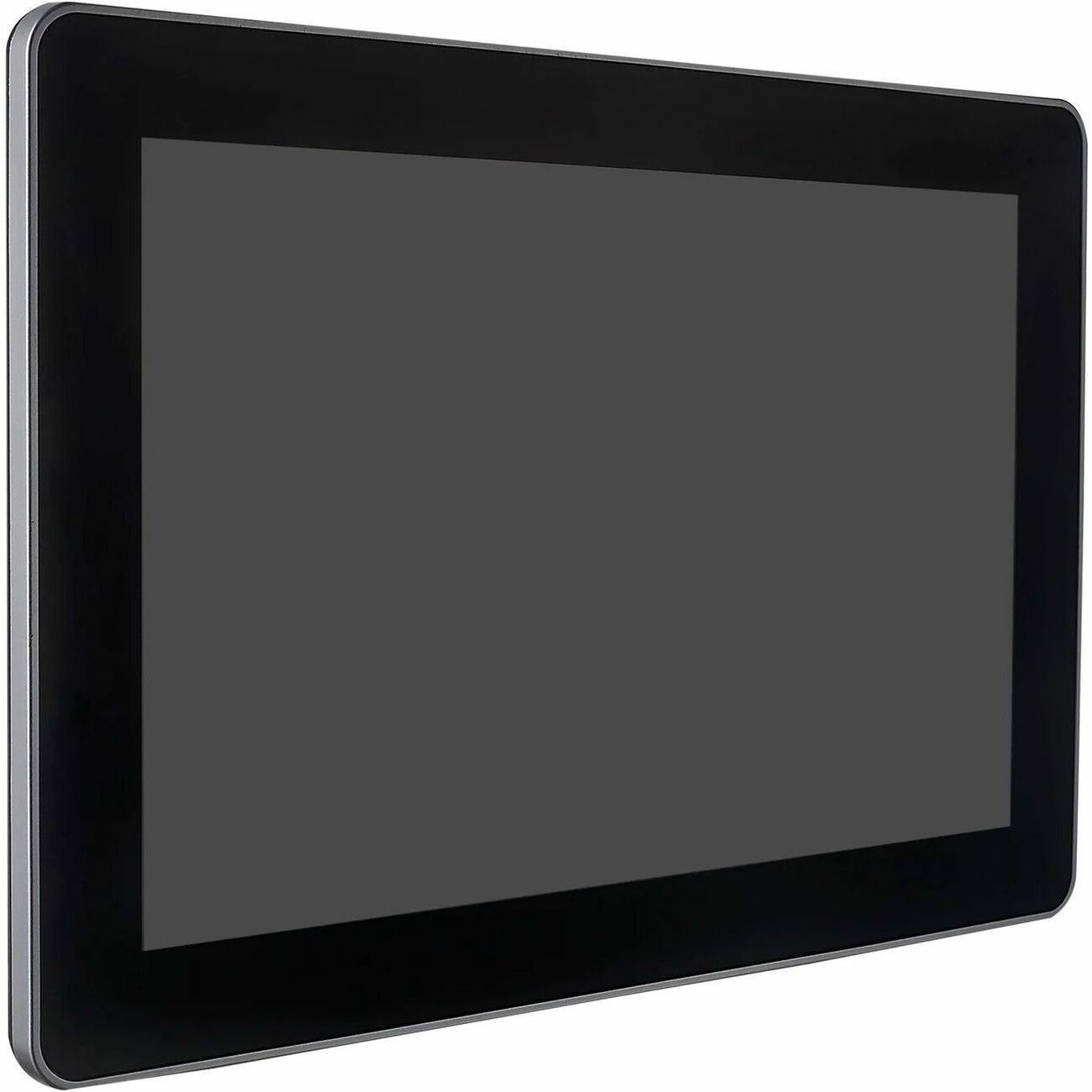

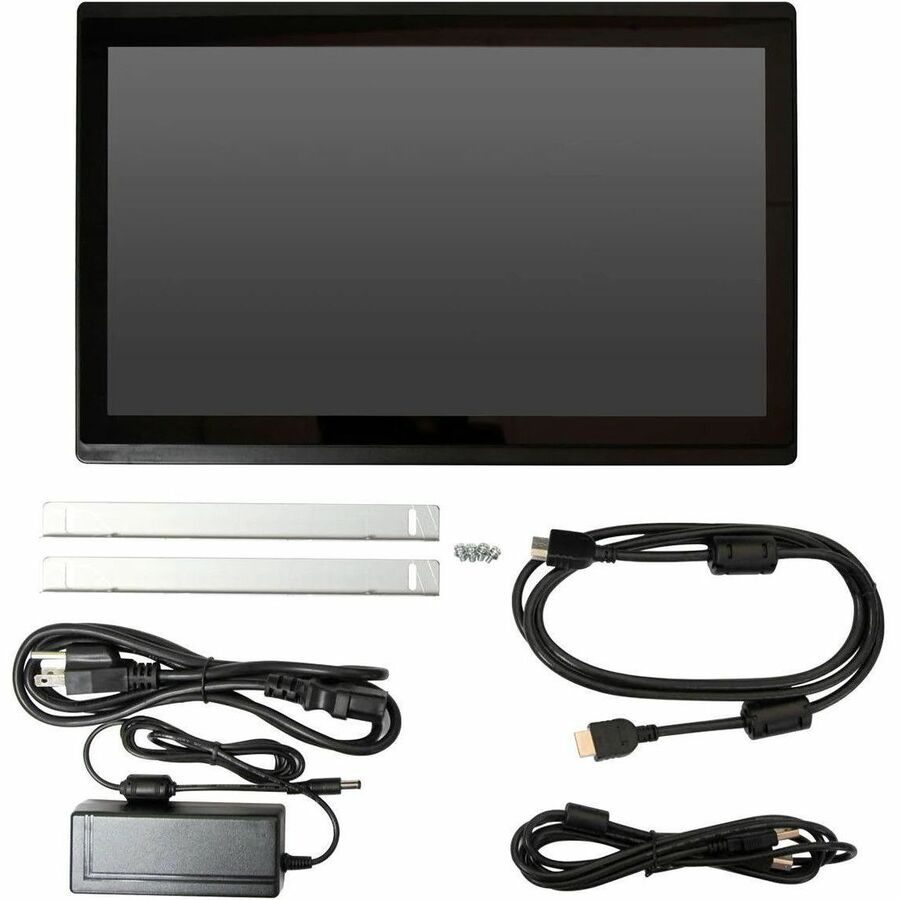

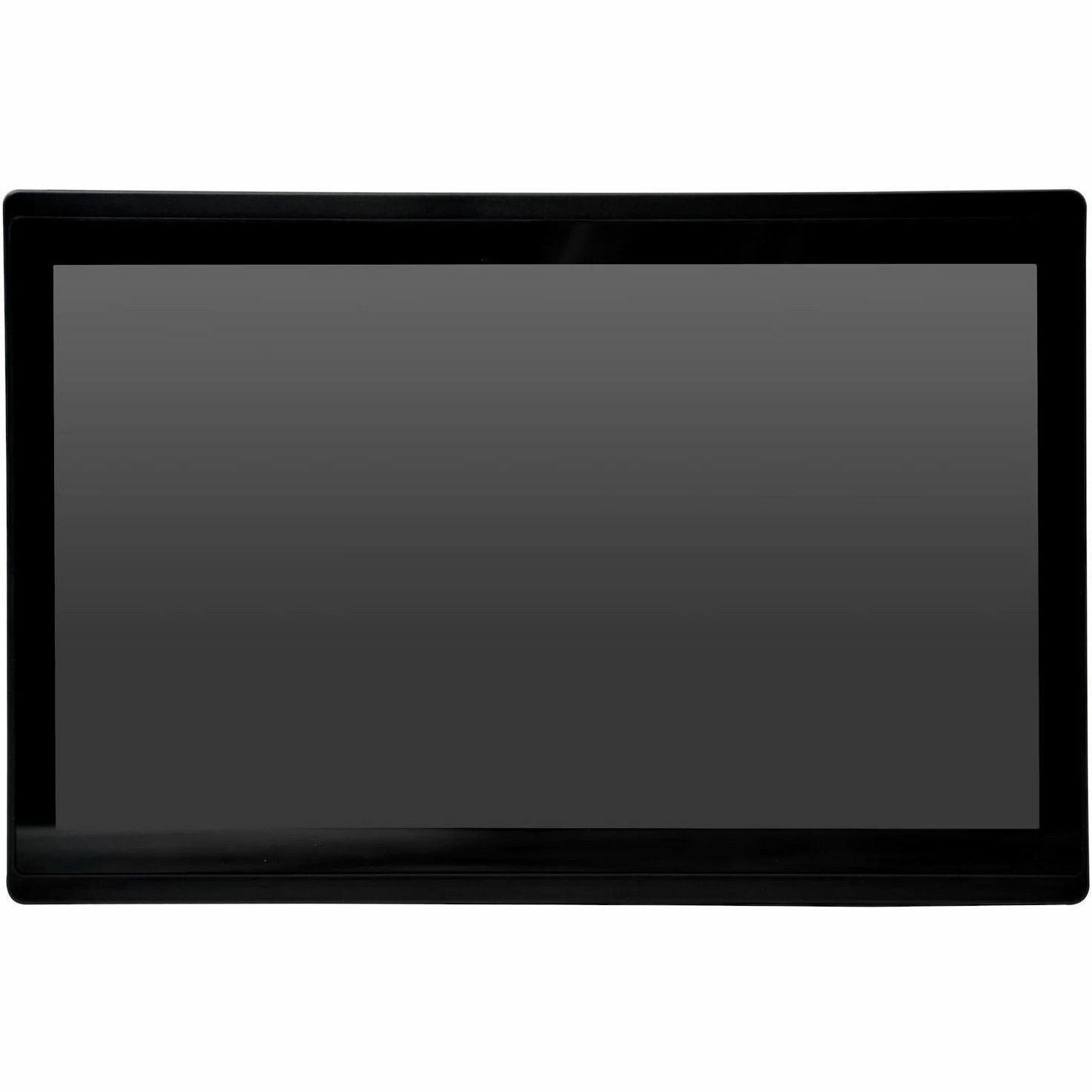

Mimo MBS-15680C-OF 15.6" Touchscreen Digital Signage Display with BrightSign Built-In

SKU: MBS-15680C-OF
(0)
$905.99

The Mimo MBS-15680C-OF combines a 15.6-inch Full HD IPS LCD with an integrated BrightSign HD Series 4 media player, delivering a streamlined all-in-one digital signage solution. Its 10-point PCAP touchscreen and 1920x1080 resolution ensure crisp, interactive content in landscape or portrait orientation.

Designed for commercial environments, the display features a modern zero-bezel design and a wide 178-degree viewing angle. With 300-nit brightness and 10-bit color depth, visuals remain vibrant and clear even in well-lit retail or corporate settings.

Flexible installation is supported by a VESA 100x100mm pattern and included mounting ears for kiosk integration. Connectivity options include HDMI, USB 2.0, and Ethernet, making it fully compatible with BrightSign software and CMS platforms for reliable networked operation.

Key Features

Manufacturer Mimo Monitors, Inc
Brand Mimo Monitors
Manufacturer Part Number MBS15680COF
Model HS124
Product Type Digital Signage Display
Screen Size 15.6"
Display Type LCD
Touchscreen Yes
Multi-touch Yes
Simultaneous Touchpoints 10
Touch Technology PCAP
Resolution 1920 x 1080
Scan Format 1080p
Color Depth 10-bit
Brightness 300 Nit
Panel Type IPS
Viewing Angle 178°
Orientation Landscape, Portrait
Integrated Media Player BrightSign HD Series 4
Ethernet Yes
USB Yes
HDMI Yes
USB 2.0 Ports 1
VESA Mount Standard 100 x 100 mm
Mount Type Desk Mountable, Wall Mountable
Kiosk Mounting Ears Yes
Bezel Design Zero Bezel
Application Retail, Museum, Entertainment, Corporate, Conference Room, School, Hospitality, Medical, Office
Environmentally Friendly Yes
Environmental Certification RoHS
Product Width 3.9 in
Product Height 2.8 in
Product Depth 0.3 in
Product Weight 6.6 lbs
UPC 810136690036

Downloads

Frequently asked questions

What media player is built into this display?

It includes an integrated BrightSign HD Series 4 class player, which is compatible with all BrightSign software, services, and supported CMS solutions.
Can this display be mounted on a wall or kiosk?

Yes, it features a VESA 100x100mm mounting pattern for wall or desk mounts and includes mounting ears specifically designed for kiosk applications.
Does the screen support touch interaction?

Yes, it has a 10-point PCAP multi-touch screen, allowing for interactive content and applications.
What is the screen resolution and brightness?

The 15.6-inch IPS LCD has a Full HD resolution of 1920x1080 and a brightness rating of 300 nits.
