Mimo MBS-1080C-OF-POE 10.1" Open Frame Digital Signage Display with BrightSign Built-In

SKU: MBS-1080C-OF-POE
(0)
$770.00

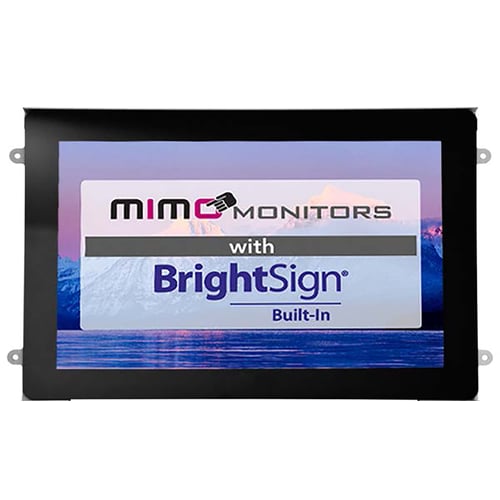

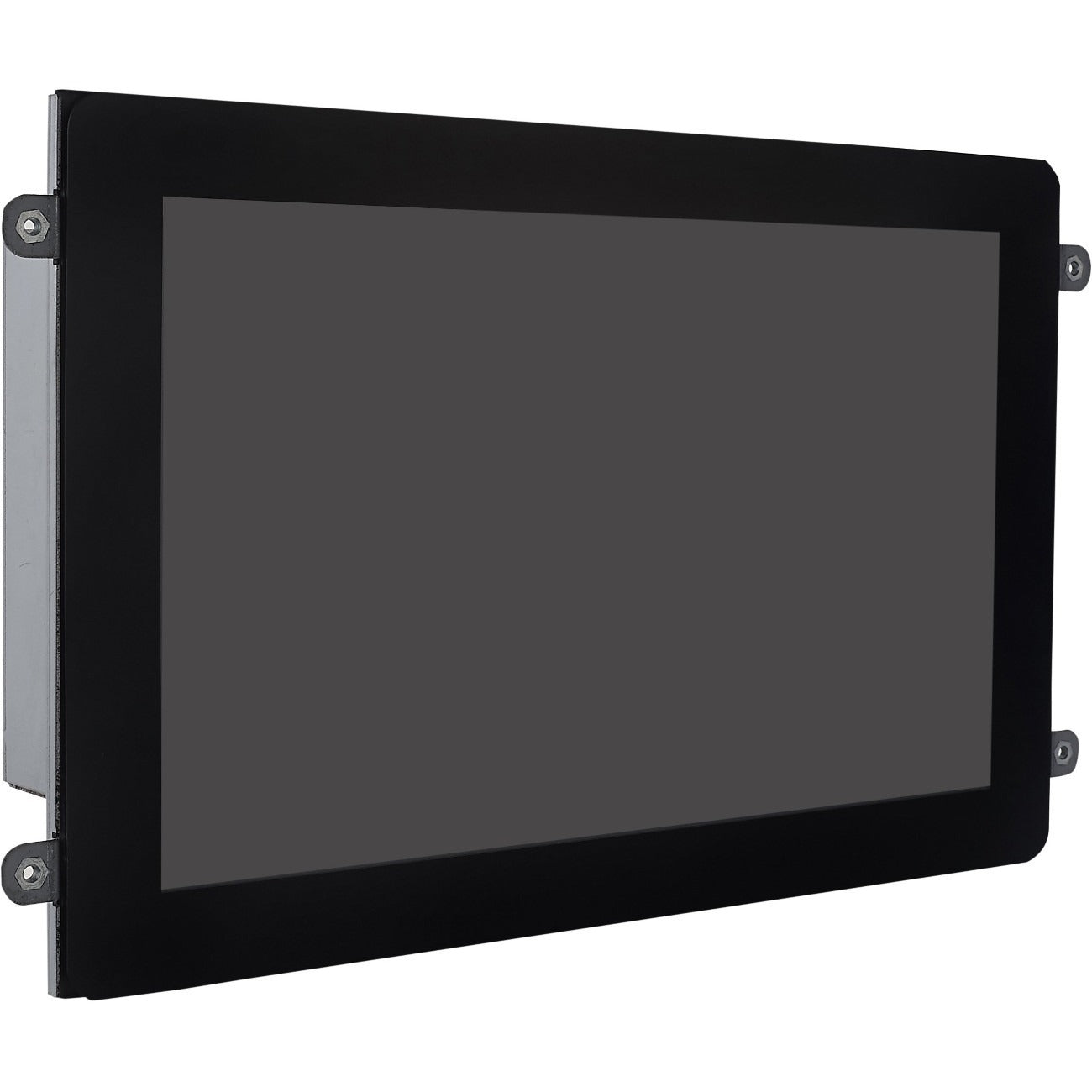

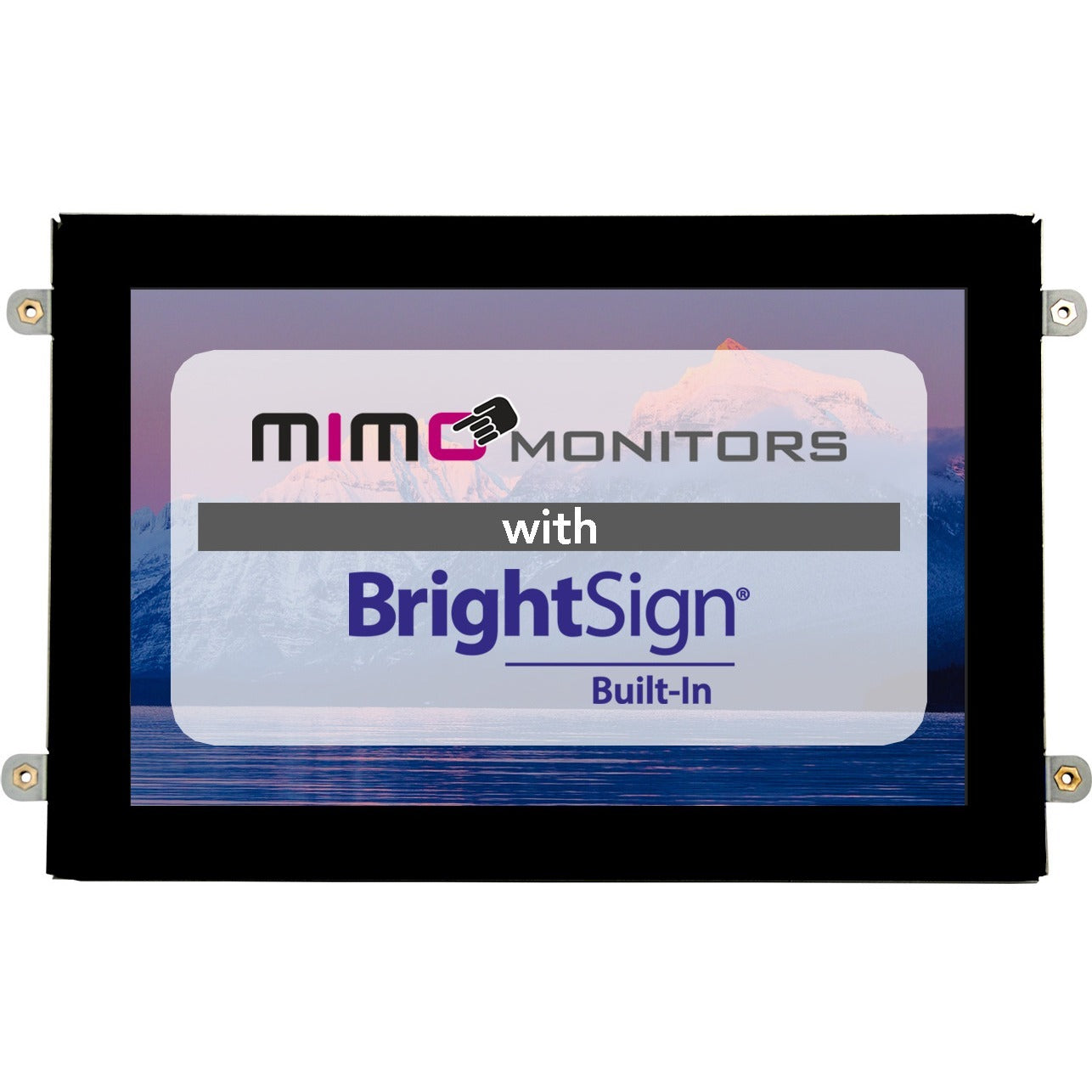

The Mimo MBS-1080C-OF-POE combines a 10.1-inch open-frame display with an integrated BrightSign HD Series 4 media player, delivering a complete, all-in-one digital signage solution. Its modern zero-bezel design and bright, high-contrast IPS panel ensure content stands out in commercial environments, while the capacitive touchscreen enables interactive applications.

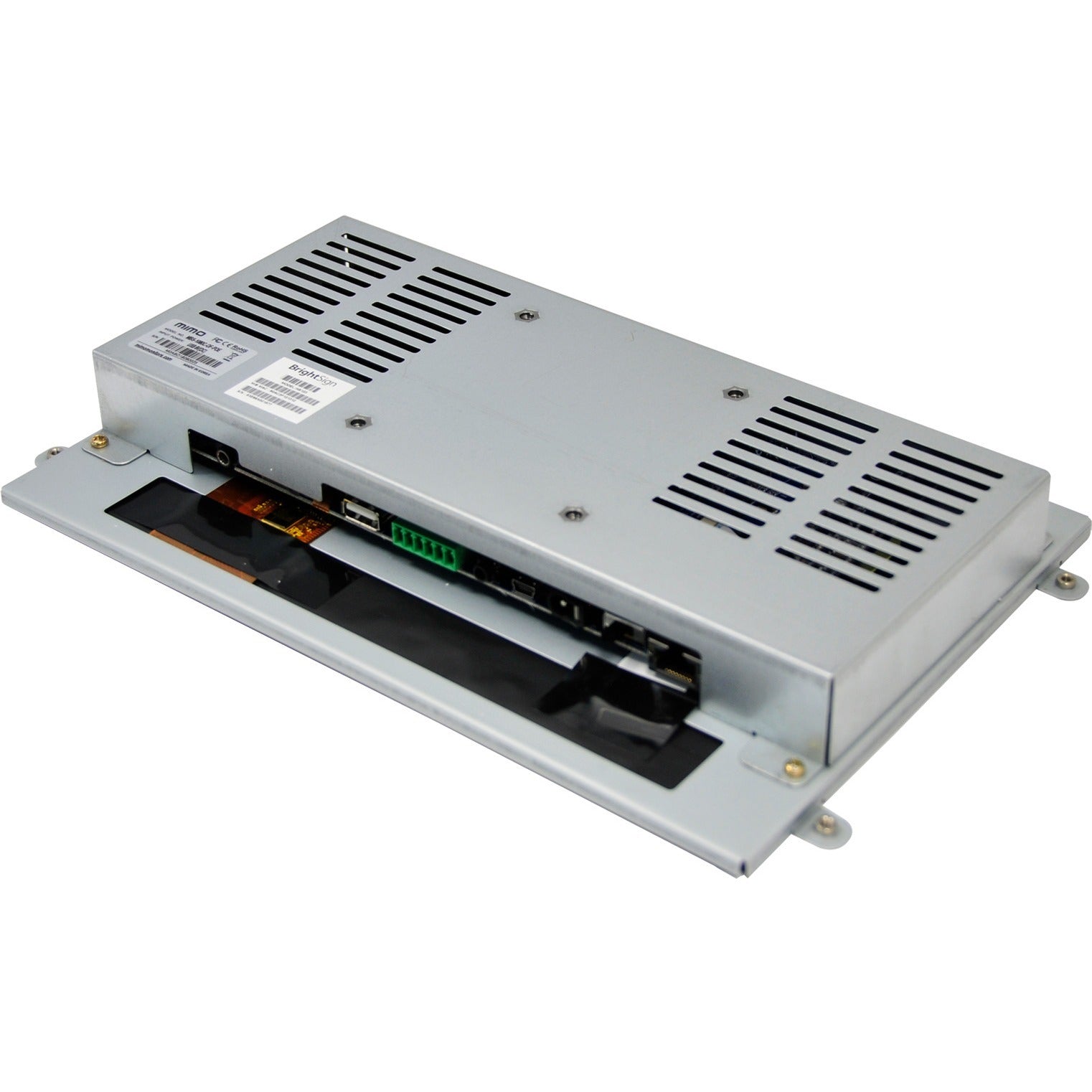

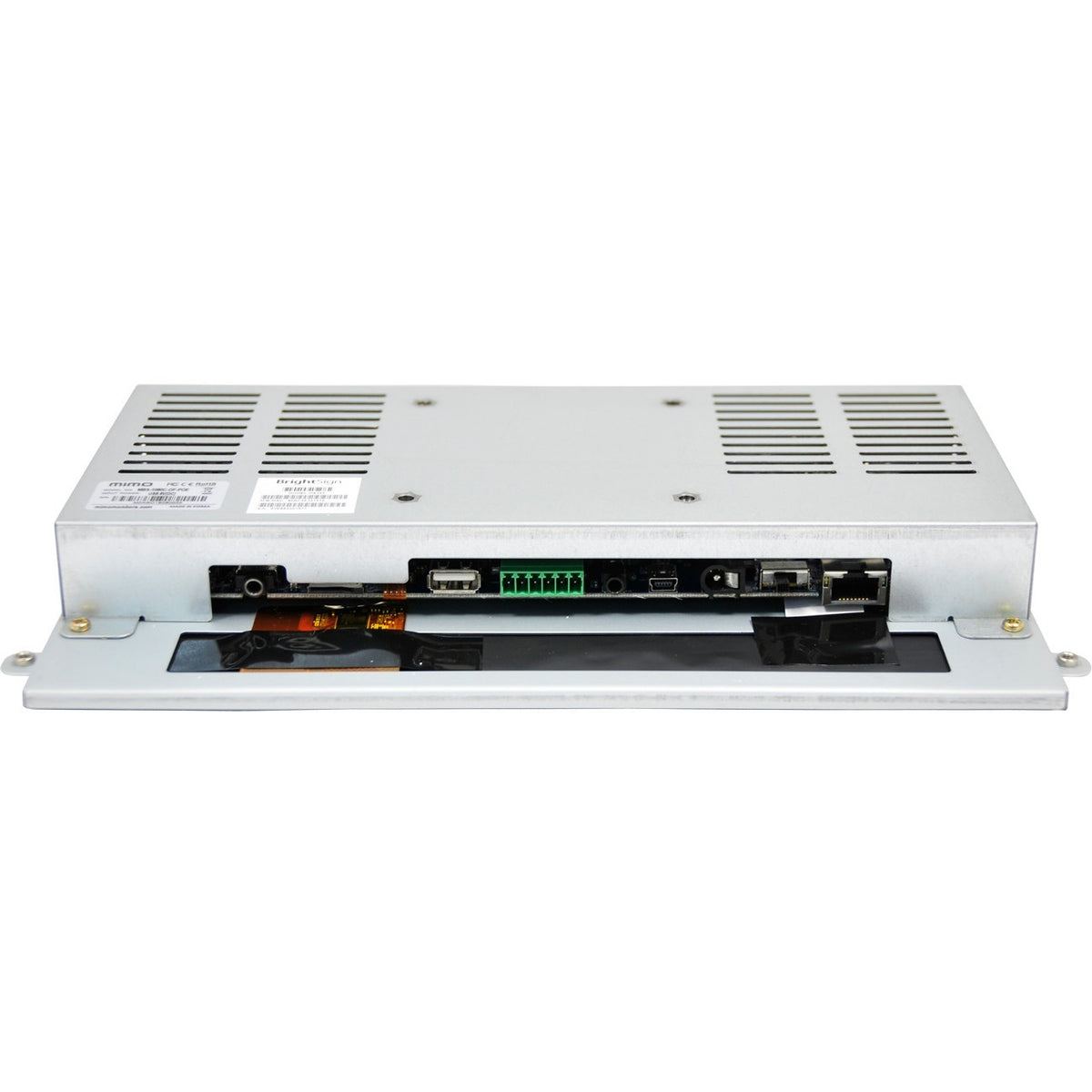

Engineered for reliability, this display supports Full HD 1080p60 video playback and offers versatile connectivity including Micro SD, USB, GPIO, 3.5mm audio, and Ethernet. The built-in BrightSign module is fully compatible with the entire BrightSign software ecosystem and supported CMS solutions, making deployment straightforward for users already on the platform.

Compatible with Windows, Linux, and Mac OS, the monitor is durable and immediately ready for commercial use. Its open-frame form factor allows seamless integration into kiosks, enclosures, and custom installations, providing a high-quality, easy-to-install signage endpoint for retail, corporate, and hospitality settings.

Key Features

Brand Mimo
Model Number MBS-1080C-OF-POE
Screen Size 10.1"
Resolution 1280 x 800
Aspect Ratio 16:10
Panel Type IPS
Touchscreen Capacitive
Brightness 350 Nit
Contrast Ratio 800:1
Response Time 14 ms
Backlight LED
Max Video Resolution Full HD (1080p60)
Integrated Player BrightSign HD Series 4 class
Form Factor Open Frame
Design Zero Bezel
USB Yes
Serial Yes
Ethernet Yes
Micro SD Yes
GPIO x6
3.5mm Audio Yes
Operating Systems Windows, Linux, Mac OS
Weight 2.2 lbs
UPC 810020600360

Downloads

Frequently asked questions

What BrightSign player is built into this display?

The Mimo MBS-1080C-OF-POE features an integrated BrightSign HD Series 4 class media player, providing reliable Full HD playback and full compatibility with BrightSign software and CMS solutions.

Is the touchscreen capacitive or resistive?

This model uses a capacitive touchscreen, offering a responsive, multi-touch experience suitable for interactive kiosk and signage applications.

What are the connectivity options on this display?

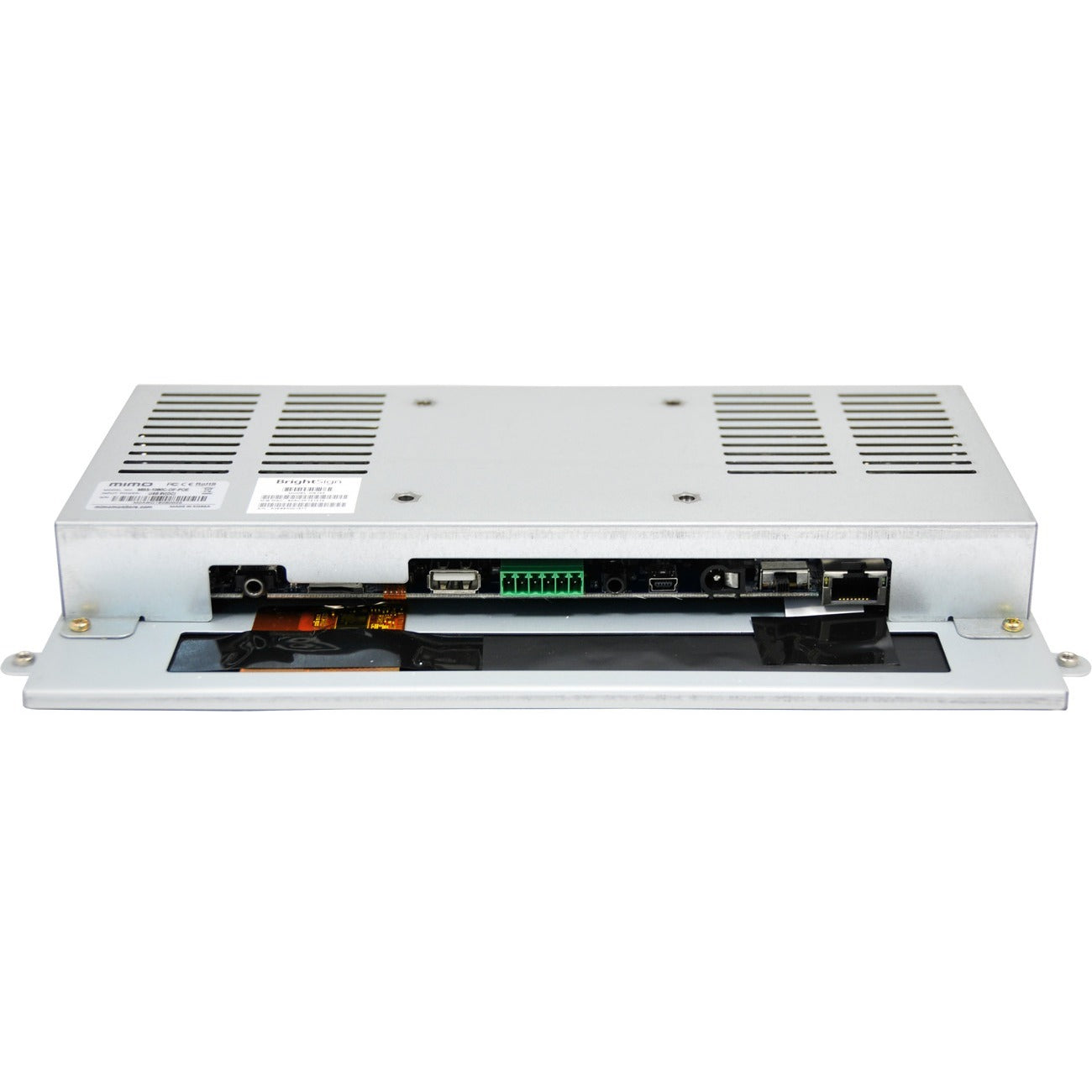

Connectivity includes Micro SD, USB, GPIO (x6), a 3.5mm audio jack, and Ethernet, allowing flexible integration with peripherals and network-based content management.

Can this open-frame monitor be used with Mac and Linux systems?

Yes, the display is fully compatible with Windows, Linux, and Mac OS, making it versatile for various deployment environments and content management workflows.
