Lumens VC-TR41W AI Auto-Tracking 1080p PTZ Camera

SKU: LUVCTR41W
(0)
Free shipping on all projectors!
Add to cart for product promotions!
Tax-Exempt Purchasing Available in cart
$2,155.00

The Lumens VC-TR41W is an advanced dual-lens PTZ camera engineered for automated presenter tracking and multi-angle broadcast environments. Equipped with a 1/2.8-inch CMOS sensor, it captures video up to 1080p at 60 fps, delivering clear imagery across broad presentation spaces. The integrated optics offer a 58.7-degree horizontal field of view alongside a 20x optical zoom and 12x digital zoom for versatile subject framing.

Equipped with intelligent AI tracking and auto-framing algorithms, this camera provides dynamic shooting modes including Everywhere, Partition, and Stage Tracking to automatically follow presenters or frame groups without manual camera operation. Seamless multi-camera workflows can also be achieved by integrating with compatible media processors for coordinated presenter and audience coverage.

Versatile connectivity is supported through simultaneous HDMI, 3G-SDI, USB-B, and IP streaming outputs using standard network protocols. Control options span IP ONVIF, VISCA over RS-232/RS-422, USB UVC, and the included IR remote, while PoE+ compatibility and image flip features allow for streamlined single-cable ceiling or upright mounting.

Key Features

Brand Lumens
Model VC-TR41W
Product Type PTZ Camera
Image Sensor 1/2.8" CMOS
Effective Pixels 2.16 Megapixels
Max Resolution 1080p at 60 fps
Optical Zoom 20x
Digital Zoom 12x
Horizontal Field of View 58.7°
Focal Length 4.9 to 94mm
Aperture Range f/1.6 to f/2.8
Pan Range 340° (-170° to +170°)
Tilt Range 120° (-30° to +90°)

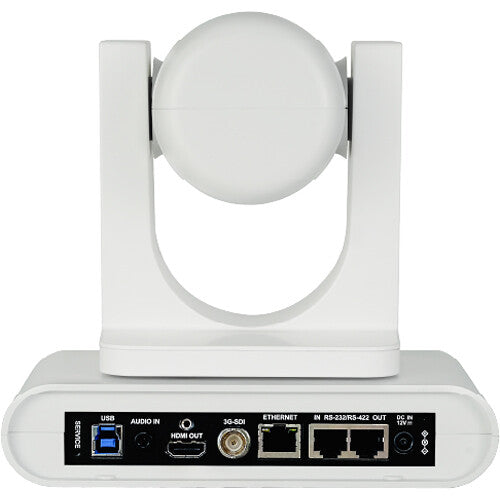

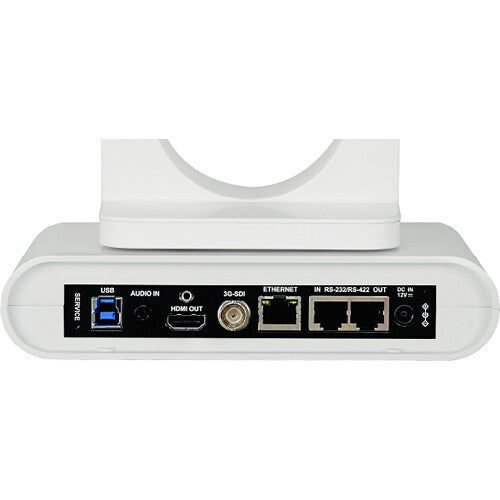

Video Outputs 1x HDMI 2.0, 1x 3G-SDI (BNC), 1x USB-B 3.0, 1x RJ45 (IP)
Audio Input 1x 1/8" (3.5 mm) TRS Stereo
Control Protocols IP, ONVIF, RS-232, RS-422, UVC, VISCA
Streaming Protocols HTTP, RTMP, RTMPS, RTSP, SRT
Power Over Ethernet PoE (IEEE 802.3af)
Dimensions (W x H x D) 7.5 x 7.3 x 5.4 in
Weight 3 lb

Highlights

  • Dual-Lens PTZ Camera
  • HDMI, USB-B, 3G-SDI & IP Output
  • 20x Optical Zoom, 12x Digital Zoom
  • Capture up to 1080p60 Resolution Video

Videos

Warranty

Limited 5-Year Manufacturer Warranty

What's included

  • Lumens VC-TR41W AI Auto-Tracking 1080p PTZ Camera with 20x Optical Zoom (White)
  • Power Adapter
  • Power Cable
  • USB-B to USB-A Cable
  • IR Remote Control
  • Limited 5-Year Manufacturer Warranty

Frequently asked questions

What video outputs are available on the camera?

The camera provides simultaneous output via HDMI 2.0, 3G-SDI, USB-B 3.0, and IP streaming at resolutions up to 1080p60.
How does the AI auto-tracking function operate?

The camera includes multiple built-in tracking modes such as Everywhere Tracking, Partition Tracking, Stage Tracking, and Auto-Framing to follow presenters and adjust framing automatically.
Can the camera be powered over an Ethernet connection?

Yes, it supports PoE (802.3af) for power and data over a single network cable, as well as an included DC 12V power adapter.
What control methods are supported?

The camera can be operated via IP/ONVIF/VISCA, RS-232/RS-422 VISCA, USB/UVC protocols, or with the included IR remote control.
