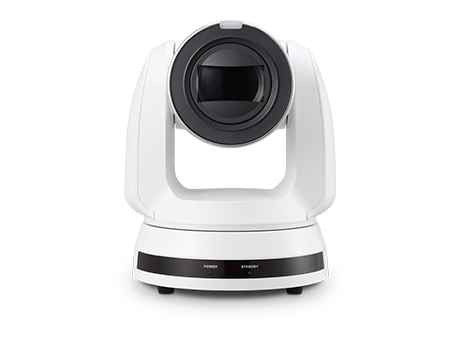

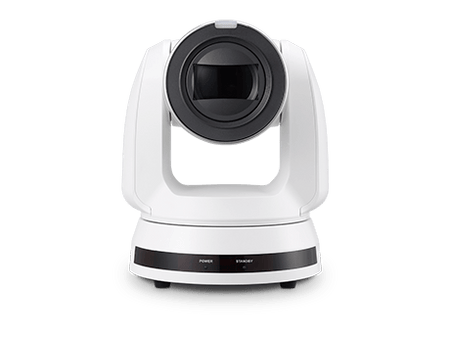

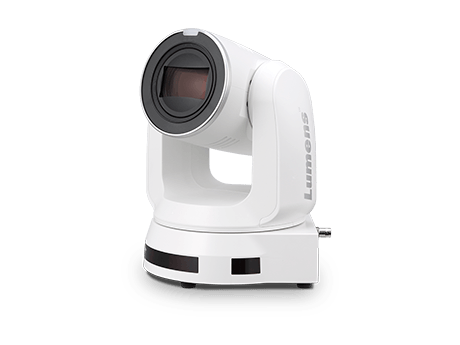

Lumens VC-A71P 4K IP PTZ camera
4K IP PTZ Camera
•4K UHD 60fps and 1080P 60fps video signal output format
•30x optical zoom, 63° Horizontal Field of View
•Triple stream video, supports HEVC / H.264 format

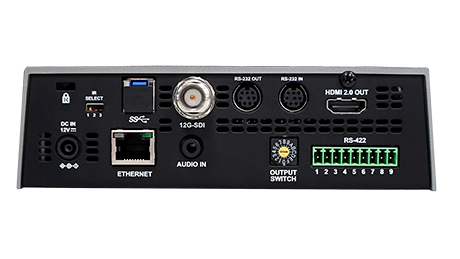

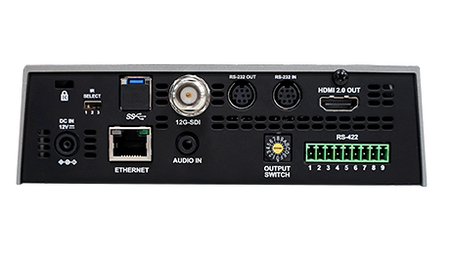

•HDMI, Ethernet, 12G-SDI image output
•Supports RTSP / RTMP / RTMPS / MPEG-TS / SRT streaming protocol
•Up to 256 user defined preset modes to allow ease of use in all environments
•Maximum horizontal/vertical speed of rotation: 300° /sec
•Wide Pan/Tilt/Zoom mechanism:
Horizontal viewing angle: -170° to +170°
Tilting angle up to 90°, and down to -30°
•Supports Power Over Ethernet (PoE++)
4K UHD 60fps Video Quality for Broadcasting Applications
The VC-A71P delivers ultra-clear 4K image quality at 60fps as well as a secondary option of 1080p/720p video resolution. The broadcast-camera comes with a professional 30x optical zoom lens that provides image details without any distortion, and is the perfect remote camera for high-end applications in broadcasting, house of worship, sports arenas, etc.Supports HDMI, Ethernet, 12G-SDI image output image outputs
Triple stream video, support HEVC / H.264
With triple stream technology, the VC-A71P provides HEVC and H.264 multiple streams that tailored for your network environment.
MORE FEATURES
SPECS & DETAILS
Download Product Documents
Featuring a professional 30x optical zoom lens, the VC-A71P ensures that you capture every detail without any distortion. It has a wide horizontal field of view of 63°, allowing you to achieve a wider viewing area. The camera supports HDMI, Ethernet, and 12G-SDI image output, giving you flexible installation options.
One of the standout features of the VC-A71P is its triple stream video capability, supporting HEVC and H.264 formats. This allows for multiple streams tailored to your network environment and reduces bandwidth for transmitting video. The camera also supports various streaming protocols such as RTSP, RTMP, RTMPS, MPEG-TS, and SRT.
With up to 256 user-defined preset modes, the VC-A71P ensures ease of use in any environment. It has a maximum rotation speed of 300°/sec and a wide pan/tilt range of -170° to +170° horizontally and -30° to +90° vertically. The camera also supports Power over Ethernet (PoE++) for a cost-effective and simple installation process.
The VC-A71P is equipped with advanced image processing algorithms and circuit design to ensure a pristine image during pan, tilt, zoom, and capture functions. It also features a built-in tally light, essential for broadcast studios or applications with multiple PTZ cameras.
With its superior features, the Lumens VC-A71P 4K IP PTZ Camera is the ideal choice for professional broadcasters, worship houses, and sports arenas looking for high-quality video output and flexible installation options. This camera guarantees crystal-clear images, precise zoom capabilities, and exceptional performance for your broadcasting needs.
Experience unparalleled video quality with the Lumens VC-A71P 4K IP PTZ Camera. This professional-grade camera captures stunning 4K UHD video at 60fps, ensuring every detail is vividly displayed. Featuring a powerful 30x optical zoom and a wide horizontal field of view, it's ideal for broadcasting, sports, and worship settings.
Key highlights include:
- Triple stream video capabilities supporting HEVC/H.264 formats
- Versatile output options: HDMI, Ethernet, and 12G-SDI
- Up to 256 user-defined preset modes for effortless operation
- Seamless installation with Power Over Ethernet (PoE++)
Elevate your video production with the Lumens VC-A71P, where quality meets versatility.
