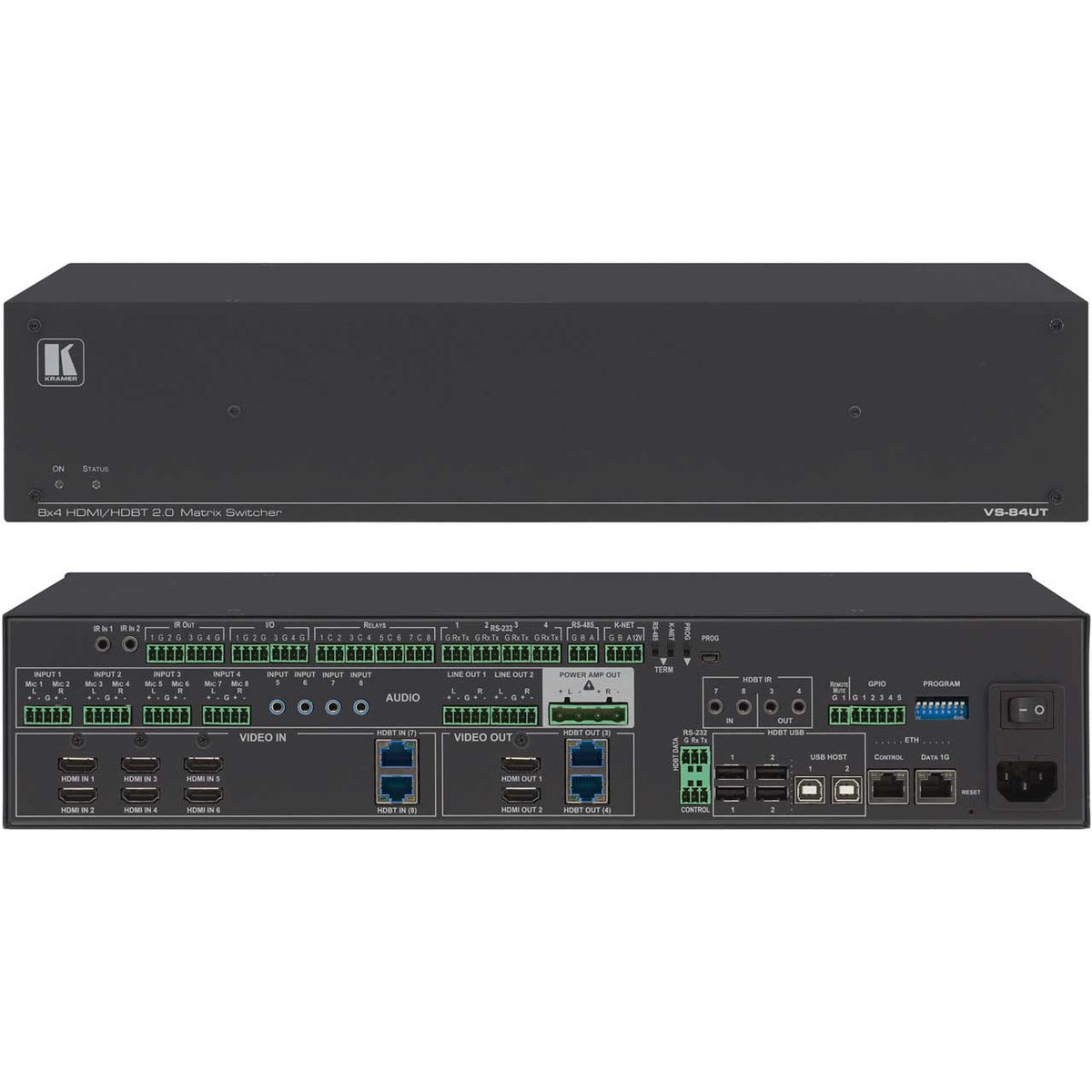

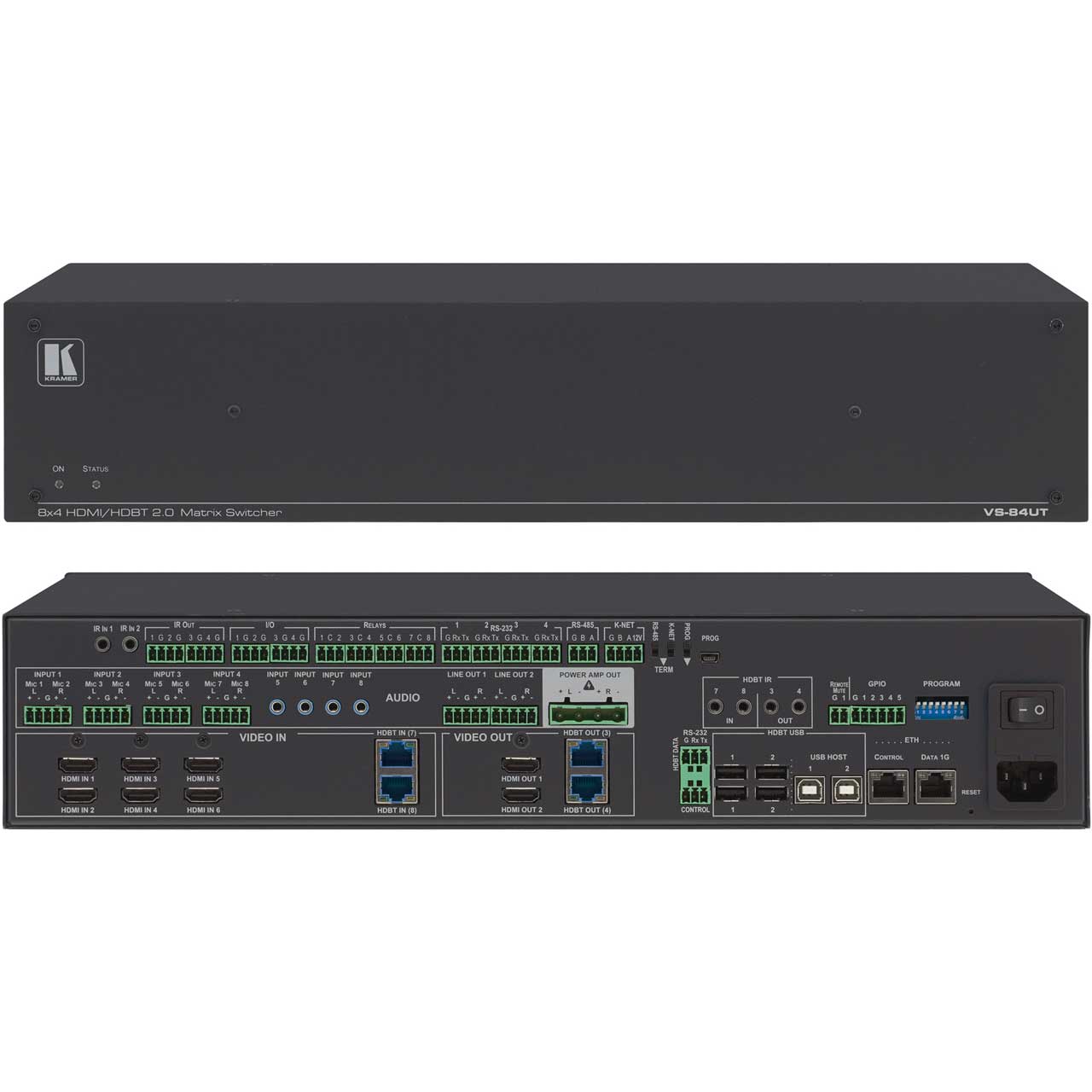

Kramer VS-84UT All-in-One 4K60 Presentation System with 8x4 Matrix Switching
Regular price
$5,868.00
Couldn't load pickup availability
Frequently Asked Questions
What is an all-in-one 4K AV presentation system, and when should you choose one?
An all-in-one 4K AV presentation system combines several core room technologies into one device, typically matrix switching, signal extension, audio handling, and room control. Instead of using separate switchers, extenders, audio processors, and controllers, a single chassis manages source selection, display routing, long-distance transport, and automation.
The Kramer VS-84UT fits that category because it combines an 8x4 matrix switcher, HDBaseT 2.0 extension, audio integration, and a programmable master room controller. It supports 4K UHD at 60Hz in 4:2:0, includes 6 HDMI inputs, 2 HDBaseT outputs, 2 HDMI outputs, USB extension, PoE, and control ports such as RS-232, RS-485, IR, GPI/O, relays, and Ethernet.
This type of system is best for classrooms, lecture halls, boardrooms, and training rooms where installers want fewer boxes, simpler cabling, and centralized control. The main tradeoff is that all-in-one systems are most valuable in rooms that need multiple functions together. If you only need basic source switching, a simpler standalone switcher may be enough.
How do I know if I need a matrix switcher instead of a basic presentation switcher?
You need a matrix switcher when you want to send different sources to different displays at the same time. A basic presentation switcher usually selects one source for one main output, while a matrix switcher allows flexible routing across multiple outputs.
The Kramer VS-84UT is an 8x4 matrix presentation system, which means it can route up to eight inputs across four video outputs. In practical terms, that helps in divisible rooms, lecture spaces with confidence monitors, boardrooms with multiple screens, or training environments where one display may show the presenter laptop while another shows a different source.
This matters most if your room has more than one display path or if you expect routing changes over time. It is also useful when a system must support both local HDMI outputs and long-distance HDBaseT outputs in the same design. If your room has a single display and very simple switching needs, a matrix may be more capability than you need. If flexibility and multi-display routing are priorities, a matrix-based system is usually the better long-term choice.
What is HDBaseT, and why is it useful in conference rooms and classrooms?
HDBaseT is a technology that sends video, audio, control, and sometimes power and USB over a single category cable. It is widely used in professional AV because it simplifies long cable runs between equipment racks, displays, projectors, and table connection points.
In the Kramer VS-84UT, HDBaseT 2.0 is built in, with two HDBaseT outputs, USB extension support, PoE capability, and transmission distances up to 180 meters or 590 feet in Ultra Mode. That makes it useful in larger rooms where the projector, display, or wall plate is far from the rack. It also reduces the need for multiple separate extenders and control cables.
HDBaseT is especially valuable in lecture theaters, training rooms, and corporate spaces where reliability and neat infrastructure matter. The main benefit is fewer cable types and longer reach than standard HDMI. A common tradeoff is that HDBaseT requires compatible receivers or endpoints, so it is best suited to professionally designed AV systems rather than casual plug-and-play setups.
Is the Kramer VS-84UT a good choice for a classroom, lecture hall, or boardroom?
Yes, the Kramer VS-84UT is well suited for professional classrooms, lecture theaters, and boardrooms that need both AV switching and room control in one platform. It was designed for exactly those environments, where multiple sources, multiple outputs, long cable runs, and automation are common requirements.
Its feature set supports that use case well: 6 HDMI inputs, 2 HDBaseT inputs, 2 HDMI outputs, 2 HDBaseT outputs, integrated audio inputs and outputs, a built-in 2x50W stereo speaker amplifier, and a programmable master room controller. It also includes control interfaces like RS-232, RS-485, IR, GPI/O, relays, and Ethernet, which helps connect displays, projectors, screens, and other room devices.
It is a particularly strong fit when the goal is to centralize AV distribution and automate room actions from one chassis. For example, a room can switch sources, extend signals to a distant projector, and trigger display or screen behavior together. For very small rooms with only one display and minimal control needs, a simpler switcher may be more appropriate.
What should I look for in a 4K AV presentation system review or comparison?
The most important things to compare are routing flexibility, video format support, extension distance, audio features, control options, and installation efficiency. A good 4K AV presentation system is not just about resolution. It should also match the room layout, source count, output count, and automation needs.
For example, the Kramer VS-84UT supports 4K UHD at 60Hz with 4:2:0 chroma, a 10.2Gbps data rate, 8x4 matrix switching, HDBaseT 2.0 extension up to 180 meters in Ultra Mode, USB extension, PoE, balanced and unbalanced audio connectivity, de-embedding, and integrated room control. Those are the kinds of details that matter in real-world deployments.
Shoppers should also check whether the system includes onboard amplification, microphone inputs, relay and serial control, and configuration software for room automation. The right product depends on whether you need a simple source selector or a central AV backbone. Reviews are most useful when they discuss room suitability and tradeoffs, not just headline specs.
Can this system replace separate switchers, extenders, and room control hardware?
Yes, in many professional AV rooms the Kramer VS-84UT can replace several separate components. It combines an 8x4 matrix switcher, HDBaseT 2.0 extension, audio management, USB extension, PoE support, and a programmable master room controller in one compact chassis.
That means a designer may not need a standalone HDMI matrix, separate HDBaseT transmitter or receiver infrastructure for core routing, a dedicated room controller, and in some cases a separate amplifier for basic room audio. The unit includes balanced and unbalanced audio inputs, de-embedding, balanced stereo outputs, and a built-in 2x50W speaker output.
This consolidation is most helpful for education and corporate projects where rack space, wiring complexity, and serviceability matter. It can simplify installation and reduce inter-device compatibility issues. The main limitation is that larger or highly specialized systems may still need additional endpoints, DSP, or more advanced control layers. For midsize integrated rooms, though, an all-in-one architecture can be a very practical design choice.
Does the Kramer VS-84UT support multiple microphones and room audio integration?
Yes, the Kramer VS-84UT is designed to support integrated room audio, including microphone and line-level sources. It provides 4 unbalanced stereo audio inputs and 4 balanced stereo or mic inputs, along with 2 balanced stereo outputs and a stereo speaker output rated at 2x50W.
That mix of connections makes it useful for presentation rooms that need lecturer microphones, program audio from laptops or media players, and amplification for in-room speakers. It also supports audio de-embedding, which is helpful when audio needs to be separated from HDMI sources for local sound reinforcement or downstream processing.
This is a strong fit for classrooms, training rooms, and small-to-midsize conference spaces where moderate audio support is needed without building a completely separate audio system from scratch. The main thing to consider is system scale. If the room needs complex DSP functions such as advanced acoustic echo cancellation, elaborate zoning, or a large microphone array, additional audio processing may still be required.
How far can this system send 4K video, and why does that matter for installation?
The Kramer VS-84UT can extend signals up to 180 meters, or 590 feet, in Ultra Mode over HDBaseT 2.0. That long reach is important because many projectors, displays, and teaching stations are installed far from the AV rack, especially in lecture halls, large conference rooms, and divisible meeting spaces.
Long-distance extension matters for both performance and installation cost. Standard HDMI is not ideal for very long runs, while HDBaseT allows AV, control, and related signals to travel over structured cabling more reliably in professional environments. With the VS-84UT, those extension capabilities are built into the presentation system rather than added as separate hardware.
This benefits buyers who want clean infrastructure and fewer points of failure. It is particularly useful in ceiling-mounted projector systems or rooms with remote wall displays. The practical consideration is that extension performance depends on the right cabling and compatible endpoints, so professional design and installation are still important for best results.
What control and automation features should I expect from a modern presentation system?
A modern presentation system should do more than switch sources. It should also control room devices and automate common actions like powering displays on and off, selecting inputs, triggering screens, and reacting to sensor or button events.
The Kramer VS-84UT includes a programmable master room controller, which makes it more than a simple switcher. It supports control through RS-232, RS-485, IR, GPI/O, relays, and Ethernet, and it is compatible with Kramer K-Config software for programming and room automation. That allows integrators to build workflows for displays, projectors, source devices, shades, or other connected equipment.
This is especially valuable in education and corporate settings where ease of use matters. Instead of expecting users to manage several devices separately, the system can centralize actions into a cleaner room experience. Buyers should still consider the level of programming needed. If the room requires custom automation, working with an experienced integrator is important to get the full benefit from the control platform.
Who is the Kramer VS-84UT best for, and when might another type of AV solution be better?
The Kramer VS-84UT is best for professional AV spaces that need switching, signal extension, audio support, and room control in one core system. It is a strong fit for conference rooms, higher education classrooms, lecture theaters, and training spaces with multiple sources, multiple displays, or long cable runs.
Its main advantages are consolidation and flexibility. It offers 8x4 matrix routing, 4K60 support at 4:2:0, HDBaseT 2.0 extension, USB extension, PoE, audio I/O, onboard amplification, and integrated control interfaces. That makes it a practical backbone for rooms where reliability and simplified integration are important.
Another type of solution may be better if your needs are much simpler or much more specialized. A small room with one screen and minimal control may only need a compact presentation switcher. On the other end, a very large enterprise deployment may require a more modular architecture with separate DSP, broader networked AV strategy, or more advanced control layers. The best choice depends on room complexity, infrastructure, and desired automation.
The Kramer VS-84UT is a powerful all-in-one 4K@60Hz (4:2:0) presentation system designed for professional AV environments. This integrated solution combines a high-performance 8x4 matrix switcher, HDBaseT 2.0 range extension, and a programmable master room controller in a single, compact chassis. It supports 6 HDMI inputs and 2 HDBaseT outputs, delivering seamless audio-video distribution with USB extension and PoE capabilities. Advanced audio management features include balanced and unbalanced inputs, de-embedding, and a built-in power amplifier. Designed for reliability in classrooms, lecture theaters, and corporate boardrooms, the VS-84UT simplifies complex AV installations by consolidating matrix switching, signal extension, and device control. Manage remote I/O and automate room actions through the integrated master controller, compatible with Kramer K-Config software. This system ensures high-quality signal integrity over long distances, making it an ideal core for modern, automated presentation spaces.
| Video Resolution | 4K UHD @60Hz (4:2:0) |
| Data Rate | 10.2Gbps |
| Inputs | 6 HDMI, 2 HDBaseT, 4 Unbalanced Stereo, 4 Balanced Stereo/Mic |
| Outputs | 2 HDMI, 2 HDBaseT, 2 Balanced Stereo, 1 Stereo Speaker (2x50W) |
| Control Ports | RS-232, RS-485, IR, GPI/O, Relays, Ethernet |
| Compliance | HDBaseT 2.0, HDCP 1.4 |
| Extension Distance | Up to 180m (590ft) in Ultra Mode |
| Warranty | Limited 7 Year |
