Kramer VS-81H 8x1 HDMI Switcher for Professional Signal Management

SKU: VS-81H
Regular price $672.00

Frequently Asked Questions

An HDMI switcher lets you connect multiple HDMI sources to one display and choose which source appears on screen. It is useful when a room has several devices, such as a laptop, media player, conferencing system, or document camera, but only one available HDMI input on the display or projector. The Kramer VS-81H is designed for that exact job in professional AV setups. It switches between eight HDMI inputs and sends the selected source to one HDMI output. That makes it a practical fit for conference rooms, training spaces, presentation systems, and rental staging where users need fast, reliable source selection. A switcher is most helpful when you want cleaner cabling, easier operation, and centralized control. This model also adds features that matter in professional environments, including HDCP compliance, 3D pass-through, Deep Color support, high-bitrate audio support, and multiple control methods such as front panel, RS-232, Ethernet, and IR. If you only have one source, you do not need a switcher. If you regularly alternate among several HDMI devices, a dedicated switcher is the right tool.
An HDMI switcher and an HDMI splitter solve opposite problems. A switcher takes multiple HDMI sources and sends one selected source to a single display. A splitter takes one HDMI source and sends that same signal to multiple displays. The Kramer VS-81H is an 8x1 HDMI switcher, which means it accepts eight HDMI inputs and routes one of them to a single HDMI output. It is the right choice if you need to switch between devices like presentation laptops, streaming players, or conferencing hardware on one projector or monitor. A splitter would not replace this function, because a splitter does not let you choose among several sources. Likewise, a switcher is not the right choice if your goal is to show the same image on several displays at once. Shoppers comparing the two should start with the signal flow they need. If the question is "How do I connect many sources to one screen?" choose a switcher. If the question is "How do I send one source to many screens?" choose a splitter. In professional AV rooms, both products are sometimes used together, but they are not interchangeable.
A good HDMI switcher should not noticeably reduce picture or sound quality when used within its specifications. Because HDMI is a digital signal, the main concern is not gradual quality loss in the analog sense, but whether the switcher can maintain a stable, compliant signal path. The Kramer VS-81H is built for professional signal management and includes signal equalization to help preserve reliable HDMI performance. It supports 3D pass-through, Deep Color, and high-bitrate audio formats such as Dolby TrueHD and DTS-HD, which indicates it is designed to pass modern AV signals accurately. It is also HDCP compliant, which is important for protected content playback. That said, overall performance still depends on the full system. Cable quality, cable length, source compatibility, display compatibility, and the required resolution all matter. This model supports resolutions up to UXGA and has a maximum data rate of 6.75Gbps. Buyers should confirm that matches their intended sources and displays. For conference rooms, presentation systems, and other professional installs, a purpose-built switcher like this is generally a better choice than relying on low-cost adapters or manually swapping cables.
Yes, HDMI switchers are often one of the most practical upgrades for conference rooms and presentation spaces. They simplify source selection, reduce wear on display inputs, and make it easier for different presenters to connect without unplugging cables each time. The Kramer VS-81H is especially suited to professional rooms because it offers eight HDMI inputs, one HDMI output, and several control options. Users can switch manually from the front panel, while integrators can control it through RS-232, Ethernet, or IR. That flexibility is valuable in meeting rooms, classrooms, and event spaces where source changes need to be dependable and easy to manage. Its EDID pass-through algorithm also helps with plug-and-play operation across different source devices and displays, which can reduce handshake issues during presentations. Support for HDCP, 3D pass-through, Deep Color, and high-bitrate audio makes it useful in environments that need more than basic switching. This type of switcher is best for fixed installations or managed AV systems. If you only need to connect two devices occasionally in a casual home setup, a simpler switcher may be enough. For professional presentations, reliability and control options matter more.
The right HDMI switcher depends on four main factors: how many sources you need to connect, the resolution and signal formats you need to pass, what control methods your system requires, and whether the unit is meant for rack installation. For example, the Kramer VS-81H is a strong fit when you need to switch among many HDMI sources in a professional environment. It provides eight HDMI inputs and one output, supports HDCP, 3D pass-through, Deep Color, and high-bitrate audio, and can be controlled from the front panel, RS-232, Ethernet, or IR. Its 1U rack-mount form factor also makes it practical for AV racks in conference rooms or staging systems. You should also verify signal capacity. This model supports resolutions up to UXGA and a maximum data rate of 6.75Gbps, so buyers should confirm that aligns with their source and display requirements. If your system needs advanced scaling, matrix routing, or newer high-bandwidth formats, you may need a different class of product. In short, choose a switcher based on signal compatibility, control integration, and installation needs, not just the number of ports.
Yes, the Kramer VS-81H is specifically built for that use case. It is an 8x1 HDMI switcher, so it can take up to eight separate HDMI sources and route the selected one to a single HDMI output. That makes it well suited for systems where multiple presenters or devices need to share one projector, flat panel, or other display. Its feature set is geared toward professional reliability rather than simple consumer convenience. The unit includes signal equalization, HDCP compliance, 3D pass-through, Deep Color support, and compatibility with high-bitrate audio formats including Dolby TrueHD and DTS-HD. It also offers front panel, RS-232, Ethernet, and IR control, which is useful in integrated AV systems. This switcher is a strong fit for conference rooms, training spaces, houses of worship, and rental or staging applications. The main limitation is that it is a one-output switcher, not a matrix. If you need to send different sources to multiple displays independently, you would need a matrix switcher instead. For many-sources-to-one-screen switching, this model is a direct match.
The safest answer is that buyers should not assume this model is intended for full modern 4K workflows without verifying their exact signal requirements. The published specifications list support up to UXGA resolution and a maximum data rate of 6.75Gbps, which is below the bandwidth commonly associated with many 4K HDMI applications. That means the Kramer VS-81H is better understood as a professional HDMI switcher for reliable signal routing in compatible AV systems, rather than as a current high-bandwidth 4K switcher by default. It does support important professional features such as HDCP compliance, 3D pass-through, Deep Color, and high-bitrate audio, but those features alone do not confirm support for every 4K format. If your installation uses standard HD sources, computer resolutions up to UXGA, or legacy professional AV gear, it may be a good fit. If your project specifically requires 4K projectors, 4K displays, or higher-bandwidth HDMI formats, you should confirm the exact resolution, frame rate, and color format needed before selecting this unit. In short, this is a strong professional switcher for supported resolutions, but it should not be chosen for 4K use without careful compatibility review.
EDID pass-through helps HDMI source devices understand what the connected display can accept. EDID stands for Extended Display Identification Data, and it communicates capabilities such as supported resolutions and other display-related parameters. In a switcher, good EDID handling is important because multiple sources may be connecting to one display through the same device. The Kramer VS-81H includes an EDID pass-through algorithm designed to support plug-and-play operation across different displays and source devices. In practical terms, that can reduce common setup problems such as no picture, incorrect resolution output, or connection instability when switching among devices. This matters most in professional environments where many users may connect different laptops, players, or AV sources. Conference rooms, classrooms, and rental systems benefit because presenters often expect the system to work quickly without manual troubleshooting. EDID management does not solve every compatibility issue, especially if a source is trying to send a format outside the switcher's supported range, but it is still a valuable feature. For buyers comparing HDMI switchers, reliable EDID handling is one of the clearest signs that a unit is designed for real-world professional use rather than occasional basic switching.
The Kramer VS-81H offers several control methods that make it suitable for integrated AV systems. It can be operated directly from the front panel for local manual switching, and it also supports RS-232, Ethernet, and IR control for remote or automated operation. That range of control options is important in professional environments. RS-232 is commonly used in traditional control system integration, Ethernet is useful for network-based management, and IR can support straightforward remote control in rooms where a full control processor is not required. The front panel remains useful for installers, technicians, or users who need immediate local access. These options make the VS-81H a practical choice for conference rooms, training facilities, staging applications, and other AV systems where switching may be tied into a broader control workflow. For example, a room controller can automate source selection, or staff can manage the switcher from a central location. If you only need a simple desktop switcher with push-button selection, this level of control may be more than necessary. But for installations that prioritize reliability, rack integration, and flexible operation, multiple control interfaces are a major advantage.
Yes, the Kramer VS-81H is well suited to rack-mounted professional AV installations. It uses a 1U rack-mount form factor, which is the standard size many integrators look for when building organized equipment racks in conference rooms, classrooms, control rooms, and event systems. Its physical size of 19 inches by 7.2 inches by 1.7 inches and weight of 3.7 pounds make it practical for fixed installations where neat cabling, centralized equipment placement, and service accessibility matter. Rack mounting is especially useful when the switcher is part of a larger signal chain that may include amplifiers, control processors, wireless presentation systems, and distribution equipment. Beyond the physical design, the feature set also supports professional installation needs. The VS-81H includes eight HDMI inputs, one HDMI output, HDCP compliance, signal equalization, and multiple control options including RS-232 and Ethernet. Those are the kinds of features that fit structured AV systems rather than ad hoc desktop use. If your application is a permanent or semi-permanent professional setup, the rack-ready design is a real benefit. For portable or temporary tabletop use, a smaller unmanaged switcher might be more convenient.

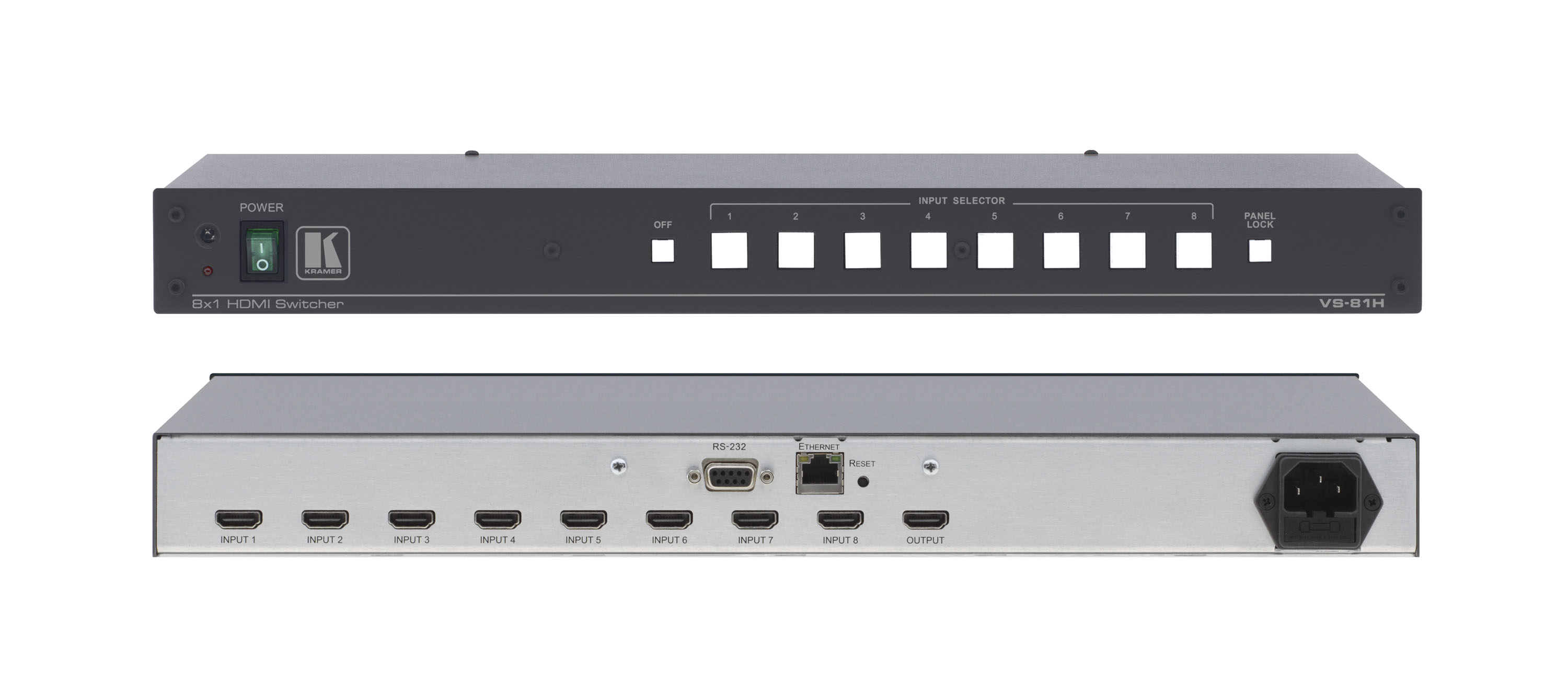

The Kramer VS-81H is a high-performance switcher engineered for reliable HDMI signal management. It effectively equalizes signals while seamlessly switching between eight distinct inputs to a single HDMI output. Designed for demanding environments, this unit supports 3D pass-through, Deep Color, and high-bitrate audio formats like Dolby TrueHD and DTS-HD. Its EDID pass-through algorithm ensures plug-and-play operation across various display systems and sources. Flexible control options include front panel manual switching, RS-232, Ethernet, and IR remote capability, meeting the needs of conference rooms and rental stages. The 1U rack-mountable design facilitates easy installation in professional AV setups. This switcher provides the robust reliability required for professional advertising and presentation applications.

Inputs 8 x HDMI
Outputs 1 x HDMI
Max Data Rate 6.75Gbps (2.25Gbps per graphic channel)
Compliance HDCP Compliant
Resolution Support Up to UXGA
Power Consumption 100-240V AC, 50/60Hz, 12VA
Control Options Front panel, RS-232, Ethernet, IR Remote
Form Factor 1U Rack Mount
Product Dimensions 19 inch x 7.2 inch x 1.7 inch
Product Weight 3.7 lbs
