Kramer VP-778 8-Input Presentation Matrix Switcher 4K Scaling System

SKU: VP-778
Regular price $4,544.00

Frequently Asked Questions

The best 4K switchers and scalers should match the room’s sources, displays, audio needs, and control requirements. For presentation spaces, key features include multiple input types, true 4K support, scaling for mixed-resolution sources, simple control, and audio integration. A strong option should also handle common room needs like HDMI laptops, legacy video devices, and long cable runs. The Kramer VP-778 fits that profile well because it combines eight inputs, including 4 HDMI, 2 DVI-U, and 2 HDBaseT, with dual HDMI and dual HDBaseT outputs. It supports up to 4K at 30Hz UHD and includes dual independent scalers, which is useful when different displays need different output behavior. It also adds built-in DSP, two microphone inputs, and a 2x10W amplifier, reducing the need for extra audio hardware in many rooms. This type of system is best for boardrooms, lecture halls, auditoriums, and staging setups where reliability and input flexibility matter more than consumer-style simplicity. The main tradeoff is that it is a professional AV product, so it is better suited to installed systems than casual home use.
You need a 4K switcher and scaler when your system has multiple source types, mixed display resolutions, long-distance signal runs, or advanced presentation needs. A basic HDMI switch simply changes between sources. A switcher and scaler does much more by managing resolution, aspect ratio, audio, and output formatting so the system works reliably across different devices. The Kramer VP-778 is a good example of when scaling becomes important. It accepts HDMI, DVI-U, and HDBaseT sources, then processes them for up to 4K at 30Hz output. Its dual independent scalers also support flexible Picture-in-Picture configurations and simultaneous multi-output display, which a basic switch cannot do. That matters in training rooms, executive briefing spaces, and lecture halls where one screen may show a main presentation while another displays supporting content. This is the right category if you need dependable integration, clean switching, and compatibility with both modern and older sources. If you only want to connect two or three HDMI devices to one TV, a scaler-based presentation switcher is usually more than you need.
Yes, the Kramer VP-778 is a strong choice for professional 4K presentation systems, especially when you need multiple source connections, integrated audio support, and flexible output options. It is designed for commercial AV environments rather than simple consumer setups. Its key strengths are its eight inputs, including HDMI, DVI-U, and HDBaseT, plus four outputs split between HDMI and HDBaseT. It supports up to 4K at 30Hz UHD and includes dual independent scalers, which help manage varied source resolutions and display requirements. It also supports Picture-in-Picture through Kramer’s K-IIT XL PiP technology, making it useful when presenters want to combine content sources on screen. Audio is another advantage. The unit includes integrated DSP, two microphone inputs, and a built-in 2x10W amplifier for direct speaker connection. That can simplify smaller room designs by reducing external audio components. It is best for conference rooms, lecture spaces, auditoriums, and live presentation environments. The main limitation is that users needing 4K at 60Hz should confirm whether that performance level is required, because this model is specified for up to 4K at 30Hz.
Yes, the Kramer VP-778 is built to support both modern digital sources and many older presentation devices, which makes it useful in transitional AV environments. That is one of its biggest practical advantages for schools, businesses, and event spaces that still use a mix of equipment. It provides 4 HDMI inputs for current laptops, media players, and other digital devices. It also includes 2 DVI-U inputs, which are designed for broader compatibility and can work with HDMI, VGA, YUV, and composite video formats depending on the connection method. In addition, it has 2 HDBaseT inputs for extended-distance source transport over standard cabling. This combination is especially helpful in rooms where presenters may bring different devices or where the installed infrastructure has evolved over time. Instead of forcing every source through separate converters and adapters, the switcher centralizes signal management. The tradeoff is that legacy compatibility can add setup complexity compared with a simple all-HDMI system. For integrators and facilities managers, though, that flexibility often saves time and avoids replacing otherwise functional source equipment.
HDBaseT helps by carrying video, audio, and control signals over standard cabling for longer distances than typical HDMI runs, which makes installed AV systems cleaner and more reliable. In conference rooms, auditoriums, classrooms, and staging environments, that can reduce cable clutter and improve system design flexibility. The Kramer VP-778 includes both HDBaseT inputs and HDBaseT outputs, along with HDMI connections. That means it can integrate local sources at the rack and also support sources or displays located farther away. In real-world use, this is valuable when podiums, wall plates, or remote displays are not close to the switcher. For buyers comparing 4K switchers and scalers, HDBaseT is especially important when they need professional installation rather than tabletop AV. It is one of the features that separates a room-ready presentation matrix from a basic switch. The main consideration is infrastructure planning. To get the full benefit, the room should be designed with appropriate cabling and compatible endpoints. For permanent installs and larger spaces, though, HDBaseT can be a major advantage.
Yes, the Kramer VP-778 supports Picture-in-Picture and flexible multi-display presentation workflows. It uses dual independent scalers and Kramer’s K-IIT XL PiP technology, which allows the system to present more than one visual source in a controlled and professional way. This is useful in rooms where one screen might show the main presentation while another shows supporting content, or where a presenter wants to display a live source alongside slides. Dual scaling also helps when connected displays have different resolution needs or when the system must format content cleanly across multiple outputs. The VP-778 provides 2 HDMI outputs and 2 HDBaseT outputs, giving integrators more options for simultaneous display setups. That makes it suitable for executive briefing rooms, lecture halls, training spaces, and stage presentation systems. The benefit is not just visual flexibility but also smoother system design. A single processor can manage switching, scaling, and PiP functions that might otherwise require separate devices. Buyers should still confirm that their exact presentation layout matches the available output and control configuration, especially in more complex multi-screen environments.
It can be suitable for certain live presentation and production workflows, but it is best understood as a presentation matrix switcher and scaler rather than a dedicated live streaming switcher. Its strengths are source switching, scaling, multi-format compatibility, HDBaseT integration, and presentation-focused display management. For events, houses of worship, lecture capture rooms, or corporate presentations that feed in-room displays and possibly an encoder, the VP-778 can be a good fit. It supports up to 4K at 30Hz, offers eight inputs, and includes dual independent scalers plus advanced audio features such as DSP, microphone inputs, and a built-in amplifier. Those features can help simplify an installed AV workflow. However, buyers focused primarily on streaming production should verify whether they need broadcast-style controls, direct streaming functions, recording tools, or 4K at 60Hz support. The VP-778 is not positioned as an all-in-one streaming production console. In short, it works well as part of a live event or presentation signal chain, especially in professional venues, but users whose main goal is content creation or stream switching may want to evaluate whether they need production-specific features beyond presentation AV.
A professional presentation switcher should do more than pass video. It should also help manage room audio, especially in conference rooms, classrooms, and small auditoriums where speech reinforcement matters. Useful features include microphone inputs, DSP for audio processing, and some level of amplifier support. The Kramer VP-778 includes integrated DSP, two microphone inputs, and a built-in 2x10W power amplifier. That means it can support direct speaker connection in some installations and reduce the need for separate audio hardware. For many presentation environments, this simplifies system design and helps centralize control of both video and sound. This is particularly valuable for spaces where presenters speak into local microphones while switching between laptops, document sources, and remote inputs. Having audio tied into the same core system can improve usability and reduce troubleshooting. The tradeoff is that larger venues or more complex sound systems may still require dedicated audio processors or amplifiers. For small to mid-size presentation rooms, though, integrated audio capability like this is a meaningful advantage when comparing 4K switchers and scalers.
The Kramer VP-778 is best suited for professional AV installations that need flexible source connectivity, multi-output display support, and built-in audio control. It is a strong fit for conference rooms, auditoriums, higher education spaces, training centers, staging environments, and similar commercial settings. It works especially well for users who need to manage a mix of source types, including HDMI, DVI-U, and HDBaseT, while delivering up to 4K at 30Hz output. The dual independent scalers are useful for rooms with more advanced display requirements, and the integrated DSP, microphone inputs, and 2x10W amplifier add value where speech and presentation audio are part of the system. This product is less ideal for simple home entertainment systems or users who only need basic HDMI switching. It is also best for environments where professional control methods such as RS-232, IR, Ethernet, and web-based management are either desired or already part of the AV infrastructure. In short, the VP-778 is for buyers who need an installed presentation backbone, not just a desktop switch.
The Kramer VP-778 is the right fit if your room needs several source types, professional control options, integrated audio features, and support for both local and extended-distance signal distribution. The easiest way to evaluate it is to compare your room’s source count, output needs, cabling plan, and user workflow against its built-in capabilities. It offers eight inputs total, including 4 HDMI, 2 DVI-U, and 2 HDBaseT, plus 2 HDMI and 2 HDBaseT outputs. It supports up to 4K at 30Hz, includes dual independent scalers, and allows PiP presentation layouts. It also includes DSP, two microphone inputs, and a 2x10W amplifier, which can simplify audio design in many rooms. This makes it a strong candidate for installed corporate, education, and event spaces where mixed sources and flexible display routing are common. It is especially helpful when HDBaseT is part of the infrastructure or when multiple control methods such as RS-232, IR, Ethernet, and Web UI are needed. It may be less suitable if your project requires only basic switching or demands 4K at higher frame rates. For room-based presentation systems, though, it covers a wide range of core AV needs in one chassis.

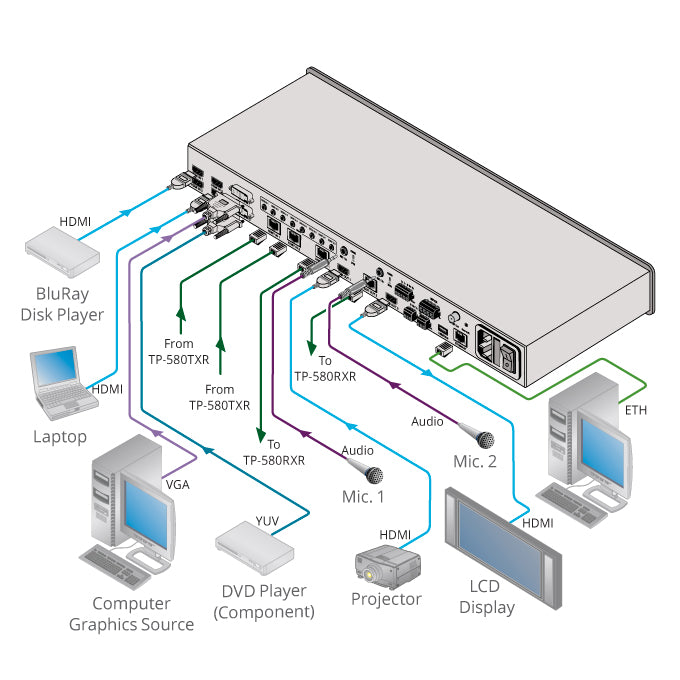

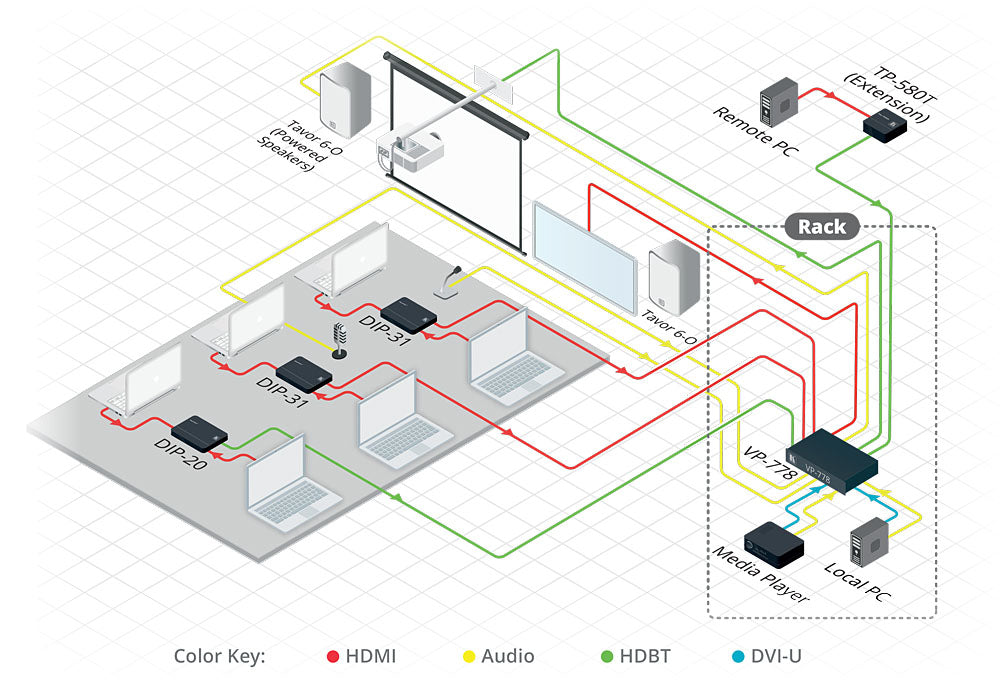

The Kramer VP-778 is a professional-grade presentation matrix switcher and scaler designed for demanding 4K video environments. It provides seamless switching between eight inputs, including HDMI, DVI-U, and HDBaseT, delivering 4K@30Hz output performance. Dual independent scalers allow for flexible Picture-in-Picture (PiP) configurations and simultaneous multi-output display. Advanced audio capabilities include integrated DSP, two microphone inputs, and a 2x10W power amplifier for direct speaker connection. Control is simplified through web pages, RS-232, and IR, ensuring easy integration into conference rooms, auditoriums, and staging setups. This robust unit supports HDBaseT technology, facilitating high-speed, long-distance transmission over standard cabling.

Inputs 4 HDMI, 2 DVI-U (HDMI/VGA/YUV/CV), 2 HDBaseT
Outputs 2 HDMI, 2 HDBaseT
Resolution Up to 4K@30Hz UHD
Audio Features Integrated DSP, 2 Mic inputs, 2x10W power amplifier
Control Options RS-232, IR, Ethernet, Web UI
Advanced Technologies HDBaseT, Pix Perfect Scaling, K-IIT XL PiP
Compliance HDCP Compliant
Mounting 19-inch rack mountable
