Kramer VP-427X 2x1 4K Auto-Switcher Scaler Receiver HDBaseT
Regular price
$948.00
Couldn't load pickup availability
Frequently Asked Questions
What is a 4K auto-switcher scaler receiver, and when do you need one?
A 4K auto-switcher scaler receiver is used when you need to accept video from more than one source, automatically select the active input, receive AV over HDBaseT, and deliver a stable HDMI output at the display’s preferred resolution. It is especially useful in classrooms, meeting rooms, and collaboration spaces where users connect different devices without wanting to manually manage switching every time.
The Kramer VP-427X combines several functions in one unit: it acts as a 2x1 auto-switcher, an HDBaseT receiver, and a scaler for up to 4K at 60Hz with 4:4:4 color. That means it can take a signal from either an HDBaseT source or an HDMI source, switch automatically, and scale the output for display compatibility. It also supports HDCP 2.2 and intelligent EDID processing for reliable plug-and-play operation.
This type of product is best for installations that need cleaner system design and simpler operation. The main tradeoff is that it is designed for professional AV integration, so it is more specialized than a basic HDMI switch.
How do I choose between a basic HDMI switch and an auto-switching scaler for a conference room or classroom?
Choose a basic HDMI switch if you only need to select between local sources and your display already handles resolution changes reliably. Choose an auto-switching scaler if you want the system to work more automatically, support mixed source types, and maintain a consistent output resolution for the display.
The Kramer VP-427X is a better fit when users may connect different devices and you want fewer support calls. It automatically switches between two inputs, including one HDBaseT input and one HDMI input, and its built-in scaler can output up to 4K at 60Hz with 4:4:4. That helps avoid common issues such as resolution mismatches, blank screens during source changes, or unreliable handshakes. HDCP 2.2 support and intelligent EDID processing also improve compatibility.
This matters most in shared spaces where presenters rotate often. The tradeoff is complexity: a scaler receiver offers more control and installation flexibility than a simple switch, but it is intended for professional AV systems rather than casual home use.
Is this a good solution for extending 4K video over HDBaseT in a professional AV installation?
Yes, this is a strong fit for professional AV systems that need to receive 4K video over HDBaseT and present a stable HDMI output at the display end. The Kramer VP-427X is specifically designed as an HDBaseT receiver with integrated switching and scaling, which makes it useful in installed environments where reliability matters.
It supports up to 4K at 60Hz with 4:4:4 color, along with HDCP 2.2 compliance for compatibility with modern protected content. Because it also includes an HDMI input, it can serve rooms that need both an extended HDBaseT source and a local HDMI source. Intelligent EDID processing helps maintain dependable plug-and-play behavior, which is important when multiple users or device types are involved.
This product is best for classrooms, boardrooms, and collaborative spaces that need long-reach signal transport plus simplified source management. The main limitation is that it is a 2x1 receiver, so it is ideal for focused room designs rather than larger systems requiring many inputs or matrix-style switching.
What are the advantages of auto-switching in a classroom or meeting space?
The main advantage of auto-switching is ease of use. In a classroom or meeting room, the system can detect the active source and switch to it automatically, so users do not need to learn control menus or ask for technical help just to start a presentation.
With the Kramer VP-427X, auto-switching is paired with scaling and HDBaseT receiving. That means the unit can not only choose between its two inputs, but also help present a stable HDMI output resolution up to 4K at 60Hz with 4:4:4. This is helpful in rooms where one source may come from a local HDMI connection and another from an HDBaseT transmitter. The result is smoother source transitions and fewer display compatibility issues.
Auto-switching benefits shared spaces the most, especially where many different laptops or content sources are used. The tradeoff is that some advanced rooms may still prefer manual switching logic for more controlled workflows, but for most everyday presentation environments, automatic source selection improves usability significantly.
Does this device support true 4K 60Hz 4:4:4 video, and why does that matter?
Yes, the Kramer VP-427X supports video resolution up to 4K at 60Hz with 4:4:4 color. That matters because 4:4:4 preserves full chroma information, which is especially important for sharp text, spreadsheets, user interfaces, and detailed graphics commonly shown in business and education environments.
Many AV products can pass 4K video, but not all handle 4K at 60Hz with 4:4:4. In practical terms, this specification helps maintain better image clarity for close-viewing applications where legibility matters more than it would in casual video playback. It is a strong fit for conference rooms, lecture spaces, and collaboration areas using modern 4K flat panels or projectors.
The unit also includes scaling, HDCP 2.2 support, and intelligent EDID handling, which improves real-world compatibility with current source devices and displays. The key consideration is that overall system performance still depends on the connected infrastructure and source equipment, but the product itself is designed to support a high-quality professional 4K signal path.
Can this switcher scaler help if different laptops and sources keep causing resolution or handshake problems?
Yes, that is one of the most practical reasons to use a switcher scaler like this. In shared presentation spaces, laptops and media devices often output different resolutions and refresh rates, which can lead to blank screens, long sync times, or unreliable switching. A scaler helps normalize those differences for the display.
The Kramer VP-427X includes intelligent EDID processing and a built-in scaler, so it can manage source-to-display communication more reliably and maintain an optimal output resolution up to 4K at 60Hz with 4:4:4. It also supports HDCP 2.2, which is important when working with protected content. Because it is both an auto-switcher and an HDBaseT receiver, it is useful in rooms where source types vary between local HDMI and extended AV connections.
This benefits schools, conference rooms, and training spaces with many guest devices. The tradeoff is that it is designed to solve integration issues in installed AV systems, so it is more than a simple pass-through switch and best used where compatibility consistency is a priority.
Does this unit support audio de-embedding for connection to external sound systems?

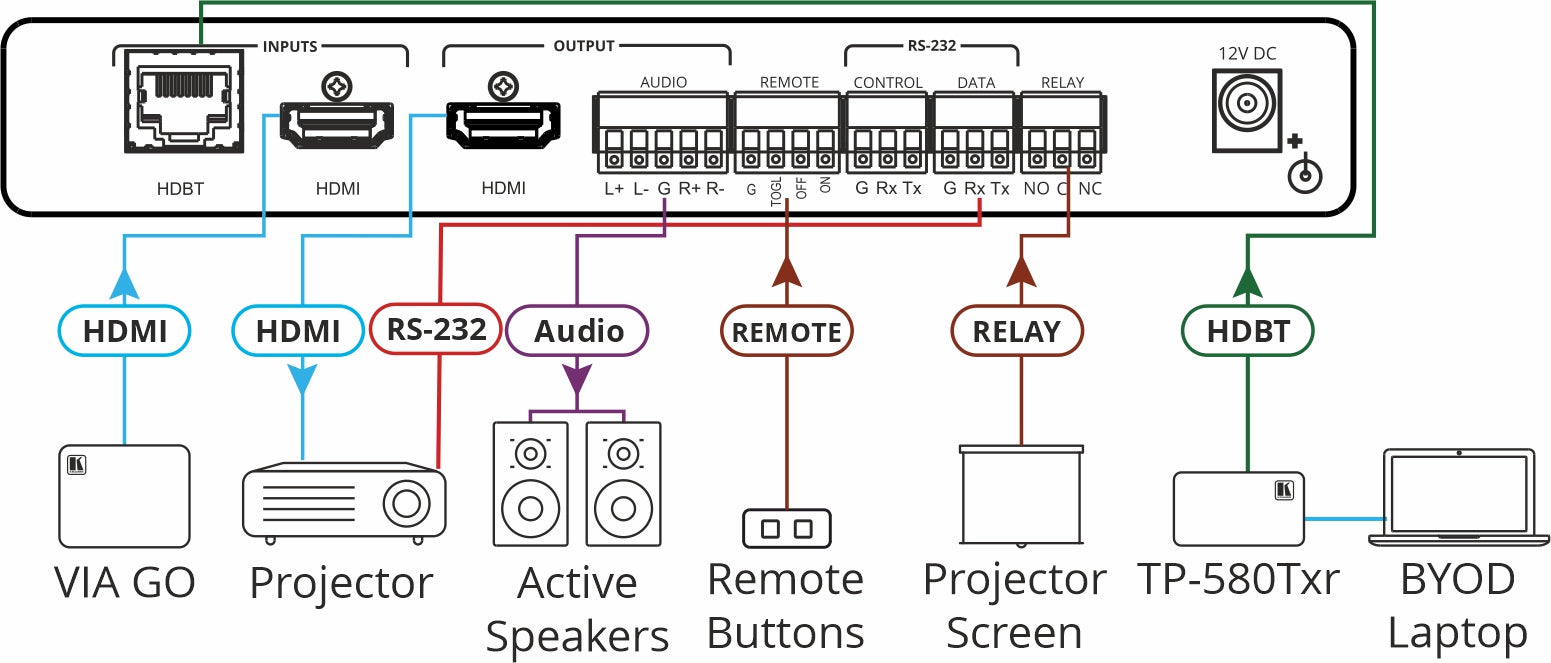

Yes, the Kramer VP-427X supports audio de-embedding. It can extract the digital audio from the incoming AV signal and output it as balanced stereo analog audio through a 5-pin terminal connection. That is useful when the room’s sound system is separate from the display or projector.
In real installations, this allows integrators to route video to the HDMI display while sending audio to a professional amplifier, DSP, or installed speaker system. Balanced audio is especially helpful in commercial environments because it is better suited to professional audio equipment and can support cleaner signal transport than consumer-style analog outputs. This feature makes the unit more flexible for classrooms, meeting rooms, and collaborative spaces where AV and audio infrastructure are handled separately.
The main thing to understand is that the de-embedded output is balanced stereo analog, not a multi-channel surround output. For most speech, presentation, and general room-audio applications, that is exactly what is needed, but it is aimed at professional presentation systems rather than home theater use.
What control options does this switcher scaler offer for integrated AV systems?

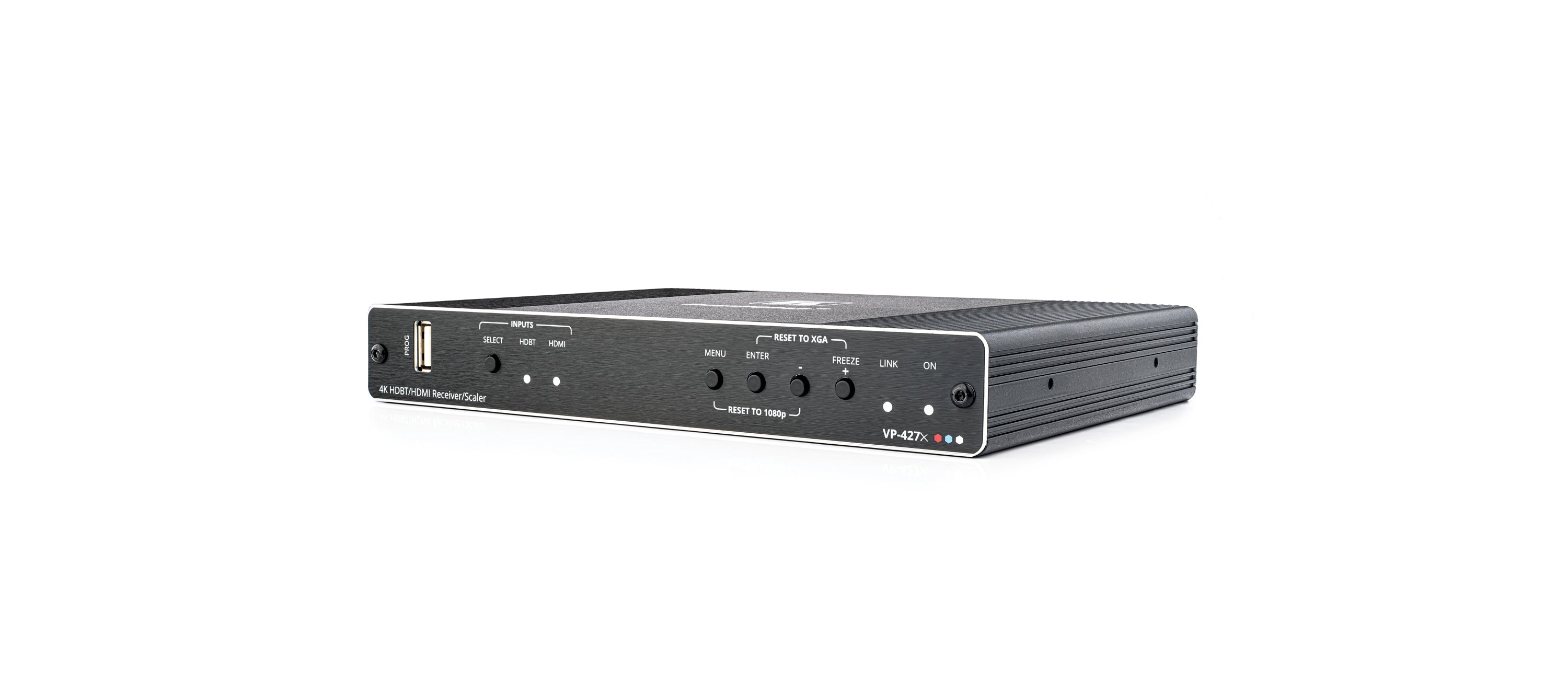

This unit offers both local and integration-friendly control options. Users can operate it directly from the front panel, and AV professionals can control it remotely using RS-232 serial commands. It also includes IR, relay, and USB connectivity, giving installers several ways to incorporate it into a larger room-control design.
The Kramer VP-427X is a good match for systems where some rooms need simple stand-alone operation while others need centralized control. In a smaller room, the front-panel controls may be enough. In a managed AV environment, RS-232 control is useful for automation, scheduling, or coordinated source switching with other room devices. The USB port is also valuable for firmware updates, which helps with long-term maintenance.
This flexibility is most beneficial in education, corporate, and collaboration spaces where reliability and serviceability matter. The tradeoff is that advanced control features are best used by an installer or IT/AV team familiar with integrated room systems, rather than by someone looking for a purely plug-and-play consumer device.
Is this a good fit for small rooms that need a compact, quiet AV solution?

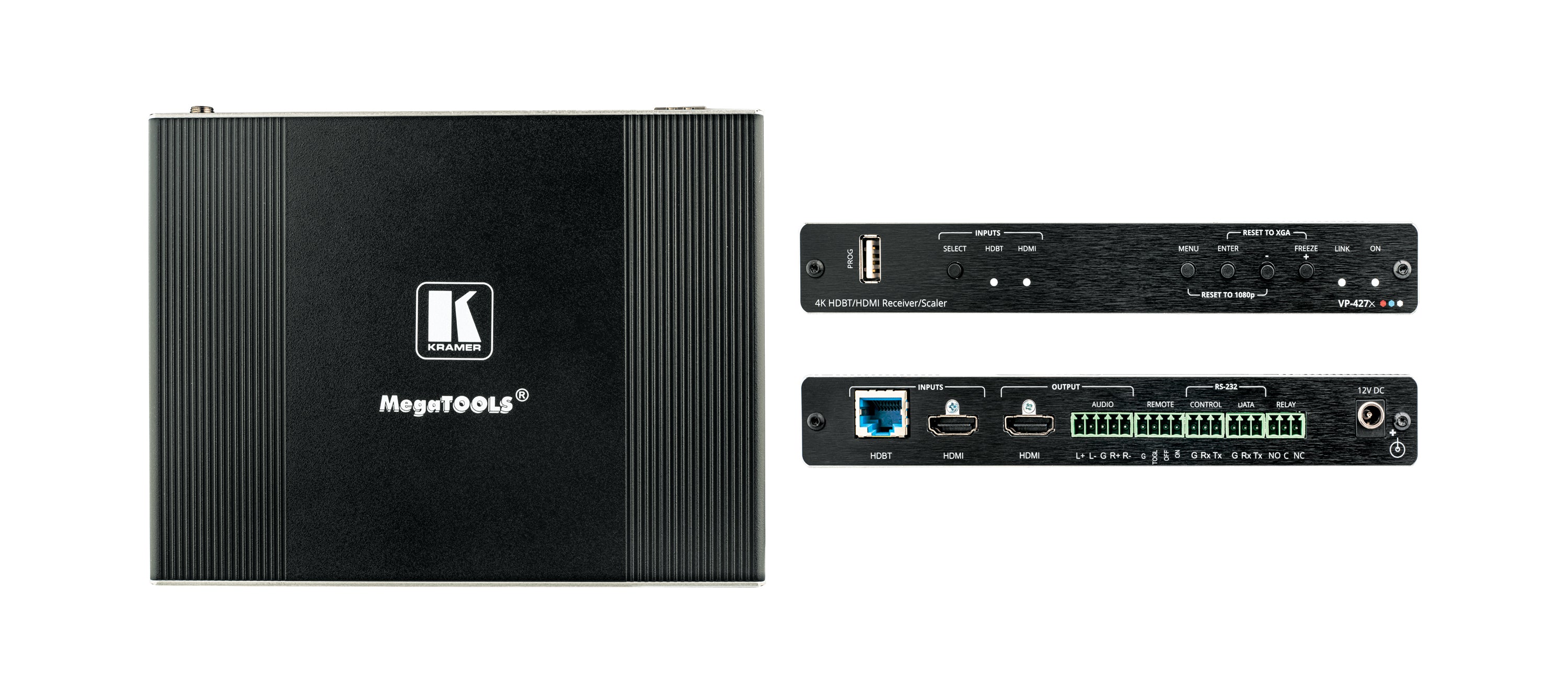

Yes, this is well suited for small to mid-size professional spaces that need a compact and quiet AV component. The Kramer VP-427X uses a fan-less MegaTOOLS enclosure, which helps it operate silently and makes it easier to place in classrooms, huddle rooms, meeting spaces, or lecterns where equipment noise would be distracting.
Its compact size, about 7.38 by 4.53 by 1.00 inches, also makes installation more flexible. It can fit into tighter furniture spaces, under tables, in teaching stations, or other low-profile AV locations where larger hardware would be harder to place. Even with the small footprint, it still provides a combination of HDBaseT receiving, 2x1 auto-switching, 4K scaling, balanced audio de-embedding, and multiple control interfaces.
This is ideal for professionally designed rooms that need performance without bulky equipment. The limitation is that compact size does not mean simplified function. It is still a professional AV tool, so it is best for spaces that benefit from integrated source management rather than basic single-source display connections.
Who should buy the Kramer VP-427X instead of a simpler video receiver or scaler?
The Kramer VP-427X is the better choice for buyers who need several functions in one device: HDBaseT reception, automatic source switching, 4K scaling, display compatibility support, and balanced audio extraction. If your room has multiple source paths and you want operation to be easy for end users, this kind of combination product makes more sense than buying a basic receiver alone.
It is especially useful in classrooms, training rooms, conference rooms, and collaboration spaces where one source may arrive over HDBaseT and another may connect locally over HDMI. The unit supports up to 4K at 60Hz with 4:4:4, includes HDCP 2.2 compliance, and uses intelligent EDID processing to improve plug-and-play reliability. It also offers local and serial control, which helps in both simple and managed AV systems.
A simpler receiver or scaler may be enough if you only have one source and no need for automatic switching or audio de-embedding. This model is best for installations where reducing user friction and improving source compatibility are more important than keeping the signal path minimal.
This high-performance 2x1 auto-switcher receiver features an integrated scaler for 4K HDMI signals over long-reach HDBaseT. It provides seamless AV transitions and maintains optimal resolution up to 4K@60Hz (4:4:4). The unit supports HDCP 2.2 compliance and utilizes intelligent EDID processing for reliable plug-and-play operation. Users benefit from flexible control options, including local front-panel buttons or remote RS-232 serial commands. The device also offers audio de-embedding, converting digital signals into balanced analog audio for professional sound systems. Designed for efficiency, its compact, fan-less MegaTOOLS enclosure supports flexible installation in classrooms, meeting rooms, and collaborative environments. Maintenance is straightforward with a dedicated USB port for firmware updates.
| Input | 1 HDBaseT (RJ-45), 1 HDMI |
| Output | 1 HDMI |
| Audio | 1 Balanced Stereo (5-pin terminal) |
| Video Resolution | Up to 4K@60Hz (4:4:4) |
| Control Ports | RS-232, IR, Relay, USB |
| Power Supply | 12V DC |
| Enclosure Type | MegaTOOLS Fan-less |
| Dimensions | 7.38 inch x 4.53 inch x 1.00 inch |
| Weight | 1.1 lb |
