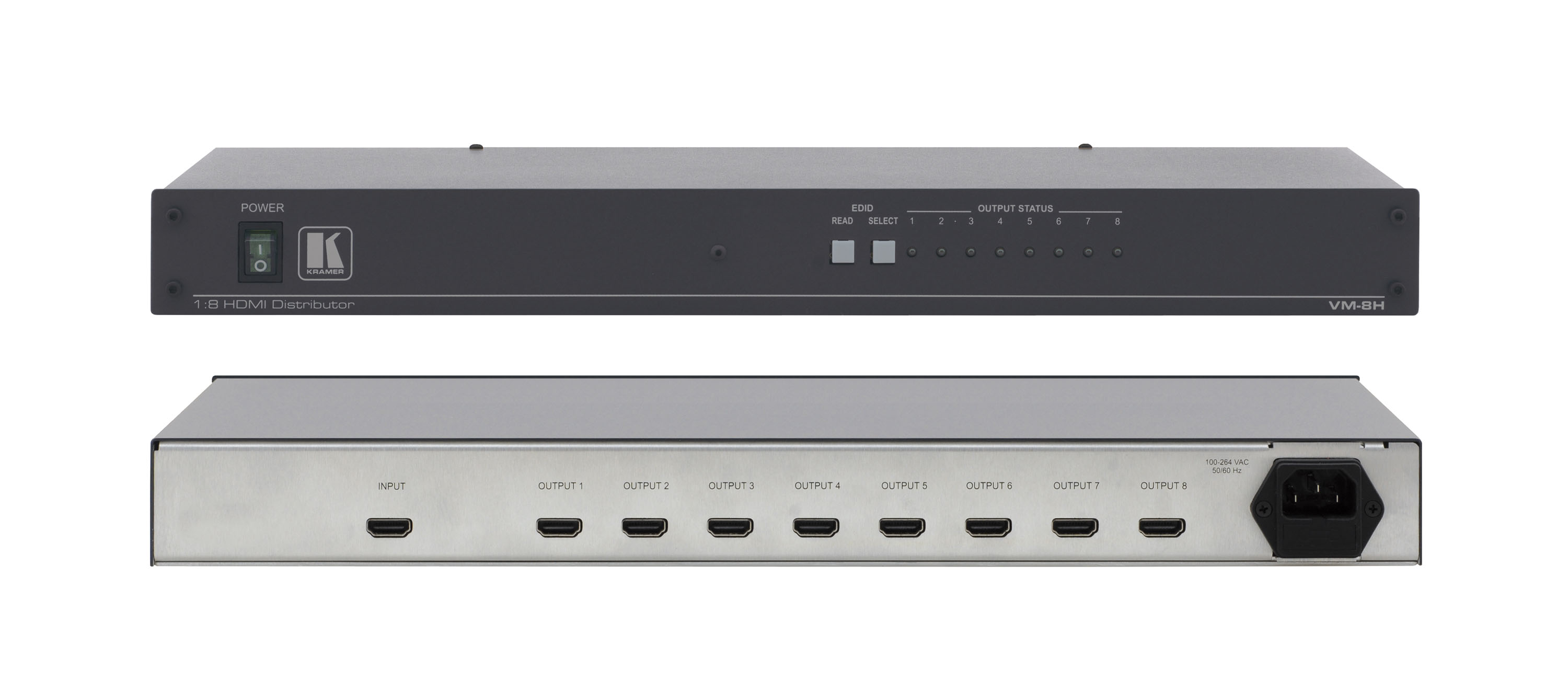

Kramer VM-8H 1:8 HDMI Distribution Amplifier 1U Rack Mount

An HDMI distribution amplifier is a device that takes one HDMI source and sends that same signal to multiple displays while helping preserve signal quality. It is commonly used when one media player, cable box, computer, or signage source needs to feed several TVs, monitors, or projectors at the same time. The Kramer VM-8H is a 1:8 HDMI distribution amplifier, which means it accepts 1 HDMI input and creates 8 identical HDMI outputs. Unlike a basic passive splitter, it uses equalization and reclocking technology to stabilize the signal, which is especially useful in professional AV systems and longer cable runs. It also supports HDCP, HDTV compatibility, 3D pass-through, deep color, x.v.Color, lip sync, and CEC. This type of product is best for retail displays, presentation spaces, houses of worship, control rooms, and staging setups where consistent image delivery matters. The main limitation is that it duplicates one source to multiple screens. It does not switch between sources or create different content on each display.

The main difference is signal management. A basic HDMI splitter copies one source to multiple displays, while an HDMI distribution amplifier copies the signal and actively conditions it to maintain reliability and picture quality. A distribution amplifier like the Kramer VM-8H does more than split the signal. It reclocks and equalizes the HDMI feed, which helps reduce degradation that can happen in professional installations, longer cable runs, or multi-display systems. That makes it a better choice for commercial AV, digital signage, rental staging, and presentation environments where dropouts or unstable handshakes are more likely to cause problems. The VM-8H provides 1 input and 8 identical outputs in a 1U rack-mount format, with support for 3D pass-through, deep color, x.v.Color, lip sync, and CEC. A simpler splitter may be enough for a short residential setup with only a few screens, but a distribution amplifier is usually the better fit when system reliability and clean HDMI delivery matter more than just basic signal duplication.

In a professional AV system, a distribution amplifier sends one audio/video source to multiple displays while helping keep the signal stable, synchronized, and clean. Its job is not just duplication, but also signal preservation. The Kramer VM-8H is designed for exactly that role. It takes one HDMI input and distributes it to eight HDMI outputs, making it useful for retail video walls, overflow rooms, menu boards, training environments, and event staging. Its equalization and reclocking technology help maintain signal integrity, which can be important when multiple displays must show the same content without sparkles, dropouts, or handshake issues. It also supports HDCP-compliant content, HDTV compatibility, 3D pass-through, deep color, x.v.Color, lip sync, and CEC. This kind of device is best for installations that need one source shown consistently across many screens. The tradeoff is that it is not a matrix switcher, so it cannot route different sources to different displays. If you need independent content control per screen, a different category of product would be more appropriate.

Choose a 1x8 HDMI distribution amplifier when you need to send the same HDMI source to up to eight displays at once, or when you want room to expand without replacing hardware later. A 1x4 model is usually enough for smaller rooms or simple home setups, but larger commercial and presentation systems often benefit from eight outputs. The Kramer VM-8H is a 1:8 HDMI distribution amplifier built for professional use. It is a good fit for digital signage networks, conference centers, classrooms, event spaces, and retail environments where one source must feed several displays reliably. Because it is rack mountable in a 1U chassis and includes an internal worldwide power supply, it also suits permanent installations and portable AV racks. The tradeoff is that a 1x8 unit may be more hardware than a small setup needs. If you only plan to use two or three displays and do not expect growth, a smaller distribution amplifier may be more practical. But if expansion, rack integration, and system consistency matter, a 1x8 option makes planning easier.

Yes, a distribution amplifier can help support more reliable HDMI performance over longer cable runs than a basic splitter, because it actively conditions the signal. The Kramer VM-8H uses equalization and reclocking to improve signal stability before sending it to each output. That matters in real-world AV systems where displays may be spread across a room, throughout a retail space, or mounted at different distances from the source. Reclocking helps rebuild timing in the digital signal, while equalization helps compensate for losses that can happen through cabling. This does not make cable length unlimited, but it does improve your chances of maintaining a clean, usable signal compared with passive splitting. This is especially useful in staging, commercial installations, and presentation systems where dropouts or inconsistent image quality can disrupt operation. The main limitation is that overall performance still depends on cable quality, resolution demands, and total system design. For very long runs, installers may still need HDMI extenders or other transmission solutions rather than relying on copper HDMI alone.

Yes, the Kramer VM-8H is well suited for digital signage and retail display applications when the goal is to show the same HDMI content on multiple screens. Its 1 input to 8 output design makes it practical for distributing a single promotional video, menu board feed, or branded message across several displays. For these environments, reliability matters as much as output count. The VM-8H reclocks and equalizes the HDMI signal, which helps maintain image quality and stable performance in systems with multiple displays and varied cable lengths. It also supports HDCP-compliant content, HDTV compatibility, 3D pass-through, deep color, x.v.Color, lip sync, and CEC, which can help with compatibility across modern commercial displays. Its 1U rack-mount chassis is useful for organized AV racks in retail stores, showrooms, and control closets. The main consideration is that it mirrors one source to all outputs. If a retail environment needs different content on different screens, a matrix switcher or network signage platform would be a better match than a standard HDMI distribution amplifier.

The best way to judge video support on this model is by its stated bandwidth. The Kramer VM-8H has a maximum data rate of 6.75 Gbps, which places it below the bandwidth typically associated with full modern HDMI 4K formats such as 4K at 60 Hz. It does support advanced HDMI features including 3D pass-through, deep color, x.v.Color, lip sync, CEC, HDCP compliance, and HDTV compatibility, so it is a strong fit for many professional HD distribution tasks. However, shoppers specifically looking for a 4K projector or 4K display distribution solution should verify the exact resolution and frame rate requirements of their system before choosing this unit. In practical terms, the VM-8H is best for installations where stable HDMI duplication across eight outputs is the priority and where the source format fits within the unit’s supported bandwidth. If your application requires newer high-bandwidth 4K signals, HDR, or 4K at higher frame rates, a more current HDMI distribution amplifier with higher throughput would be the safer choice.

Yes, all eight outputs on the Kramer VM-8H are designed to show the same HDMI source at the same time. It is a distribution amplifier, not a matrix switcher, so its purpose is to duplicate one input across multiple displays. That makes it ideal for situations where content needs to be mirrored consistently, such as retail signage, classrooms, training rooms, waiting areas, trade show booths, and event staging. With one HDMI input and eight identical HDMI outputs, the unit can feed multiple TVs, projectors, or monitors from a single source device while using reclocking and equalization to help maintain stable signal quality. This is a good choice for users who want synchronized content everywhere. The tradeoff is flexibility. You cannot send different videos or different sources to each screen with this product. If your application needs separate content per display, source switching by zone, or independent routing, you would want a matrix switcher or another multi-source distribution solution instead.

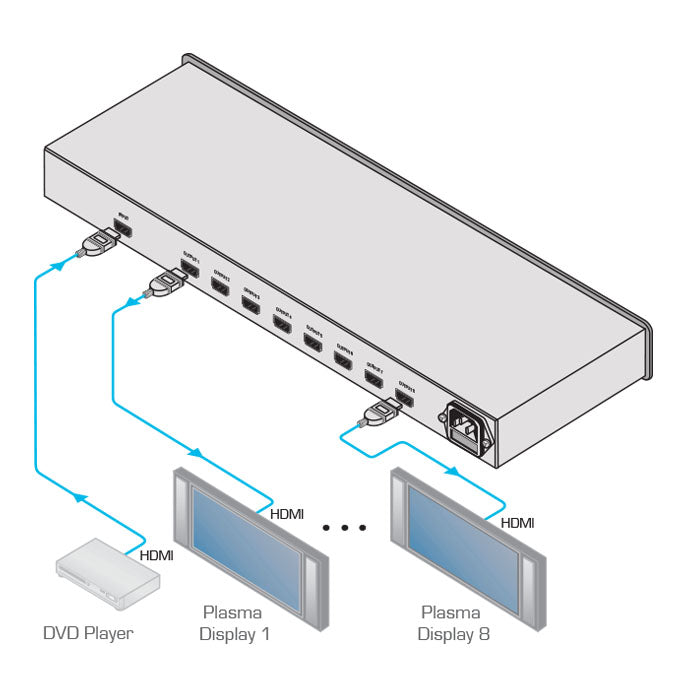

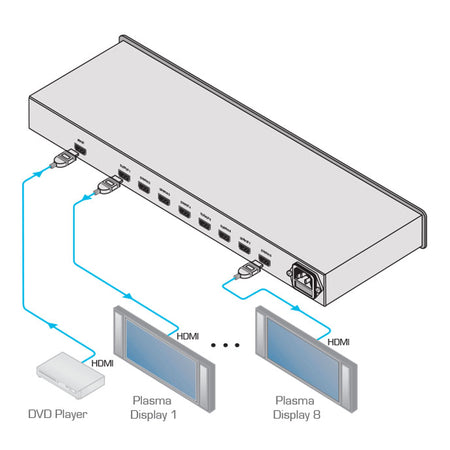

To use the Kramer VM-8H, connect your source device to the single HDMI input, then connect up to eight displays to the HDMI outputs. After that, power the unit using its internal 100 to 240V AC power supply and confirm that the source and displays complete their HDMI handshake properly. In a typical setup, the source could be a media player, computer, cable box, or presentation system, and the outputs could feed TVs, monitors, or projectors. Because the VM-8H is a 1U rack-mount unit, it fits neatly into professional AV racks for classrooms, boardrooms, signage systems, and rental setups. Its equalization and reclocking features help maintain signal quality across the outputs, especially when cable lengths vary. For best results, use quality HDMI cables and confirm that the displays support the signal format being sent. If users are trying to distribute one source to several displays with clean, organized rack integration, this is a straightforward approach. If they need to connect several different sources, they would also need a separate switcher or matrix.

A rack-mount HDMI distribution amplifier like the Kramer VM-8H is best for users building organized, permanent, or mobile professional AV systems where one HDMI source needs to feed multiple displays reliably. Typical buyers include AV integrators, schools, houses of worship, event production teams, retail installers, and corporate facilities managers. The rack-mount design matters because it keeps equipment secure, tidy, and easier to service in an AV rack. The VM-8H uses a 1U form factor, offers one HDMI input and eight outputs, and includes an internal worldwide power supply, which is helpful for standard installations and portable racks used in staging or touring applications. Its equalization and reclocking functions also make it more appropriate for demanding environments than a simple consumer splitter. This is a strong fit for anyone prioritizing consistent signal distribution and professional deployment. It may be more than a casual user needs for a simple two-screen setup at home. In that case, a smaller or less installation-focused HDMI splitter may be sufficient.
