Kramer VM-24HC 2x1:4 Compact HDMI Switchable Distribution Amplifier
Free shipping on all projectors!
Add to cart for discounted pricing!
Tax-Exempt Purchasing Available in cart
Regular price
$480.00
Couldn't load pickup availability
Frequently Asked Questions
What is the difference between an HDMI splitter and an HDMI switcher?
An HDMI switcher lets you choose between multiple source devices and send one selected source to a display path. An HDMI splitter takes one source signal and sends it to multiple displays at the same time. Some products combine both functions, which is useful when you need source selection and multi-display distribution in one box.
The Kramer VM-24HC is one of those combination units. It accepts two HDMI inputs, lets you switch between them, and distributes the selected input to four HDMI outputs. That makes it a practical fit for conference rooms, classrooms, home theater setups, and event staging where you may want to switch between two sources such as a laptop and media player, then feed several displays or destinations simultaneously.
If you only need to duplicate one source, a basic splitter may be enough. If you need to choose between sources and also feed several screens, a switchable distribution amplifier like this is the better match.
Do HDMI switchers reduce video or audio quality?
A good HDMI switcher should not noticeably reduce quality when it is used within its supported bandwidth and cable-length limits. The main risk is not the switch itself, but signal loss over longer runs, poor cable quality, or using a device that does not support the video format you need.
The Kramer VM-24HC is designed to maintain signal integrity with equalization and re-clocking, which rebuild digital HDMI signals for cleaner transmission over longer cable runs. It supports up to 6.75Gbps, is HDCP compliant, and passes features such as Deep Color, x.v.Color, 3D, and up to 7.1 uncompressed audio channels. In practical terms, that makes it suitable for many HD presentation and AV distribution applications where stable image and audio performance matter.
The tradeoff is bandwidth. Because this model tops out at 6.75Gbps, shoppers planning for newer high-bandwidth 4K formats should verify compatibility first. For standard HDMI distribution in presentation, staging, and HDTV environments, it is built to preserve quality rather than degrade it.
How do I know if I need an HDMI switcher, a splitter, or a distribution amplifier?
Choose based on how many sources you have and how many displays you need to feed. If you have several source devices but only need one output path, you need an HDMI switcher. If you have one source and want to send it to multiple displays, you need a splitter or distribution amplifier. If you need both source selection and multi-display distribution, you need a switchable distribution amplifier.
A distribution amplifier is especially useful when signal stability matters, because it does more than simply duplicate the signal. It helps maintain the HDMI signal across multiple outputs and can improve reliability in professional AV setups.
The Kramer VM-24HC fits the third category. It lets you select one of two HDMI inputs and distribute that selected signal to four HDMI outputs. That makes it a strong choice for meeting rooms, digital signage, training spaces, and home systems where two sources need to be routed to several displays. If your setup is simpler, a basic switcher or splitter may be more cost-effective.
What does a switchable HDMI distribution amplifier do?
A switchable HDMI distribution amplifier combines two core functions in one device. First, it switches between multiple HDMI sources. Second, it amplifies and distributes the chosen signal to several outputs at the same time. This helps simplify wiring and equipment selection in systems where one of several sources needs to appear on multiple displays.
The Kramer VM-24HC is a 2x1:4 HDMI switchable distribution amplifier. It takes one of two HDMI inputs and sends the selected source to four HDMI outputs. It also includes equalization and re-clocking to rebuild the digital signal, helping support longer cable runs with more reliable performance. It is HDCP compliant and supports HDTV-compatible content, 3D, Deep Color, x.v.Color, and up to 7.1 uncompressed audio.
This type of product is most useful in conference rooms, classrooms, home theaters, rental systems, and stage environments where you want flexible source selection without adding separate switchers and splitters.
Is the Kramer VM-24HC a good choice for TVs, projectors, and presentation displays?
Yes, it is a good fit for many HDMI-based TVs, projectors, and presentation displays, especially when you need one of two sources shown on up to four endpoints. Its HDTV compatibility, HDCP compliance, and support for multichannel audio make it well suited for common AV installations.
This model is particularly useful in boardrooms, classrooms, training rooms, home theater systems, and rental setups where a laptop, media player, or set-top source may need to be routed to several displays. Because it includes EDID pass-through and handling, it is designed to help the source and displays communicate properly for more dependable plug-and-play operation.
The key limitation is bandwidth. With a maximum data rate of 6.75Gbps, buyers should confirm that their intended resolution and refresh-rate requirements fall within that range. For many HD and presentation-focused systems, it is a practical and compact solution. For newer high-bandwidth 4K workflows, a higher-spec model may be the better option.
Can this HDMI switcher splitter support 4K video?
It depends on the exact 4K format. The most important specification here is the maximum data rate, and the Kramer VM-24HC supports up to 6.75Gbps. That means it is not intended for every modern 4K signal type, especially higher-bandwidth 4K formats that require more throughput.
For many shoppers, the safest approach is to match the device to the source resolution, frame rate, and color requirements before buying. If your application is focused on HDTV-era formats, 3D, Deep Color, and multichannel audio distribution, this model is well equipped. It is also HDCP compliant and includes equalization and re-clocking for dependable HDMI performance across multiple outputs.
If your system requires advanced 4K support at higher bandwidth, you should confirm exact compatibility or consider a model designed specifically for current 4K standards. This unit is best viewed as a compact professional HDMI switcher and distribution amplifier for demanding HD AV environments rather than a universal solution for every 4K installation.
Will this help with long HDMI cable runs or signal dropouts?
Yes, that is one of the main reasons to use a distribution amplifier instead of a very basic splitter. Long HDMI runs can introduce signal loss, handshake problems, or intermittent picture issues. A device with signal conditioning is designed to improve reliability in those situations.
The Kramer VM-24HC uses equalization and re-clocking technology to rebuild the digital HDMI signal. In practical terms, that helps preserve signal quality over longer cable distances and across four outputs. This can be especially helpful in classrooms, event setups, conference rooms, and home installations where sources and displays are not all located close together.
It is still important to use quality cables and stay within the device's bandwidth capabilities. Signal-conditioning features improve stability, but they do not override every limitation caused by poor cabling or unsupported resolutions. For users distributing HDMI to several displays with some distance involved, this model is a more reliable choice than a passive or less capable splitter.
Does the Kramer VM-24HC support audio as well as video?
Yes, it carries both HDMI video and HDMI audio. The Kramer VM-24HC supports up to 7.1 uncompressed audio channels, so it can pass multichannel sound along with the selected HDMI video source. That makes it useful for home theater, presentation, and staging environments where audio needs to remain embedded in the HDMI signal path.
It also supports features such as Deep Color, x.v.Color, and 3D pass-through, showing that it is built for full HDMI signal handling rather than video-only switching. For users feeding displays, AV receivers, or other HDMI-equipped endpoints, that can simplify the system by keeping audio and video together on the same connection.
As always, overall compatibility depends on the source device, display or downstream equipment, and the bandwidth required by your specific content format. For standard professional AV and HDTV-oriented HDMI distribution, this unit is designed to pass both audio and video cleanly across its outputs.

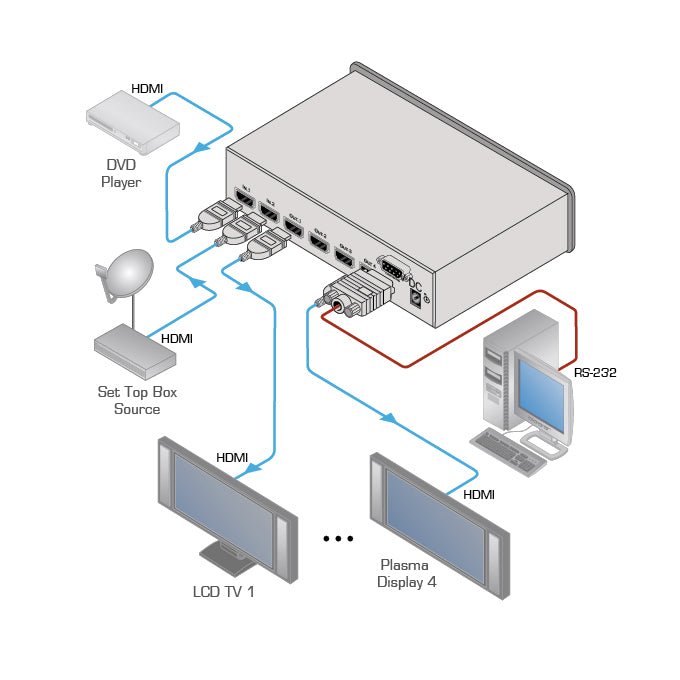

How is the Kramer VM-24HC controlled in an AV system?
The Kramer VM-24HC offers several control methods, which makes it flexible for both simple and integrated installations. You can operate it from the front panel for direct local control, use the IR remote for convenient switching at a distance, or connect through RS-232 for integration into a larger control system.
That range of control options is useful in different environments. Front-panel control works well for desktop or small-room use. IR control is helpful in home theater or presentation spaces where quick source changes are needed. RS-232 matters most in professional AV systems where the switcher needs to be automated as part of a room-control processor or centralized equipment rack.
This flexibility makes the unit suitable for home theater, rental and staging, classrooms, and meeting spaces. Buyers who need remote management beyond manual switching should pay close attention to the RS-232 option, since it makes this compact HDMI switchable distribution amplifier easier to incorporate into a managed AV workflow.
Who should buy a compact 2-in, 4-out HDMI switcher amplifier like this?
This type of product is best for users who need to switch between two HDMI sources and send the selected source to four displays or HDMI destinations at once. That includes conference rooms with a laptop and media player, classrooms with instructor and guest sources, home theater setups with multiple display paths, and event or staging systems that need reliable signal distribution.
The Kramer VM-24HC is especially well suited to buyers who want a compact professional AV solution rather than separate boxes for switching and splitting. Its small desktop form factor saves space, and two units can be mounted side-by-side in 1U rack space with the appropriate adapter. It also supports HDCP, 3D, Deep Color, x.v.Color, and up to 7.1-channel audio, while adding equalization and re-clocking for better signal stability.
It is less ideal for shoppers who need more than two inputs, fewer than four outputs, or higher-bandwidth modern 4K support. In those cases, a different configuration would be a better fit.
The Kramer VM-24HC is a high-performance HDMI switcher and distribution amplifier, designed to accept one of two HDMI inputs and distribute the selected signal to four HDMI outputs. It supports a maximum data rate of 6.75Gbps, ensuring high-quality signal transmission for demanding multimedia and presentation environments. Featuring Kramer's proprietary Equalization and re-Klocking technology, this unit effectively rebuilds digital signals to allow for longer cable runs without loss of quality. The device is HDCP compliant and supports advanced features including Deep Color, x.v.Color, and 7.1 uncompressed audio channels, as well as 3D pass-through. EDID pass-through and handling algorithms ensure seamless Plug and Play operation for your source and display systems. Control is flexible, offering options via the front panel, IR remote, or RS-232, making it suitable for home theater, rental, and staging applications. Its compact desktop size allows for convenient placement, with the option to mount two units side-by-side in a 1U rack space.
| Input | 2 HDMI |
| Output | 4 HDMI |
| Max Data Rate | 6.75Gbps |
| Compliance | HDCP Compliant, HDTV Compatible |
| Audio Support | Up to 7.1 Uncompressed Audio Channels |
| Control | Front panel, IR remote, RS-232 |
| Form Factor | Compact desktop (Rack mountable with optional adapter) |
| Power Supply | 5V DC |
