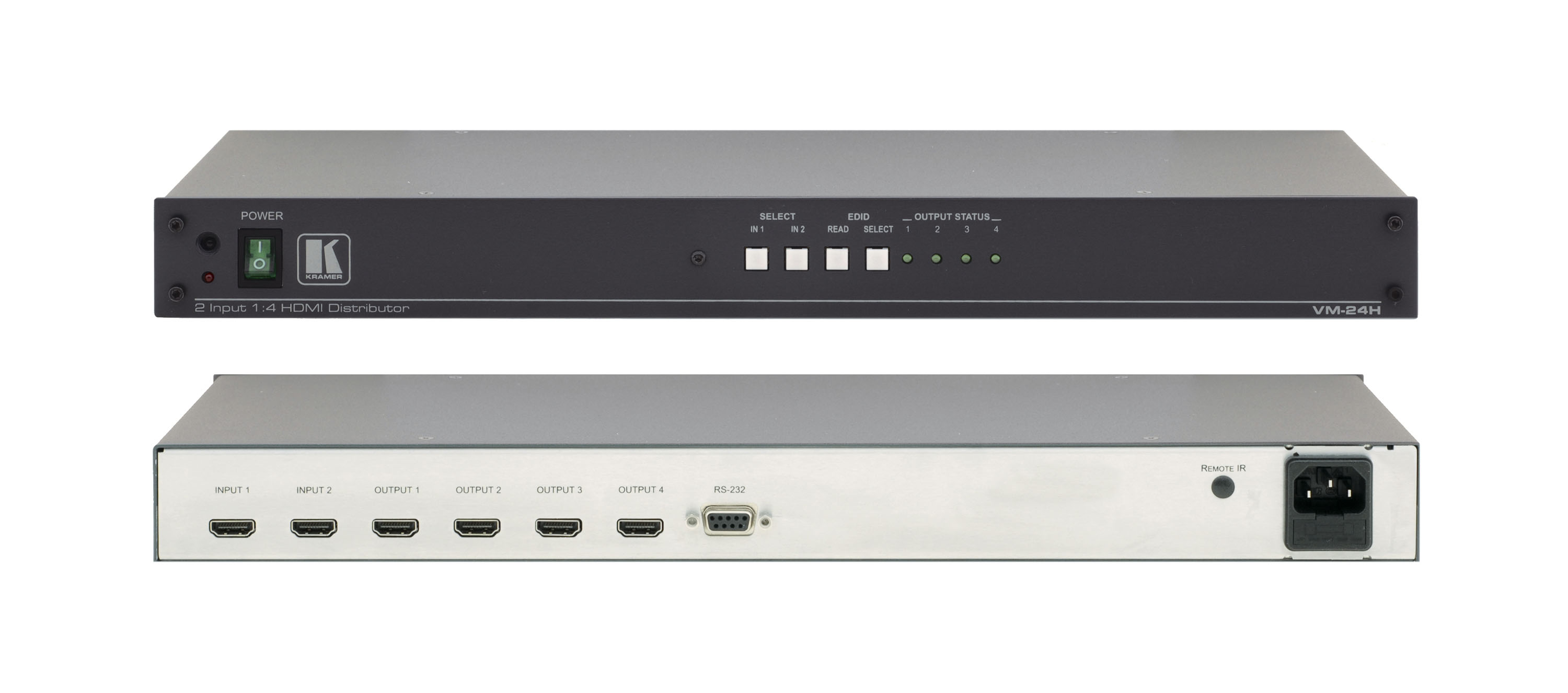

Kramer VM-24H 2x1:4 HDMI Switchable Distribution Amplifier 6.75Gbps 1U Rack

An HDMI distribution amplifier takes one HDMI source signal and sends it to multiple displays while helping maintain signal stability. It is useful when you need the same content on several screens, such as in conference rooms, classrooms, digital signage setups, home theater zones, rental staging, or training spaces. The Kramer VM-24H adds another layer of flexibility because it is not just a basic splitter. It lets you choose between two HDMI inputs and distribute the selected source to four identical HDMI outputs. It also reclocks and equalizes the signal, which helps preserve image integrity compared with a passive split approach. This type of product is best for users who want reliable source distribution without adding a matrix switcher. It supports HDCP, 3D pass-through, Deep Color, x.v.Color, Lip Sync, and CEC, so it fits many modern AV systems. The main limitation is that all outputs carry the same selected input, so it is not designed for sending different sources to different displays.

The main difference is function. An HDMI splitter sends one source to multiple displays. An HDMI switcher lets you select between multiple sources and send one chosen source to a display. An HDMI distribution amplifier combines signal distribution with active signal conditioning, and some models also include switching. The Kramer VM-24H is best described as a switchable HDMI distribution amplifier. It accepts two HDMI inputs, lets you select one, and then distributes that selected signal to four outputs. Because it reclocks and equalizes the HDMI signal, it is more appropriate for professional AV systems than a simple passive splitter. This matters for buyers comparing options. If you only need one source to two or four screens, a basic splitter may be enough. If you need to choose between sources and feed several displays at once, a switchable distribution amplifier is the better fit. The tradeoff is that it still outputs the same selected source to all displays, so it is not a full matrix routing solution.

A 1x4 HDMI distribution amplifier takes one input and sends it to four outputs. A 2x1:4 HDMI switchable distribution amplifier adds source selection, meaning you can connect two HDMI sources and choose which one is sent to all four displays. With the Kramer VM-24H, that means you can connect, for example, a media player and a presentation laptop, then switch between them without repatching cables. The selected input is distributed to four identical HDMI outputs, which is helpful in presentation rooms, training spaces, and staging systems where quick source changes matter. The added flexibility benefits users who need simple source control without stepping up to a more complex matrix switcher. It is a practical middle ground for installations that need more than a fixed 1x4 splitter but do not require independent routing. The limitation is that all four outputs mirror the same selected input, so it is not suitable if each display needs a different source.

The Kramer VM-24H is a strong fit for users who need to switch between two HDMI sources and send the selected signal to four displays with dependable signal handling. It is particularly suited for conference rooms, classrooms, houses of worship, rental and staging environments, training rooms, and other professional AV spaces. Its rack-mount 1U design makes it practical for equipment racks and integrated systems. It supports front panel control, RS-232, and IR, which helps installers and AV managers tie it into broader control systems. Support for HDCP, 3D pass-through, Deep Color, x.v.Color, Lip Sync, and CEC makes it compatible with many modern HDMI workflows. This product is best for installations that need identical output to multiple screens from one selected source. It is less appropriate for users who need independent display routing, audio return features like HDMI ARC, or newer ultra-high-bandwidth formats beyond its 6.75Gbps specification. For standard professional HDMI distribution tasks, though, it covers the core requirements well.

The safe answer is that you should verify the exact resolution and frame rate requirements before choosing it for 4K. The Kramer VM-24H supports a maximum data rate of 6.75Gbps total, or 2.25Gbps per graphics channel. That bandwidth supports many HDMI applications, including HD and some lower-bandwidth formats, but it does not match the much higher bandwidth typically associated with modern 4K at higher frame rates or full chroma formats. For buyers, the key point is that bandwidth determines practical 4K compatibility. If your system requires robust support for newer 4K sources, especially at 60Hz or with high color sampling demands, you may want a higher-bandwidth HDMI distribution solution. If your application is based on HD, legacy HDMI formats, or specific known-compatible source/display combinations, this unit may still be a suitable choice. It is best for users who prioritize reliable professional HDMI distribution and source switching within its published bandwidth limits rather than broad support for the latest 4K signal formats.

Yes, the Kramer VM-24H supports HDCP and a useful set of HDMI features, including 3D pass-through, Deep Color, x.v.Color, Lip Sync, and CEC. That makes it suitable for many professional and home AV scenarios where source devices and displays rely on standard HDMI handshaking and protected content support. This is important for systems using media players, cable boxes, Blu-ray sources, or presentation devices that may enforce HDCP. The built-in EDID pass-through algorithm also helps simplify compatibility between the connected source and displays by communicating display capabilities in a more manageable way. The best fit is for users who need broad HDMI feature support without moving into a much more complex routing platform. The tradeoff is that compatibility in HDMI systems still depends on the full signal chain, including cable quality, source resolution, display capabilities, and control settings. So while the feature support is strong for this class, it is still wise to confirm requirements if you have mixed displays or demanding signal formats.

Reclocking and equalization help clean up and stabilize the HDMI signal before it is sent to connected displays. In practical terms, this can improve reliability by reducing timing errors and compensating for signal degradation that may occur through cabling and distribution. The Kramer VM-24H actively reclocks and equalizes one of its two selectable HDMI inputs, then distributes that selected signal to four identical outputs. This is one reason a professional distribution amplifier is often preferred over a simple passive splitter, especially in installations where consistent image quality and stable handshaking matter. These features benefit conference rooms, presentation spaces, and rental environments where signal issues can disrupt operations. They are especially helpful when multiple displays need the same feed and the system has to remain dependable over time. The limitation is that signal conditioning does not override every problem. Extremely long runs, poor cables, unsupported source formats, or incompatible display requirements can still create issues, so system design still matters.

Yes, it is a good choice for installations that need two source options and four mirrored HDMI outputs. In a conference room or classroom, it can switch between sources such as a presenter laptop and a media player, then send the selected signal to multiple displays. In digital signage or training environments, it can deliver the same content to several screens from a central rack. Its 1U 19-inch rack-mount format suits permanent installations, while front panel, RS-232, and IR control options make it easier to integrate into managed AV systems. Support for HDCP and common HDMI features also helps with compatibility across many source and display combinations. This model is best for spaces where every display should show the same selected source. It is not the right choice if different screens must show different content at the same time, because it is not a matrix switcher. It is also worth confirming your video bandwidth needs if your project depends on newer high-bandwidth 4K formats.

Yes, the Kramer VM-24H supports multiple control methods, including front panel switching, RS-232, and IR. That gives it more flexibility than a basic consumer splitter and makes it suitable for integrated professional AV systems. RS-232 is especially useful in commercial installations where the unit needs to work with room control processors, touch panels, or automated AV workflows. IR control adds another option for remote operation, while the front panel provides direct manual access when local switching is preferred. This makes the unit a good fit for boardrooms, training rooms, and staging systems where control access matters just as much as signal distribution. The main benefit is operational flexibility without requiring users to physically reconnect sources. The tradeoff is that buyers looking for network-based control or more advanced matrix-style routing should confirm whether they need a different class of product. For straightforward professional HDMI source selection and four-way distribution, the available control options are practical and installation-friendly.

Start by checking five things: number of inputs, number of outputs, required signal bandwidth, control needs, and whether all displays will show the same source. Those factors usually determine whether you need a basic splitter, a switchable distribution amplifier, or a full matrix switcher. The Kramer VM-24H is designed for systems with two HDMI sources and four displays that all need the same selected signal. It supports up to 6.75Gbps, includes HDCP support, and offers front panel, RS-232, and IR control. It also uses EDID pass-through, which can simplify plug-and-play behavior with connected sources and displays. It is a good fit for professional AV users who want rack-mount reliability and flexible source selection without the complexity of matrix routing. Before buying, make sure your resolution and frame rate requirements fit within its bandwidth limits, and confirm that your application does not require different content on different screens. Those two checks are often the deciding factors in this category.
