Kramer VM-16H 1:16 HDMI Distribution Amplifier

An HDMI distribution amplifier takes one HDMI source and sends the same signal to multiple displays while helping preserve signal quality. It is commonly used when you need one media player, cable box, computer, or signage source to appear on several TVs or projectors at the same time. The Kramer VM-16H is a 1:16 HDMI distribution amplifier, which means it sends one HDMI input to 16 identical HDMI outputs. It also uses equalization and reclocking to help stabilize the signal over longer cable runs than a basic passive splitter would typically handle. That matters in professional AV systems, retail displays, rental and staging setups, and larger home theater installations where reliability is important. This type of product is best for users who want the same content on every screen. It is not the right choice if you need different content on each display or matrix-style source switching. In that case, a matrix switcher would be more appropriate.

The main difference is signal management. A basic HDMI splitter duplicates one source to multiple displays, but an HDMI distribution amplifier is built to actively strengthen and stabilize that signal for more reliable performance, especially across several outputs or longer cable runs. The Kramer VM-16H is both a splitter in function and a distribution amplifier in design. It takes one HDMI input and distributes it to 16 outputs, while using Kramer equalization and reclocking technology to help maintain signal integrity. It also supports key HDMI features such as Deep Color, x.v.Color, Lip Sync, CEC, and 3D pass-through, along with HDTV and HDCP compliance. Shoppers should consider a distribution amplifier when the setup needs dependable signal delivery in professional environments such as AV racks, digital signage, houses of worship, or event systems. A simpler splitter may be enough for short, basic home setups, but it usually offers less protection against signal degradation.

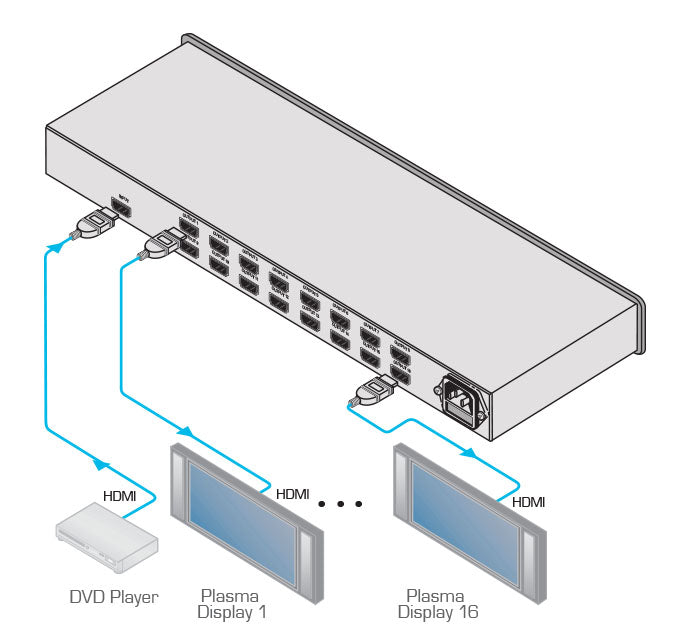

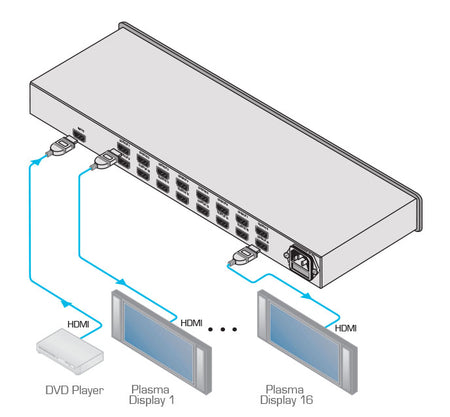

A 1:16 HDMI distribution amplifier supports up to 16 displays, all showing the same HDMI signal at the same time. That makes it a good fit for installations where one source needs to feed many identical outputs, such as showroom displays, menu boards, training rooms, control rooms, or large residential systems. The Kramer VM-16H is specifically designed for this role. It accepts one HDMI input and distributes it to 16 HDMI outputs. Each output mirrors the same source rather than creating separate zones or different content streams. It also includes active output LED indicators, which can help installers confirm which outputs are operating. This type of device is best for users who need broad signal duplication with consistent quality. The tradeoff is flexibility. If your project requires different sources on different screens, or independent switching per display, a distribution amplifier is not the right category. For that use case, you would want an HDMI matrix switcher instead.

Yes, that is one of the main reasons to choose a distribution amplifier instead of a basic splitter. The Kramer VM-16H includes equalization and reclocking technology designed to help preserve HDMI signal integrity as the signal is distributed across multiple outputs and longer cable paths. Reclocking helps regenerate the digital signal timing, while equalization helps compensate for loss that can occur through cable length and connection points. In practical terms, this can reduce issues such as dropouts, sparkles, or unstable handshakes that are more likely in larger AV systems. This matters most for professional installations, rental and staging, retail display networks, and larger home theater racks where reliability is more important than using the simplest possible device. The limitation is that cable quality and total run length still matter. No distribution amplifier can fully overcome poor cabling or installation problems, so using quality HDMI cables remains important for best results.

Yes, the Kramer VM-16H supports HDCP and a broad set of standard HDMI features. According to its specifications, it is compatible with HDTV and supports HDMI functions including Deep Color, x.v.Color, Lip Sync, CEC, and 3D pass-through. That makes it suitable for many common HDMI sources and displays where protected content and standard consumer HDMI features are required. HDCP support is especially important if you are distributing content from devices such as streaming players, media boxes, or other protected digital sources, since unsupported hardware can create handshake or display issues. This feature set is most useful for integrators and buyers who want confidence that the amplifier will work in mixed commercial or residential environments. The key limitation is that compatibility still depends on the entire signal chain, including source devices, displays, cable quality, and the HDMI capabilities of connected equipment. It is always best to confirm that all connected components support the same signal standards.

Yes, this model is well suited for any application where one HDMI source must be sent reliably to many displays. The Kramer VM-16H is a practical choice for retail store displays, rental and staging systems, and larger home theater or whole-room AV racks because it provides 16 identical HDMI outputs from a single input. Its equalization and reclocking are useful in professional environments where cable lengths, rack integration, and consistent uptime matter. The 1U, 19-inch rack-mountable design also makes it easier to install in standard AV racks, and the active output LEDs help with quick status checks during setup or troubleshooting. It is best for projects that need one source repeated everywhere, such as promotional video loops, mirrored presentations, or a centralized video source feeding multiple screens. The main tradeoff is that it does not switch between multiple sources or create independent display zones. If your installation needs content routing flexibility, another product category would be a better fit.

Start with output count, signal stability, standards support, and installation format. A good HDMI distribution amplifier should have enough outputs for your current system, support protected HDMI content, and include active signal management features if the installation involves multiple displays or longer cable runs. The Kramer VM-16H addresses those core requirements with a 1:16 output design, HDCP and HDTV compatibility, and support for HDMI features such as Deep Color, x.v.Color, Lip Sync, CEC, and 3D. Its equalization and reclocking are important for maintaining signal integrity in more demanding environments. For installers, the 1U rack-mount chassis and active output LED indicators are also practical advantages. This type of amplifier is best for centralized signal distribution in commercial and high-performance residential systems. Buyers should also think about what it does not do. It duplicates one source to many screens, but it does not function as a matrix switcher, scaler, or extender. Matching the product type to the actual installation goal is the most important part of the buying decision.

No, a distribution amplifier like this is designed to send the same HDMI source to every connected display. The Kramer VM-16H has one HDMI input and 16 mirrored outputs, so all connected TVs or projectors will show identical content. That makes it the right tool for digital signage loops, mirrored classroom content, duplicate confidence monitors, and retail displays where consistency across all screens is the goal. It is also useful when you want one source device to feed many destinations without adding a separate player for each screen. If you need different content on different displays, you should look for an HDMI matrix switcher instead. A matrix allows multiple sources and selective routing, while a distribution amplifier focuses on duplication and signal stability. Understanding that difference can prevent buying the wrong category of product for your system design.

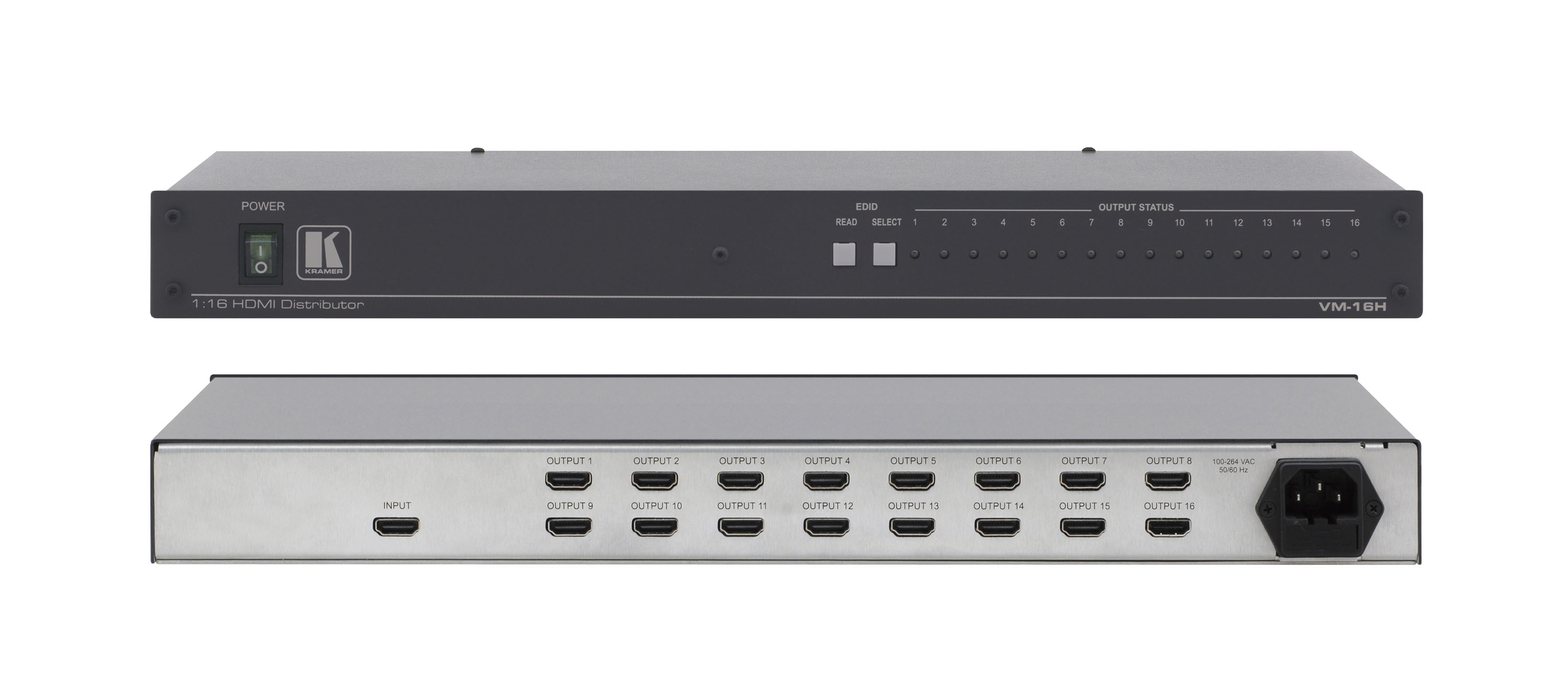

Yes, the Kramer VM-16H is designed as a 1U standard 19-inch rack-mountable unit. That matters because rack-mount hardware is easier to integrate into professional AV systems, equipment closets, control rooms, and structured installations where space, cable management, and service access are important. A 1U form factor keeps the amplifier compact while still offering 16 HDMI outputs, which is useful in dense AV racks. In commercial environments, rack mounting can also improve airflow planning, reduce clutter, and make the system easier to label and maintain. The active output LED indicators add another practical benefit by allowing quick visual confirmation of operating outputs. This is especially valuable for installers, integrators, and facilities teams managing permanent AV systems. If you only need a small tabletop solution for a simple two-screen setup, a compact desktop splitter may be enough. But for larger, organized installations, a rack-mount design is usually the more appropriate choice.

This product is best for users who need to send one HDMI source to a large number of displays with dependable signal performance. Typical users include AV integrators, event production teams, retailers, schools, houses of worship, and homeowners building larger centralized AV systems. The Kramer VM-16H is particularly useful when the setup calls for 16 mirrored outputs, HDCP-compliant HDMI distribution, and features that help maintain signal quality, such as equalization and reclocking. It is also a strong fit for rack-based installations because of its 1U, 19-inch chassis and worldwide 100 to 240V AC power supply, which adds flexibility for different deployment environments. It is not ideal for every buyer. If you only need to split HDMI to two or four displays, a smaller amplifier may be more appropriate. If you need different content on different displays, a matrix switcher is the better solution. This model makes the most sense when high-output, same-source HDMI distribution is the core requirement.
