Kramer TP-580T transmitter

SKU: TP-580T
(0)
$268.00

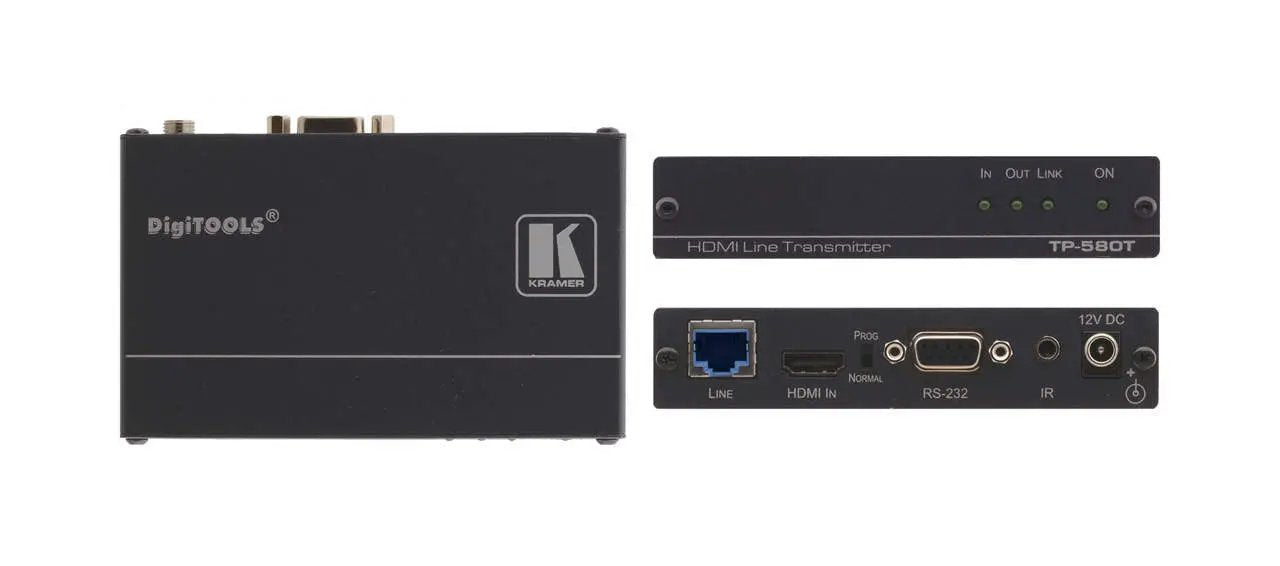

Kramer TP-580T transmitter : The TP−580T is a high−performance, HDBaseT twisted pair transmitter for 4K@60 UHD (4:2:0), 2Kx4K HDMI, bidirectional RS−232 and IR signals. The TP−580T inputs HDMI, RS−232, and IR signals and converts them into an HDBaseT twisted pair signal that it transmits to a TP−580R receiver.

INPUTS

  • 1 HDMI connector

OUTPUTS

  • 1 HDBaseT twisted pair RJ-45 connector

PORTS

  • 1 IR on a 3.5mm mini jack, 1 RS-232 on a 9-pin D-sub connector

BANDWIDTH

  • 10.2Gbps (3.4Gbps per graphic channel)

RS-232 BAUD RATE

  • 115200

COMPLIANCE WITH HDMI STANDARD

  • Supports HDMI and HDCP

POWER CONSUMPTION

  • 12V DC, 275mA

OPERATING TEMPERATURE

  • 0° to 40°C (32° to 104°F)

STORAGE TEMPERATURE

  • -40° to +70°C (-40° to 158°F)

HUMIDITY

  • 10% to 90%, RHL non-condensing

INCLUDED ACCESSORIES

  • Power supply

OPTIONS

  • RK-3T 19" rack mount

PRODUCT DIMENSION

  • 12.00cm x 7.15cm x 2.44cm (4.72" x 2.81" x 0.96" ) W, D, H

PRODUCT WEIGHT

  • 0.2kg (0.4lbs) approx

SHIPPING DIMENSION

  • 15.70cm x 12.00cm x 8.70cm (6.18" x 4.72" x 3.43" ) W, D, H

SHIPPING WEIGHT

  • 0.7kg (1.6lbs) approx

The Kramer TP-580T transmitter is a high-performance device that allows you to transmit high-quality audio and video signals over long distances. With support for 4K@60 UHD (4:2:0) and 2Kx4K HDMI signals, this transmitter ensures that you get superior image and sound quality.

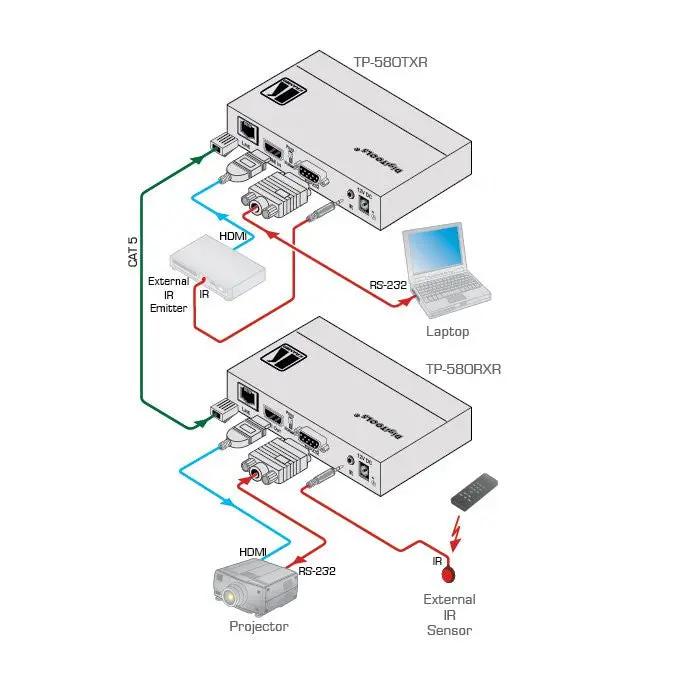

Equipped with one HDMI input, the TP-580T transmitter effortlessly converts HDMI, RS-232, and IR signals into an HDBaseT twisted pair signal. This signal is then transmitted to a TP-580R receiver, enabling you to extend your HDMI signals up to 70 meters over a single twisted pair cable.

With a maximum data rate of 10.2Gbps and support for HDCP compliance, the TP-580T transmitter is fully compatible with HDTV standards. It delivers crystal-clear, high-resolution visuals, ensuring an immersive viewing experience.

This transmitter also features an IR port on a 3.5mm mini jack and an RS-232 port on a 9-pin D-sub connector, allowing for bidirectional control. With a RS-232 baud rate of 115200, you can conveniently control your devices from a distance.

Compact and lightweight, the TP-580T transmitter is easy to install and operate. It consumes low power, with a requirement of 12V DC and 275mA, making it energy-efficient. It also operates within a wide temperature range, from 0° to 40°C, ensuring optimal performance in various environments.

For added convenience, the TP-580T transmitter includes a power supply, so you can start using it right out of the box. Additionally, it is compatible with the RK-3T 19" rack mount accessory, allowing for easy integration into your existing setup.

With dimensions of 12.00cm x 7.15cm x 2.44cm and a weight of just 0.2kg, the TP-580T transmitter is sleek and portable. It also comes with a shipping weight of 0.7kg, ensuring safe and secure delivery to your address.

Experience seamless signal transmission and exceptional video quality with the Kramer TP-580T transmitter. Whether you need to extend HDMI signals for home entertainment systems or professional installations, this transmitter will meet your requirements with its advanced features and reliable performance.

Elevate your audio and video experience with the Kramer TP-580T transmitter. This high-performance HDBaseT transmitter supports stunning 4K@60 UHD (4:2:0) and 2Kx4K HDMI signals, ensuring superior quality for your content.

Key features include:
- One HDMI input with seamless conversion of HDMI, RS-232, and IR signals
- Transmission up to 70 meters over a single twisted pair cable
- Maximum data rate of 10.2Gbps with HDCP compliance, making it compatible with all HDTV standards
- Robust design for various operating conditions, supporting temperatures from 0° to 40°C

Whether for home theaters or professional settings, the TP-580T delivers crystal-clear visuals and immersive sound, enhancing your viewing experience like never before. Get ready to transform your audio-visual setup!
