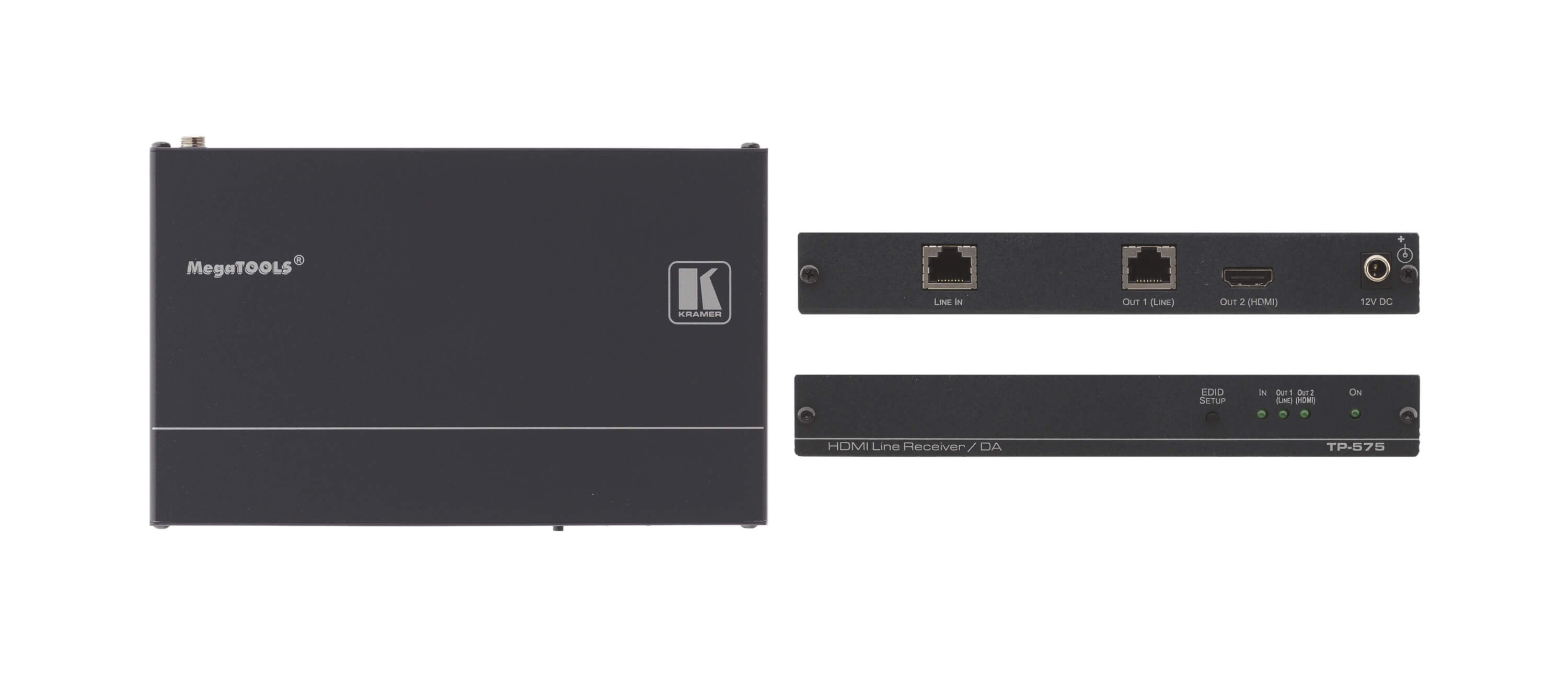

Kramer TP-575 1:2 Twisted Pair HDMI Line Driver Distribution Amplifier

An HDMI repeater refreshes the signal over a relatively short added distance, while an HDMI extender is designed to carry HDMI much farther by converting it to another transport method, often twisted pair cabling. If you need to reach a display across a room, down a hallway, or through a structured wiring setup, an extender is usually the better fit. The Kramer TP-575 is an HDMI over twisted pair line driver and distribution amplifier, so it does more than simply repeat a signal. It receives a twisted pair input and outputs both HDMI and twisted pair, letting you feed a local display and continue the signal to compatible receivers. It supports up to 4.95Gbps, HDCP, 3D pass-through, and long runs up to 90m at 1080i or 70m at 1080p. This type of product is best for installed AV systems, classrooms, conference rooms, and home theater setups where distance and distribution matter. A repeater may be enough for a short cable problem, but an extender is the right choice when you need longer range, cleaner infrastructure, or multiple display locations.

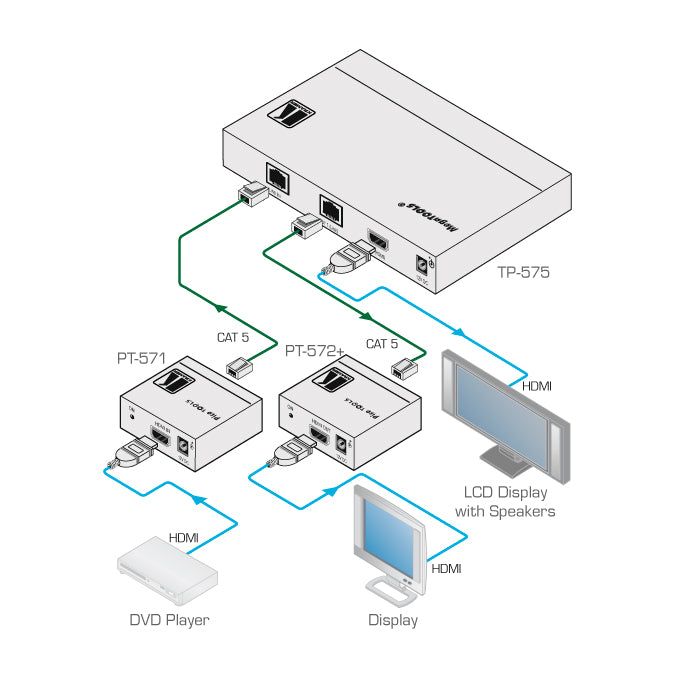

To extend one HDMI source to two monitors over distance, you typically need a device that combines signal extension with distribution. A basic splitter duplicates the signal locally, but it does not always solve long-distance cabling limits. For longer runs, an HDMI over twisted pair solution is usually the practical approach. The Kramer TP-575 is designed for that kind of setup. It takes a twisted pair signal and provides both a local HDMI output and a twisted pair output to a compatible receiver. That means you can feed one nearby display and one remote display at the same time. It also supports daisy-chaining to as many as 6 receivers, which is helpful if you want to send the same source to multiple remote endpoints. This is a strong option for presentations, digital signage, and training rooms where the same content must appear in more than one place. The main consideration is compatibility: the remote display side requires a compatible receiver, and maximum distance depends on resolution, with up to 70m at 1080p and 90m at 1080i.

You can extend HDMI over Ethernet-style cabling by using an HDMI over twisted pair extender system. These systems convert the HDMI signal so it can travel over structured cabling such as twisted pair, then convert it back to HDMI at the display end using a compatible receiver. The Kramer TP-575 is built for this application. It uses DGKat twisted pair transmission and supports HDMI distribution over long distances while maintaining HDCP compliance, 3D pass-through, x.v.Color, and advanced audio formats like Dolby TrueHD and DTS-HD. In practical terms, it can send 1080p up to 70m and 1080i up to 90m, which is much farther than a standard HDMI cable can typically manage reliably. This type of setup is ideal for conference rooms, education spaces, houses of worship, and home AV installations where running a long HDMI cable is difficult or impractical. The important tradeoff is that it is not just a cable adapter. You need compatible transmitter and receiver components, and performance depends on proper cabling and installation quality.

The best AV signal extender for a professional installation should match your signal type, distance, display count, and reliability needs. Key features to look for include the supported resolution and data rate, HDCP compliance, audio format support, EDID and HPD handling, maximum cable distance, and whether the system can power multiple endpoints efficiently. The Kramer TP-575 checks several boxes that matter in real-world installations. It supports up to 4.95Gbps, handles HDMI features such as 3D pass-through and uncompressed audio, and includes EDID and HPD pass-through for more reliable handshaking between the source and display. It also supports Power Connect, which can simplify installation by powering transmitters and receivers through a single connection, and it can daisy-chain up to 6 receivers for wider distribution. This kind of extender is especially useful in boardrooms, classrooms, and multimedia systems where stable signal delivery matters more than a simple point-to-point cable run. The tradeoff is that it is tailored to 1080-class distribution rather than newer ultra-high-bandwidth 4K requirements.

The Kramer TP-575 functions as both an extender and a limited distribution device. It is primarily a twisted pair HDMI line driver and distribution amplifier, which means it is designed to receive a twisted pair signal and then provide two outputs: one HDMI output for a local display and one twisted pair output for continued extension to a compatible receiver. That makes it more flexible than a simple HDMI splitter. A standard splitter usually takes one HDMI input and duplicates it to multiple HDMI outputs nearby. The TP-575 is better suited to installed systems where one display may be local and another needs to be farther away over twisted pair cabling. It also supports daisy-chaining up to 6 receivers, which extends its usefulness in multi-display environments. This is a good fit for presentation spaces, training rooms, and AV racks where you want clean cable management and longer signal reach. The limitation is that it is not a universal multi-output HDMI splitter in the traditional sense, so buyers should make sure the rest of the signal chain uses compatible twisted pair components.

The Kramer TP-575 can extend an HDMI signal up to 90 meters, or about 295 feet, at 1080i, and up to 70 meters, or about 230 feet, at 1080p. Those distances make it suitable for many commercial AV and home installation projects where direct HDMI cabling would be unreliable or difficult to route. The exact usable distance depends on resolution, cable quality, and the rest of the system design. Higher resolutions generally reduce maximum range, which is why 1080p is rated for a shorter distance than 1080i. The unit is designed for DGKat twisted pair transmission, so proper cabling and compatible receiving hardware are important for achieving rated performance. This range is especially useful in classrooms, conference rooms, digital signage runs, and home theaters with equipment racks located away from the display. If your project involves newer high-bandwidth 4K formats, you should verify that the extender's 4.95Gbps data rate matches your source requirements, because this unit is best aligned with Full HD distribution rather than modern high-frame-rate 4K transport.

Yes. The Kramer TP-575 supports 1080p distribution, 3D pass-through, and HDCP-compliant content handling. It is also HDTV compatible and supports HDMI features including x.v.Color, uncompressed audio, Dolby TrueHD, and DTS-HD, which makes it suitable for both video and high-quality audio applications. For buyers, this means the unit is designed to work with many common Full HD source devices and protected content environments such as media players, AV systems, and presentation equipment that rely on proper HDMI handshaking. Its EDID and HPD pass-through features help maintain communication between the source and the display, reducing common issues like blank screens or unstable sync. This is a strong fit for home theater, conference room, and multimedia installations based around Full HD workflows. The key limitation is bandwidth. With a maximum data rate of 4.95Gbps, it is engineered for 1080-class HDMI distribution rather than the much higher data demands of many current 4K HDR systems.

EDID and HPD pass-through help HDMI devices communicate correctly. EDID, or Extended Display Identification Data, tells the source what resolutions and formats the display supports. HPD, or Hot Plug Detect, signals that a display is connected and ready. In an extender system, poor handling of either can cause no image, incorrect resolution selection, or intermittent connection problems. The Kramer TP-575 includes both EDID and HPD pass-through, which is important in professional AV setups where reliability matters. These features allow the source, extender chain, and display to exchange the information needed for stable operation. That is especially useful when distributing content to remote displays or using protected HDMI sources that are sensitive to handshaking issues. Shoppers who are building a boardroom, classroom, or integrated home AV system benefit most from these features because they reduce troubleshooting and improve compatibility. While EDID and HPD support do not increase resolution or distance on their own, they often make the difference between a system that works inconsistently and one that behaves predictably.

Yes. The Kramer TP-575 supports daisy-chaining to up to 6 compatible receivers, making it useful when the same HDMI source needs to reach several remote display points. This is an advantage in installations such as retail signage, training facilities, control rooms, and presentation spaces where content needs to be repeated beyond a single endpoint. In practice, the TP-575 provides both a local HDMI output and a twisted pair output, then allows expansion across additional compatible receivers in the chain. That gives installers more flexibility than a simple one-to-one extender. It can reduce the need for separate distribution hardware in some layouts, especially when the goal is to send the same signal along a structured cabling path. The main thing to verify is system compatibility and signal planning. Daisy-chained systems depend on the correct receiver models and solid cabling practices. Buyers should also remember that the product's performance is based on its 4.95Gbps bandwidth and Full HD-era design, so it is best suited to 1080p and similar formats rather than high-bandwidth 4K applications.

The Kramer TP-575 is the right choice for users who need reliable HDMI distribution over twisted pair cabling in a Full HD installation. It fits best in conference rooms, classrooms, home theaters, houses of worship, and multimedia systems where the source equipment is not located close to every display and where a mix of local and remote outputs is helpful. It is especially useful if you want a local HDMI output plus continued twisted pair extension, need HDCP-compliant operation, or want features like EDID and HPD pass-through to improve system stability. Power Connect can also simplify installation by reducing separate power requirements across compatible devices, and daisy-chain support adds flexibility for multi-display layouts. It is not the best fit for every project. If your priority is the newest high-bandwidth 4K formats, HDR-heavy workflows, or a basic low-cost short cable fix, this may not be the ideal tool. But for professional Full HD signal extension and structured AV distribution, it is a practical, installation-focused solution.
