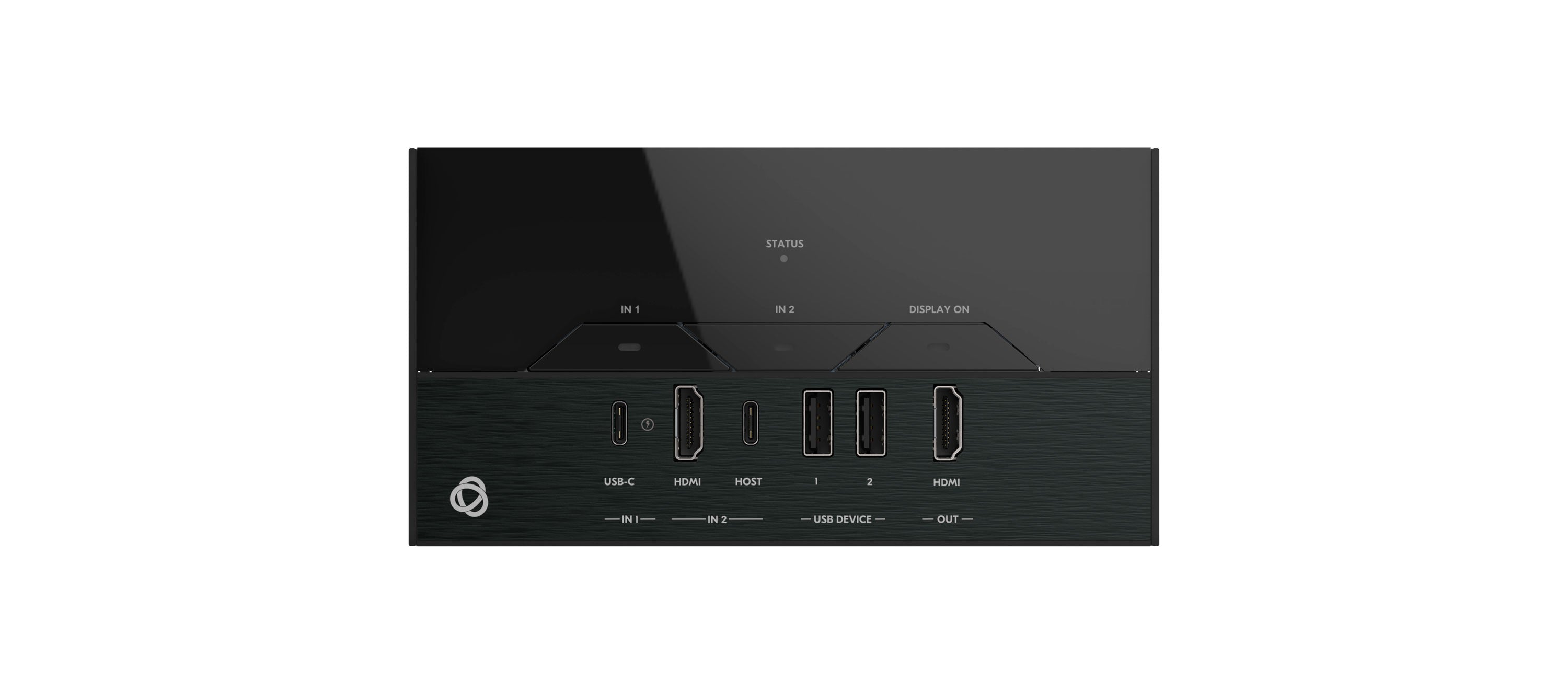

Kramer SWT3-22-HU-WP-T 2x2 4K60 USB-C HDMI Wall-Plate Switcher

An HDMI switcher lets you choose between multiple source devices and send one selected source to a display or AV system. An HDMI splitter does the opposite: it takes one source and sends it to multiple displays. For meeting rooms and classrooms, a switcher is usually the right choice when users need to connect different laptops or media devices without constantly changing cables. The Kramer SWT3-22-HU-WP-T is a 2x2 wall-plate switcher, so it is built for source selection. It accepts one USB-C input and one HDMI input, then routes the chosen source to an HDBaseT 3.0 output and a local HDMI output. That makes it useful when a room needs both a nearby display connection and extension to a remote receiver over a single cable. Buyers who need to alternate between presenters should look at a switcher. Buyers who need one source shown on several screens at once should look at a splitter instead.

The best 4K HDMI switcher for a conference room or classroom is usually one that combines 4K60 video, simple user connection options, reliable signal management, and professional control features. For modern hybrid spaces, a strong option is a switcher that supports both HDMI and USB-C, because many users now connect laptops through USB-C for video and charging. The Kramer SWT3-22-HU-WP-T fits that requirement well. It supports 4K60 4:4:4 video, includes one USB-C and one HDMI input, delivers up to 60W power over USB-C, and extends AV and USB 2.0 over HDBaseT 3.0. It also supports auto-switching, intelligent EDID processing, HDCP 2.3, and control by IP, RS-232, IR, and CEC. These features matter in shared rooms where ease of use and reliable startup are more important than consumer-style extras. It is best for installed spaces that need a clean wall-plate connection point and remote extension. If you need more than two source inputs, a larger matrix or multi-input presentation switcher may be a better fit.

A quality HDMI switcher should not noticeably reduce video quality when it is designed for the signal format you need. The key is choosing a model that fully supports your resolution, refresh rate, color format, and copy protection requirements. Problems usually come from bandwidth limits, weak cable runs, or compatibility issues, not from the idea of switching itself. The Kramer SWT3-22-HU-WP-T is built for full-bandwidth 4K60 4:4:4 video and is HDCP 2.3 compliant. That means it is designed to pass high-detail Ultra HD signals used in professional presentations and digital signage without forcing the source down to a lower format. Its intelligent EDID processing also helps displays and source devices negotiate the right signal more reliably. This type of switcher is a good fit for users who want professional AV performance in meeting rooms and education spaces. The tradeoff is that the rest of the signal chain still matters. To maintain quality, the display, cabling, and any connected HDBaseT receiver must also support the required 4K format.

Yes, 4K HDMI splitters and switchers can work very well with 4K60 signals, but only if the specific product supports the full bandwidth and color format you need. Many shoppers assume any device labeled 4K will handle every 4K source, but some only support lower refresh rates, compressed color, or limited compatibility with newer protected content. The Kramer SWT3-22-HU-WP-T is specified for 4K60 at 4:4:4, which is important for sharp text, spreadsheets, detailed graphics, and presentation content. It also supports HDCP 2.3, so it is better prepared for protected sources. In addition, it sends signals over HDBaseT 3.0, which is useful when the display or receiver is located away from the wall-plate connection point. This matters most in conference rooms, lecture spaces, and training rooms where image clarity affects readability. The main limitation is that every connected device must support the target format. A 4K60-capable switcher cannot force an older display or receiver to perform beyond its own limits.

You would choose a USB-C presentation switcher if your users regularly connect newer laptops, tablets, or hybrid work devices that output video through USB-C. A USB-C switcher reduces adapter dependence and can add practical benefits like device charging and USB data transport, which a standard HDMI-only switcher usually does not provide. The Kramer SWT3-22-HU-WP-T is designed for exactly that environment. It has one USB-C input with DisplayPort Alt Mode support, one HDMI input, USB 2.0 extension, and up to 60W power delivery over USB-C. That means a presenter can connect a compatible laptop with a single cable for video and charging, while the system can also carry USB for peripherals to a remote receiver. This type of switcher is especially useful in hybrid meeting rooms and classrooms where users bring different devices. The tradeoff is compatibility: the USB-C source must support video output through DP Alt Mode. If your room mainly uses fixed HDMI sources, a simpler HDMI switcher may be enough.

Yes, a wall-plate switcher is often an excellent choice for hybrid meeting rooms because it creates a clean, easy-to-use connection point where presenters actually sit or stand. Instead of leaving loose adapters or tabletop boxes on furniture, the room gets a fixed installation that is easier to manage and less likely to be unplugged or misplaced. The Kramer SWT3-22-HU-WP-T is purpose-built for that kind of space. It mounts in a standard 2-gang in-wall box and combines USB-C and HDMI connectivity with auto-switching, 4K60 4:4:4 video, USB 2.0 support, and HDBaseT 3.0 extension. Those features make it well suited for rooms that need simple presenter handoff and remote integration with displays, cameras, or USB peripherals. It is best for permanently installed conference rooms, classrooms, and training environments. The main tradeoff is flexibility. If you need a portable device or many source inputs, a tabletop switcher or larger presentation system may be more appropriate than an in-wall model.

HDBaseT 3.0 allows a switcher to extend high-quality AV and data signals over a single cable to a remote receiver. In practical terms, it helps move video, audio, and USB beyond the wall connection point without requiring separate long HDMI and USB runs. That is especially helpful in installed rooms where the display, rack, or collaboration hardware is located across the room. On the Kramer SWT3-22-HU-WP-T, the HDBaseT 3.0 output works alongside a local HDMI output. It can carry 4K60 4:4:4 video, USB 2.0, and related signals to a compatible remote endpoint. This is useful in classrooms and meeting spaces that need a neat front-of-room connection while keeping core AV equipment in a rack or behind the display. The main benefit is cleaner infrastructure and easier integration. The limitation is compatibility: to use the extended features fully, you need an HDBaseT 3.0 compatible receiver and a properly designed cable path. It is most valuable in professional installations, not simple one-display desktop setups.

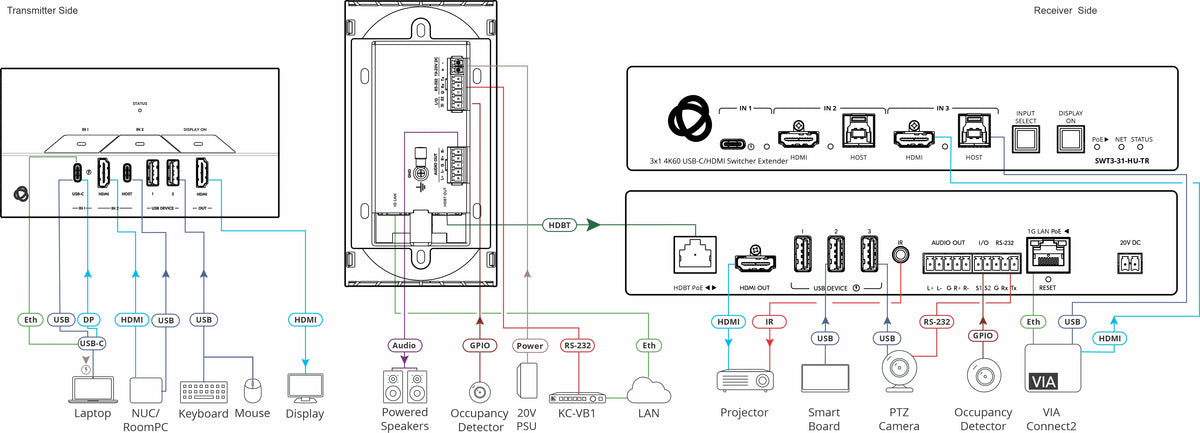

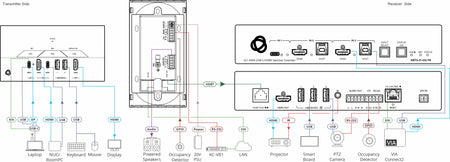

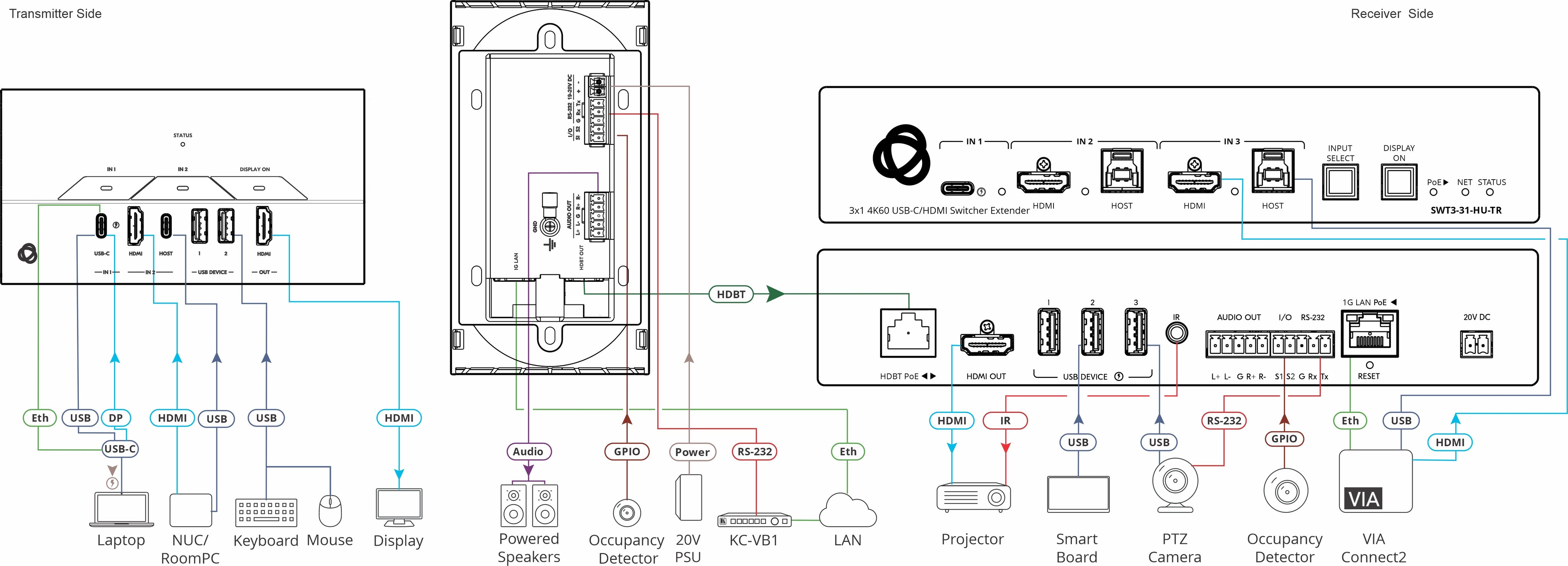

Yes, this switcher is designed to support both local and extended AV workflows. It includes one local HDMI output and one HDBaseT 3.0 output, so it can feed a nearby display connection while also sending the selected source to a remote receiver in another part of the room or building infrastructure. That arrangement is useful in spaces where the presenter needs a front-wall connection point, but the main display system, equipment rack, or USB integration is located elsewhere. For example, a classroom could use the local HDMI path for an in-room confidence display while the HDBaseT output sends the same source to the main projector or flat panel through a receiver. This makes the Kramer SWT3-22-HU-WP-T a practical fit for integrated AV rooms, not just simple source switching. Buyers should note that the remote side requires a compatible HDBaseT receiver, and final behavior depends on the connected system design. It is best for installations where both local access and centralized AV extension are important.

Yes, this switcher supports both USB-C presentation connectivity and laptop charging for compatible devices. It provides up to 60W power delivery through the USB-C input, which can help keep a presenter’s laptop powered during a meeting or class. It also supports USB 2.0, which is useful when the installation needs USB signal transport alongside video. On the Kramer SWT3-22-HU-WP-T, that combination is valuable for hybrid meeting and teaching spaces where users want a single-cable connection instead of separate video, charging, and USB accessory cables. A presenter can connect through USB-C using DisplayPort Alt Mode, and the system can pass AV and USB through the room infrastructure using HDBaseT 3.0. This is most beneficial for bring-your-own-device environments with modern laptops. The main limitation is source compatibility: the connected USB-C device must support video output over DP Alt Mode. Also, 60W charging is enough for many laptops, but some high-performance models may prefer more power than that during heavy use.

This wall-plate switcher is best for schools, corporate meeting rooms, training spaces, and other installed AV environments that need simple presenter connectivity with professional signal management. It is especially well suited to hybrid rooms where some users connect with USB-C laptops and others still rely on HDMI. The Kramer SWT3-22-HU-WP-T combines two common inputs, auto-switching, 4K60 4:4:4 support, HDCP 2.3 compliance, USB 2.0 extension, 60W USB-C charging, and multiple control options including IP, RS-232, IR, and CEC. Its standard 2-gang wall-plate form factor also makes it a strong choice for clean, permanent installations where cable clutter and user confusion need to be minimized. It is not the best fit for every application. If you need many source inputs, advanced scaling for mismatched displays, or a portable switcher for temporary setups, another category may be better. But for fixed room systems that need reliable 4K switching and USB-C presentation support, it is a strong professional option.
