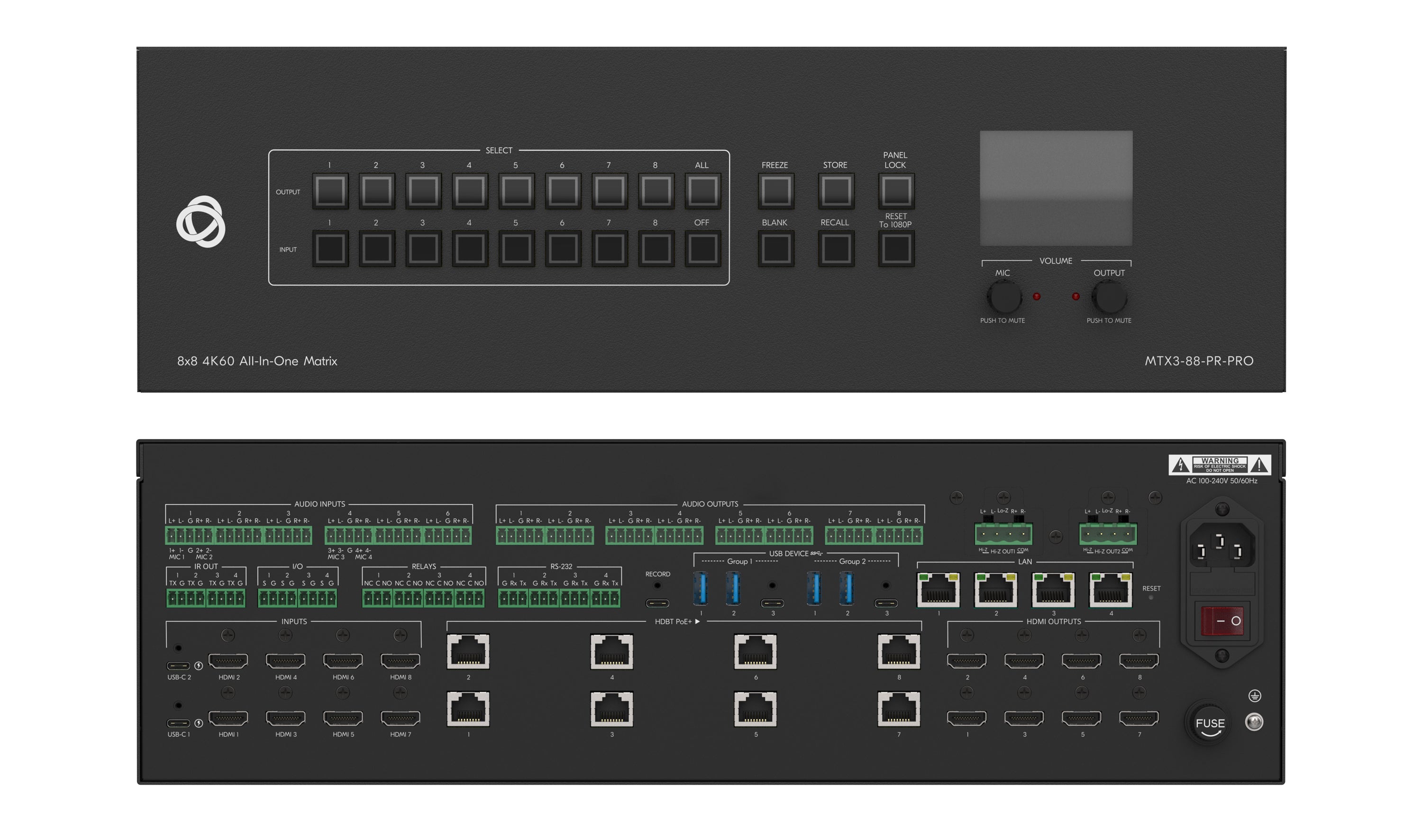

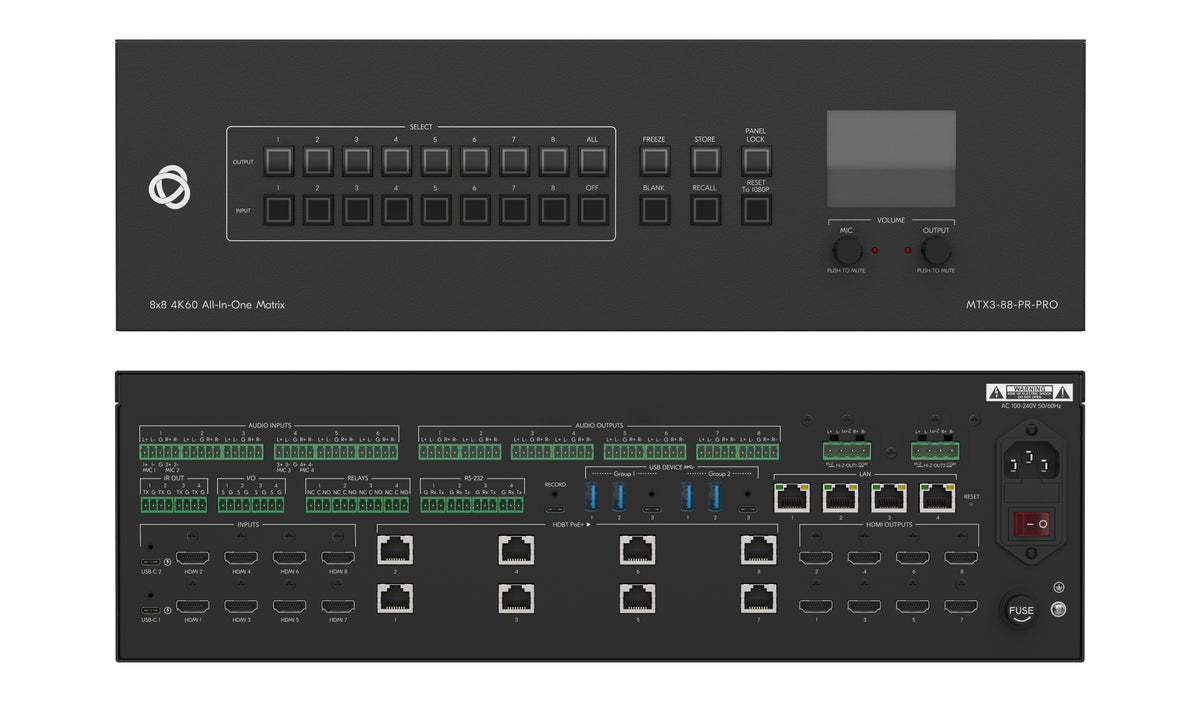

Kramer MTX3-88-PR-PRO 8x8 4K60 All-in-One Hybrid Presentation Matrix

An AV switcher is a device that routes video, audio, and sometimes USB signals from multiple sources to one or more displays and room systems. You need one when a space has several inputs, such as laptops, conferencing PCs, document cameras, or media players, and those sources must be shared reliably across displays, speakers, and peripherals. In simple rooms, a basic switcher may only change between HDMI inputs. In larger conference rooms, classrooms, training spaces, and hybrid meeting environments, buyers often need more than source selection. They may need scaling for mixed resolutions, independent audio routing, USB switching for cameras and peripherals, and support for long-distance signal transport. That is where a matrix switcher becomes important. The Kramer MTX3-88-PR-PRO fits that higher-end use case. It is an 8x8 all-in-one hybrid presentation matrix with 4K60 video support, independent AV and USB routing, HDMI, USB-C, and HDBaseT 3.0 connectivity, plus integrated DSP and Dante audio routing. It is best for users who need centralized control in multi-source, multi-display spaces rather than a simple desktop switcher.

The purpose of a presentation matrix switcher is to send the right source to the right display or zone without manually reconnecting cables. Unlike a basic switcher that usually feeds one output, a matrix switcher allows multiple sources and multiple outputs to work independently, which is useful when different people or rooms need different content at the same time. A presentation matrix also helps standardize room technology. In conference rooms, lecture halls, divisible spaces, and command-style environments, it can handle local displays, remote displays, USB devices, and audio distribution from one central platform. More advanced models also improve presentation quality with video scaling, fast switching, and cleaner transitions between sources. The Kramer MTX3-88-PR-PRO is designed for that type of deployment. It provides 8x8 matrix switching, under-one-second switching, multiview layouts, and independent video wall presentation options. It also adds integrated DSP, a dual-zone power amplifier, Dante audio routing, and USB-C charging up to 60W. That makes it most useful for organizations that want one system to manage presentation, collaboration, and audio in larger professional spaces.

You need a matrix switcher instead of a basic video switcher when your room has multiple sources, multiple displays, or separate audio and USB needs. A basic switcher is usually enough if one display simply alternates between a few inputs. A matrix switcher is the better choice when different outputs must show different content, when signals need to travel longer distances, or when the room also supports conferencing and collaboration. For example, a boardroom may need one laptop on the main display, another source on overflow screens, USB routing to a conferencing system, and separate audio zones. A matrix switcher can manage all of that centrally. It also helps when an installation must support mixed input types like HDMI and USB-C, or when remote displays are connected through HDBaseT. The Kramer MTX3-88-PR-PRO is built for those more demanding situations. It supports independent AV and USB routing, 4K60 switching and scaling, HDBaseT 3.0, Dante audio, and advanced room features like multiview and video wall layouts. If your space is simple, this may be more system than you need. If your space is complex, it can replace multiple separate devices.

For a conference room or classroom, the most important things to look for in a 4K switcher are resolution support, connection types, switching speed, audio handling, USB integration, and management options. Native 4K60 support matters because many modern laptops and displays now operate at that level, and lower-performance switching can create compatibility issues or reduce image quality. You should also check whether the switcher supports the sources and endpoints actually used in the room. USB-C is valuable for modern laptops, HDMI remains standard, and HDBaseT is useful for extending signals to displays over longer cable runs. In hybrid spaces, independent USB routing can be just as important as video switching because cameras, microphones, and room peripherals must be shared properly. The Kramer MTX3-88-PR-PRO covers those requirements well. It supports 4K60, USB-C, HDMI, and HDBaseT 3.0, includes integrated DSP and Dante audio routing, and switches in under one second. It also offers web-based management and an IP-driven API. It is best suited for buyers who need an enterprise-grade room platform, not just simple source selection.

Yes, the Kramer MTX3-88-PR-PRO is a strong fit for hybrid meeting spaces, especially where several in-room and remote collaboration tools need to work together. Hybrid rooms usually require more than video switching. They often need laptop connectivity, USB routing for conferencing peripherals, audio processing, display distribution, and easy switching between local presentation and remote meeting modes. This model is built around those needs. It supports independent AV and USB routing, so video sources and USB devices can be managed separately. It includes USB-C, HDMI, and HDBaseT 3.0 connectivity, which helps accommodate both modern laptops and long-distance room infrastructure. Its integrated DSP and Dante audio routing support more professional audio workflows, while under-one-second switching helps transitions feel cleaner during live meetings. It is most suitable for enterprise, higher education, government, and larger training rooms where reliability and flexibility are priorities. The main tradeoff is complexity. Smaller rooms that only need one display and a couple of inputs may not need a full 8x8 all-in-one presentation matrix with advanced audio and control features.

Yes, the Kramer MTX3-88-PR-PRO is designed to route audio, video, and USB with a high degree of independence, which is one of the reasons it works well in advanced meeting and learning environments. Independent routing matters because modern spaces often need to send different media elements to different destinations at the same time. For example, a user may want one video source on the main display, a different source on a secondary screen, USB devices assigned to a conferencing host, and audio distributed through separate zones. Systems that only switch video cannot handle those workflows well. This model supports independent AV and USB routing, along with USB audio, making it more flexible than many standard matrix switchers. It also adds integrated DSP, dual-zone amplification, and Dante audio routing, which expands its usefulness beyond signal switching alone. That makes it a good option for rooms where presentation, conferencing, and distributed audio all need to coexist. Buyers should still confirm their exact USB peripheral and control requirements, since complex room designs often depend on overall system architecture.

HDBaseT 3.0 allows a matrix switcher to send high-bandwidth AV signals over longer distances using structured cabling, which is especially useful in larger rooms and building-wide AV systems. In practical terms, it helps reduce the need for direct local connections between the switcher and every display or endpoint. For conference centers, lecture halls, divisible spaces, and boardrooms, that matters because displays are often far from the equipment rack. HDBaseT can simplify cable runs and make installations cleaner and easier to manage. It is also helpful when a room needs a mix of local and remote display outputs while maintaining professional AV performance. The Kramer MTX3-88-PR-PRO includes HDBaseT 3.0 alongside HDMI and USB-C, giving integrators more flexibility in how sources and displays are deployed. That makes it useful for spaces where laptops connect locally but content must also reach remote screens or other zones. The tradeoff is that HDBaseT is most valuable in installed systems. If all devices are close together on a tabletop or small cart, its infrastructure advantages may not matter as much.

Yes, the Kramer MTX3-88-PR-PRO supports both multiview layouts and independent video wall presentations, which makes it more versatile than a standard source switcher. Multiview is useful when users need to see several sources on one screen at the same time, such as in monitoring, teaching, collaborative review, or executive presentations. Video wall support is useful when content must be expanded across multiple displays for higher visibility or impact. These features are especially valuable in larger professional environments where the display system does more than show one full-screen source. For example, a training space might need an instructor feed, remote participants, and supporting content visible together. A control or briefing space may need multiple visual inputs visible simultaneously. A lobby, auditorium, or event space may benefit from flexible video wall configurations. This model is a good fit for those scenarios because it combines advanced video processing with fast switching, 4K60 support, and integrated audio capabilities. The limitation is that rooms with a single display and basic source switching needs may not benefit much from these advanced display modes.

Integrated DSP and Dante audio can be very important in an AV matrix system when the room needs professional audio control, multiple zones, or networked audio distribution. DSP helps manage functions such as signal processing, routing, and room audio optimization, while Dante allows audio to move across a network in a more scalable way than simple analog-only designs. In conference rooms, classrooms, and larger collaboration spaces, audio quality often determines whether the system feels professional. If microphones, program audio, speakers, conferencing feeds, and local presentation audio all need to work together, a matrix with integrated audio processing can reduce the need for separate equipment and simplify system design. The Kramer MTX3-88-PR-PRO includes integrated DSP, a dual-zone power amplifier, and Dante audio routing, so it can support more sophisticated sound distribution than many video-first switchers. That makes it a strong option for installations where intelligibility, zoning, and networked audio matter. If the room only needs basic stereo playback from one display, these audio features may be more capability than necessary.

The Kramer MTX3-88-PR-PRO is best for organizations that need a centralized AV platform for complex spaces, such as enterprise meeting rooms, higher education classrooms, government facilities, training centers, and large collaboration environments. It is particularly well suited for rooms that combine multiple sources, multiple displays, USB peripherals, professional audio, and long-distance signal distribution. Its strengths include 8x8 4K60 matrix switching, under-one-second source changes, USB-C, HDMI, HDBaseT 3.0, independent AV and USB routing, Dante audio, integrated DSP, dual-zone amplification, multiview, video wall support, and IT-grade authentication. Those features make it a practical choice when reliability, scalability, and integration depth matter. A simpler switcher may be the better option if the room only has one display, a few HDMI inputs, and no need for USB routing, audio processing, or distributed AV. In smaller spaces, a basic 4K switcher is often easier to install and manage. The main buying decision comes down to room complexity. If you need an all-in-one backbone for a professional hybrid space, this model is designed for that role.
