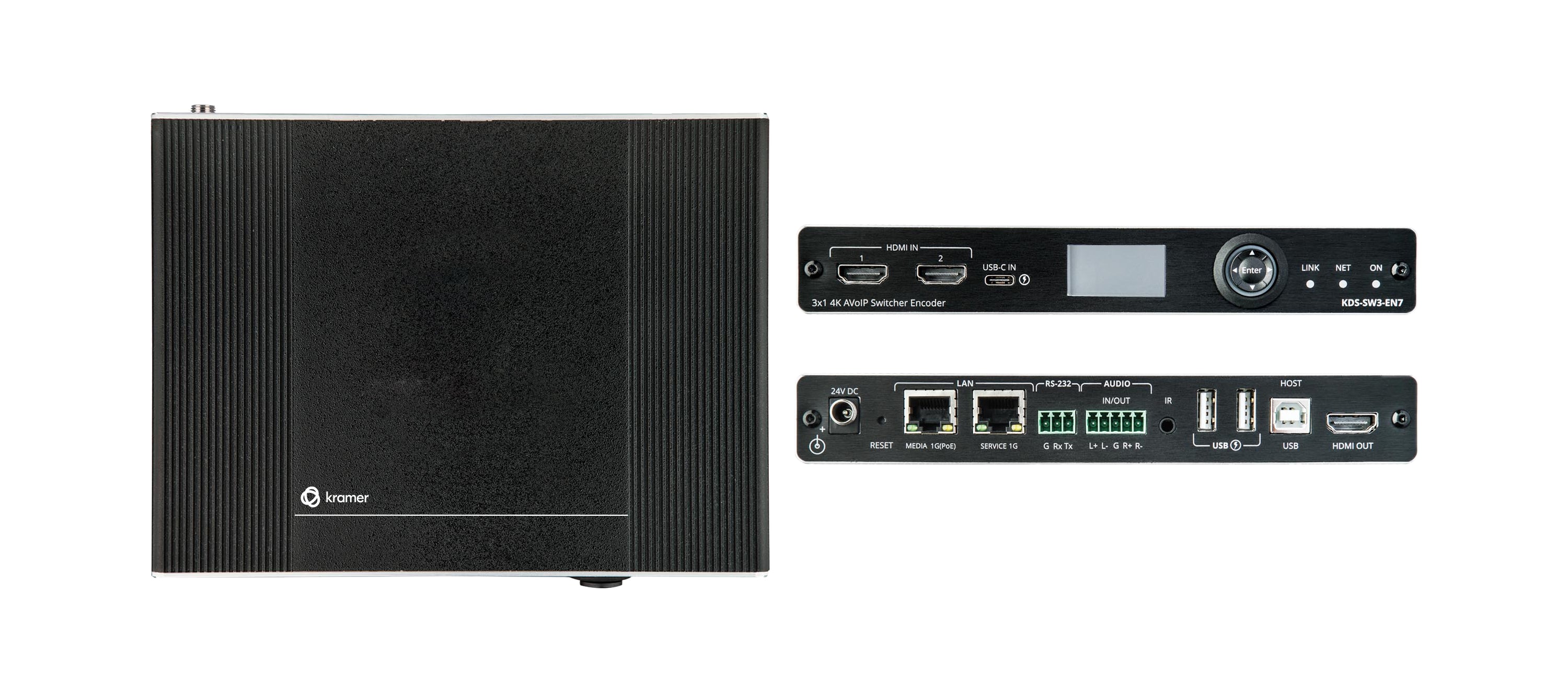

Kramer KDS-SW3-EN7 4K AVoIP Encoder Switcher with Dante over 1GbE

AV over IP means sending audio, video, and control signals across a standard network instead of through a dedicated point-to-point matrix switch. It is often the better choice when you need flexible routing, easier expansion, and support for multiple rooms or displays over existing 1GbE infrastructure. A traditional matrix works well for fixed systems with a known number of sources and displays. An AV over IP system is usually better for larger or changing environments because you can add endpoints without replacing the entire switching core. The Kramer KDS-SW3-EN7 fits that model by encoding 4K@60Hz 4:2:0 video for unicast or multicast distribution over 1GbE, while also carrying control and integrated Dante audio. This type of solution is especially useful in education, corporate AV, and command environments where users want centralized management and scalable distribution. The tradeoff is that AV over IP requires proper network planning, switch configuration, and endpoint design, so it is more flexible than a traditional matrix but also more dependent on network setup.

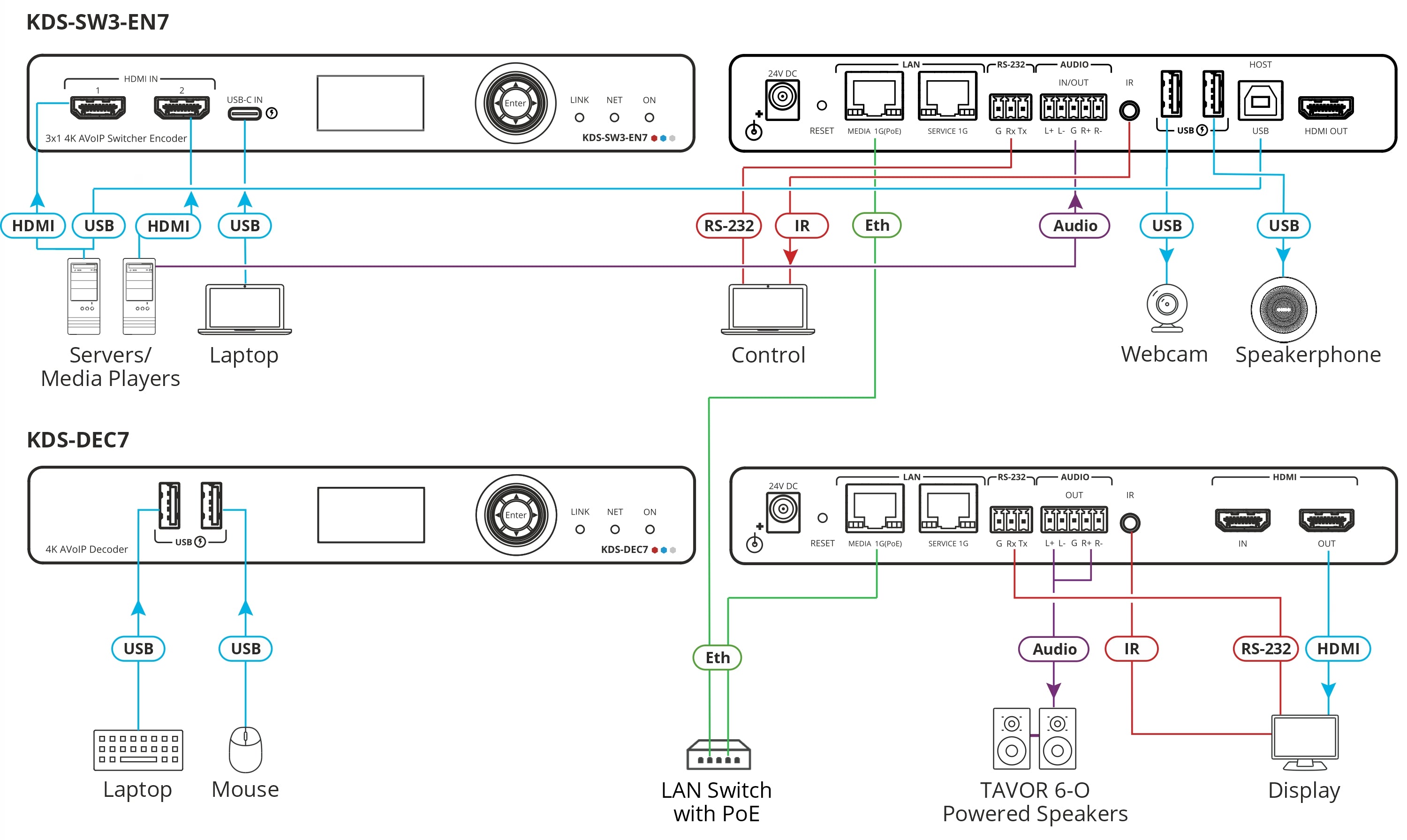

You convert an HDMI signal to IP by using an AV over IP encoder. The encoder takes the HDMI source, compresses or packetizes it for network transport, and sends it over Ethernet to compatible decoders or endpoints on the network. The Kramer KDS-SW3-EN7 is designed for that job. It accepts two HDMI inputs plus one USB-C input, then streams 4K@60Hz 4:2:0 video over a 1GbE network using unicast or multicast. That makes it useful when one source needs to reach one display, multiple displays, or a larger routed system. It also adds Dante digital audio, USB, IR, RS-232, and CEC support, so it does more than simple video transport. This approach is a good fit for conference rooms, classrooms, and control spaces that want network-based signal distribution instead of long HDMI cable runs. The main limitation is that an encoder alone is only one part of the system. You also need a compatible network environment and receiving endpoints to display the content where it is needed.

An HDMI over IP matrix system is a network-based switching system that lets you route HDMI sources to one or many displays using Ethernet infrastructure instead of a fixed hardware matrix chassis. In practical terms, each source is connected to an encoder, each display is connected to a decoder, and the network handles the routing. This design is popular because it scales more easily than a conventional matrix. If you need to add more sources or displays later, you typically add endpoints rather than replace the whole switcher. The Kramer KDS-SW3-EN7 is relevant here because it acts as an encoder and local auto-switcher, with two HDMI inputs and one USB-C input feeding a 4K AV over IP stream over 1GbE. It also supports unicast and multicast, which helps with one-to-one or one-to-many distribution. An HDMI over IP matrix is best for organizations that want flexibility, centralized control, and room to expand. The tradeoff is that system performance depends on proper network design, especially when handling multiple streams and integrated control or audio services.

The best AV over IP solutions are the ones that match the room type, network capacity, and control requirements. For conference rooms and classrooms, many buyers need easy source switching, 4K support, USB-C connectivity, and straightforward control. For control rooms, low latency, reliable routing, and integrated control protocols become more important. The Kramer KDS-SW3-EN7 is a strong fit when you want an encoder with built-in switching. It supports 4K@60Hz 4:2:0 streaming over 1GbE, has two HDMI inputs plus one USB-C input, and includes Dante digital audio, USB, IR, RS-232, and CEC. Its 33 ms latency makes it suitable for real-time AV tasks where responsiveness matters, and the separate service LAN port helps isolate management traffic from main AV streams. This type of solution works best for businesses, schools, and command environments that want a scalable networked AV platform rather than a simple room-only switcher. Buyers should still confirm decoder compatibility, network switch setup, and whether their use case needs lower latency or higher bandwidth formats.

Yes, the Kramer KDS-SW3-EN7 is a good choice for AV over IP installations that need 4K video distribution, multiple local inputs, and integrated audio and control over a 1GbE network. It is especially useful when the project needs more than a basic encoder. What makes it practical is the combination of features in one unit. It can switch between two HDMI sources and one USB-C source, then encode and stream the selected signal at 4K@60Hz 4:2:0. It also supports Dante digital audio, balanced analog audio, USB, IR, RS-232, and CEC, which helps in systems where operators want centralized control and fewer standalone boxes. The separate service LAN port is another advantage for installers who want isolated management. It is best suited for corporate spaces, education, and control applications where flexibility matters. The main consideration is that buyers should already be planning an AV over IP ecosystem, not just a standalone HDMI extension. Like most AVoIP products, it delivers its best value when paired with compatible network design and endpoint planning.

You should look for video resolution, network requirements, input flexibility, latency, control options, and audio integration. Those factors determine whether the encoder will actually fit your room design and daily workflow. For example, the Kramer KDS-SW3-EN7 supports 4K@60Hz at 4:2:0 over 1GbE, which is important if you want high-resolution distribution without stepping up to a higher-bandwidth network class. It also combines two HDMI inputs and one USB-C input in the same device, so it works well in spaces where users bring different source types. Its 33 ms latency is suitable for many live presentation and command scenarios, and its support for Dante, USB, IR, RS-232, and CEC broadens system integration. This matters most for integrators, IT teams, and AV managers comparing flexible networked options. A key tradeoff is that not every 4K encoder handles every color format or latency target the same way, so buyers should confirm whether 4:2:0 and 33 ms performance match their content type and user expectations.

An encoder with Dante audio support is the right choice for organizations that want audio routed and managed over the network alongside video. It is especially helpful in larger AV systems where microphones, DSPs, amplifiers, and room endpoints need to share digital audio cleanly across multiple spaces. The Kramer KDS-SW3-EN7 includes integrated Dante digital audio along with balanced analog audio, so it can fit into environments where audio is just as important as video transport. That makes it attractive for lecture halls, training rooms, divisible meeting spaces, and control rooms where centralized audio networking simplifies signal flow and reduces separate wiring paths. Dante support is most valuable when the broader system already uses networked audio or plans to scale. If the installation is a simple single-room setup with no need for digital audio networking, Dante may be more capability than necessary. In that case, buyers may prefer a simpler encoder. For more complex systems, though, Dante adds flexibility and cleaner integration with professional AV audio workflows.

Yes, 33 ms latency is generally considered low enough for many real-time AV applications, especially presentations, live room switching, and command-style monitoring where users expect responsive performance. It usually feels much more immediate than higher-latency streaming approaches. With the Kramer KDS-SW3-EN7, the stated 33 ms latency makes it suitable for conference rooms, classrooms, and control environments that need timely visual feedback across the network. It is a practical range for distributed video where content is being viewed live rather than stored or delayed significantly. The best fit is for users who need smooth source changes and near-real-time interaction, but not necessarily frame-perfect performance for every specialized application. The tradeoff is that some very latency-sensitive tasks may require even lower-delay technologies depending on the display chain and total system design. Buyers should remember that end-to-end performance can also be affected by network configuration, switch behavior, and receiving devices, not just the encoder specification alone.

The most important inputs and control options are the ones that match how people actually connect devices in the room and how the system will be managed. For many spaces, that means multiple HDMI inputs, USB-C for laptops, and support for common AV control methods. The Kramer KDS-SW3-EN7 is built around those needs. It includes two HDMI inputs and one USB-C input, which helps support both permanent room sources and bring-your-own-device use. On the control side, it supports P3K API, web pages, and front panel operation, plus USB, IR, RS-232, and CEC for broader integration. That combination gives installers and IT teams several ways to automate, monitor, and manage the system. This kind of feature set is especially useful in corporate and educational rooms where source types vary day to day. The main buying consideration is whether you need all of those control layers. Simpler rooms may not use every protocol, but larger managed AV systems often benefit from having them available from the start.

Yes, this encoder is designed for integration with standard 1GbE AV networks, but compatibility is best when the network is properly configured for AV traffic. The Kramer KDS-SW3-EN7 is specifically noted as plug-and-play compatible with Netgear M4250 switches and Kramer Control systems, which can simplify deployment for supported environments. It also offers a separate service LAN port, which is useful for secure and isolated management of AV and command streams. That is an important feature for IT-conscious installations where monitoring and control should be separated from the main media path. Because it supports unicast and multicast streaming, it can fit different network distribution models depending on system scale. This is a strong match for integrators and organizations that want predictable deployment on a managed AV network. The limitation is that AV over IP products still depend on correct switch settings, multicast handling, and overall network design. So while compatibility is broad at the 1GbE level, buyers should still confirm endpoint interoperability and network policy requirements before deployment.
