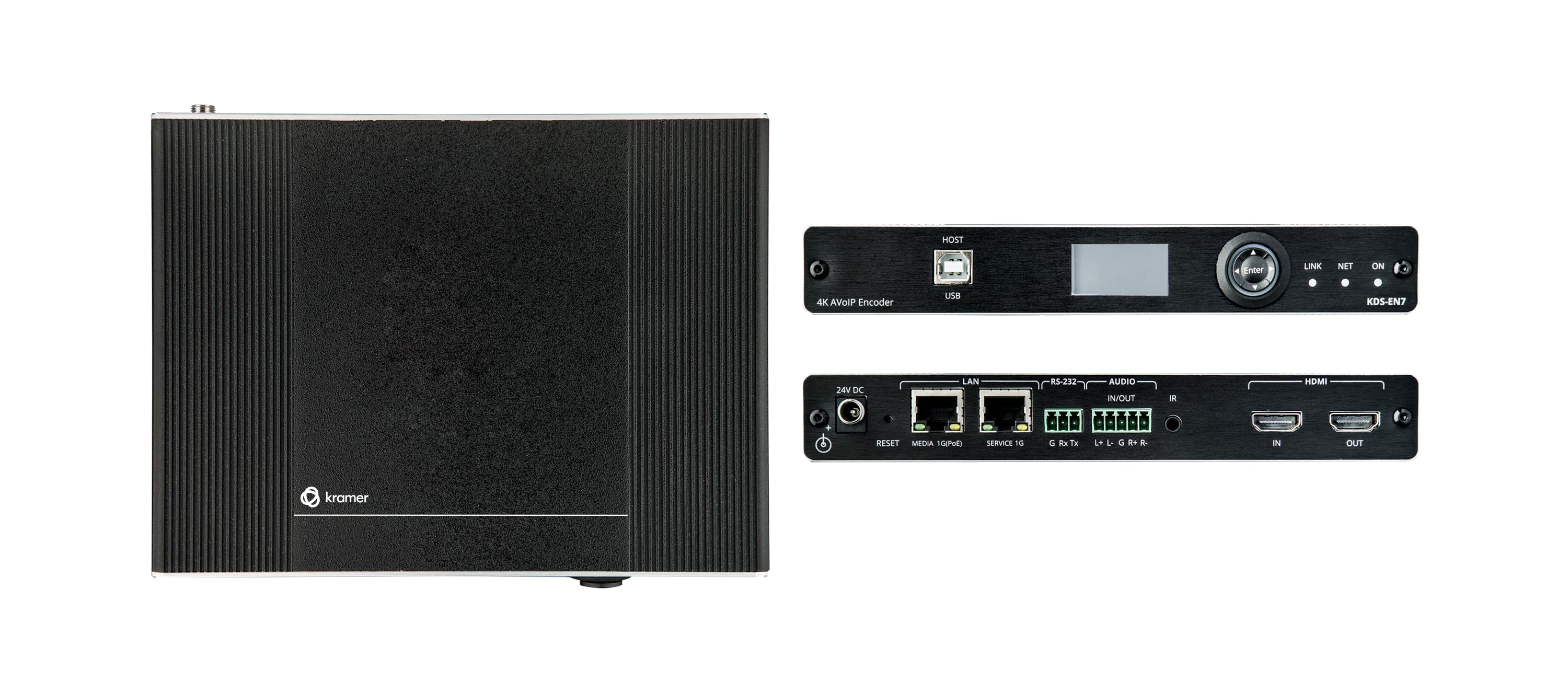

Kramer KDS-EN7 High-Performance 4K AVoIP Encoder for 1G Networks

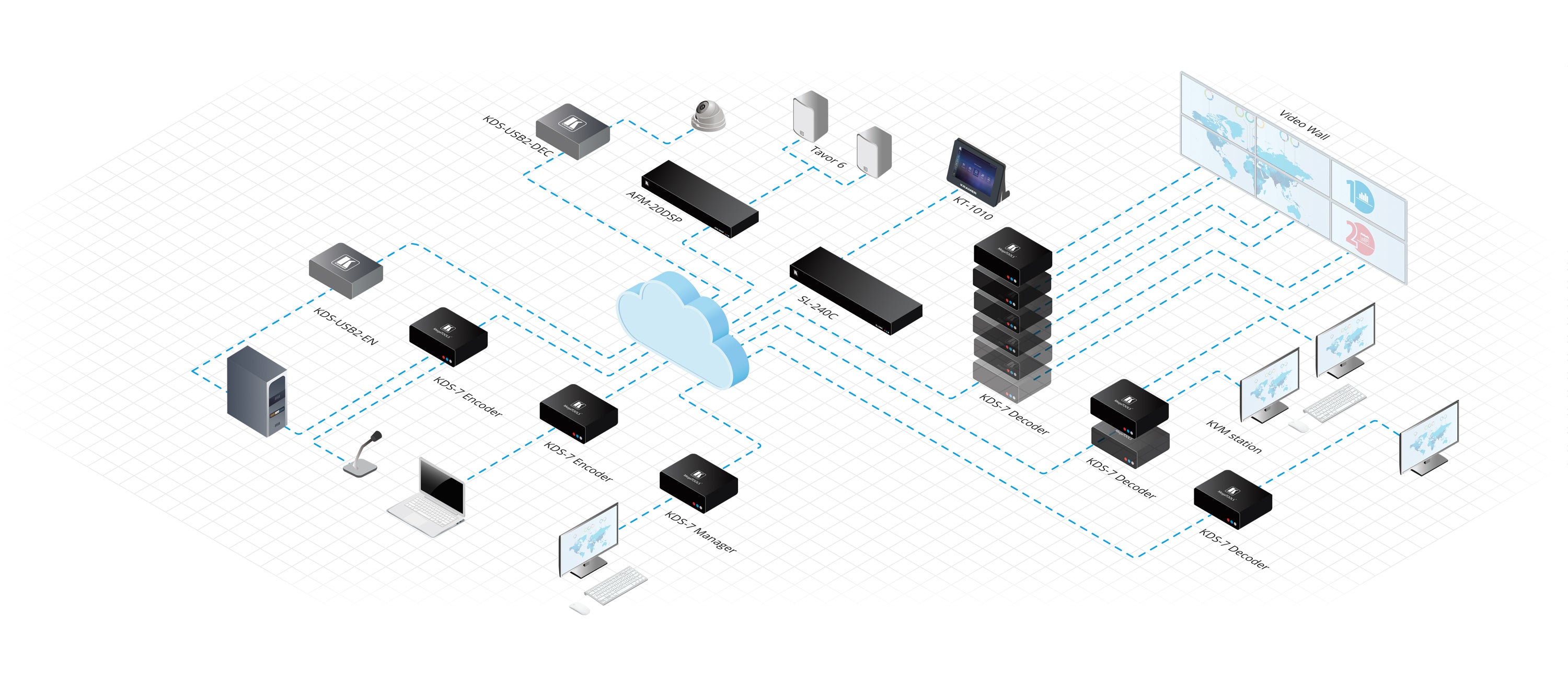

A 4K AVoIP encoder converts an HDMI source into networked video so it can be distributed over standard Ethernet infrastructure instead of being tied to a fixed point-to-point matrix. It is usually a better choice than a traditional matrix switcher when you need flexible routing, easier expansion, longer-distance distribution, or centralized control across multiple rooms or displays. The Kramer KDS-EN7 is built for that kind of deployment. It encodes 4K video for distribution over a 1GbE network and also carries control signals such as USB, IR, RS232, and CEC. That makes it useful in corporate AV, education, digital signage, and large installations where sources and displays may be spread across a building. The main advantage is scalability. The KDS-EN7 supports up to 999 channels and video walls up to 16x16, which is far beyond what many fixed matrix systems are designed to handle. The tradeoff is that AV over IP requires proper network planning and compatible decoders at the display end, so it is best for users who want flexibility and future growth rather than the simplest single-room switcher.

The best 4K AVoIP encoders and switchers should match your network, control, and scaling needs, not just your resolution requirements. Key things to evaluate are video quality at 4K, compatibility with 1GbE networks, switching speed, support for control signals, security, audio handling, and how easily the system scales. The Kramer KDS-EN7 checks many of the boxes buyers typically look for in a professional installation. It streams 4K video over 1G Ethernet, supports up to 999 channels, switches in about one second, and carries USB, IR, RS232, and CEC alongside video. It also includes analog audio embedding and de-embedding, which is important if your system uses separate audio feeds or local audio extraction. For enterprise and campus environments, security matters too. The KDS-EN7 supports 802.1x and HTTPS/TLS, which helps it fit into managed network environments. Buyers who need video wall capability should note its support for walls up to 16x16. It is especially well suited for larger, centrally managed AV systems rather than simple one-source, one-display setups.

A 1G network AVoIP encoder is often enough if you want professional 4K distribution without moving to more complex high-bandwidth network infrastructure. It can be a strong fit for meeting rooms, classrooms, digital signage, and many enterprise AV systems where manageable bandwidth, broad compatibility, and cost-efficient deployment matter more than using a higher-speed network backbone for every endpoint. The Kramer KDS-EN7 is specifically designed for 1GbE environments and encodes 4K video for IP distribution while still supporting control and audio functions. It also offers native support for up to 999 channels, so a 1G-based design does not automatically mean a small system. For many organizations, this is a practical way to scale AV over IP using existing managed Ethernet networks. The main consideration is your total network design. If you plan to run many simultaneous streams, large video walls, or heavy mixed network traffic, your switch configuration and overall bandwidth planning still matter. The KDS-EN7 is best for users who want a high-performance 4K AVoIP solution on standard 1G infrastructure with proper network management.

Yes, the Kramer KDS-EN7 is a strong option for large-scale AV over IP deployments because it is designed around scalability, centralized control, and enterprise network integration. It supports up to 999 channels, which makes it suitable for facilities that need to route many sources across multiple zones, rooms, or displays. It is also built for installations where management and security are important. The encoder supports 802.1x and HTTPS/TLS, which helps it fit into professional IT-managed environments. Instantaneous switching around one second improves usability in active presentation spaces, and support for up to 16x16 video walls makes it useful in signage and command-style applications. Another reason it fits larger deployments is its compatibility with Netgear M4250 switches and Kramer Control systems for streamlined setup. PoE reduces cabling complexity, which can save time during installation across many endpoints. The main limitation is that it is not intended as a simple consumer plug-and-play streamer. It is best for integrators, IT teams, schools, and businesses that need organized, expandable AV over IP infrastructure.

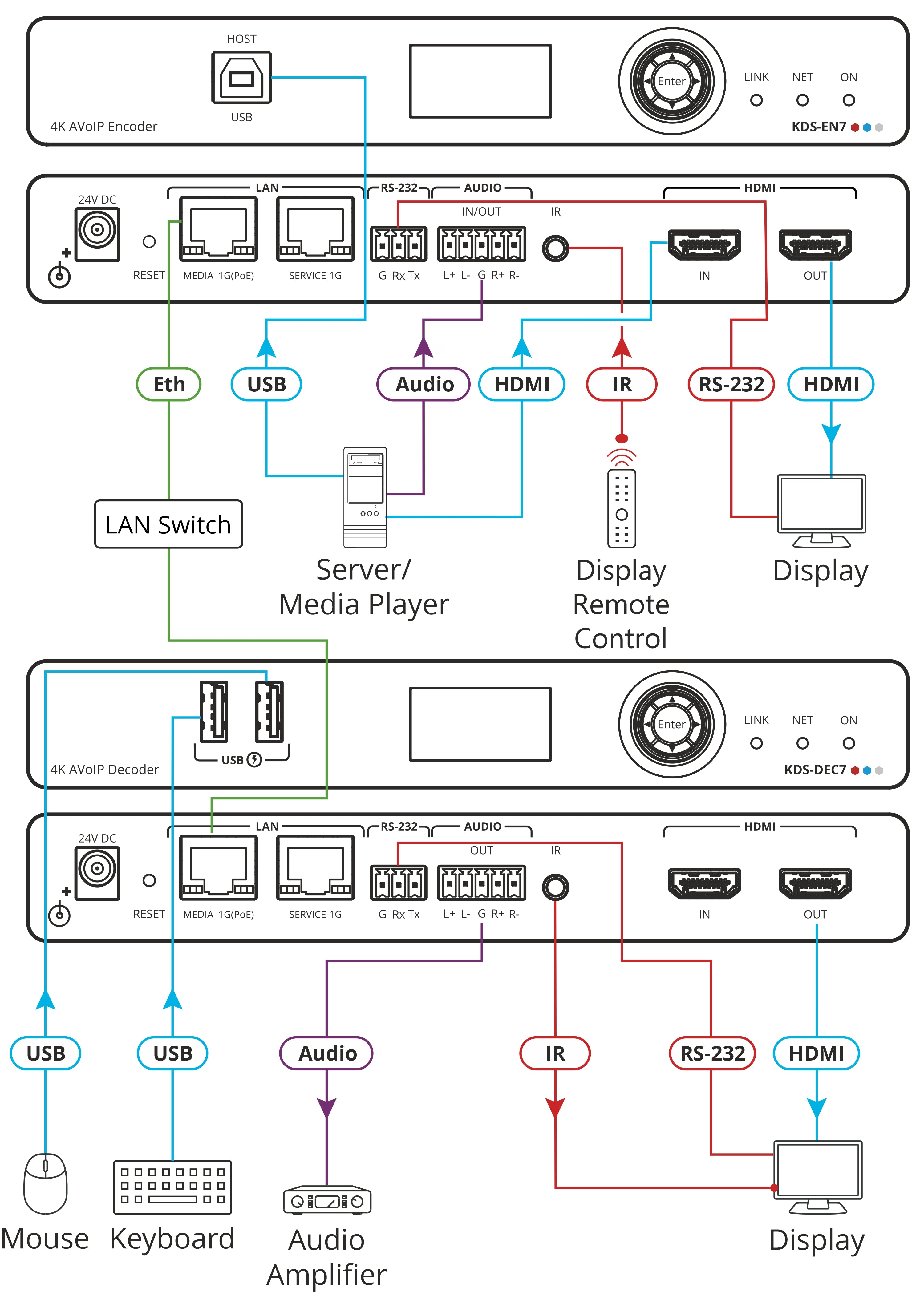

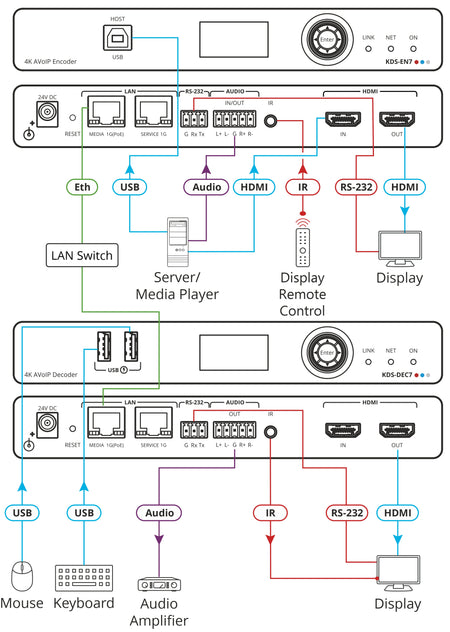

An AV over IP encoder takes a source signal such as HDMI from a laptop, media player, or other device and converts it into a network stream. A decoder does the opposite. It receives that stream from the network and converts it back into HDMI or another display-ready signal. In most AV over IP systems, you need both components to move video from a source to a display. The Kramer KDS-EN7 is an encoder, so its role is on the source side of the system. It is designed to encode 4K HDMI video onto a 1GbE network and also pass control signals including USB, IR, RS232, and CEC. That makes it more than a basic video sender, since it can help extend device control and peripheral connectivity across the same AV over IP architecture. This type of encoder is best for users building a flexible routed system rather than a direct cable run. The important buying point is that an encoder alone does not complete the path to the display. You will typically pair it with compatible decoders and a properly configured network switch for full system operation.

Yes, the Kramer KDS-EN7 is suitable for video walls and multi-display signage systems. It supports video walls up to 16x16, which makes it a good fit for applications where one source needs to be displayed across multiple screens or where multiple sources must be distributed across a larger visual canvas. That capability is especially useful in corporate lobbies, retail signage, higher education, control spaces, and event environments. Because the unit is part of an AV over IP workflow, displays can be routed over the network rather than being locked into a traditional direct-wired matrix arrangement. This gives system designers more flexibility when displays are spread across a building or when layouts may change over time. The KDS-EN7 is best for professional users who need scalable 4K distribution and centralized management. The main tradeoff is that successful video wall deployment depends on the full system design, including compatible endpoints, switch configuration, and control setup. Buyers should think of it as a building block for a managed video wall system rather than a standalone all-in-one wall processor.

Yes, the Kramer KDS-EN7 supports USB, IR, RS232, and CEC signal transmission in addition to 4K video streaming. That makes it useful in installations where users need more than basic video distribution, such as rooms with interactive peripherals, display control requirements, or legacy equipment that still relies on serial commands. This matters because many AV systems need control data to travel alongside the video path. USB support can help with peripherals and extension workflows, while IR and RS232 are common for controlling displays, switchable devices, and room equipment. CEC can simplify control in certain HDMI-based environments by allowing commands to pass through supported devices. The benefit is strongest for classrooms, meeting spaces, and managed AV systems where centralized control and device interaction are important. The main buying takeaway is that the KDS-EN7 is not just a video encoder. It is designed for integrated AV over IP workflows where control, automation, and peripheral connectivity are part of the installation. That can reduce the need for separate extension hardware in more complex systems.

A 4K AVoIP encoder should be secure enough to operate on managed business, education, and enterprise networks without becoming a weak point in the infrastructure. For professional deployments, buyers should look for support for authentication and encrypted management traffic, especially if the AV system is connected to the broader organizational network. The Kramer KDS-EN7 includes 802.1x and HTTPS/TLS support, which are meaningful features for secure network integration. 802.1x helps with port-based network access control, while HTTPS/TLS helps secure web-based communication and device management. These are important in environments where IT departments require AV devices to meet security policies rather than operate as isolated appliances. This makes the KDS-EN7 a good fit for corporations, universities, and other organizations where AV and IT work together. The practical advantage is that it can align more easily with network governance requirements. The key tradeoff is that these features are most valuable when the installation is managed properly, so secure deployment still depends on the broader network design and administrative practices.

Yes, PoE can be very important when choosing an AVoIP encoder because it simplifies installation and reduces the need for separate local power supplies. With Power over Ethernet, the same network cable can carry both data and power, which can make endpoint placement easier and help reduce cable clutter in racks, ceilings, and behind displays. The Kramer KDS-EN7 supports PoE, so installers can power the encoder through the network connection instead of running an additional power line at every location. In larger rollouts, that can save time and improve consistency across the deployment. It is especially helpful in classrooms, meeting rooms, and digital signage systems where clean installation and easier maintenance matter. PoE is most beneficial for users building multiple endpoints or trying to streamline infrastructure. The tradeoff is that your network switches must support the required PoE standard and power budget. If your environment already uses managed PoE switching, the KDS-EN7 can fit neatly into that design and reduce complexity compared with devices that require separate power adapters.

The Kramer KDS-EN7 is best suited for professional AV and IT users who need scalable 4K AV over IP distribution on a 1GbE network. It is a strong fit for corporate offices, higher education, digital signage networks, training centers, and other environments where multiple sources and displays need to be routed flexibly and managed centrally. Its feature set supports that type of use. The encoder handles 4K video streaming, supports up to 999 channels, switches in about one second, and carries USB, IR, RS232, and CEC signals. It also supports analog audio embedding and de-embedding, which adds flexibility for systems with separate audio workflows. Security features such as 802.1x and HTTPS/TLS make it more appropriate for enterprise network environments than basic consumer-grade AV extenders. It is most useful for buyers building a structured AV over IP system rather than looking for a simple direct connection between one source and one display. For smaller or temporary setups, it may be more capability than necessary. For expandable, managed installations, it is well matched to the job.
