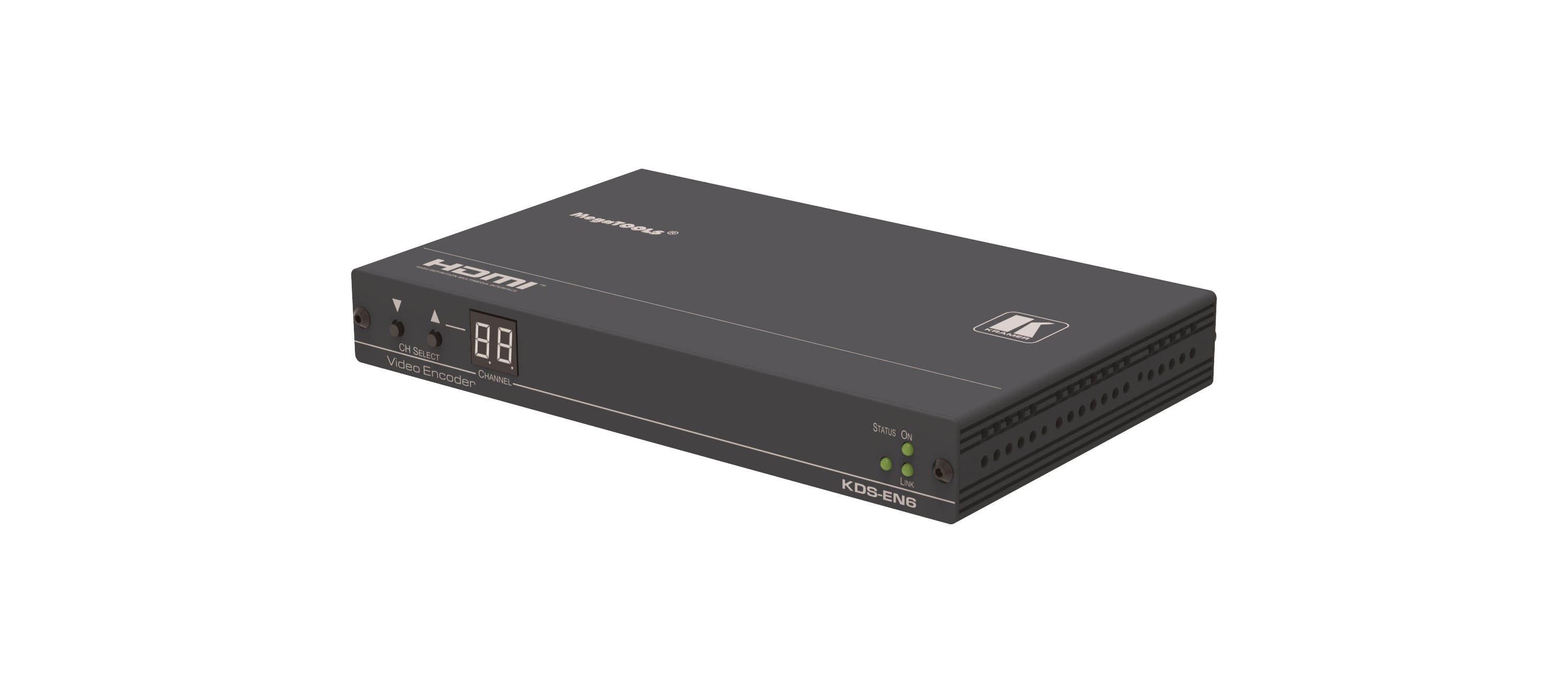

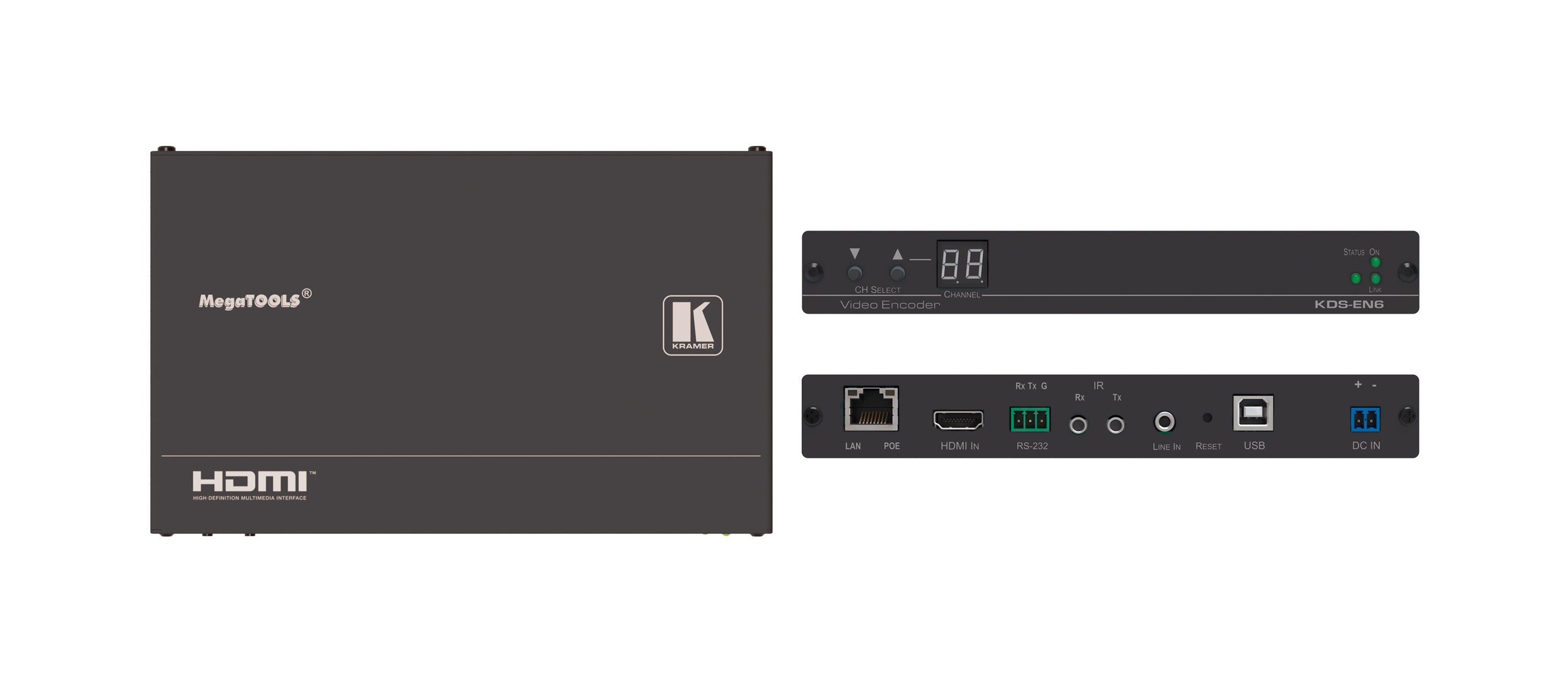

Kramer KDS-EN6 4K60 4:2:0 HDCP 2.2 AV over IP Encoder

AV over IP means sending audio, video, and control signals across a standard network instead of through a fixed point-to-point AV matrix. In practical terms, an encoder converts an HDMI source into network traffic, and decoders at displays receive that stream. This approach is often better than a traditional matrix switcher when a system needs to scale, reach many displays, or use existing network infrastructure. The Kramer KDS-EN6 is an example of an AV over IP encoder built for that kind of deployment. It streams up to 4K60 4:2:0 video, supports unicast and multicast, and can carry control and peripheral signals such as IR, RS-232, and USB over IP. That makes it useful in sports bars, offices, classrooms, and digital signage systems where sources may need to be routed flexibly. AV over IP is best for larger or growing systems. A traditional matrix can still be simpler for smaller installations with a fixed number of inputs and outputs, especially when the customer does not need network-based expansion or video wall capability.

An IP encoder is the device that takes a local AV source, such as an HDMI output from a media player, computer, or cable box, and converts it into a network stream that can travel over Ethernet. In an AV over IP system, the encoder is the starting point for distribution. A matching decoder or compatible endpoint at the display side receives the stream and turns it back into viewable content. The Kramer KDS-EN6 is designed for this exact role. It encodes HDMI video up to 4K at 60 Hz in 4:2:0, supports HDCP 1.4 and 2.2, and also carries audio, IR, RS-232, and USB virtualization over the network. That means it can distribute not just video, but also device control and some peripheral connectivity through the same AV over IP workflow. An IP encoder is most useful when one source needs to reach multiple displays, when routing needs to change often, or when a facility wants to expand over time. The main requirement is a properly managed network that can handle AV traffic reliably.

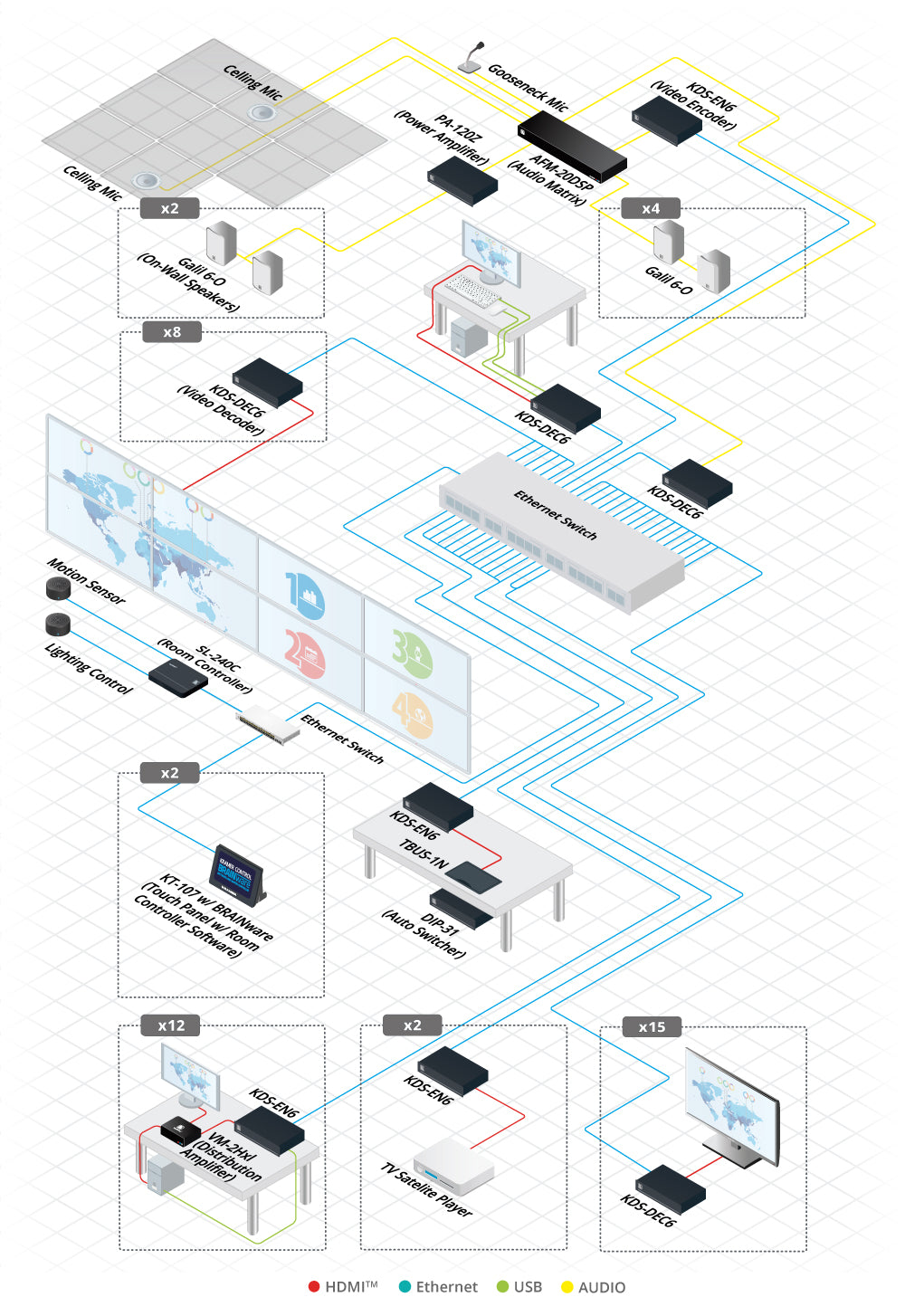

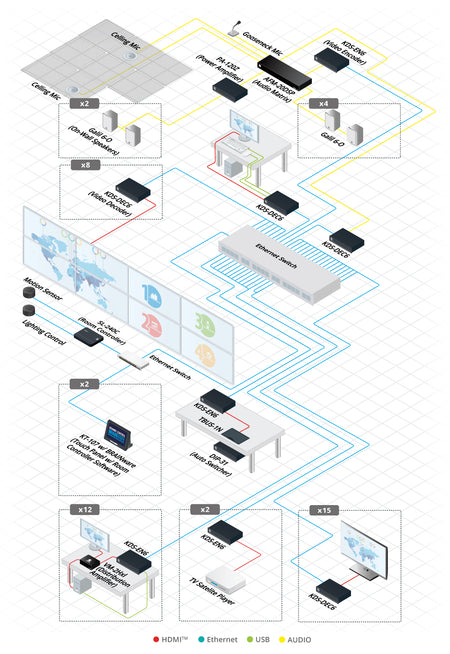

The main advantages of AV over IP are scalability, flexibility, and easier system expansion. Instead of being locked into the input and output count of a fixed matrix, users can add more encoders, decoders, and displays as the system grows. It also allows signal routing across standard network infrastructure, which can simplify distribution in larger buildings or multi-room environments. With a product like the Kramer KDS-EN6, those advantages include support for 4K60 4:2:0 video, multicast and unicast operation, HDCP 2.2 compliance, and transport of control signals such as IR and RS-232 along with USB virtualization. It also supports video wall configurations up to 256 screens, which is important for signage, command centers, and large public display systems. AV over IP is especially beneficial in sports bars, corporate offices, schools, and similar environments where content needs to be distributed to multiple displays with flexible routing. The tradeoff is that network design matters. Managed switching, proper bandwidth planning, and features like IGMP snooping are important for reliable performance, especially in multicast deployments.

The best AV over IP solution depends on resolution needs, number of displays, control requirements, and how much flexibility the system needs over time. A good buying checklist includes maximum video resolution, HDCP compatibility, unicast versus multicast support, network requirements, audio format support, control options, and whether the system can handle video walls or USB extension. For example, the Kramer KDS-EN6 is a strong fit when the project needs 4K60 4:2:0 distribution, HDCP 2.2 support, and more than just basic video transport. It also supports HDMI and line-in audio, 7.1 PCM, Dolby True-HD, DTS-HD Master, plus IR, RS-232, and USB over IP. Those features are useful in classrooms, conference rooms, and sports venues where displays, source switching, and control all matter. Choose multicast-capable hardware when one source may need to feed many displays efficiently. Choose USB virtualization when users need keyboard, mouse, or peripheral extension. The main limitation is that these systems work best on a managed Layer 2 network with IGMP snooping, so network readiness should be part of the buying decision.

Yes, the Kramer KDS-EN6 is a good choice for 4K video distribution when the requirement is 4K at 60 Hz with 4:2:0 chroma over a 1G AV over IP network. It is designed for real-time AV transport and supports HDCP 1.4 and 2.2, which matters when sources include protected commercial content. This encoder is particularly well suited for installations that need reliable routing to multiple displays, such as sports bars, office environments, and educational facilities. It supports both unicast and multicast streaming, so it can be used for point-to-point delivery or wider distribution across many endpoints. It also adds useful system features beyond video, including audio transport, IR, RS-232, and USB virtualization. The key tradeoff is that buyers should confirm the 4:2:0 specification matches their application. For signage, presentations, and many video distribution environments, that is often appropriate. For applications where full 4:4:4 color detail is critical, such as some desktop or fine text workflows, the shopper may want to compare other AV over IP options before deciding.

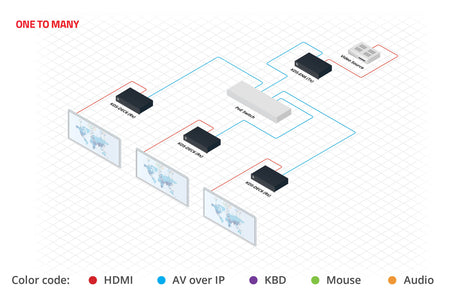

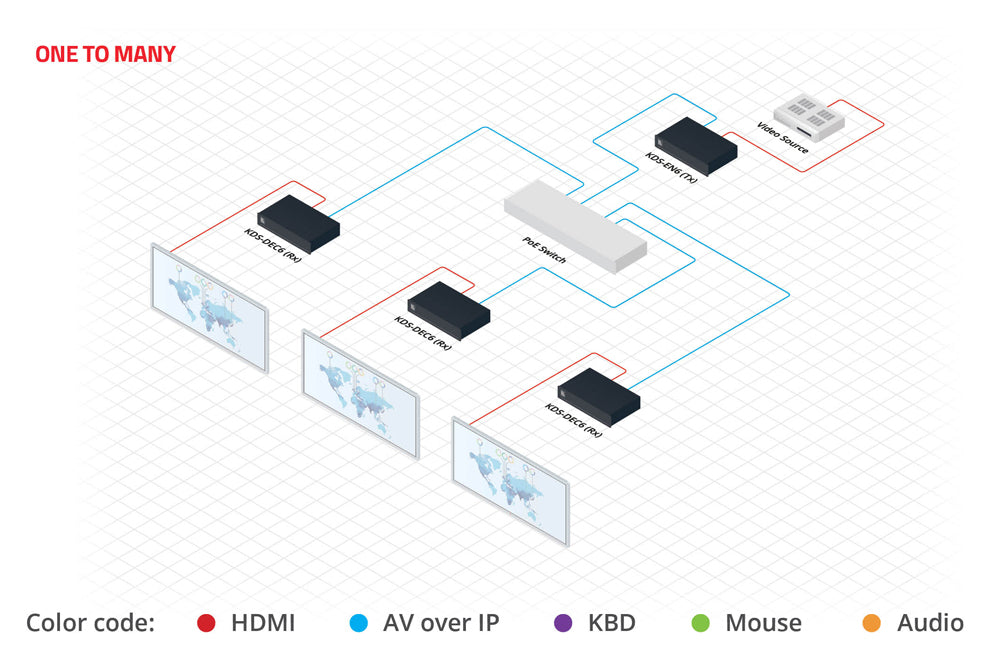

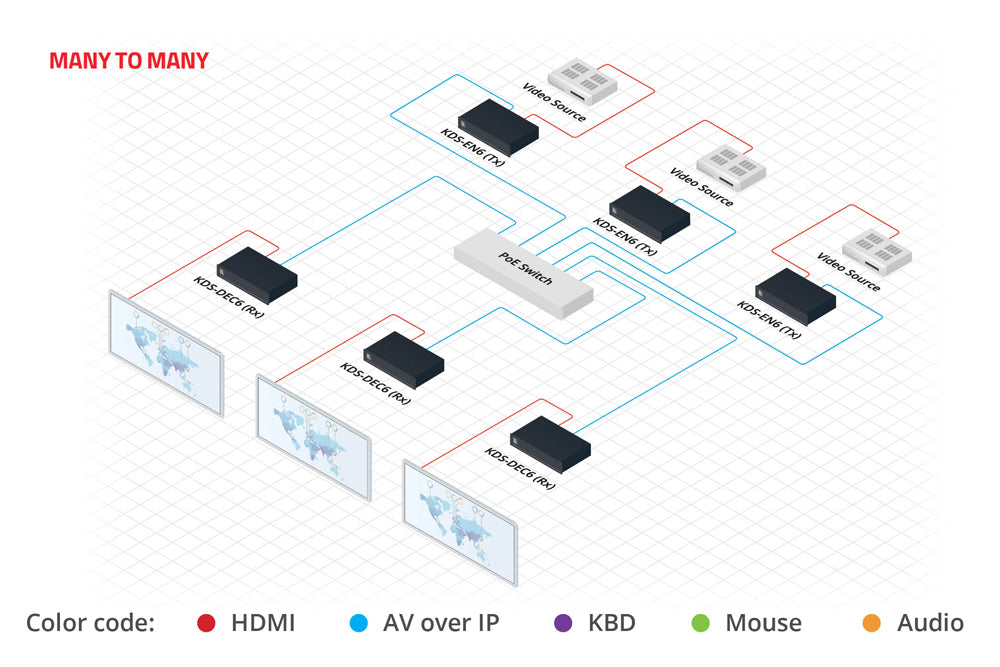

Yes, the Kramer KDS-EN6 supports both unicast and multicast streaming. That matters because multicast is one of the most efficient ways to distribute the same source to many displays at once without creating a separate stream for every endpoint. In large systems, that can reduce network strain and make expansion easier. For example, in a sports bar, one live game feed may need to appear on many screens at the same time. In a school or office, a presentation source may need to be shared across multiple rooms or overflow spaces. Multicast makes those use cases practical when the network is configured correctly. The important requirement is a managed Layer 2 network with IGMP snooping. Without that, multicast traffic can be less controlled and may affect other devices on the network. If the installation is smaller or only needs one stream to one destination, unicast may be enough. Buyers considering future growth, signage networks, or video walls usually benefit most from multicast-capable encoders like the KDS-EN6.

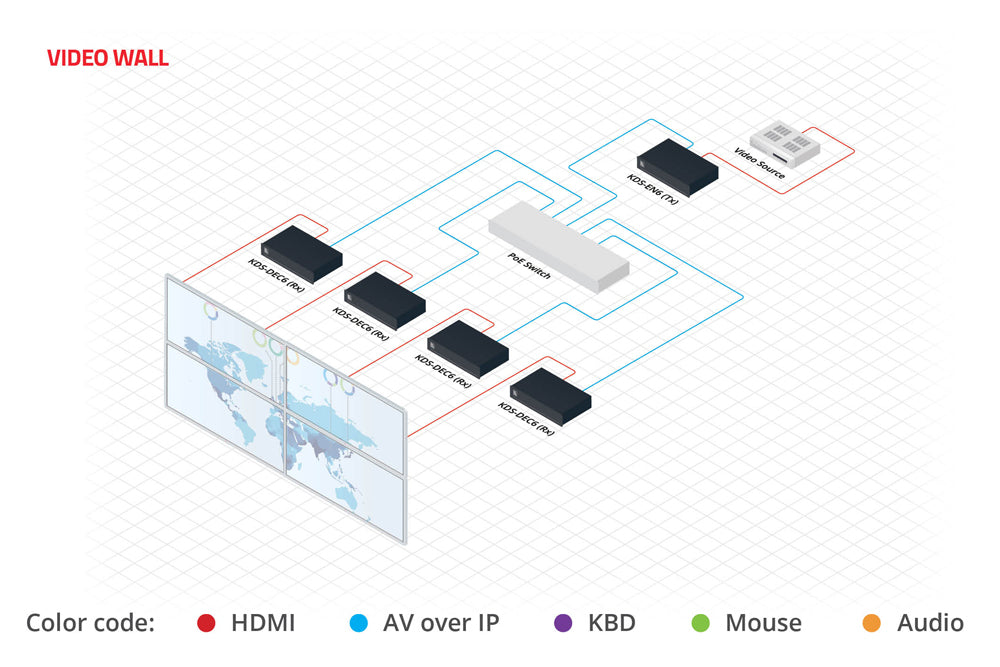

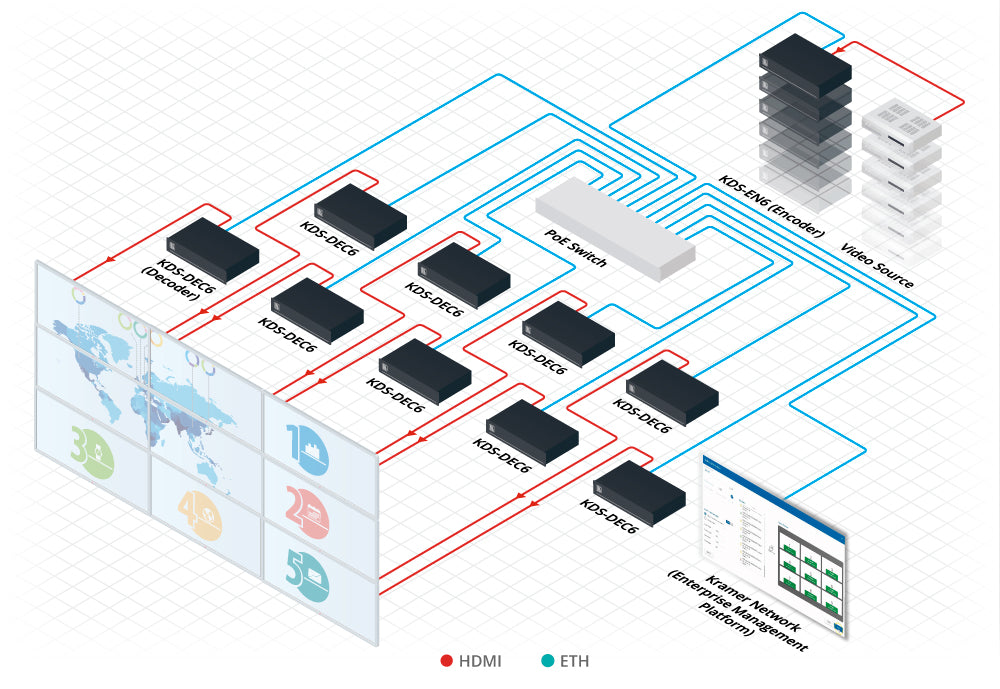

Yes, the Kramer KDS-EN6 can be used for video wall applications and supports configurations from 1 screen up to 256 screens. That makes it suitable for large-format digital signage, command and control rooms, sports venues, campus installations, and other environments where content needs to be spread across multiple displays in a coordinated way. Its AV over IP architecture is useful in these scenarios because sources can be routed flexibly across the network rather than tied to a fixed hardware matrix. The encoder also supports 4K60 4:2:0 streaming and HDCP 2.2, which helps when distributing high-resolution content, including protected material. This type of product is best for buyers who need expandability and centralized distribution. The main consideration is system design. Large video walls depend not just on the encoder but also on compatible receiving endpoints, network capacity, switch configuration, and display layout planning. For straightforward single-room switching, a simpler system may be enough, but for scalable multi-screen environments, the KDS-EN6 is built for that role.

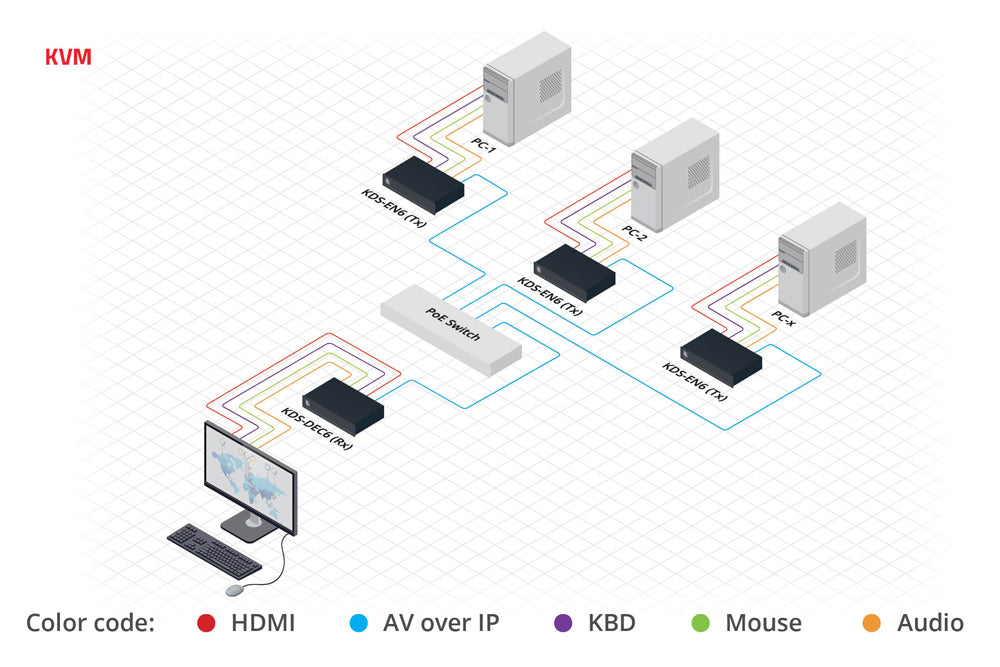

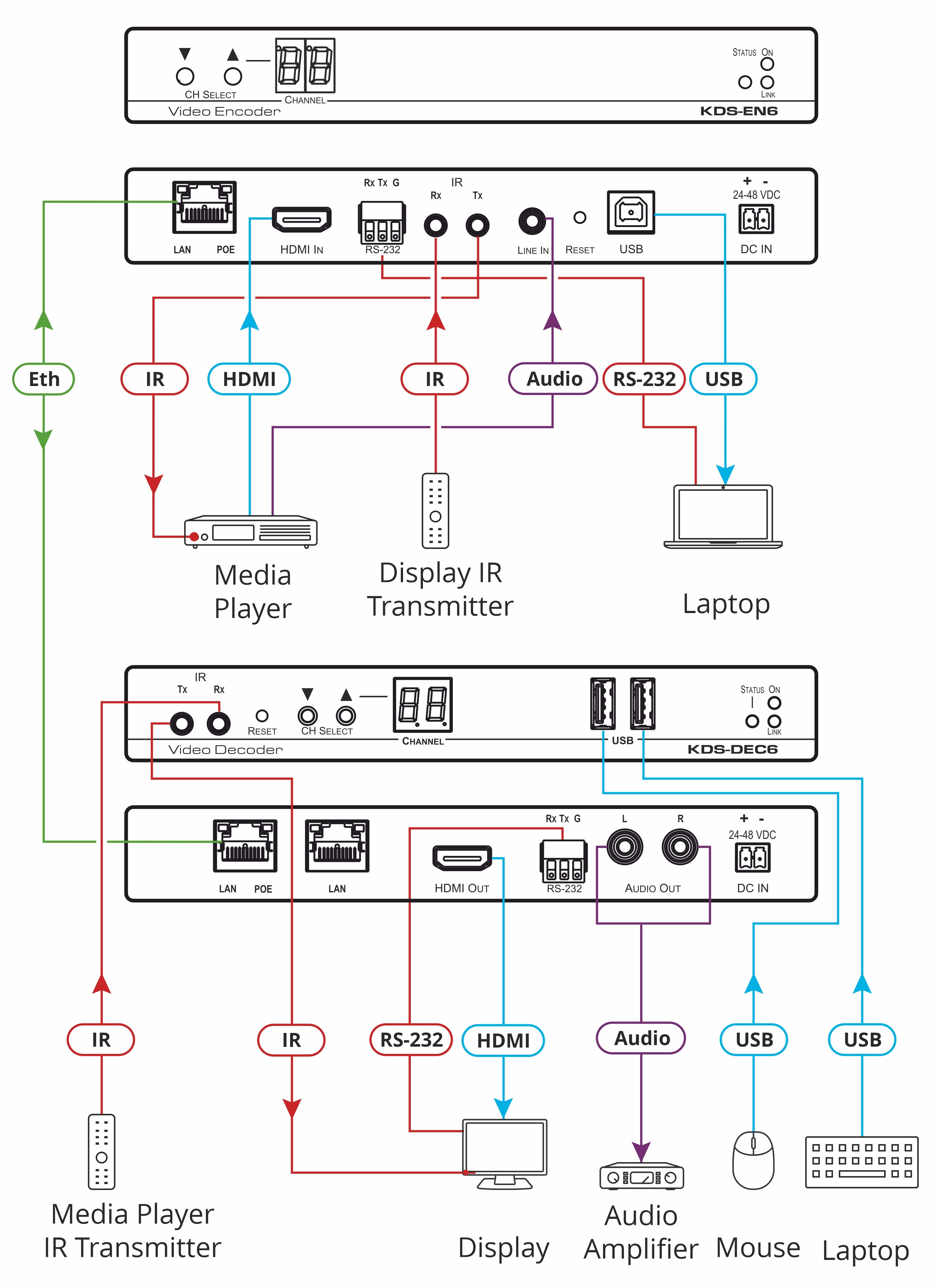

The Kramer KDS-EN6 carries more than video. It supports HDMI and line-in audio, including 7.1 PCM, Dolby True-HD, and DTS-HD Master, and it also transports control and extension signals such as IR, RS-232, and USB over IP. That makes it useful in systems where users need integrated control, peripheral access, or remote device communication along with the main AV stream. For a buyer, this means one encoder can help support a broader AV workflow. In a classroom, USB over IP may assist with connected peripherals. In a conference room or control environment, RS-232 and IR can help with remote device control. In a commercial display system, audio support is important when content includes embedded multichannel sound. The benefit is cleaner system integration and fewer separate extension devices. The tradeoff is that the full experience depends on the receiving side and overall network design. Shoppers should confirm that the rest of the AV over IP system supports the same control and audio requirements they plan to use.

Yes, the Kramer KDS-EN6 supports both HDCP 1.4 and HDCP 2.2. That is important because many commercial and consumer video sources use HDCP copy protection, especially newer 4K content. If an AV over IP encoder does not support the required HDCP version, protected content may fail to display correctly or may not pass at all. For buyers, HDCP 2.2 support is especially relevant in sports bars, meeting spaces, educational facilities, and signage networks where sources may include cable boxes, streaming devices, media players, or other protected 4K outputs. Having both HDCP 1.4 and 2.2 support improves compatibility across a wider range of source equipment. This does not mean every source and display issue is eliminated, because HDCP behavior also depends on the entire signal chain, including decoders and displays. Still, HDCP 2.2 support is a key specification to look for in any modern 4K AV over IP deployment, and it is one reason the KDS-EN6 fits current commercial distribution needs.

Before buying the Kramer KDS-EN6, the main requirements to understand are network readiness and power planning. On the network side, this encoder is designed for a 1G managed Layer 2 environment with IGMP snooping, especially if multicast will be used. That helps control AV traffic efficiently and is important for stable performance in multi-endpoint systems. On the power side, the unit supports Power over Ethernet or an external power supply. PoE can simplify installation by reducing the need for a local power outlet near the encoder, which is helpful in racks, behind displays, or in distributed commercial installations. External power can still be useful where PoE is not available or where the system design calls for separate powering. This product is best for projects that already have managed network infrastructure or are planning for it. Buyers with very small systems or unmanaged networks should confirm that their setup is appropriate for AV over IP. Reliable performance depends not just on the encoder itself, but on switch configuration, bandwidth planning, and compatible receiving devices.
