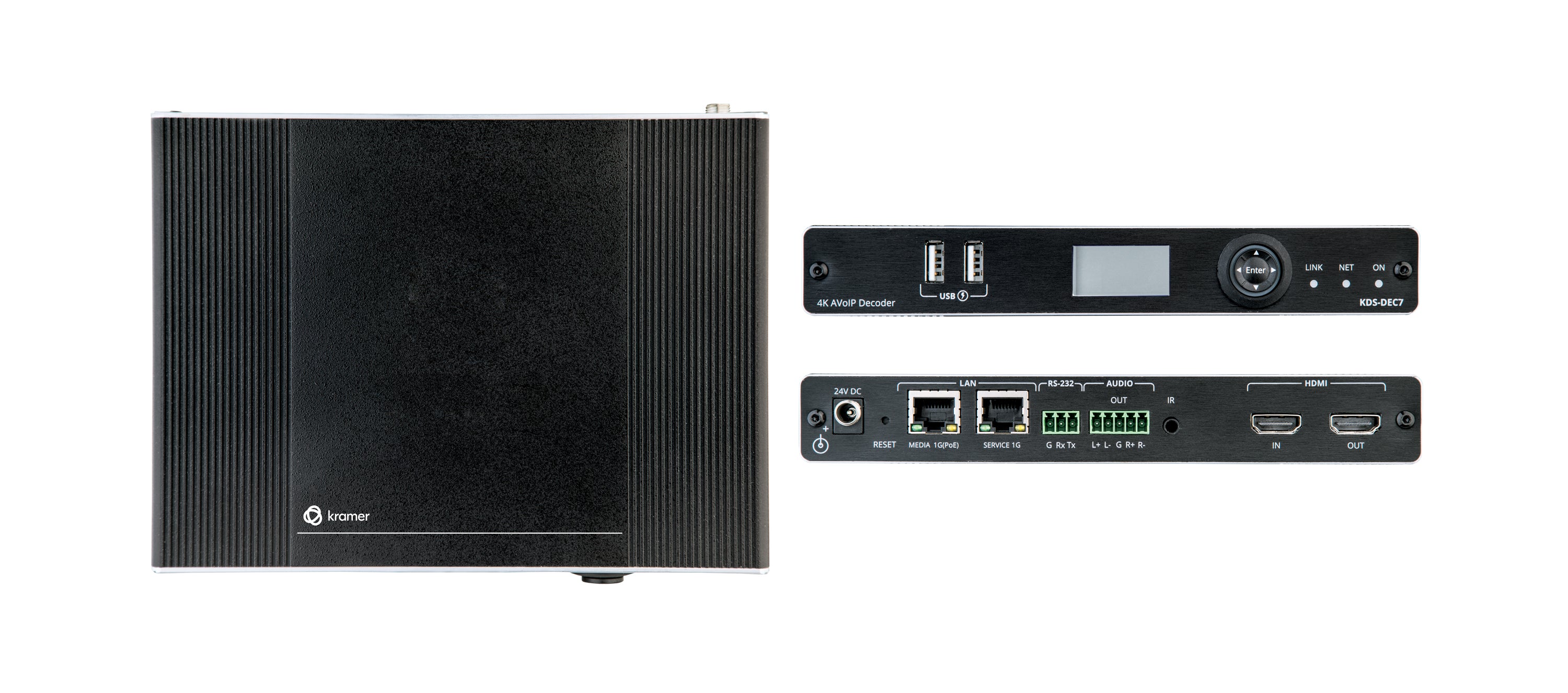

Kramer KDS-DEC7 High-Performance 4K AVoIP Decoder for 1G Networks

AVoIP stands for Audio Visual over Internet Protocol. In practical terms, it means sending video, audio, and control signals across a standard network instead of using long point-to-point AV cables or a traditional matrix switcher. An AVoIP decoder like the Kramer KDS-DEC7 receives a video stream from the network and converts it back to HDMI for a display, while also handling control signals such as USB, IR, RS-232, and CEC. This approach is useful when you need flexible routing, distributed displays, or scalable video walls across offices, campuses, control rooms, or public venues. The main benefit is scalability. You can add endpoints and displays more easily than with fixed hardware switching. It is especially helpful for organizations that want 4K distribution over 1G Ethernet infrastructure. The tradeoff is that AVoIP systems require proper network design and compatible encoders, decoders, and switches. For buyers comparing options, AVoIP is usually the better fit when growth, flexibility, and centralized control matter more than a simple single-room setup.

To convert HDMI to IP, you need an AVoIP encoder at the source and an AVoIP decoder at the display. The encoder takes the HDMI signal from a media player, PC, or switcher and streams it across the Ethernet network. A decoder such as the Kramer KDS-DEC7 then receives that stream and outputs it as HDMI to the display. In a complete system, the network switch becomes part of the signal path. The KDS-DEC7 is designed for 1G copper cable networks and integrates with managed AVoIP switching environments, making it suitable for multi-display installations, digital signage, meeting spaces, and command centers. It also passes control and peripheral signals including USB, IR, RS-232, and CEC, which is important when you need more than just video. This method is best for users who want flexible routing or expansion beyond one display. The key limitation is that a decoder alone does not convert HDMI to IP. You need a matching encoder on the input side and a properly configured network to build a complete HDMI over IP system.

An AVoIP decoder is a device that receives an AV stream from an IP network and converts it into a usable output for a display or connected equipment. In most systems, the decoder takes compressed or packetized video from Ethernet and outputs HDMI while also supporting control and communication signals. The Kramer KDS-DEC7 is an example of a high-performance 4K AVoIP decoder. It is built for 1G Ethernet networks and decodes IP streams to HDMI output. It also supports USB, IR, RS-232, and CEC transport, which makes it more useful in real-world installations where displays, cameras, touch devices, or room control systems need to communicate. A decoder is most valuable in systems with multiple endpoints, such as conference rooms, video walls, training facilities, and public displays. Compared with simple HDMI extenders, decoders are better for scalable routing and centralized management. The tradeoff is that they are part of a larger ecosystem, so they work best when paired with compatible encoders, managed network switches, and an overall AVoIP design.

The best AV over IP solution depends on scale, control needs, security requirements, and how fast you need switching to happen. For most commercial projects, key factors include video resolution, network bandwidth, endpoint compatibility, control signal support, video wall capability, security standards, and ease of deployment. The Kramer KDS-DEC7 checks several of the boxes that matter in business and institutional environments. It supports 4K video over 1G Ethernet, decodes to HDMI, and carries USB, IR, RS-232, and CEC signals. It also supports video walls up to 16x16 and switches in about one second, which is important in control rooms, signage networks, and presentation environments. From an IT perspective, it includes 802.1x authentication, HTTPS/TLS encryption, and OWASP Top 10 certification, which helps in security-conscious deployments. This type of decoder is best for organizations that want enterprise-friendly AV distribution on standard networks. Buyers should still confirm encoder compatibility, switch configuration, and whether the system needs ultra-low latency, multiview, or specialized audio features that may vary by platform.

A 1G AV over IP decoder can be enough for 4K video if the system is designed to compress and transport 4K efficiently over standard Gigabit Ethernet. The Kramer KDS-DEC7 is built specifically for 4K video streaming on 1G networks, which makes it a practical option for many commercial AV deployments without requiring a full 10G infrastructure. For many meeting rooms, signage systems, education spaces, and control applications, 1G endpoints offer a good balance of image quality, scalability, and network cost. The advantage is simpler use of common copper Ethernet cabling and easier integration with existing managed switching environments. The tradeoff is that not every 4K workflow has the same demands. If you need uncompressed video, extremely high frame-rate content, or very specialized latency performance, higher-bandwidth systems may be worth evaluating. For typical distributed 4K display applications, though, a 1G decoder like the KDS-DEC7 is often sufficient and can be easier to deploy at scale than more bandwidth-intensive alternatives.

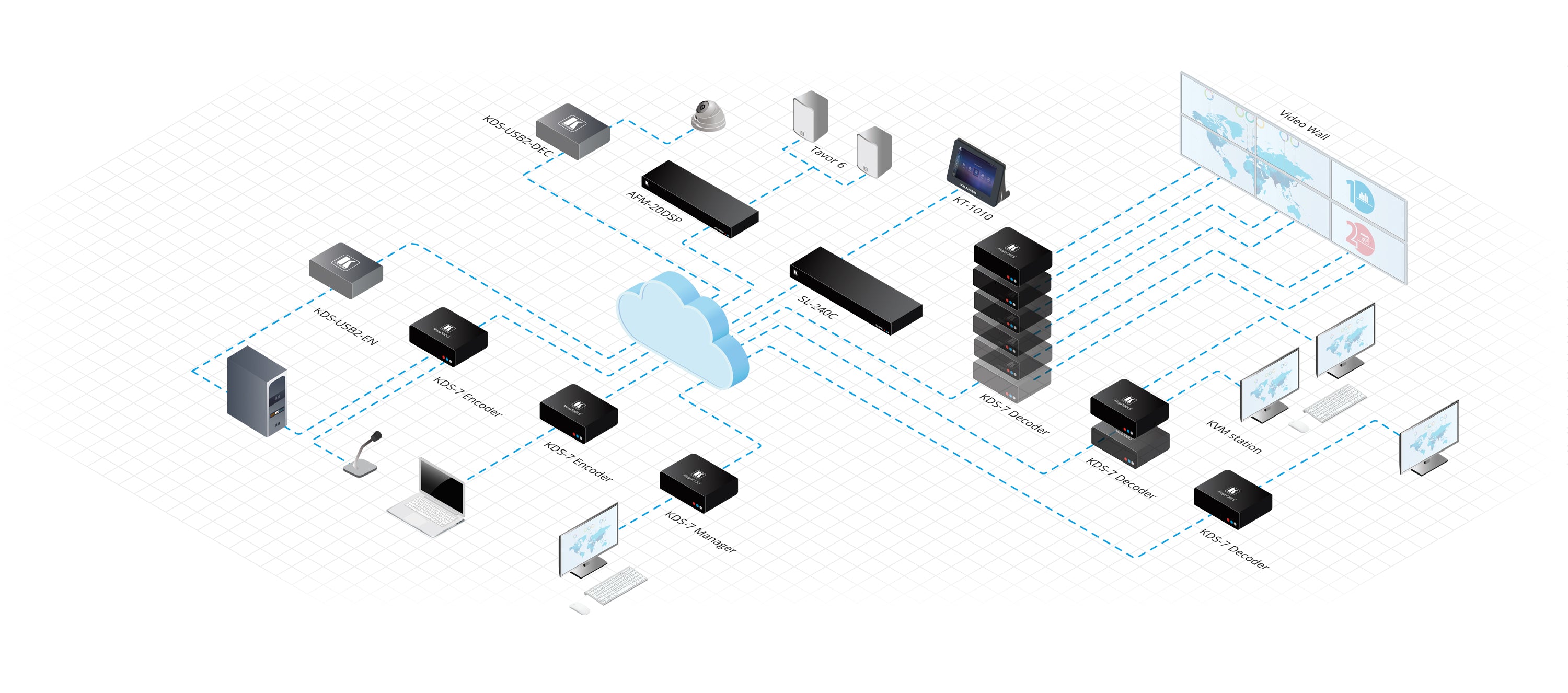

An AVoIP decoder and a traditional HDMI matrix switcher both help route video, but they do it in very different ways. A matrix switcher is usually a fixed hardware chassis with a set number of inputs and outputs. An AVoIP system uses encoders, decoders, and a network switch to route signals across Ethernet, which makes expansion much more flexible. A decoder like the Kramer KDS-DEC7 receives a selected network stream and outputs it to HDMI at the display. It can also carry USB, IR, RS-232, and CEC, which makes it useful in integrated room and control environments. Because it works over 1G networks, it is well suited for installations where displays are spread across multiple rooms, floors, or buildings. A matrix switcher may be simpler for a single room with fixed source and display counts. An AVoIP approach is usually better when you need scalability, distributed architecture, video walls, or centralized management. The main tradeoff is that AVoIP relies on proper network design and compatible endpoints rather than a standalone all-in-one switching frame.

Yes, the Kramer KDS-DEC7 is designed for video wall and multi-display applications. It supports video walls up to 16x16, which makes it suitable for command and control rooms, corporate lobbies, public information displays, and other environments where one source may need to be shown across many screens or arranged into larger visual canvases. Its approximately one-second switching time is helpful in spaces where content needs to change quickly without long interruptions. Because it operates over 1G Ethernet and decodes to HDMI, it can fit into scalable network-based display systems more easily than many fixed traditional AV distribution methods. This decoder is especially useful for integrators and IT teams building commercial display networks that may grow over time. The main consideration is that video wall performance depends on the full system design, including compatible encoders, switch configuration, and overall control platform. Buyers should also verify how layout control and wall management will be handled in the broader AVoIP ecosystem, not just at the decoder endpoint.

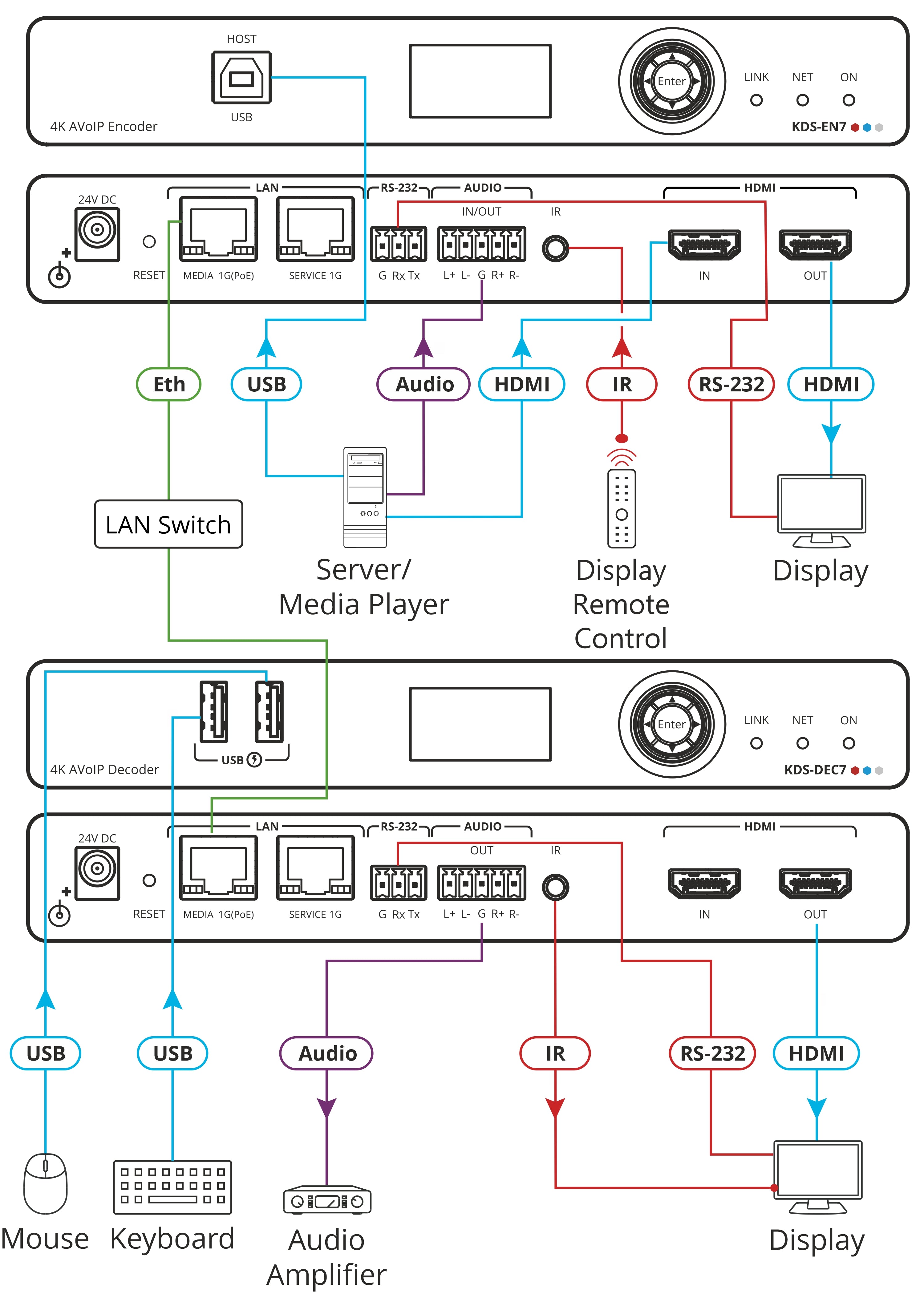

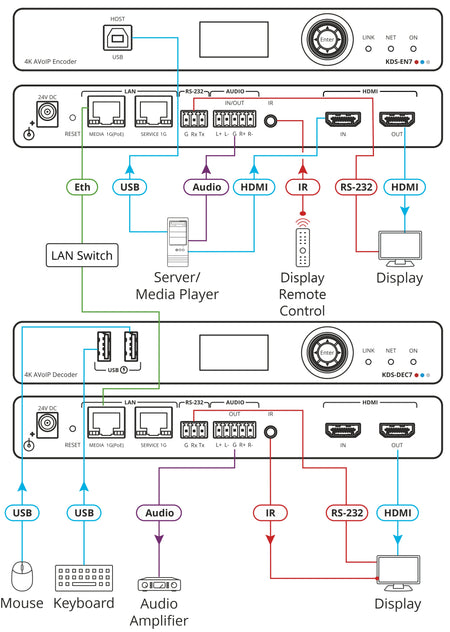

The Kramer KDS-DEC7 supports USB, IR, RS-232, and CEC alongside its HDMI video output. That matters because many professional AV systems need more than video transport. Displays, room control processors, peripherals, touch devices, and source equipment often need command, automation, or data connectivity to work as a complete system. For example, RS-232 and IR are commonly used for display control, USB can be important for peripherals or interactive applications, and CEC can simplify basic command communication over HDMI. Having these signals available through the decoder makes the endpoint more versatile in conference rooms, training spaces, operations centers, and public venues. This is especially valuable for buyers planning integrated AV deployments rather than simple one-way signage. The benefit is cleaner system design with fewer separate extenders or adapters. The limitation is that support for these signal paths still depends on the overall system architecture and how the corresponding encoder, control platform, and network are configured. It is best suited to projects where unified AV and control transport is part of the design goal.

Yes, the Kramer KDS-DEC7 is a strong fit for security-conscious AV deployments because it includes several features that align with enterprise IT expectations. It supports 802.1x authentication, HTTPS/TLS encryption, and is certified against OWASP Top 10 security considerations. Those are meaningful indicators for organizations that need to treat AV endpoints as managed network devices rather than isolated hardware. This makes it particularly relevant for corporate offices, higher education, operations centers, and public-sector environments where cybersecurity and policy compliance matter. In these settings, a decoder that can handle 4K video while also fitting into secure network practices is often preferred over simpler unmanaged AV gear. The main advantage is better alignment between AV and IT requirements. The tradeoff is that these environments usually require more planning, including network policy coordination, certificate handling, and managed switch configuration. Buyers who prioritize security, centralized oversight, and standards-based deployment will typically benefit most from a decoder with this level of network-focused design.

The Kramer KDS-DEC7 is designed to be relatively straightforward to deploy in the right environment, especially for installations already using compatible managed AVoIP switching and centralized control. It integrates with Netgear M4250 AVoIP switches and Kramer Control, which supports a more plug-and-play rollout than many loosely matched AV over IP systems. It also supports Power over Ethernet with up to 13W consumption, which can simplify installation by reducing the need for separate local power supplies at each display endpoint. HDMI loop-through adds flexibility in certain signal path designs, and the use of standard 1G copper network infrastructure can make cabling more familiar for IT teams. This decoder is best for professional installations where AV and network planning are handled together. It is easier to deploy than many custom-built IP video systems, but it is still not the same as a basic HDMI extender. Buyers should expect configuration of encoders, switches, routing, and control logic as part of the complete system. For organizations seeking scalable 4K distribution, the setup effort is usually justified by the flexibility gained.
