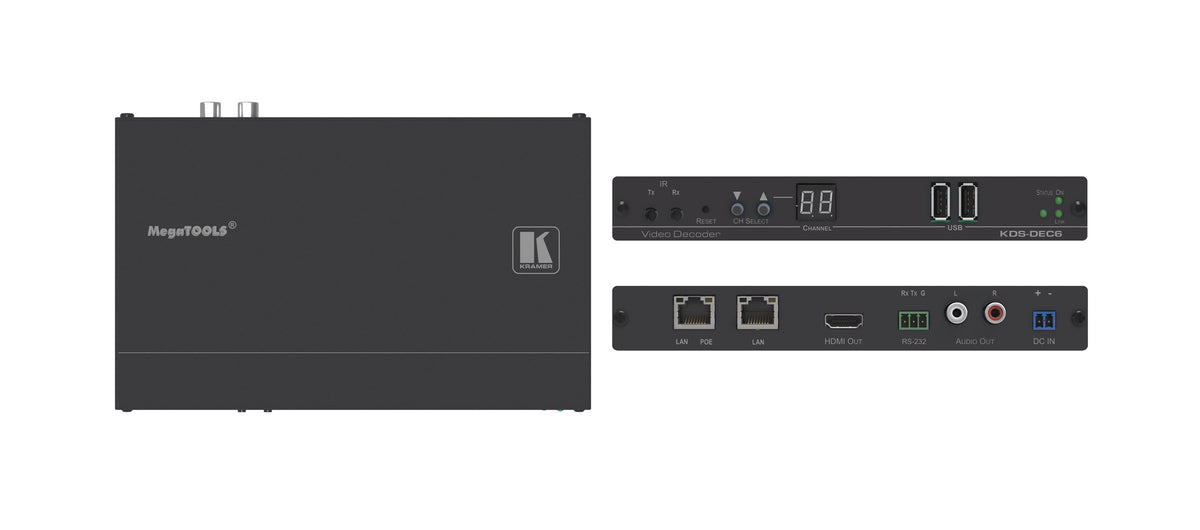

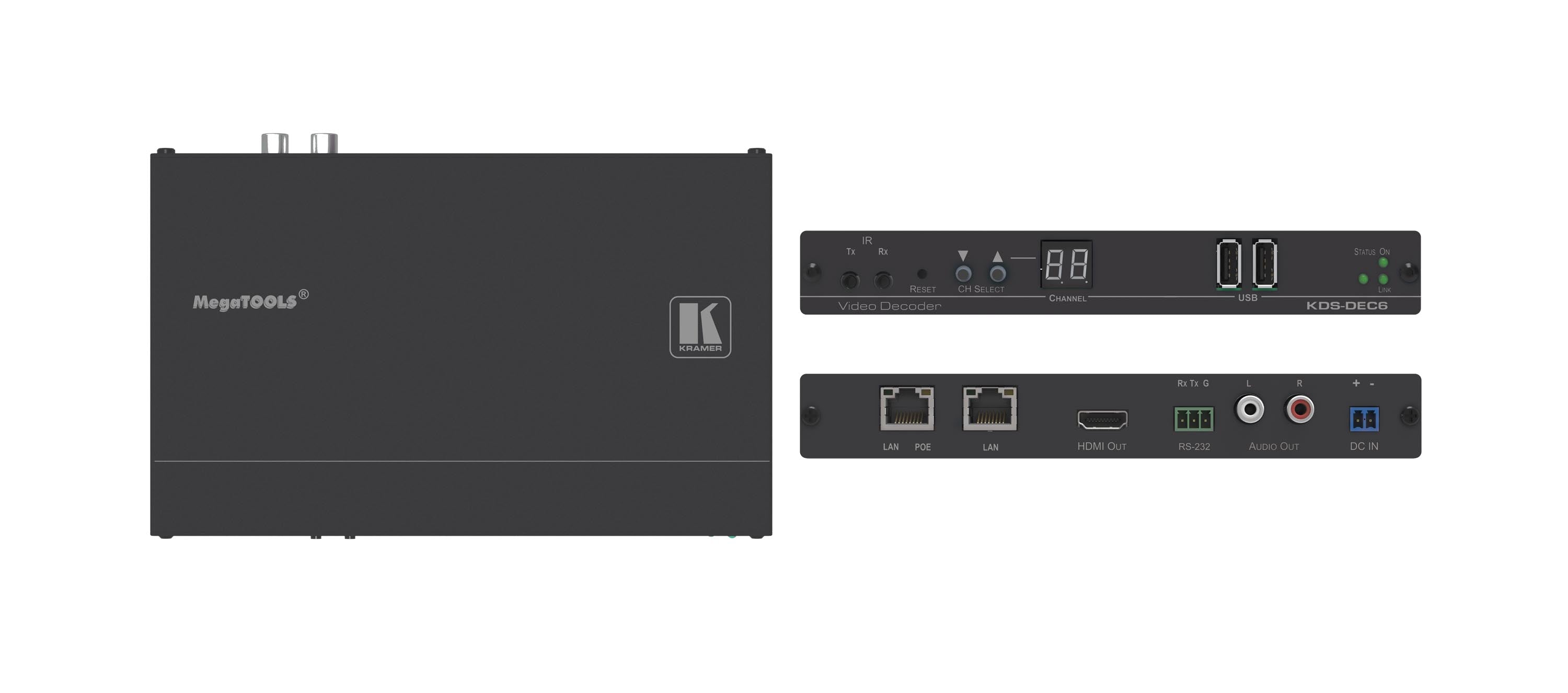

Kramer KDS-DEC6 4K60 4:2:0 HDCP 2.2 AVoIP Video Decoder

An AV over IP video decoder receives audio, video, and control signals from a network and converts them back to HDMI and related outputs at the display end. You need one when you want to distribute sources over standard Ethernet infrastructure instead of running a separate direct cable from every source to every screen. The Kramer KDS-DEC6 is designed for that role in professional AVoIP systems. It decodes up to 4K at 60Hz with 4:2:0 chroma, supports HDCP 2.2 content protection, and can carry not only video and audio, but also IR, RS-232, and USB over IP. That makes it useful in environments where displays also need control, peripheral extension, or source switching across a network. This type of decoder is best for sports bars, corporate offices, education spaces, and digital signage networks where flexibility and scalability matter. The main tradeoff is that it belongs in a managed AVoIP system, not a simple one-display setup. If you only need to connect one source directly to one projector or display, a traditional switcher or extender may be simpler.

An AV over IP encoder takes a local source such as a media player, computer, or set-top box and converts that signal for transport over a network. A decoder does the opposite: it receives the stream from the network and outputs it to a display or audio endpoint. The Kramer KDS-DEC6 is a decoder, so it belongs on the display side of an AVoIP system. Its job is to receive streamed 4K60 4:2:0 content and output it over HDMI while also handling audio, IR, RS-232, and USB over IP. In a complete installation, you typically pair one or more encoders at the sources with one decoder for each display endpoint. This matters when planning a system because buying only a decoder will not let you send a source onto the network by itself. Shoppers building a full AV over IP system should confirm they have both the encoding side and the decoding side covered. The decoder is ideal for users who already have, or plan to build, a managed network-based distribution system with multiple displays.

The right AVoIP decoder should match your resolution requirements, content protection needs, audio format support, control extension requirements, and network design. For most professional 4K installs, the key checks are whether it supports 4K60, HDCP 2.2, multicast operation, and the specific control signals your system uses. The Kramer KDS-DEC6 fits installations that need 4K60 4:2:0 video decoding, HDCP 1.4 and 2.2 compliance, and transport of IR, RS-232, and USB over IP. It also supports advanced audio formats including 7.1 PCM, Dolby True-HD, and DTS-HD Master Audio. For larger systems, it works with unicast and multicast over a 1G managed Layer 2 switch using IGMP snooping and supports video walls up to 256 screens. It is a strong fit for distributed signage, education, and corporate AV where one source may need to appear on many displays. The main limitation is that buyers must provide the right managed network environment. If your network is unmanaged or you only need point-to-point extension, a simpler product category may be more appropriate.

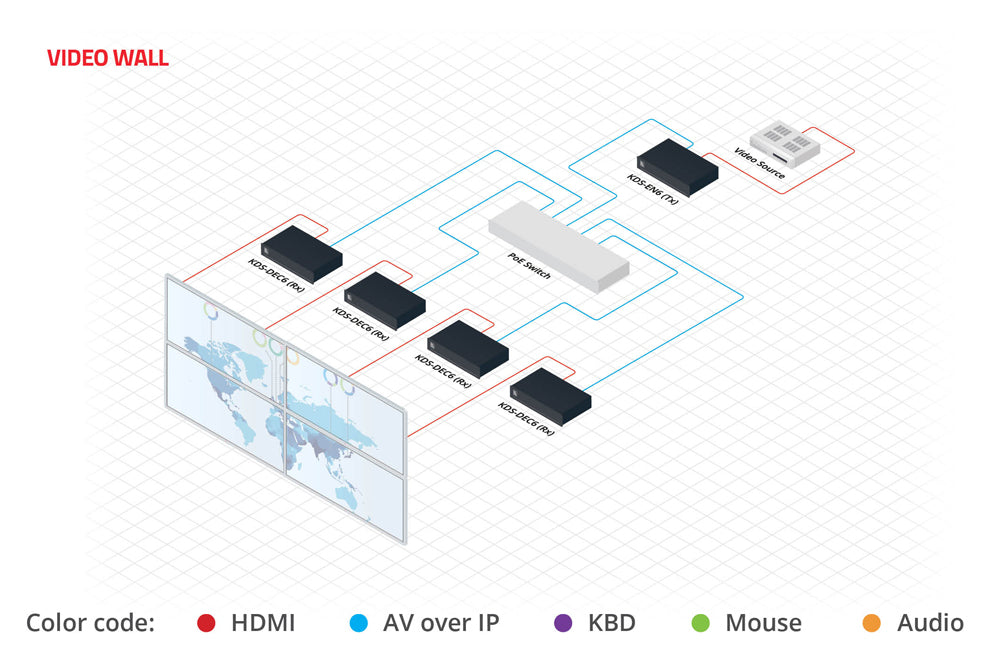

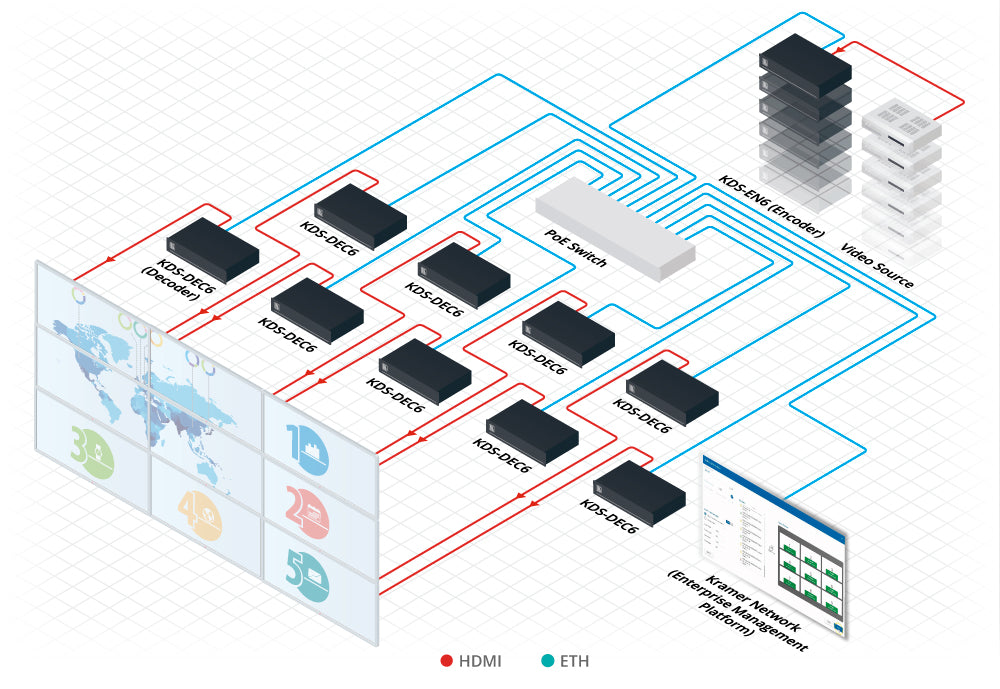

Yes. The Kramer KDS-DEC6 is built for video wall and multi-display AVoIP applications, with support for configurations from a single screen up to 256 screens. That makes it suitable for command centers, sports bars, retail signage, corporate lobbies, and campus-wide display networks. Because it is an AV over IP decoder, each endpoint can receive a networked video stream and be assigned within a larger matrix or wall layout. This gives integrators more flexibility than fixed-format direct cabling systems, especially when displays may be reconfigured later. The unit also supports multicast operation, which is important for efficiently sending the same content to multiple displays on a managed network. This decoder is best for users who need scalable display distribution and centralized control. A practical consideration is that performance depends on proper network design, including a 1G managed switch with IGMP snooping. If you want a simple standalone wall processor with no networked distribution, a dedicated non-AVoIP solution may be easier to deploy.

Yes. The Kramer KDS-DEC6 supports HDMI video up to 4K at 60Hz with 4:2:0 chroma subsampling, and it is compliant with both HDCP 1.4 and HDCP 2.2. That is important for modern commercial AV systems because many protected 4K sources require HDCP 2.2 compatibility to display correctly. For shoppers comparing AVoIP decoders, this means the KDS-DEC6 is suitable for many current 4K distribution applications such as signage, presentation systems, and multi-room content sharing. It also carries more than just video, supporting audio, IR, RS-232, and USB over IP, which can reduce the need for separate extension hardware. The most important limitation to understand is the video format: it is 4K60 4:2:0, not 4:4:4. For many commercial video applications, 4:2:0 is completely acceptable. However, if your project demands the highest chroma detail for graphics-heavy desktop content or specialized color-critical use, you should confirm whether 4:2:0 meets your requirements before purchase.

The Kramer KDS-DEC6 is designed to operate on a standard 1G managed Layer 2 network switch that supports IGMP snooping for multicast traffic. In practical terms, that means it is intended for professional network environments where video streams need to be managed efficiently across multiple endpoints. This requirement matters because AVoIP traffic can overwhelm an unmanaged network if it is not configured correctly. IGMP snooping helps the switch send multicast video only where it is needed, which is especially important in larger installations with many displays or video wall zones. The decoder also supports unicast and multicast modes, giving system designers flexibility based on the project layout. This setup is best for commercial AV integrators, IT-supported deployments, and organizations building scalable video distribution systems. The tradeoff is that it is not a plug-and-play consumer streaming device. If you do not have a managed network or you are not comfortable configuring one, you may want a simpler HDMI distribution solution instead of a full AVoIP platform.

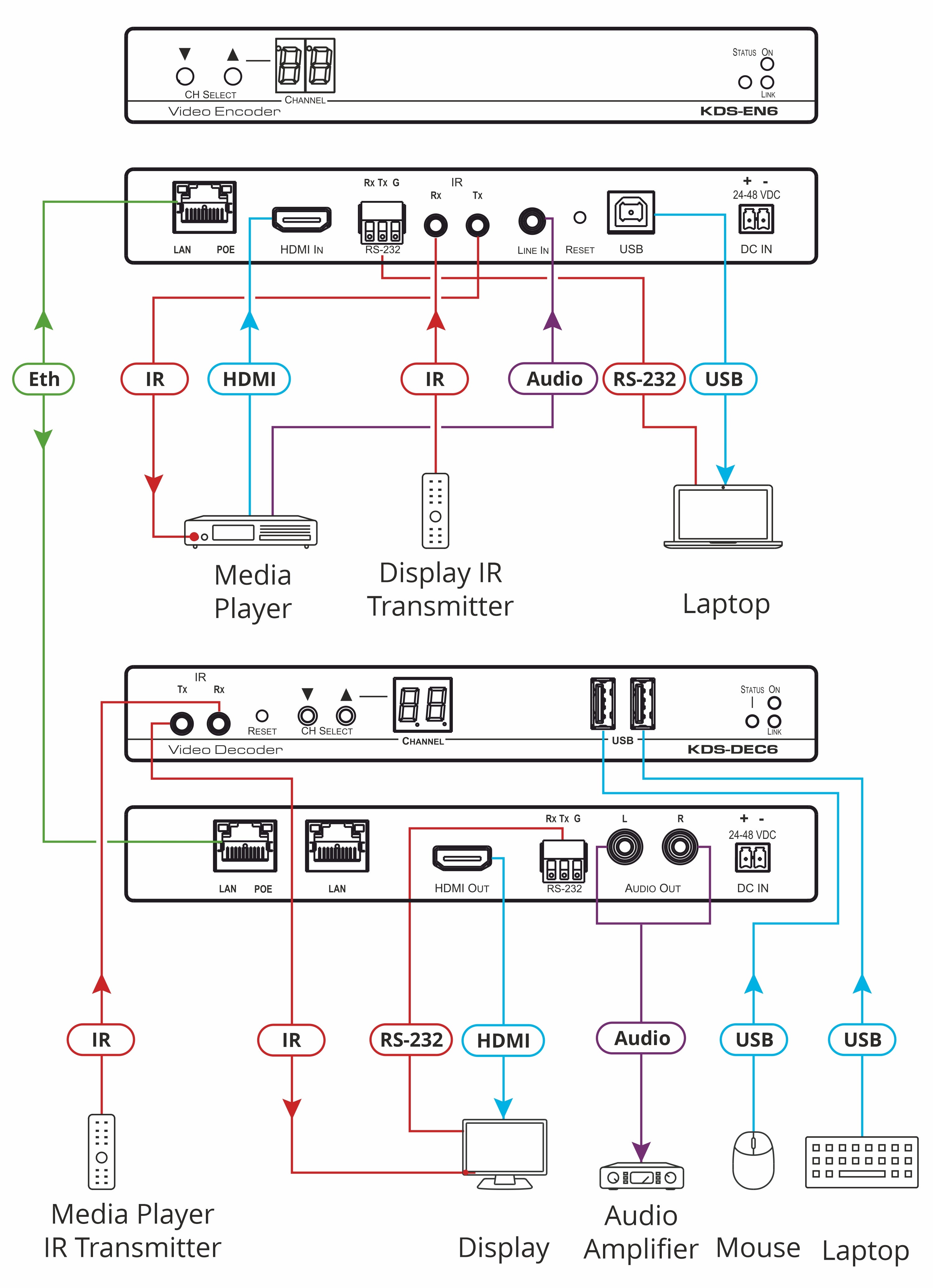

Yes. The Kramer KDS-DEC6 is more than a video decoder. It is designed to transport and decode multiple signal types over IP, including audio, IR, RS-232, and USB, in addition to HDMI video. That makes it useful for systems where displays or endpoints need peripheral support and remote control, not just picture output. On the audio side, it supports HDMI and line-level audio handling with formats including 7.1 PCM, Dolby True-HD, and DTS-HD Master Audio. For control and integration, IR and RS-232 over IP help extend remote commands and serial device control, while USB over IP can support connected peripherals in compatible system designs. This broad signal support benefits classrooms, meeting spaces, and commercial installations where touch devices, control systems, or local peripherals must communicate across the network. The tradeoff is that these features deliver the most value in a properly planned AVoIP ecosystem. Buyers should verify compatibility with their encoders, control platform, and USB use case rather than assuming every function works identically in every deployment.

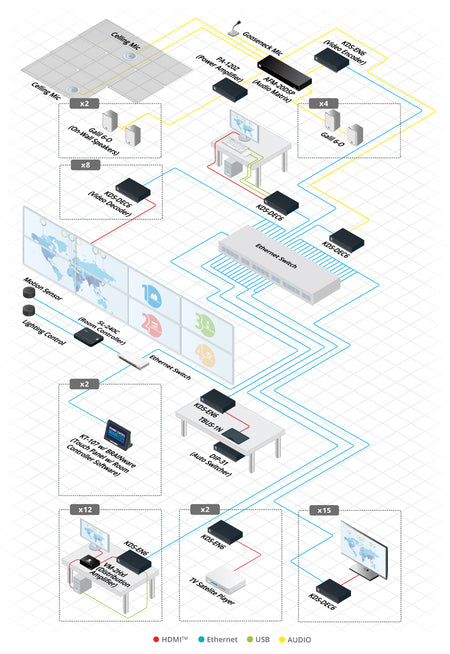

Yes, for the right type of installation. The Kramer KDS-DEC6 is a strong fit for sports bars, corporate offices, and educational environments that need scalable AV distribution over a network. It is especially useful when multiple displays need flexible source routing, centralized management, or video wall capability. In sports bars, it can help distribute protected 4K content to many screens across a managed network. In offices, it supports presentation and signage use cases where displays may need changing content assignments over time. In schools, it can support classrooms, commons areas, and control extension needs through USB, IR, and RS-232 over IP. Its support for multicast and up to 256-screen video walls adds flexibility for larger campuses or multi-zone facilities. It is best for organizations with an integrator or IT-supported AV deployment. The main limitation is that it is not the simplest option for a single-room, single-display setup. Smaller installations without a managed network may get better value and easier deployment from a more basic switcher, scaler, or direct-extension solution.

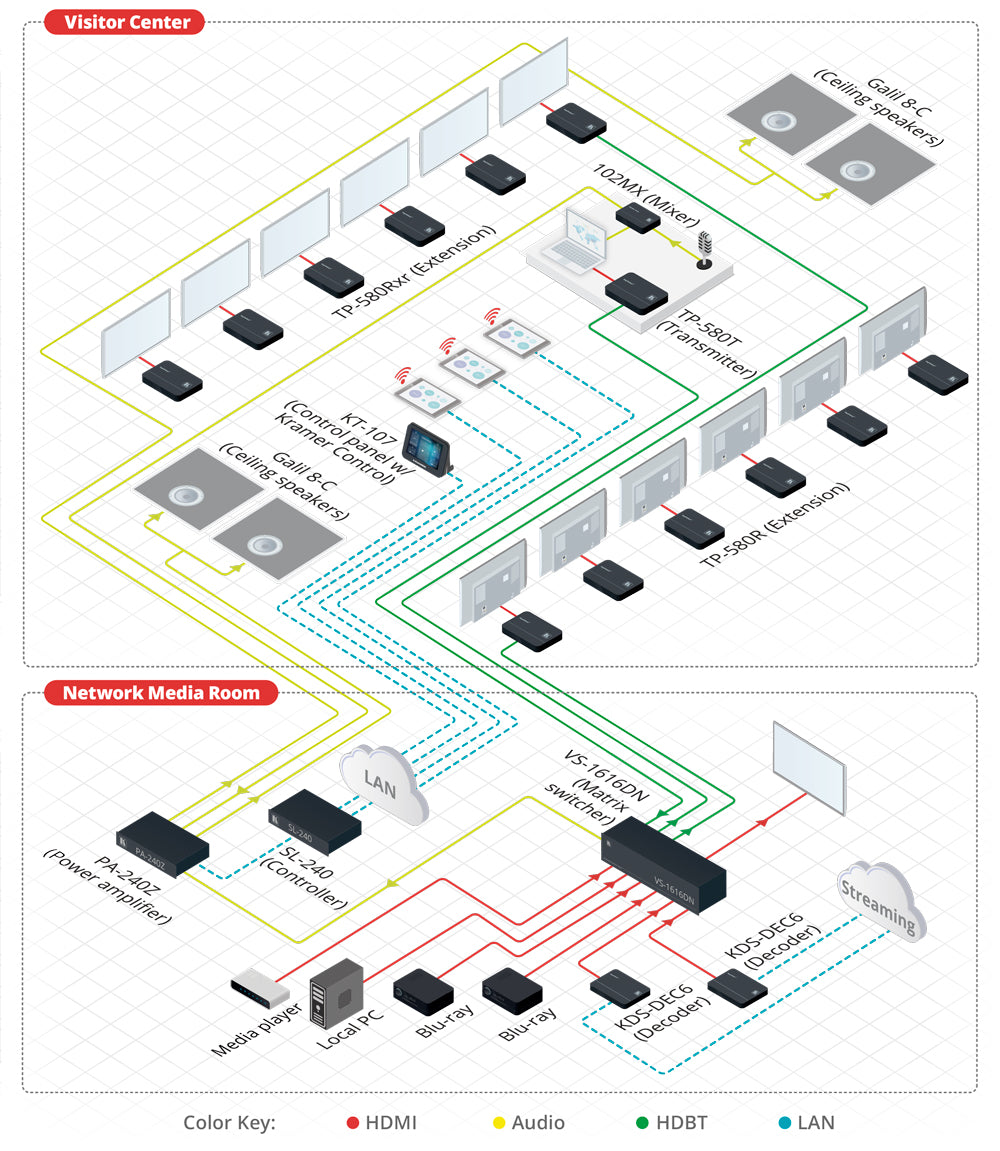

A traditional switcher or scaler usually manages sources locally in one room, selecting between inputs and sometimes adjusting resolution for a nearby display. An AV over IP decoder like the Kramer KDS-DEC6 serves a different purpose: it receives a streamed source from the network and outputs it at the display endpoint, making it part of a distributed system rather than a local one. That difference is important when planning a project. If you need to send content across multiple rooms, many displays, or a large facility, AVoIP gives far more flexibility than point-to-point switching. The KDS-DEC6 also carries control and extension signals such as IR, RS-232, and USB over IP, which many basic switchers and scalers do not. It supports 4K60 4:2:0, HDCP 2.2, and video walls up to 256 screens. Choose this type of product if network-based scalability is the goal. Choose a traditional switcher or scaler if your needs are local, simple, and centered around a small number of sources and one display or projector.

Buyers should confirm three things before ordering: system role, network readiness, and return policy. First, the Kramer KDS-DEC6 is a decoder, not a complete standalone AV distribution system. It is meant to work within a compatible AV over IP setup, typically alongside encoders and a managed network. Second, it requires the proper infrastructure. Kramer specifies operation over a 1G managed Layer 2 switch with IGMP snooping, and the product supports both unicast and multicast configurations. It can be powered by PoE or an external power supply, which helps with installation planning. You should also verify that its video specification of 4K60 4:2:0, HDCP 1.4 and 2.2 compliance, and support for HDMI audio, IR, RS-232, and USB over IP match your application. Finally, this item is listed as non-returnable. That makes pre-purchase verification especially important. It is best for professional buyers, integrators, and organizations that have already defined their AVoIP architecture and need a reliable decoder endpoint for distributed AV.
