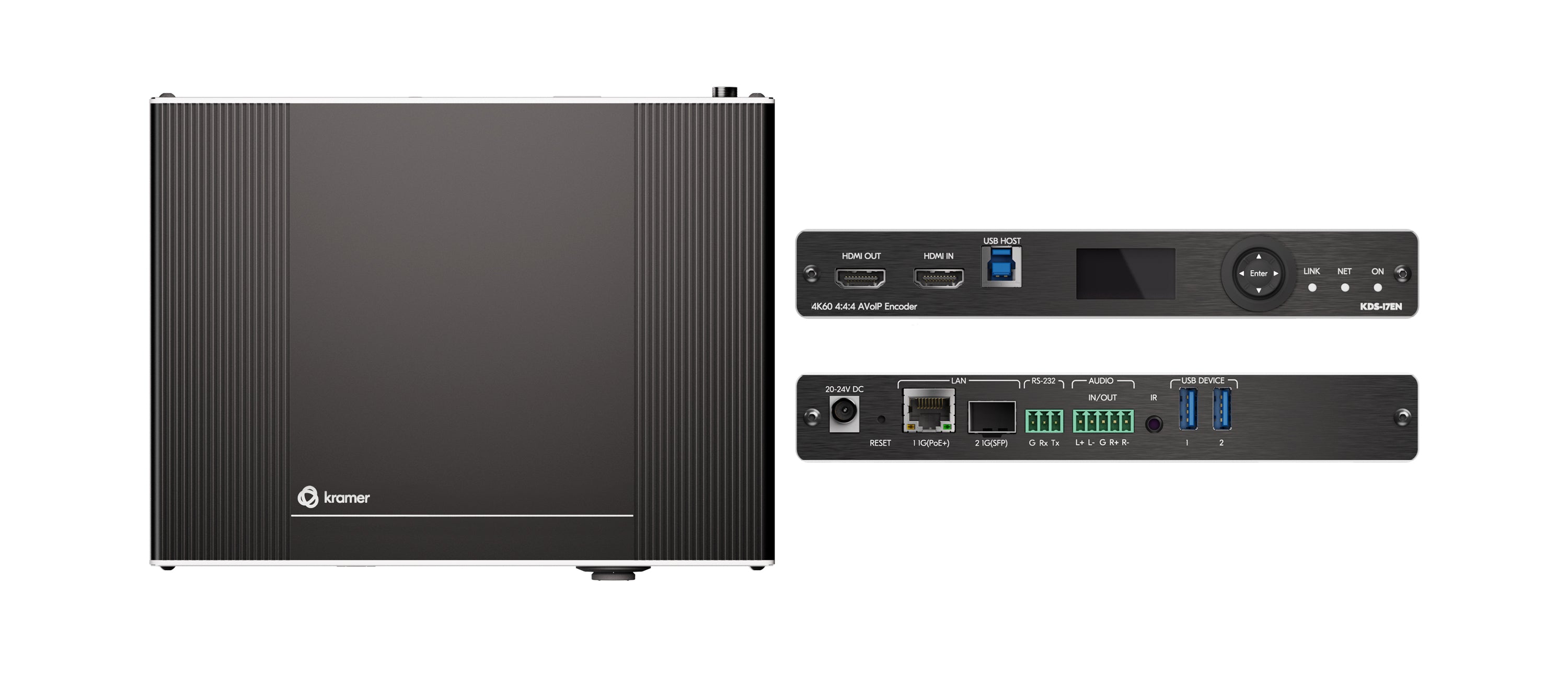

Kramer KDS-17EN 4K60 4:4:4 AVoIP Encoder with Dante Support

AVoIP stands for Audio Visual over Internet Protocol. In practical terms, it means sending video, audio, and control signals over a standard Ethernet network instead of relying on traditional point-to-point AV cabling and matrix hardware. For buyers, the main benefit is scalability. An AVoIP encoder like the Kramer KDS-17EN takes a local source signal and converts it for transport over a 1GbE network using unicast or multicast streaming. That makes it easier to distribute 4K video, Dante audio, and control signals such as USB, IR, RS-232, and CEC across multiple rooms or displays. AVoIP is especially useful in corporate offices, education, government, and command and control spaces where systems need to grow or change over time. The tradeoff is that network-based AV requires planning around switching, bandwidth, and endpoint configuration. It is usually a better fit for professional installations than for very small, single-display setups.

An IP encoder is a device that converts a local AV source into network traffic so it can be distributed over Ethernet to one or more destinations. In a professional AV system, the encoder is the starting point of an AV over IP workflow. The Kramer KDS-17EN is an example of a 4K60 4:4:4 AVoIP encoder. It is designed to stream high-resolution video and audio over copper or fiber Ethernet in either unicast or multicast modes. Beyond video, it also carries Dante audio and supports USB, IR, RS-232, and CEC, which helps extend control and device integration across the network. This type of encoder is most useful when you need flexible routing, centralized distribution, or the ability to scale beyond a simple direct connection. It is less about basic signal conversion and more about building a networked AV infrastructure. Buyers comparing options should confirm resolution support, network speed requirements, audio format compatibility, and which control signals are included.

The best AV over IP solution depends on image quality requirements, audio workflow, control needs, network compatibility, and how many endpoints you plan to support. For a 4K installation, one of the first checks is whether the system handles 4K60 at 4:4:4, since that preserves full color detail and is important for text, graphics, and close-viewing environments. The Kramer KDS-17EN is aimed at buyers who need high-detail 4K60 4:4:4 transport over a standard 1GbE network. It also supports unicast and multicast streaming, Dante audio, and control extensions including USB, IR, RS-232, and CEC. That makes it a strong fit for enterprise, education, and government spaces that need both AV distribution and device control on the same infrastructure. A good choice if you need high quality and integration flexibility, it may be more capability than a simple room-to-room application requires. Buyers should also consider whether their network can support managed AV traffic and whether they need copper, fiber, or both.

An AVoIP encoder converts AV signals into network streams so they can travel over Ethernet, while a traditional AV switcher usually routes signals through dedicated hardware connections in a fixed chassis. The difference is most noticeable when systems need to scale, expand to multiple rooms, or share sources across many endpoints. With a traditional switcher, capacity is typically limited by the number of physical inputs and outputs. With an AVoIP encoder such as the Kramer KDS-17EN, sources can be streamed across a 1GbE network using unicast or multicast, which gives much more flexibility for distributed AV designs. This model also adds Dante audio and control transport for USB, IR, RS-232, and CEC. A traditional switcher may still be the simpler option for smaller, localized systems with predictable routing. An AVoIP encoder is a better fit for larger professional environments such as campuses, command centers, and enterprise buildings where flexibility and network-based distribution matter more than a fixed switch frame.

Yes, 4K60 4:4:4 can be very important if your content includes detailed text, spreadsheets, dashboards, control interfaces, or high-end video where color accuracy and fine edge detail matter. The 4:4:4 specification means full chroma information is preserved, which helps keep small text and graphics sharp. The Kramer KDS-17EN supports 4K60 4:4:4, making it suitable for professional environments where visual precision is critical, such as corporate boardrooms, operations centers, and government installations. This is especially relevant when users will be viewing content up close on large displays. For more casual video playback, some buyers may not notice as much difference compared with lower chroma formats. But for mixed-use professional AV, full 4:4:4 support is a strong buying point because it protects readability and image fidelity. If your priority is presentation clarity rather than just basic motion video, it is worth prioritizing.

The Kramer KDS-17EN is best suited for professional environments that need high-quality 4K video distribution over a network while also carrying audio and control signals. Typical users include corporate AV teams, higher education campuses, government facilities, and command and control rooms. It is a good match for projects where sources must be shared across multiple spaces or displays using existing IT infrastructure. The encoder supports 4K60 4:4:4 video, Dante audio, and transport for USB, IR, RS-232, and CEC over 1GbE in either unicast or multicast configurations. That combination is useful when a system needs both strong visual performance and broad integration flexibility. It is less ideal for a simple single-room setup where a direct HDMI path or small conventional switcher would do the job more simply. Buyers who benefit most are those planning a scalable AV over IP system and who want compatibility with modern network-based AV workflows rather than a fixed, one-to-one signal path.

Yes, the Kramer KDS-17EN supports Dante audio, which matters because Dante is widely used in professional AV and pro audio systems for transporting digital audio over Ethernet. This allows audio to integrate more cleanly into network-based designs without relying only on separate analog paths or isolated audio routing hardware. For buyers, Dante support is valuable when audio needs to move alongside video in enterprise, education, or government environments that already use networked audio workflows. It can simplify expansion, routing, and interoperability with other Dante-enabled devices in the system. In the KDS-17EN, Dante support is part of a broader AV over IP feature set that also includes 4K60 4:4:4 video and control transport for USB, IR, RS-232, and CEC. The main consideration is that Dante is most useful when your larger system is designed around networked audio. If you do not use Dante or do not need digital audio distribution over the network, that feature may be less essential to your buying decision.

Yes, the Kramer KDS-17EN is designed to support AV over IP transmission over both copper and fiber Ethernet infrastructure. That flexibility is useful because different projects have different cabling requirements based on distance, building layout, and existing network design. Copper Ethernet is often practical for shorter runs and spaces with standard structured cabling already in place. Fiber is typically preferred for longer distances, greater interference resistance, or backbone connections between rooms, racks, or buildings. By supporting both, the KDS-17EN gives integrators more deployment options in enterprise and institutional environments. This matters most in larger professional installations where the AV system has to fit into an existing IT architecture rather than being built from scratch. Buyers should still confirm the exact network topology, switch compatibility, and installation requirements for their project. The device is built for 1GbE environments, so the surrounding network should be planned accordingly.

Unicast sends a stream from one source to one destination at a time, while multicast sends one stream that can be received by multiple endpoints on the network. In AV over IP, that difference affects scalability, bandwidth efficiency, and how content is shared across displays. The Kramer KDS-17EN supports both unicast and multicast operation. Unicast can be useful for direct point-to-point routing where only one receiver needs the content. Multicast is typically better when the same source must be distributed to multiple displays, rooms, or zones without creating separate duplicate streams for each endpoint. For buyers, multicast is often the better long-term option in larger installations because it can make wide distribution more efficient. However, it usually requires a properly configured managed network. Unicast may be simpler in smaller deployments. The right choice depends on system size, network design, and whether your project is focused on one-to-one transport or one-to-many content distribution.

No, the Kramer KDS-17EN is not described as an ONVIF encoder, and it should not be treated as an HDMI to ONVIF device. It is a professional AVoIP encoder built for AV distribution over Ethernet, not a surveillance-oriented video encoder designed around ONVIF interoperability. That distinction matters because ONVIF is commonly associated with IP camera and security ecosystem compatibility, while the KDS-17EN is intended for enterprise AV applications such as conference spaces, education, command and control, and government installations. Its focus is 4K60 4:4:4 video transport, Dante audio, and control signal support including USB, IR, RS-232, and CEC over a 1GbE network. If your goal is professional AV routing and scalable video over IP, this product is aligned with that use case. If your goal is integration into an ONVIF-based security or camera management platform, you should look for a dedicated ONVIF-compatible encoder instead. Buyers should match the protocol and ecosystem to the actual application before choosing.
