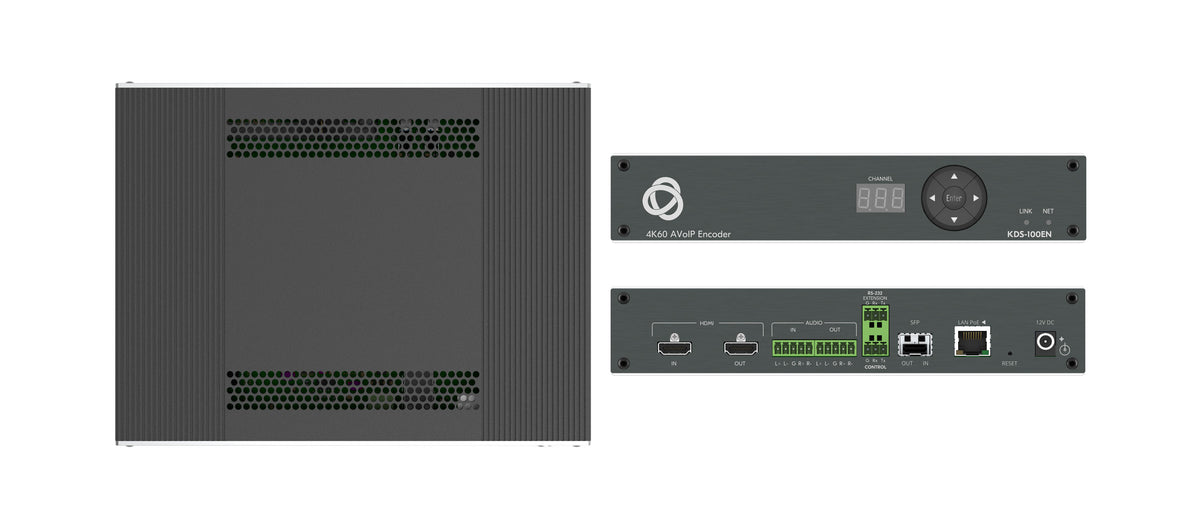

Kramer KDS-100EN Professional 4K AVoIP Encoder Ultra-Low Latency Dual Streaming
Free shipping on all projectors!
Add to cart for product promotions!
Tax-Exempt Purchasing Available in cart
Regular price
$1,440.00
Couldn't load pickup availability
Frequently Asked Questions
What is an AV over IP encoder, and when do you need one?
An AV over IP encoder converts a video source into network traffic so it can be distributed over a standard Ethernet network instead of a dedicated point-to-point video cable run. You typically need one when you want to send HDMI or similar source content to multiple displays, route sources flexibly, or manage AV across several rooms, buildings, or zones.
The Kramer KDS-100EN fits that role as a professional 4K AVoIP encoder designed for 1GbE networks. It uses H.264 and H.265 compression, which helps deliver high-quality video while staying compatible with common AV over IP workflows. This type of encoder is especially useful in corporate meeting spaces, higher education, command environments, public venues, and any installation where centralized switching and scalable distribution matter.
It is best for users who want network-based video distribution with ultra-low latency, dual streaming, and secure remote control features like KVM over IP. A tradeoff is that an encoder is only one part of the system. You also need compatible decoders, network infrastructure, and proper system design to get the full benefit.
How is an AV over IP encoder different from a decoder?
An AV over IP encoder sends video onto the network, while a decoder receives that network stream and converts it back for display or local output. In simple terms, the encoder sits near the source, and the decoder sits near the screen or endpoint.
The Kramer KDS-100EN is an encoder, so its main job is to take a source signal and place it on a standard 1GbE network using H.264 or H.265 compression. It is a good fit when you need centralized routing, flexible distribution, recording, monitoring, or collaboration workflows. Because it also supports dual streaming, it can help feed more than one workflow at the same time, such as live display plus recording or live display plus remote monitoring.
Shoppers should think of encoders and decoders as complementary parts of the same AV over IP system. If your goal is to get content from a laptop, media player, or room PC onto the network, you need an encoder. If your goal is to show that stream on a display, you also need compatible decoding on the receiving end.
What should I look for in a 4K AV over IP encoder for enterprise or education use?
For enterprise and education environments, the most important features are video quality, low latency, network compatibility, security, manageability, and interoperability. A good 4K AV over IP encoder should work on standard 1GbE infrastructure, support common compression standards, integrate with management software, and provide reliable performance in multi-room deployments.
The Kramer KDS-100EN checks many of those boxes. It supports 4K video distribution over 1GbE, uses open-standard H.264 and H.265 compression, and offers approximately 40ms latency for responsive switching and collaboration. It also includes enterprise-friendly security features such as HTTPS, TLS, 802.1x compliance, and OWASP-10-oriented protections. For IT teams, Kramer AVoIP Manager helps with automatic discovery, configuration, and real-time monitoring.
This matters most for schools, corporate campuses, and public venues that need scalable AV without rebuilding infrastructure around proprietary transport. The main tradeoff is that compressed AV over IP systems require thoughtful network planning, especially if you are combining live display, recording, and control across multiple endpoints.
Is ultra-low latency important for AV over IP, and is 40ms considered good?
Yes, latency is one of the most important factors in AV over IP, especially when users need live interaction, smooth source switching, or remote control. Around 40ms is generally considered very good for many professional AV applications because it is fast enough for collaboration, classroom use, monitoring, and KVM-style interaction without feeling sluggish to most users.
The Kramer KDS-100EN is specified at approximately 40ms latency, which makes it a strong option for environments where timing matters more than simple one-way content playback. That includes lecture capture support, active meeting rooms, control rooms, and operator workflows that rely on KVM over IP. Lower latency helps reduce the disconnect between user input and what appears on screen.
The right latency threshold depends on the use case. For passive digital signage, slightly higher latency may be acceptable. For highly interactive applications, lower is better. Buyers should also remember that total system responsiveness depends on the network, display processing, and decoder performance, not just the encoder alone.
What are the benefits of H.264 and H.265 in an AV over IP encoder?
H.264 and H.265 are widely used video compression standards that help reduce bandwidth while maintaining strong image quality. In an AV over IP encoder, that means you can distribute high-resolution video over standard networks more efficiently than with uncompressed transport, which can simplify deployment and lower infrastructure demands.
The Kramer KDS-100EN supports both H.264 and H.265, giving system designers flexibility to match performance and efficiency to the application. H.264 is broadly supported and well understood, while H.265 can improve compression efficiency, which may be useful in larger or more bandwidth-sensitive deployments. Because these are open standards, they also improve interoperability in mixed-vendor environments and with third-party video processors or recording appliances.
This is especially valuable for organizations that want a scalable AV over IP system without locking themselves into a closed ecosystem. The tradeoff is that compressed workflows can introduce some latency and may require compatibility checks across the full signal chain. For most enterprise and education deployments, the bandwidth savings and flexibility are worth it.
Can this encoder be used for monitoring, recording, and live collaboration at the same time?
Yes, that is one of the key advantages of this model. The Kramer KDS-100EN supports dual streaming, which allows one source to serve multiple workflows simultaneously, such as live AV distribution, confidence monitoring, recording, or collaboration.
In practical terms, dual streaming gives integrators more flexibility when building systems for lecture halls, meeting spaces, event venues, and operations environments. For example, a presenter’s source could be sent to room displays while also being captured by a recording appliance or monitored remotely by support staff. This can reduce the need for extra signal-splitting hardware and simplify system architecture.
The feature is most beneficial for organizations that want to get more value from each source stream and avoid building separate infrastructures for display and capture. Buyers should still confirm how the rest of the system handles stream subscriptions, recording platforms, and network capacity. Dual streaming is powerful, but the overall result depends on compatible endpoints and proper network design.
Does the Kramer KDS-100EN support secure AV over IP deployments?
Yes, the Kramer KDS-100EN is designed with IT-grade security features that make it suitable for professional networked AV environments. It supports HTTPS and TLS for secure communication, 802.1x compliance for network authentication, and protections aligned with OWASP-10 security considerations.
These features matter in corporate, education, and public-sector deployments where AV devices are no longer isolated from the IT network. Security is especially important when an encoder is used for sensitive presentations, remote access, or KVM over IP control. By supporting standard security practices, the KDS-100EN is easier to align with modern network policies than legacy AV hardware that lacks authentication or encrypted management.
This encoder is a strong fit for organizations where AV and IT teams need to work together under formal security requirements. The practical limitation is that built-in security features still need proper configuration by the installer or IT department. The product supports secure deployment, but overall protection depends on the full network, access control policies, and device management practices.
What is KVM over IP, and who benefits from it in an AV over IP encoder?
KVM over IP lets a user control a remote host computer or source device over the network using a keyboard and mouse, rather than being physically connected to that machine. In an AV over IP encoder, this is useful when operators need to interact with source systems from another room, control position, or support desk.
The Kramer KDS-100EN includes KVM over IP and RS-232 control, which expands its value beyond simple video distribution. That makes it useful in training rooms, lecture environments, control spaces, and enterprise installations where remote operation and support are part of the workflow. Combined with its approximately 40ms latency, it is designed to provide responsive control rather than just passive viewing.
KVM functionality benefits administrators, instructors, support staff, and operators who need secure remote access to source systems without adding a separate control platform. The main consideration is that KVM performance depends on the complete system design, including the network and endpoint setup. It is ideal for many professional applications, though extremely latency-sensitive control tasks may need careful validation.
How do channel-based routing and AVoIP management software simplify source switching?
Channel-based routing simplifies AV over IP by letting users switch sources by selecting channels instead of manually dealing with IP addresses and deeper network-level mapping. That makes the system easier to operate, scale, and troubleshoot, especially in environments with many sources and endpoints.
The Kramer KDS-100EN supports channel-based routing and works with Kramer AVoIP Manager for automatic discovery, configuration, and real-time monitoring. Together, those features reduce setup complexity and help AV and IT teams manage larger installations more efficiently. Instead of treating every endpoint as an isolated technical device, the system can be organized around logical source-to-display relationships that are easier for operators to understand.
This is particularly helpful in schools, conference centers, and enterprise campuses where room usage changes often and multiple streams need to be managed centrally. The tradeoff is that software-based management does not replace proper network planning. It makes day-to-day control easier, but the installation still benefits from clear design, VLAN strategy if needed, and endpoint coordination.
Who is the Kramer KDS-100EN best suited for, and when might another type of AV solution make more sense?
The Kramer KDS-100EN is best suited for professional environments that need secure, scalable 4K video distribution over standard 1GbE networks with low latency and flexible workflows. It is a strong fit for enterprise meeting spaces, education campuses, public venues, and integrated systems that require monitoring, recording, remote control, or multi-endpoint distribution.
Its biggest strengths are open-standard H.264 and H.265 compression, dual streaming, approximately 40ms latency, KVM over IP, channel-based routing, and centralized management through Kramer AVoIP Manager. Those features make it well matched to installations where AV must work closely with IT policies and grow over time without relying on direct cable switching for every source.
Another type of solution may make more sense if your setup is very small, does not need network-based distribution, or requires only simple direct switching in a single room. In those cases, a traditional local switcher may be easier. If your workflow is highly specialized, you should also verify decoder compatibility, control requirements, and recording integration before choosing an encoder-based AV over IP system.
The KDS-100EN is a professional-grade AVoIP encoder designed for high-quality 4K video distribution over standard 1GbE networks. Utilizing open-standard H.264/H.265 compression, this device delivers exceptional visual fidelity with seamless interoperability in mixed-vendor environments. It features dual streaming capabilities, allowing for simultaneous monitoring, recording, and collaboration across enterprise, education, and public venue applications. Integrated KVM over IP functionality provides secure keyboard and mouse control of remote hosts with ultra-low latency of approximately 40ms. The unit supports channel-based routing for simplified source switching without complex IP addressing requirements. IT-grade security, including HTTPS/TLS and 802.1x compliance, ensures robust protection for your AV network. Manage your deployment effortlessly with Kramer AVoIP Manager for automatic discovery, configuration, and real-time monitoring. This encoder is built for reliability, ensuring stable performance in demanding corporate and educational environments. It integrates seamlessly with third-party video processors and recording appliances for flexible system architecture. Experience professional AV distribution with this versatile, security-focused, and high-performance encoding solution.
| Video Compression | H.264 / H.265 |
| Latency | ~40ms |
| Network Interface | 1GbE |
| Security Features | HTTPS/TLS, 802.1x, OWASP-10 |
| Control | RS-232, KVM over IP |
| Management | Kramer AVoIP Manager |
| Power Supply | 12V DC |
