Kramer FC-7P 2-Port Multi-Function GPIO Relay PoE Control Gateway

An AV control system is a hardware and software setup that lets users manage connected room functions from one interface instead of controlling each device separately. In a meeting room, classroom, or digital signage environment, that can include displays, projectors, screens, lighting, shades, audio devices, and other automation points. A product like the Kramer FC-7P fits into this category as a control gateway. Rather than being a touch panel itself, it connects IP-based control platforms to physical devices through GPIO or relay ports. That makes it useful when you need to trigger simple actions such as raising a motorized screen, toggling lights, or activating external equipment over a network. AV control systems are best for spaces where reliability, repeatability, and remote management matter. The main tradeoff is that buyers should confirm the system matches their control method. Some users need a full room controller with many ports, while others only need a compact network gateway like this for a few relay or GPIO tasks.

AV stands for audio visual. An AV system typically includes the equipment used to present sound and video in a space, along with the infrastructure that makes everything work together. Common components include projectors, displays, speakers, microphones, switchers, control systems, screens, mounts, and signal distribution devices. In more advanced rooms, the control layer is what ties those parts together. The Kramer FC-7P is an example of that control layer. It is not a display or projector itself. Instead, it provides two multi-function ports that can be configured for GPIO or relay control, allowing an IP-based system to trigger external devices such as shades, motorized screens, or lighting circuits. This type of product is most helpful for integrators and facility teams building a coordinated AV environment. If a buyer only needs a single projector or screen with no automation, a control gateway may be unnecessary. If the goal is centralized operation and remote control, it becomes much more relevant.

Common examples include conference rooms, classrooms, training spaces, lecture halls, hospitality venues, and digital signage installations. In these systems, a control gateway is often used to connect network-based control software to simple contact-closure or GPIO devices that need to respond to room commands. For example, a conference room might use a gateway to lower a motorized projection screen when a presentation starts. A classroom could trigger lights or window shades when the projector powers on. A digital signage setup might control external relays for kiosks, displays, or support equipment. The Kramer FC-7P is designed for exactly that type of task, with two dual-function I/O ports that can work as bidirectional GPIO or relay control over Ethernet. This approach works best when a room already uses IP control and only needs a few physical control points added. If a system requires many inputs, many relays, or more advanced automation logic, a larger controller may be a better fit than a compact 2-port gateway.

Choose a GPIO gateway when you need to add a small number of physical control points to an IP-based AV system. Choose a full room controller when you need broader device control, more ports, or more complex automation. The right choice depends on how many endpoints you need to manage and whether your control platform is already in place. The Kramer FC-7P is a good example of a compact gateway for focused tasks. It offers two multi-function ports that can be configured for GPIO or relay use, connects over Ethernet, supports Power over Ethernet, and can be managed through a built-in web interface. That makes it practical for simple device triggers behind displays, above ceilings, or in racks where space is limited. A full controller may be better if you need multiple serial, IR, relay, and sensor connections in one box. The FC-7P is best for users who already have a control ecosystem and want a networked way to add relay or GPIO functionality without installing a larger controller.

GPIO control and relay control serve different purposes. GPIO stands for general-purpose input/output, which is used for sensing or sending low-voltage logic signals. Relay control acts like an electrically operated switch, making it useful for opening or closing a contact to trigger another device. In AV applications, GPIO is often used to detect states or interact with devices that rely on logic-level signals. Relay outputs are commonly used for actions such as lowering projection screens, triggering shades, or activating a contact closure on external equipment. The Kramer FC-7P supports both approaches through two multi-function ports that can be configured as bidirectional GPIO or relay connections. This flexibility is especially useful for integrators who are not sure whether a project needs sensor-style I/O or simple contact closure control. The key limitation is port count. Because the FC-7P has two ports, it is best for targeted control needs rather than large-scale room automation with many devices.

The Kramer FC-7P is best for AV integrators, IT teams, and facility managers who need to control a small number of external devices over a network. It is especially useful in environments where the main control system is already IP-based, but the devices being controlled still require GPIO or relay connections. Typical users include those automating motorized screens, lights, shades, or other room functions in conference rooms, classrooms, and display installations. Because it supports Power over Ethernet, it can be installed with a single network cable, which is helpful behind a display or in a rack where power outlets may be limited. It also supports USB power for added deployment flexibility. This model is a strong fit when the job calls for two controllable points and remote access through a built-in web UI. Buyers needing many I/O points, advanced onboard logic, or a standalone room automation processor should compare it with larger control hardware before deciding.

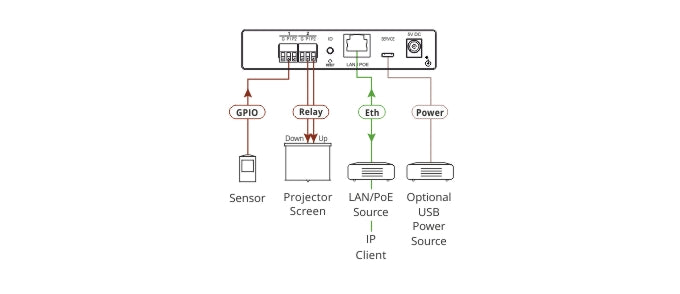

Yes, the Kramer FC-7P is designed to let IP-connected control systems manage external devices such as screens, lights, and shades, provided those devices accept GPIO or relay-style triggering. It acts as a networked gateway between Ethernet-based control software and physical control points. Its two multi-function ports can be configured for relay control or bidirectional GPIO, which gives installers flexibility when integrating different types of automation endpoints. This is useful in meeting rooms and classrooms where a central interface needs to trigger room functions without placing a full controller at every location. The unit also supports concurrent connections from multiple IP-connected clients, which helps in shared or centrally managed environments. The most important limitation is compatibility with the controlled device. The FC-7P does not replace the motor controller or dimming system itself. It works best when the connected equipment already supports external relay or GPIO control and only needs a reliable networked trigger point.

The Kramer FC-7P can run on PoE, which means it often does not require a separate local power supply. It supports IEEE 802.3af Power over Ethernet, allowing both power and network connectivity to be delivered through a single Ethernet cable. That can simplify installation and reduce cable clutter. This is especially valuable when the unit is mounted behind a display, in a lectern, or inside an equipment rack where AC power access may be inconvenient. The device also supports USB power, which provides a second powering option for installations where PoE is not available. PoE is usually the best fit for professional AV deployments because it centralizes power and makes placement more flexible. The tradeoff is that the network switch or injector must support the proper PoE standard. Buyers planning a new installation should confirm their network hardware can provide IEEE 802.3af power before relying on PoE alone.

Yes, the Kramer FC-7P supports both browser-based management and integration with Kramer control software platforms. It includes a built-in web UI, which allows remote setup and management through a standard browser. That makes it easier to configure or support the device without needing direct physical access. It is also compatible with Kramer Control, K-Touch, and K-Config, which is important for users building a broader managed AV environment. This combination makes the FC-7P a practical choice for installations where central monitoring, remote updates, or standardized workflows matter. This is most beneficial for integrators and support teams managing multiple rooms or devices across a network. The main consideration is ecosystem fit. Buyers should verify that their planned control workflow is based on Ethernet-connected management and that they only need the two available I/O points. For those needs, the FC-7P offers a straightforward plug-and-play gateway approach.

When comparing AV control system manufacturers and control gateways, focus on connection type, control method, software compatibility, powering options, and installation flexibility. The most important question is whether the device matches the way your room is controlled today. Some systems are built around IP management, while others rely on local hardware ports or proprietary ecosystems. For a gateway like the Kramer FC-7P, key strengths include Ethernet connectivity, two configurable GPIO or relay ports, support for IEEE 802.3af PoE, USB power as a backup option, and a built-in web UI for remote access. It is also compatible with Kramer Control, K-Touch, and K-Config, which matters if you want an integrated software path. A good comparison should also consider scale. Compact gateways are ideal for adding a few controlled endpoints in a clean, networked way. They are not always the best option for larger spaces that need many relays, sensors, or onboard automation logic. Matching port count and control architecture to the project is usually more important than choosing by brand alone.
