Kramer EXT3-XR-TR 4K60 HDBaseT 3.0 HDMI Extender with USB Ethernet

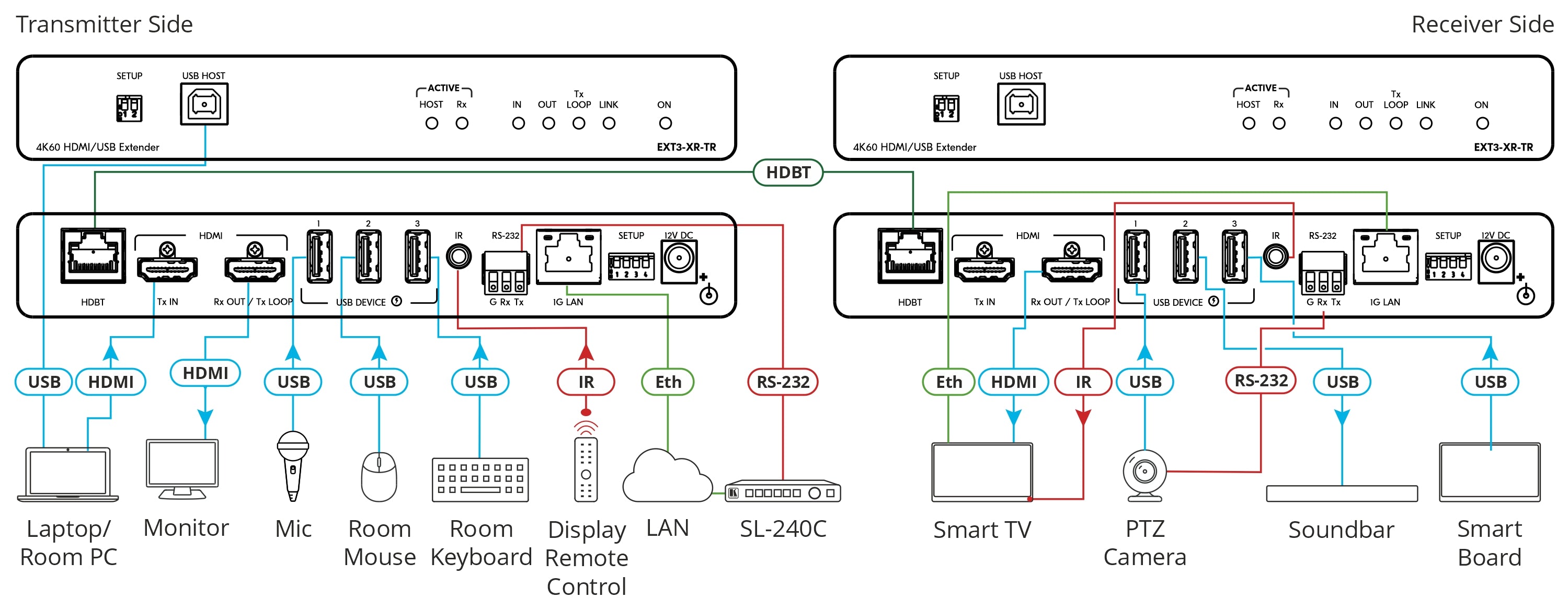

The EXT3-XR-TR is a high-performance HDBaseT 3.0 extender designed for professional AV installations requiring long-reach signal transmission. This versatile device supports uncompressed 4K60Hz (4:4:4) HDMI video, along with bi-directional USB 2.0, Ethernet, RS-232, and IR control signals. Capable of extending signals up to 100 meters (330 feet) over twisted pair copper cabling, it ensures reliable connectivity for corporate, educational, and conferencing environments. The unit functions flexibly as either a transmitter or a receiver, simplifying system design and deployment. It features HDMI 2.0 support including HDCP 2.3, HDR10, and multi-channel audio for a superior viewing experience. The fan-less MegaTOOLS enclosure allows for discreet installation in tight spaces or rack-mounted setups. This professional-grade solution provides essential signal management for modern hybrid meeting rooms and training facilities.

Resolution	4K@60Hz (4:4:4)
Transmission Technology	HDBaseT 3.0
Max Extension Distance	100m (330ft)
Video Connectivity	HDMI
Data Connectivity	USB 2.0, Ethernet, RS-232, IR
HDMI Compliance	HDCP 2.3, EDID, CEC, HDMI 2.0
Audio Support	Up to 32-channel uncompressed digital audio
Enclosure Design	MegaTOOLS fan-less
Ethernet Bandwidth	Up to 1 Gbps
